Embedded NC Model Door Magnetic Sensor Switch

1,744.00 Lead Time: 1-3 Days

In stock

🛡️ Your Shopping is 100% Safe & Secure
💬
Instant WhatsApp Support
24/7 real human assistance
100% Authentic Products
Direct from authorized importers
🇮🇳
Free Shipping Pan India
Fast Dispatch in 1–3 days
🔒
SSL Encrypted Checkout
Your data is completely safe
10,000+ Happy Customers
4.8★ average rating
🎯 Shop with confidence — Your satisfaction is our guarantee!
0 People watching this product now!
SKU: TBD06056687 Categories: , ,
Description

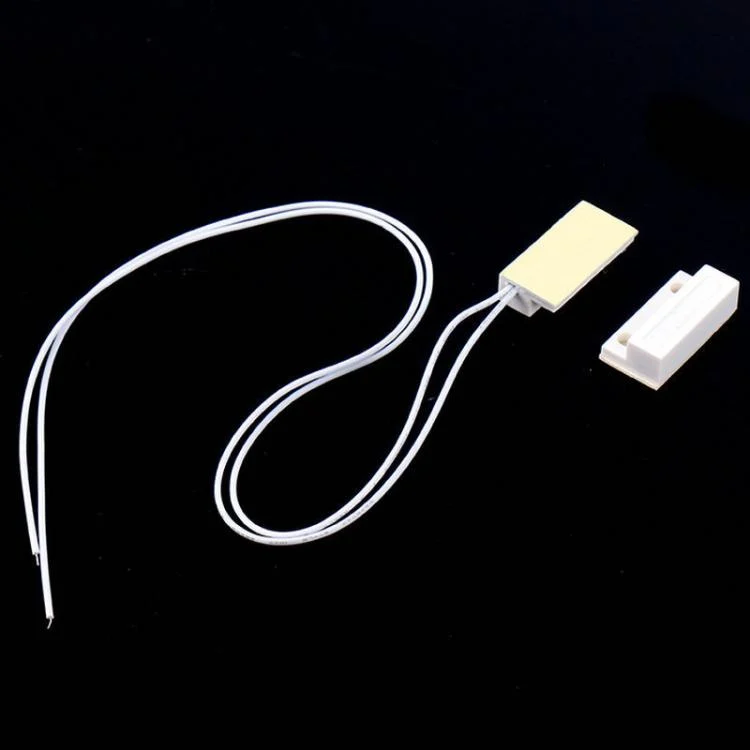

1. Material: ABS imported reed switch; 1007#/26#360mmUL wire
2. Action distance: 18mm
3. Switch withstand voltage: 100VDC
4. Load current: 300mA

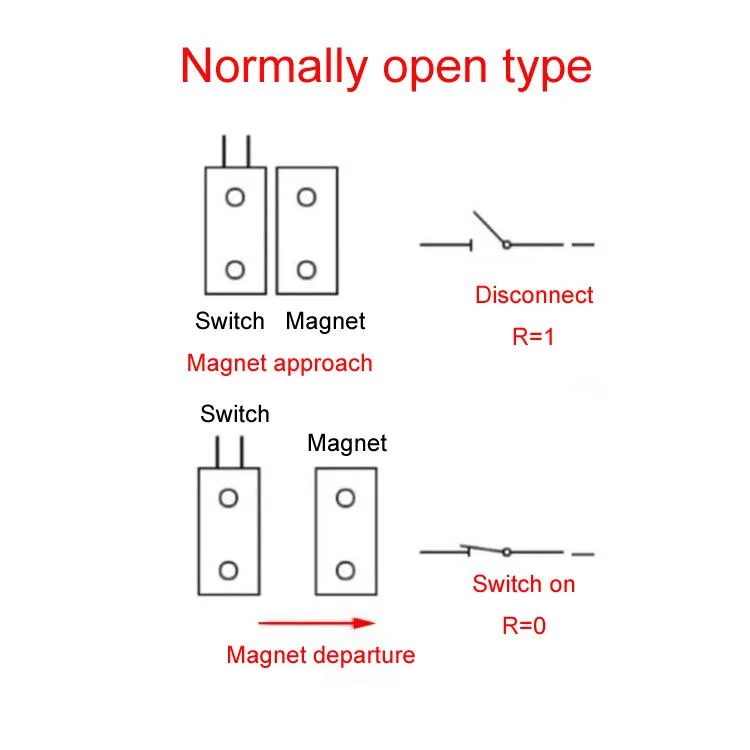

5. Switch output: normally open (the normally open door magnetic switch means that the switch signal is disconnected when the switch and the magnet are close together, and the switch signal is closed when the switch and the magnet are separated, commonly known as the passage)
6. Surface-mounted, suitable for installation on non-iron doors or windows
7. If the door magnetic is to be powered, the voltage is controlled at DC0V-24V, the power supply current cannot exceed 1A, and the load current is 120mA
8. Size: 27x14x8mm
9. Warm reminder: the door magnetic is not equipped with screws when it leaves the factory

Specification:
Package Weight
One Package Weight0.02kgs / 0.04lb
One Package Size15cm * 10cm * 3cm / 5.91inch * 3.94inch * 1.18inch
Qty per Carton99
Carton Weight2.60kgs / 5.73lb
Carton Size47cm * 32cm * 35cm / 18.5inch * 12.6inch * 13.78inch
Loading Container20GP: 506 cartons * 99 pcs = 50094 pcs
40HQ: 1176 cartons * 99 pcs = 116424 pcs

Additional information
Weight 0.019 g
Dimensions 15 × 10 × 3 cm
