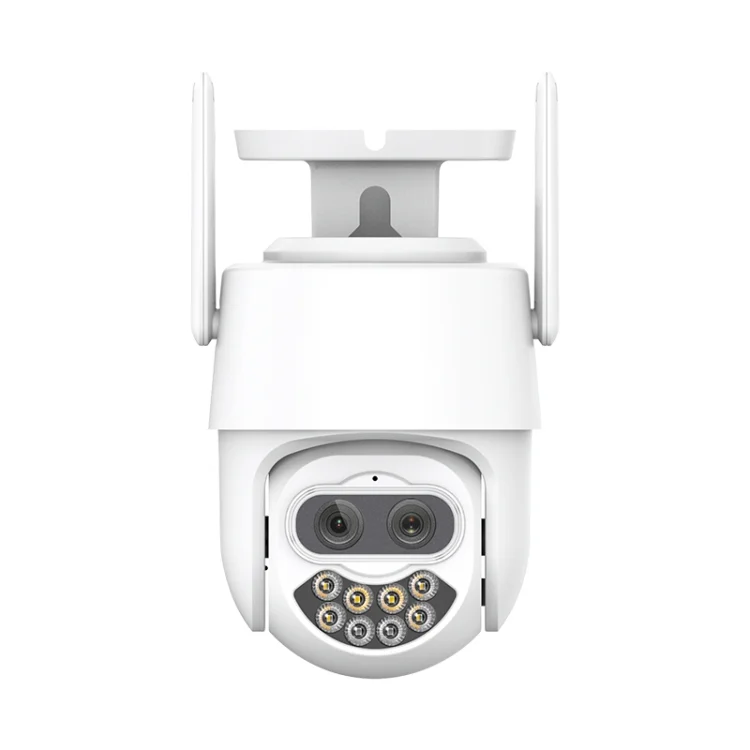

QX82 400W Dual Screen Dual Channel Synchronous Monitoring IP Camera

1. 2pcs 4.0MP chips overlapping design makes image clear and delicate;

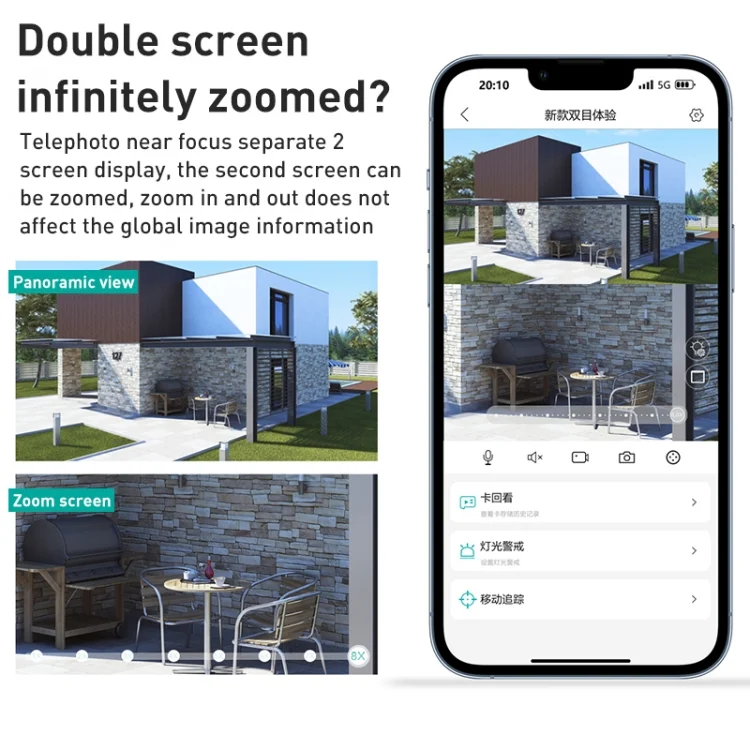

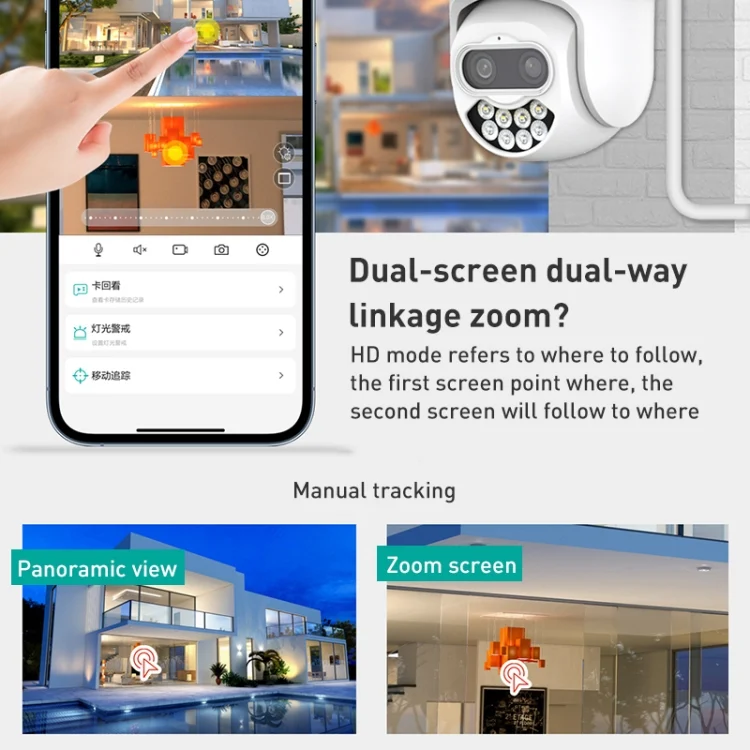

2. Support dual-picture preview, picture-in-picture preview, physical pixel 8.0MP;

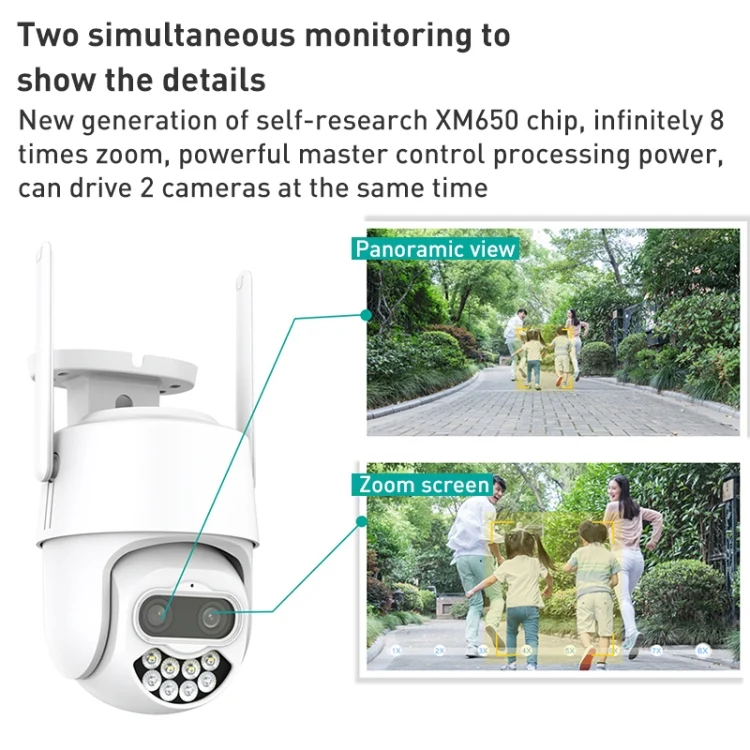

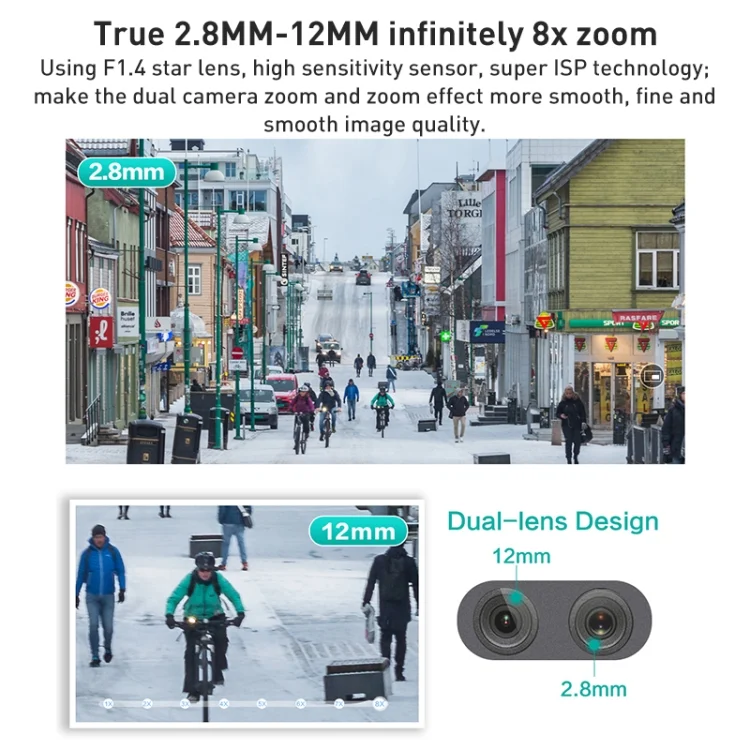

3. The long-focus imaging module matches the short-focus imaging module 2.8mm-12mm realizes 8x hybrid zoom;
4. Built-in speaker, microphone, support two-way voice intercom;
5. Support automatic cruise, detailed scanning；support full-coloralert, push accurate human alarm ;
6. Yutong F1.4 starlight lens

Technical Parameters
1. Sensor: 4MPx2=8MP SC5239
2. System Structure: Dual-core 32-bit DSP (NT98566), pure hard compression,watchdog
3. Minimum illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Black and white: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR
4. Video Processing: H.265AI encoding, dual stream, AVI format; stream 0.1M~10Mpbs adjustable; frame rate 1~30 frames/sec adjustable
5. Image Output: Main stream: 2560*1440@12fps, Sub-stream: 800*448@12fps
6. Shutter: 1/50 (1/60) second to 1/10000 second

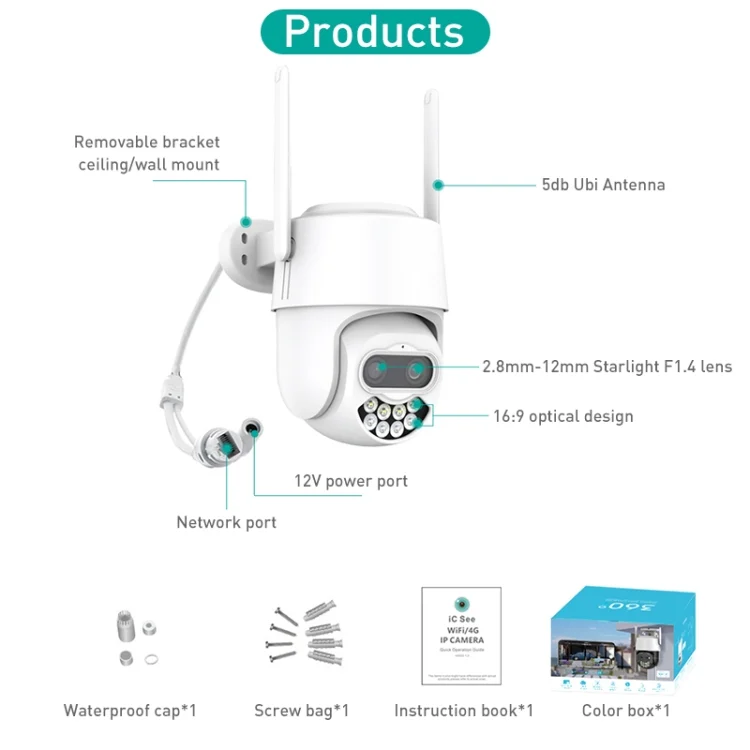

7. Lens: 2.8mm+12mm, combination of long focal length len + short focal length len
8. Day&Night Switching Mod: Support IR-CUT
9. Noise Reduction: Support 2D/3D noise reduction
10. Wide Dynamic: Support wide dynamic
11.Audio Processing: G.711A codec standard, support two-way voice intercom function, support audio and video synchronization
12. Audio Port: 1 input, level 2Vp-p, impedance 1kΩ; 1 output, impedance 16Ω, 30mw output power
13. Network Interface: 1 x RJ45 Ethernet interface, 10/100M adaptive
14. Signal Interface: 1 x photoresistor interface, 1 x IR-CUT driver interface, support the linkage of photoresistor input signal with IR-CUT, infrared light
15. PTZ Interface: 1 x horizontal motor interface, 1 x vertical motor interface
16. Reset.Key.Interface: Support one-key reset function

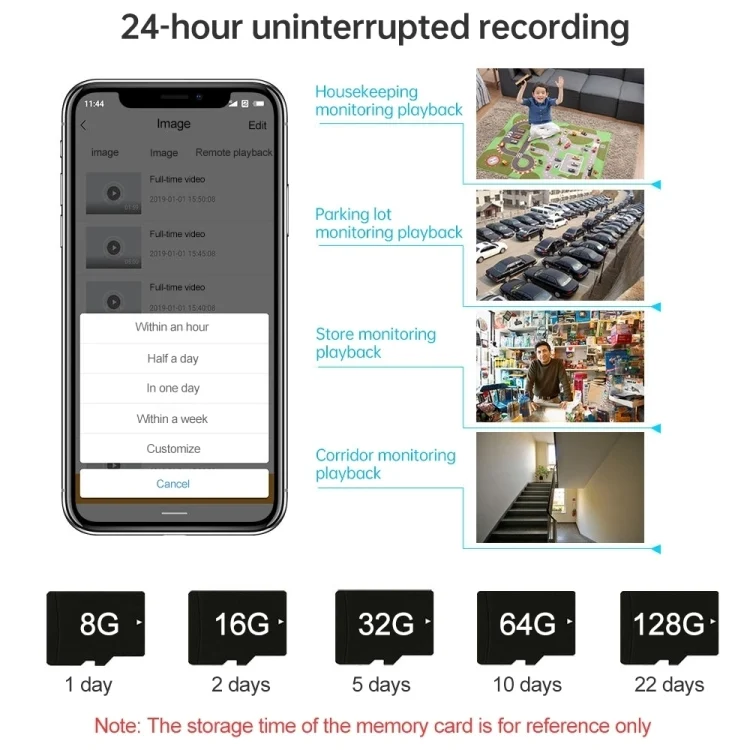

17. Storage Method: Local TF card, maximum 128G(not uncluded) ; cloud storage
18. Reliability: Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65 ℃high temperature test is stable and reliable (including the whole machine test)
19. Intelligent Analysis: Support humanoid detection, support customization of other intelligent function
20. Business Functions: Support mobile client remote monitoring; support message push after humanoid detection and alarm; support MJPEG snapshot
21. ONVIF: Support
22. Phone Monitoring: Support mobile phone monitoring (iOS, Android) ICSEE APP
23. Power: DC12/2A, 5W
24. Light source: 6 infrared+6 white light
25. Lighting mode: Starlight full color/infrared night vision/dual light alert
