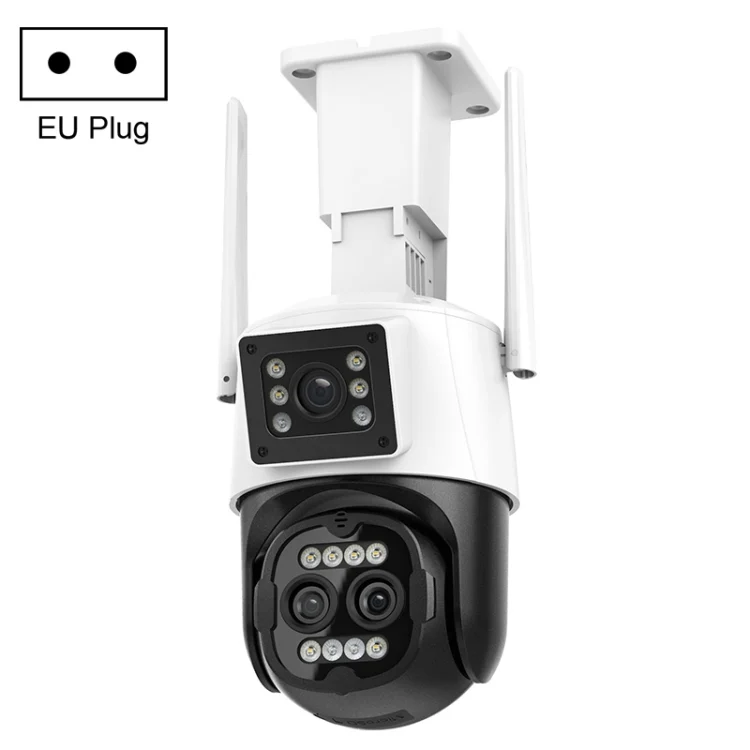

QX103 Humanoid Recognition AI Alarm WiFi Dome Triple IP Camera

Features
1. New generation photosensitive component combination SC300AI wide angle + SC300AI ultra short focus + SC300AI ultra telephoto + XM650V200 main control
2. The bolt has a starlight grade of 3.6MM, and the ball has a F1.4 starlight grade of 2.8MM-12MM. One is static and the other is moving. They are coordinated and linked. One machine can support three machines.
3. Built-in lightning protection function, in line with national standard GB/T17626.5 and international standard IEC61000-4-5
4. The detachable bracket supports ceiling or wall mounting, and can also be rotated left and right to adjust the monitoring angle.

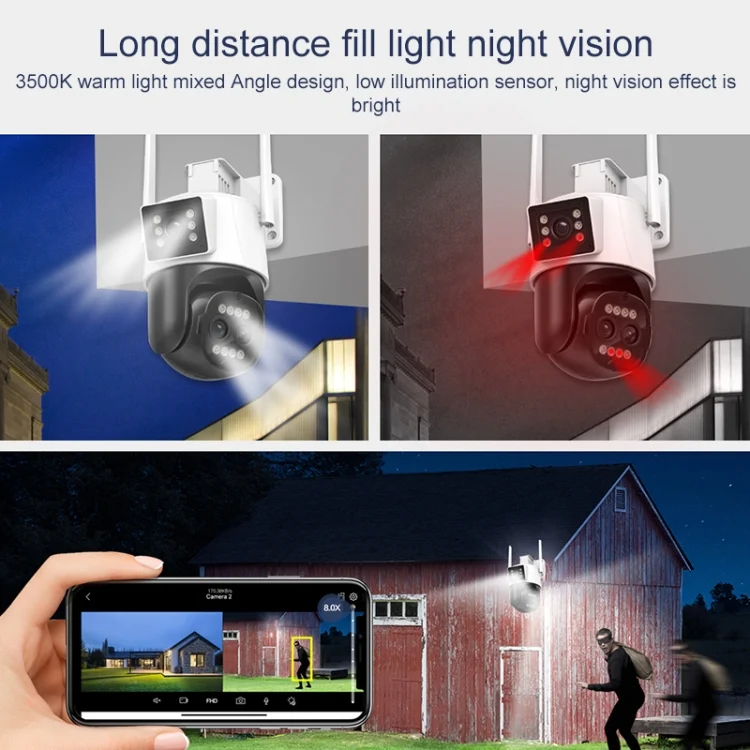

5. 3500K warm light mixed angle design, long-distance fill light, worry-free night vision
6. Dual-channel stream storage is lower and dual-channel video recording is more accurate.

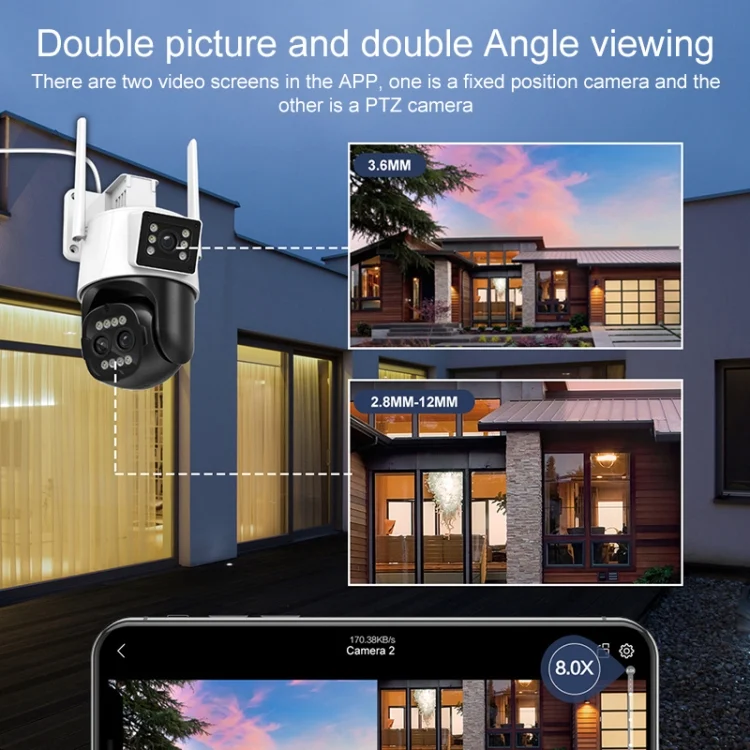

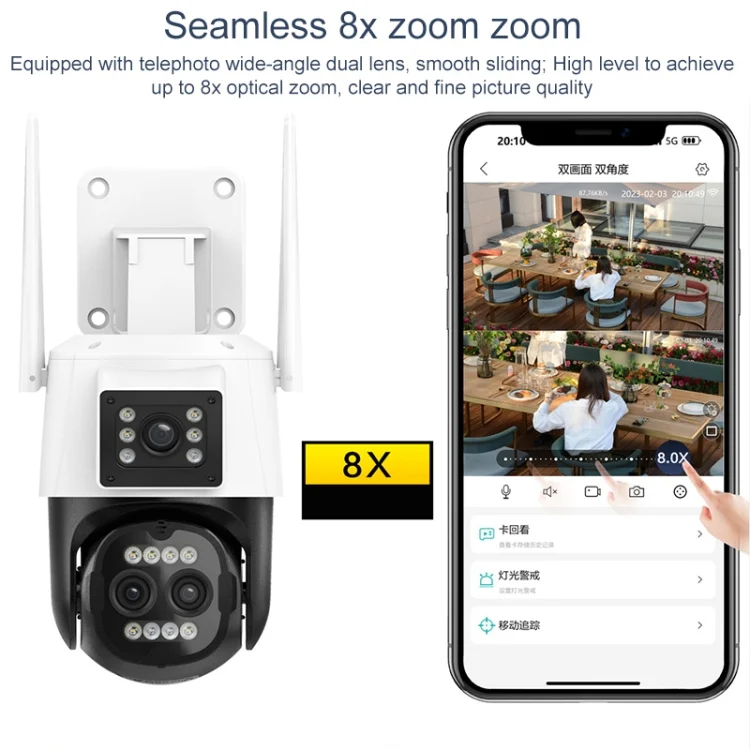

7. Dual-screen horizontal screen, switching more freely and previewing more comprehensively
8. Support humanoid detection, tracking and capturing
9. Supports multi-person humanoid detection and humanoid zoom tracking.
10. Supports ONVIF protocol and can be connected to third-party backend/platform
11. Support mobile phone monitoring (iOS/Android)
12. Supports multiple cloud technologies to achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones, etc.

Parameters
1. Main control: dual-core 32-bit DSP (XM650V200), pure hard compression, monitor
2. Sensor: 3 3 million 1/2.7 SC300AI high performance CMOS sensors
3. Minimum illumination:
Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR
Black and white: 0.001 Lux @(F1.2,AGC ON),0 Lux with IR
4. Video format: H.265AI
5. Resolution:
Main resolution: 2304 x 2592
Sub-resolution: 800 x 896
6. Support protocols: support NETIP protocol, support onvif protocol, support Bluetooth distribution network
7. Network interface: 10M/100M adaptive Ethernet port
8. Storage interface: local TF card (maximum support 256G)
9. Wireless standards: IEEE802.11b, 802.11g, 802.11n
10. Frequency range: 2.4 GHz-2.4835 GHz
11. Power consumption: 15W
12. Temperature: minus 10 degrees Celsius – 60 degrees Celsius, humidity less than 90% [no condensation]
13. Power supply: DC 12V+/-10%
14. Product size: 113 x 123 x 243mm
15. Product weight: 0.678kg
