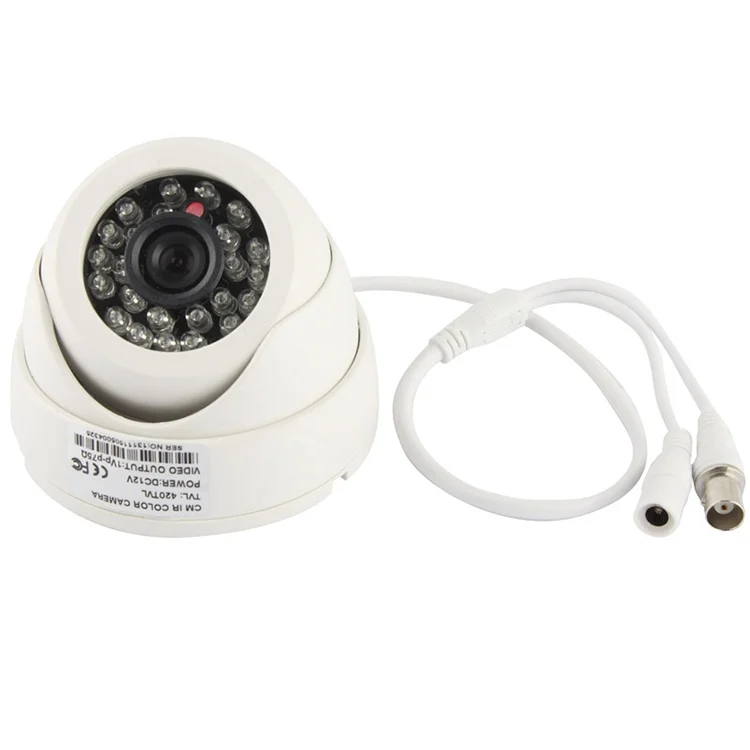

CMOS 420TVL 3.6mm Lens ABS Material Color Infrared Camera with 24 LED, IR Distance: 20m

4,196.00 Lead Time: 1-3 Days

In stock

SKU: S-SPC-0251 Categories: , ,
Description

Video:
1. Imaging Sensor: CMOS
2. Scanning System: 2:1 Interlace
3. Total Pixel: PAL: 752H x 582V, NTSC: 768H x 492V
4. Horizontal Resolution: 420TVL
5. Illumination: 0lux with IR ON
6. S/N Ration: Above and equal 52dB
7. Video Output: 1.0Vp-p/75 ohm
8. Correction: 0.45
9. Frequency: H: 15.736KHz, V: 15.625KHz, V: HZ
10. Sync. System: Internal Synchronization
11. Day & Night: Auto Color to B/W
12. Electronic Shutter Speed: 1/50-1/10,000s
13. Cable Length: 40cm
Operational:
1. White Balance: ATW
2. BLC: AUTO
3. AGC: Auto/Manual
Lens:

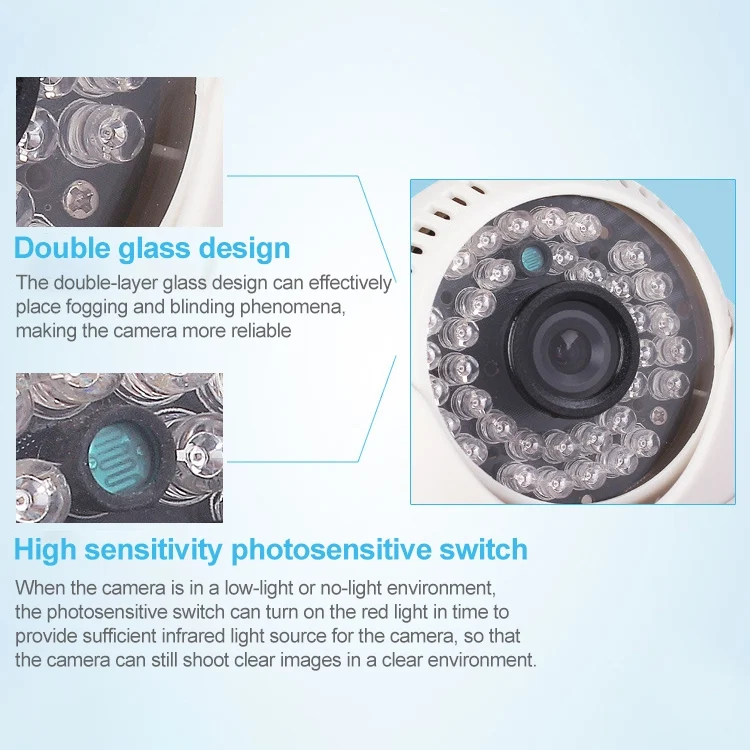

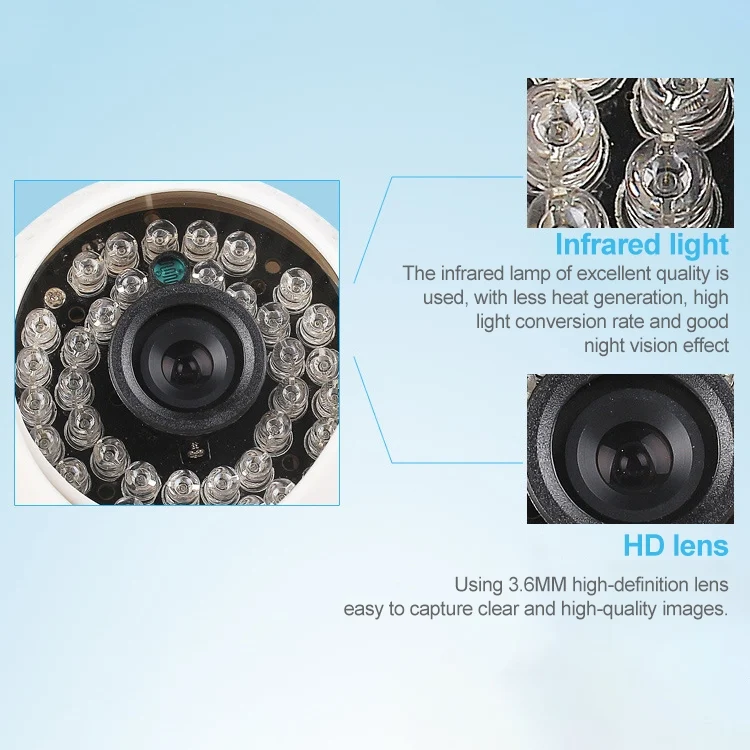

1. 24 IR LED
2. IR Distance: 20m
3. Lens Type: 3.6mm Fixed Lens (Standard)
4. Mount Type: CS
Electrical:
1. Power Supply: DC12V+/-5%
2. Power Consumption: Less and equal 6W
Environmental:
1. Work Consumption: Less and equal 85%RH
2. Operation Temperature: -15-80 degree
Physical:

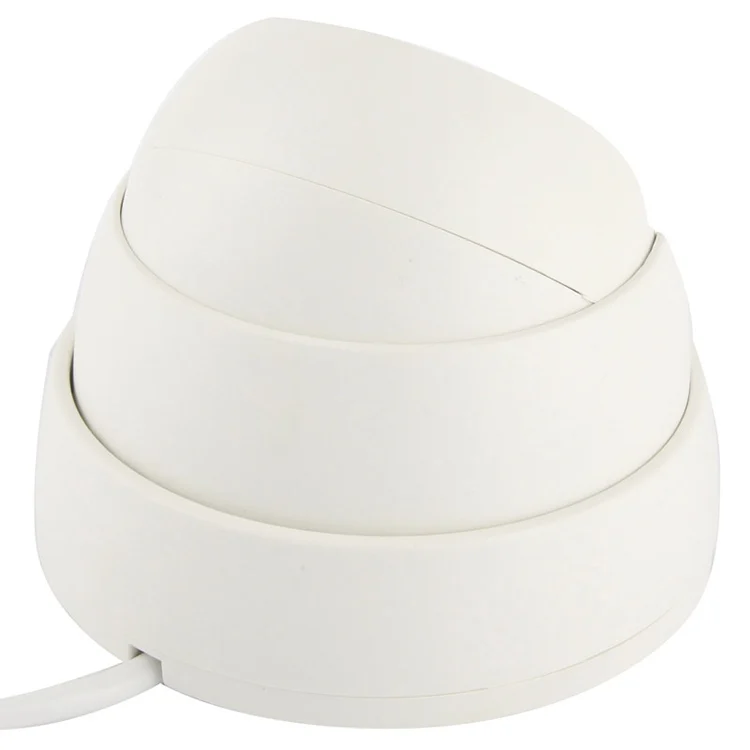

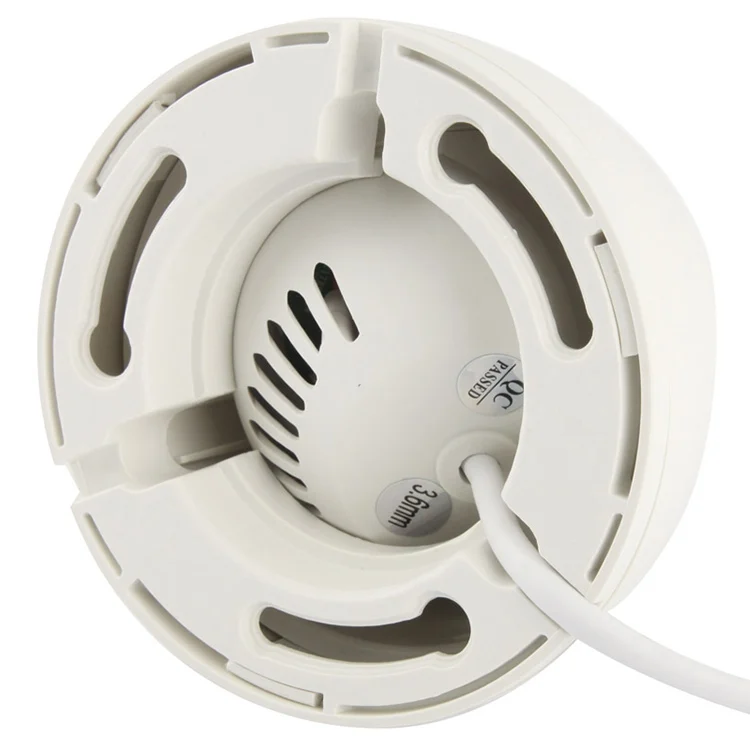

1. Case Material: ABS

Specification:
General
Power Depletion <6W(Camera)
Power Supply DC 12V
System / Hardware
Image Sensor CMOS
Lens 3.6mm
Electronic Shutter 1 / 50-1 / 10,000s
SNR >=52dB
Day/Night Auto Color to B/W
Minimum Illumination 0LUX
White Balance Auto
Gain Control Manual, Automatic
Backlight Balance Auto
Media Format
Horizontal Resolution 420TVL
Video Output 1.0Vp-p/75 ohm
Night Vision
Infrared Distance 20m
Configuration 24 infrared LEDs
Physical Environment
Environment Outdoor, Indoor
Dimensions
Size 92mm x 72mm
Weight 151g
Package Include
Package Contents 1 x Camera
1 x Mounting Accessories
1 x User Manual
Package Weight
One Package Weight0.41kgs / 0.90lb
One Package Size10cm * 10cm * 9cm / 3.94inch * 3.94inch * 3.54inch
Qty per Carton30
Carton Weight8.20kgs / 18.08lb
Carton Size46cm * 30cm * 30cm / 18.11inch * 11.81inch * 11.81inch
Loading Container20GP: 644 cartons * 30 pcs = 19320 pcs
40HQ: 1495 cartons * 30 pcs = 44850 pcs

Additional information
Weight 0.410 g
Dimensions 10 × 10 × 9 cm
