YE9-C1 5 inch Dual Mode 2.4G + 915M Video Night Vision Baby Monitor Security Camera

Features:
1. 5.0 inch baby monitor + APP remote monitoring (TUYA APP) + IPC camera
2. Two-way simplex intercom, cry detection, temperature detection, humidity detection, motion detection, video amplification function
3. Lullaby playback, volume adjustment function, feeding reminder function

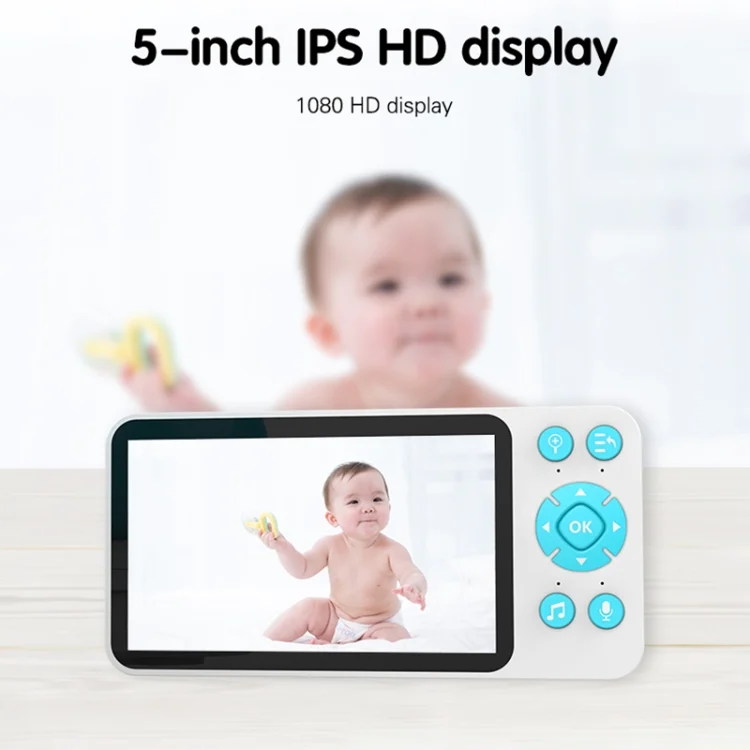

4. 5.0-inch IPS high-definition screen, screen brightness adjustment, screen-off power saving function, language selection, foldable stand, antenna, PTZ control

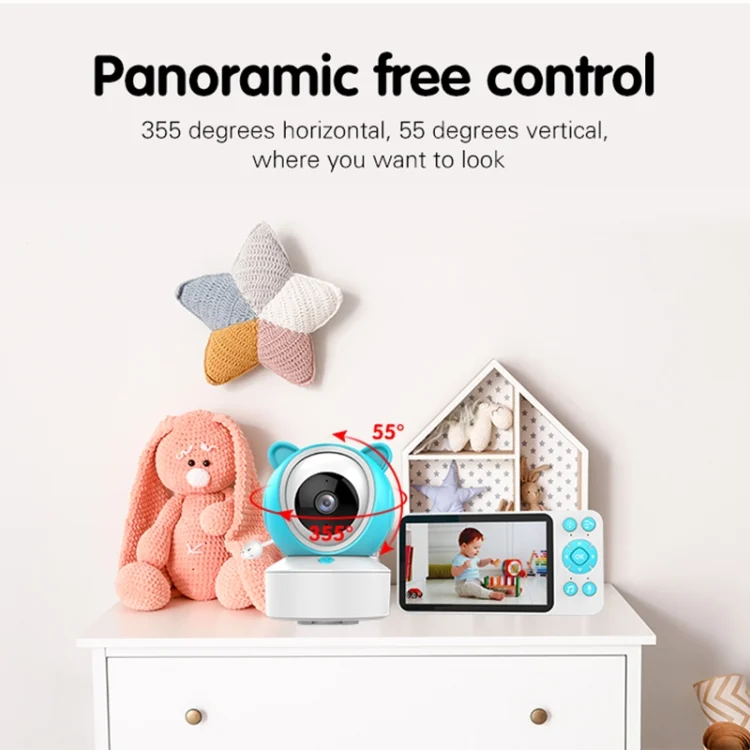

5. 200W high-definition camera, the pan/tilt rotates 355° left and right/55° up and down, supports TF card video storage, no red light night vision, and one-click calling function
6. Tuya APP remote video viewing, lullaby playback, voice intercom, and message push
7. The screen has a built-in 3000mah lithium battery and a TYPE-C power supply/charging interface.

IPC parameters:
1. Main chip: Main control GK7202 V300
2. Main frequency: 900MHZ
3. Memory:
– DDR2 memory: 512Mbit
– SPI memory: 128Mbit
4. Image sensor: GC2083 1/3 inch
5. Effective pixels: 1080P
6. Illuminance min: 0.5Lux/F2.0 (color), 0.02Lux/F2.0 (black and white)
7. White balance: automatically track white balance
8. Microphone: Anti-interference sensitivity -30db+/-3db
9. Distance: 5 meters
10. Speaker: 8 ohms 1 watt
11. Electronic shutter: 1/4-1/10,000s
12. Night vision distance: 5m
13. Sensing method: photodiode
14. LED infrared light: 940nm (no red exposure)
15. Network protocol: TCP/IP, DHCP
16. WiFi module: 8188FTV/TXW830
17. Support WiFi standards: IEEE 802.11b/g/n
18. Frequency: Using low-power consumption 2.4GWiFi+RF 750-930MHz frequency band dual-mode transmission
19. 2.4g transmission distance: 30 meters -50 meters (limit distance in the open air)
20. 900MHz transmission distance: 400-500 meters (limit distance in the open air)
21. PTZ control: supports app/LCD screen control
22. Night vision mode: IR-CUT
23. Focal length: 3.3mm
24. Horizontal viewing angle: 110 degrees
25. Aperture number: F2.0
26. Infrared night vision lights: 6 pcs, angle 90 degrees, 940 degrees without red light
27. Material: ABS engineering plastic
28. Video resolution: 1920x1080P
29. Frame rate: 50HZ:25 frames (1280x720P)
30. Video compression: H.265
31. Audio compression: G.711/16kbps
32. Working temperature: -30~65 degrees Celsius
33. Power supply port: TYpe-C port

IPC functions:
1. Power on: Automatically power on when power is turned on
2. APP: Tuya APP, Android 5.0, IOS 8.0 or above
3. Distribution network: QR code
4. Motion detection: detect push messages and record video (install TF card)
5. Playback: You can view the detection recording video (install TF card)
6. Cloud messaging: You can view motion detection and cry detection recorded photos
7. Alarm sensitivity: low/medium/high
8. Supports crying detection, privacy mode, formatted TF card, status indicator switch, alarm function timing, full-screen viewing, intercom, one-click calling, screenshots, and manual video recording
9. Recording time: 15 seconds
10. Number of photos taken in cloud storage: one
11. Infrared night vision function: automatic, off, on
12. Alarm interval: 1 minute, 3 minutes, 5 minutes

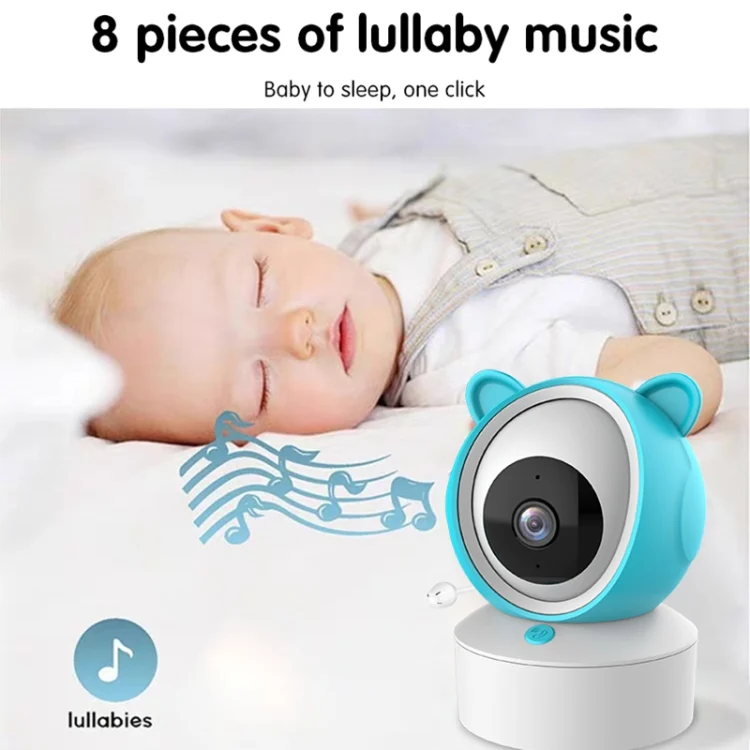

13. Lullaby: supports on, off, loop playback
14. Temperature: Temperature unit can be set

LCD parameters:
1. Main chip: Main control SSD202 (SIGMASTAR)
2. Main frequency: dual-core 1.2G
3. Memory:
– DDR3 memory: 1Gbit
– SPI memory: 128Mbit
4. Microphone: -38db+/-3db
5. Screen resolution: 1280x720P
6. Speaker: 16 ohm 1 watt
7. Pickup distance: 5 meters
8. 900MHz transmission distance: 400-500 meters (limit distance in the open air)
9. Frequency: RF 750-930MHz frequency band dual-mode transmission
10. Body material: ABS engineering plastic
12. Size: 5-inch IPS screen
13. Resolution: 1280×720
14. Working temperature: -30-65 degrees Celsius
15. Battery capacity: 3000mAh
16. Charging port: TYpe-C port
17. Battery life: more than 80% after 300 cycles

LCD functions:

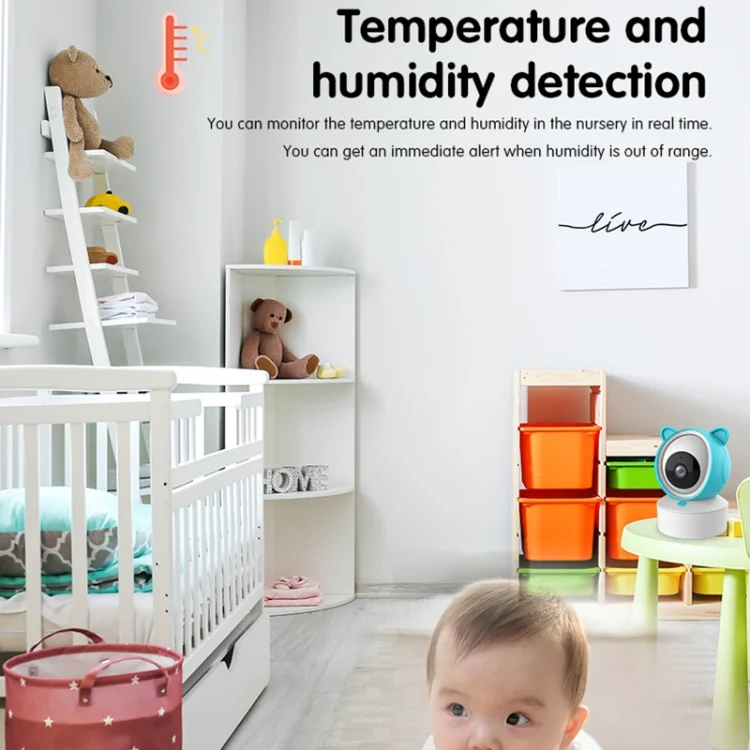

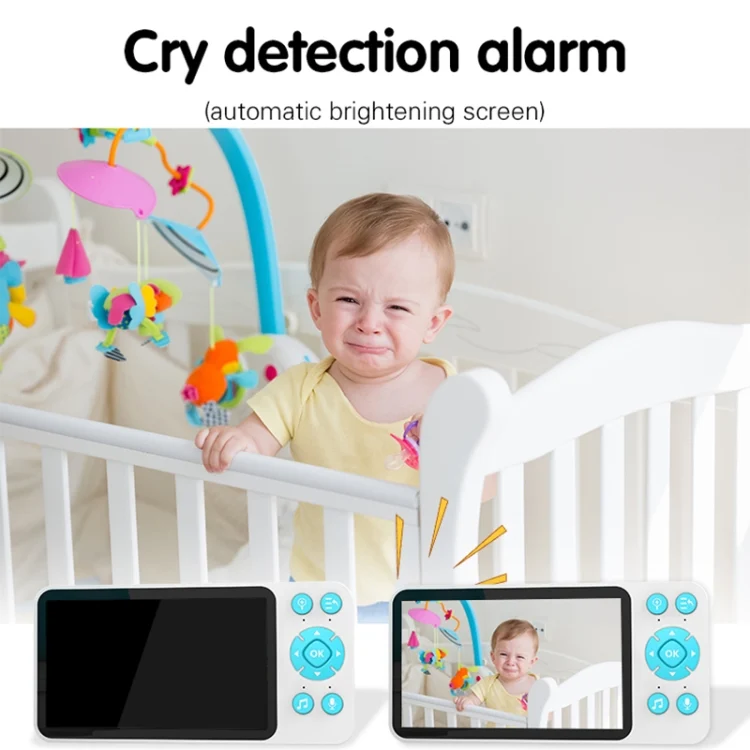

1. Supports temperature detection alarm, humidity detection alarm, cry detection alarm, lullaby playback, intercom, language setting, factory reset, and version information viewing
2. Menu keys: up, down, left, right, ok key; music play key; intercom key; power key; magnification key
3. Electronic amplification: 4 times
4. Feeding alarm clock: customizable time and set time
5. Display settings: sleep and screen brightness
6. Time and date: date time time zone setting
