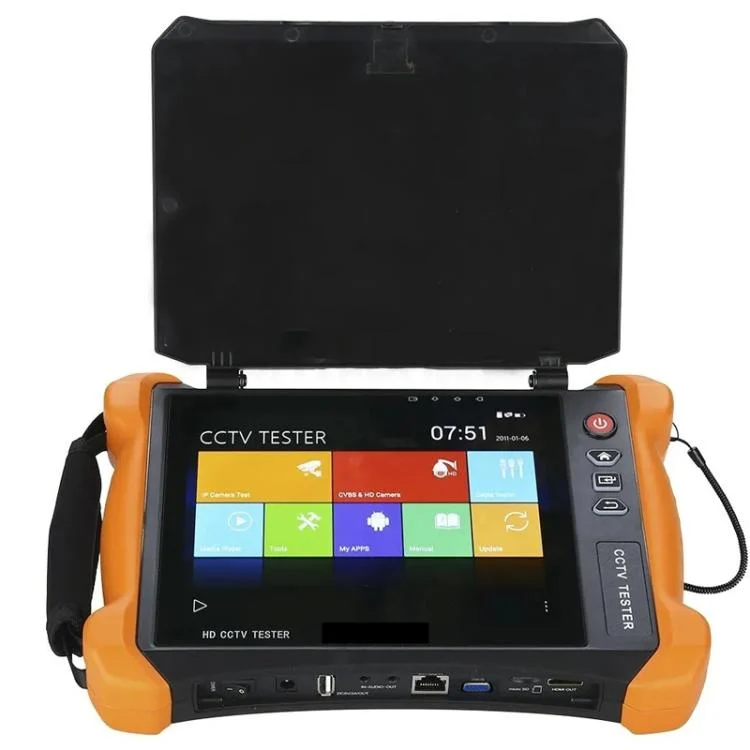

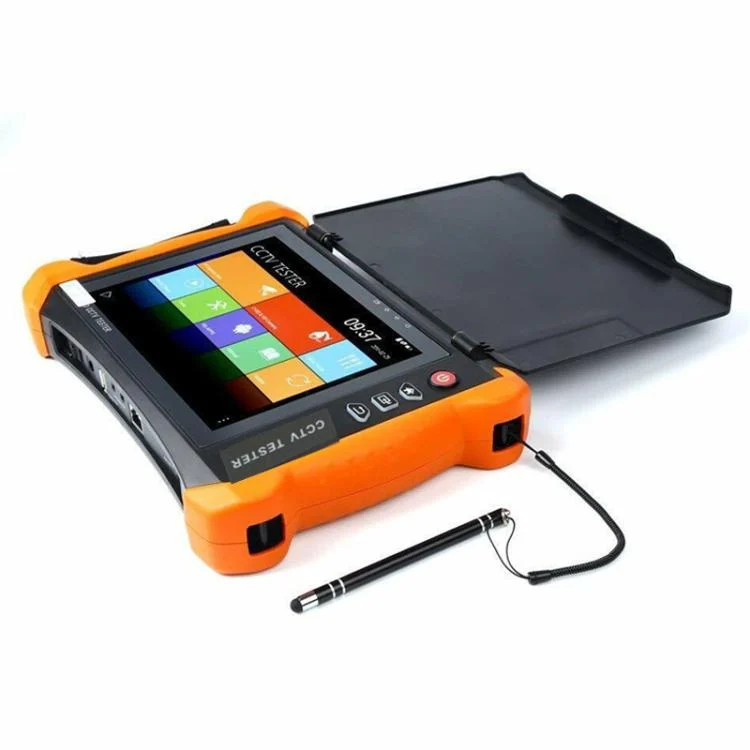

X9-ADH Network Coaxial Video Surveillance Tester

1. 8-inch 2048×1536 IPS high-definition 2K retina touch screen + new system, with clearer and smoother picture
2. Supports H.265, 4K main stream test
3. Upgraded 4-window ONVIF, supports 4 channels H.264/1080P, single channel 4K main stream display, supports generating test reports, etc.
4. Upgraded coaxial high-definition 4.0, TVI8MP, CVI8MP, AHD8M
5. Supports PoE, DC12V voltage and power test
6. New Onvif and coaxial high-definition lens simulation and focusing information functions
7. HDMI input, maximum resolution 4K 60 frames, HDMI 4K output
8. Hikvision test tool batch activation, batch modification of IP address
9. Dahua test tool batch activation, cross-subnet modification of IP address
10. New 12V 3A, 48V/25.5W PoE power output
11. New network cable TDR test
12. Supports creating WIFI hotspot, new screen projection function
13. PoE, DC12V voltage and power test

Parameters
1. Operation settings: capacitive touch screen, Chinese and English OSD menu, optional
2. External power supply: DC 12V (2A)
3. Battery power supply: built-in 7.4V polymer lithium battery, capacity 7000mAh
4. Charging: charging takes 5-6 hours, one charge enables normal use for 11 hours
5. Automatic standby: off / 5-30 minutes
6. Working temperature: -10 degrees celsius – +50 degrees celsius
7. Working humidity: percent 30 – percent 90
8. Display screen: 8-inch, IPS high-definition full-view retina capacitive touch screen, resolution 2048×1536

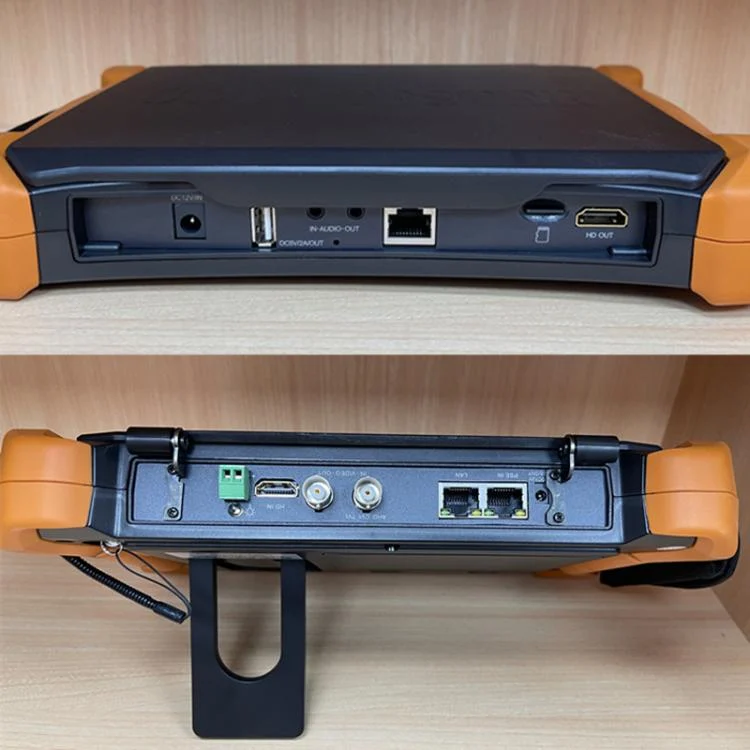

9. Network ports: 10/100/1000M adaptive, RJ45
10. WIFI: built-in wireless WIFI, rate 150M, receives images from wireless network cameras, etc.
11. H.265 main stream test: hardware decoding, supports H.265 main stream test of camera images, highest resolution 4K
12. Single screen dual display: supports simultaneous testing of network and analog cameras
13. Size: about 26.4 x 18.2 x 4.3 cm
14. Weight: about 1 Kg

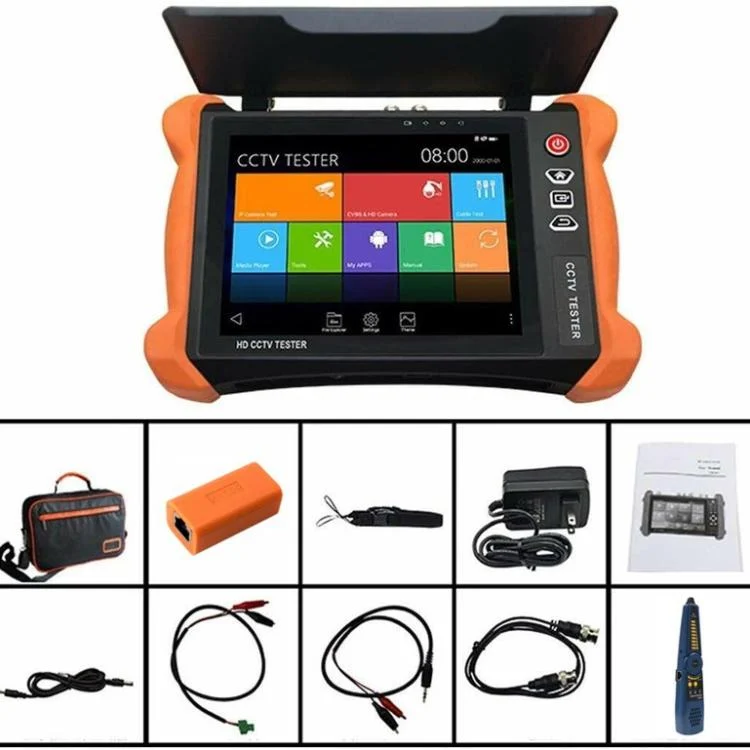

Packaging list:
– test instrument x 1
– bag x 1
– power adapter x 1
– BNC cable x 1
– cable detector x 1
– audio test cable x 1
– Rs485 control cable x 1
– power output cable x 1
– cable tester remote control x 1
– test accessories x 1
– instruction manual x 1
