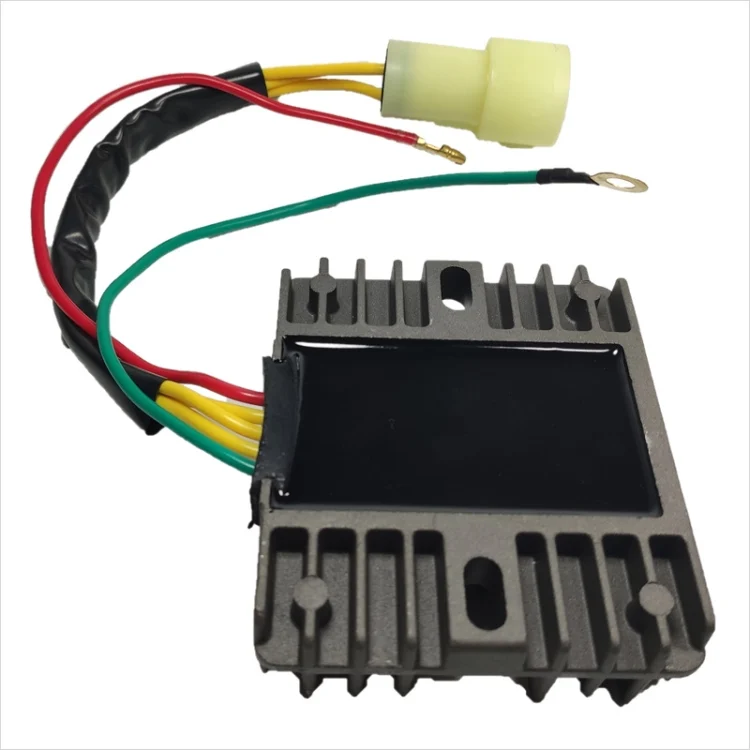

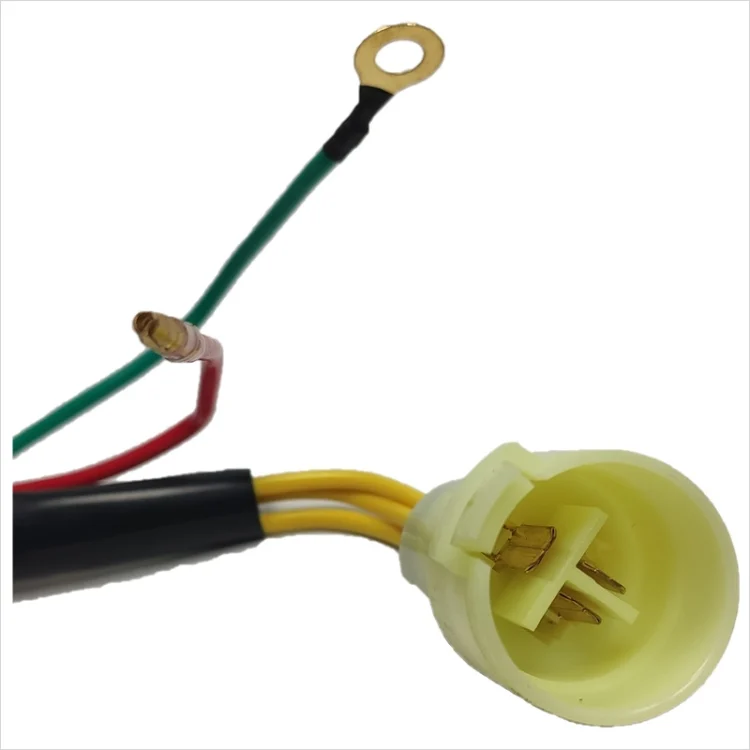

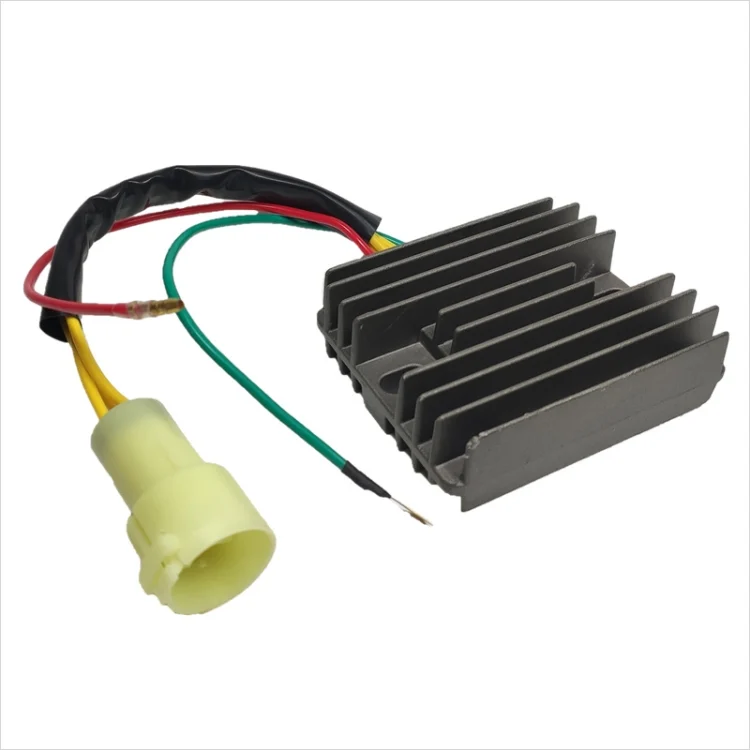

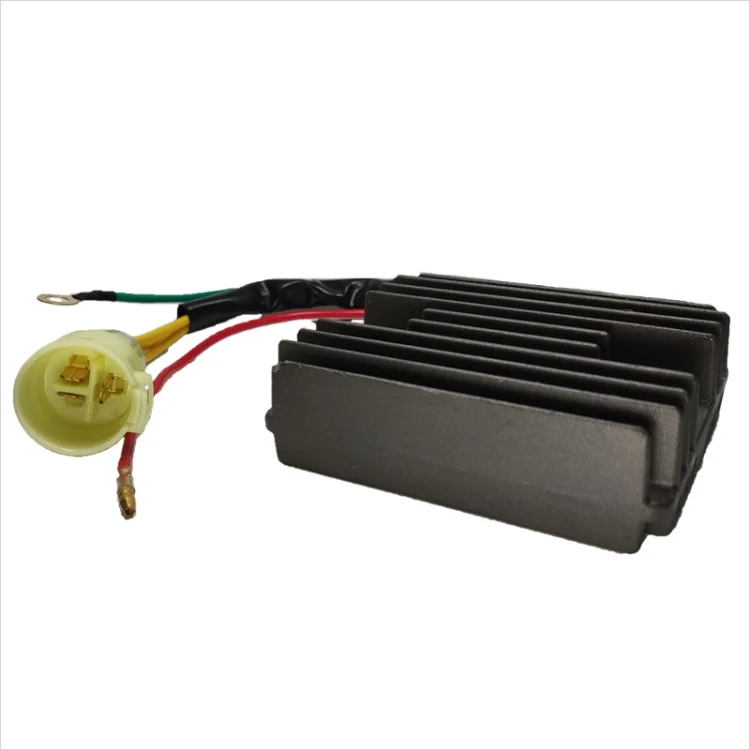

2003.7.1 Motorcycle Rectifier 804278A12 67F-81960-12-00 7F-81960-11-00 804278T11

1. Output voltage: 14.5V
2. Wire length: 25cm
3. Weight: 310g

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burned out

Applicable models:
For 804278A12
For OEM 67F-81960-12-00
For Mercury 75-90 HP 4 stroke
For Mercury 804278A12 sign II
For Yamaha 75-80-90-100
For HP PN: 67F-81960-12
For Cross Reference: 67F-81960-00-00, 67F-81960-11-00,, 804278T11
For Manufacturer PN: 67F-81960-12
For Internal Co: F81960
