AM107421 Switch Starter Relay Kit for John Deere

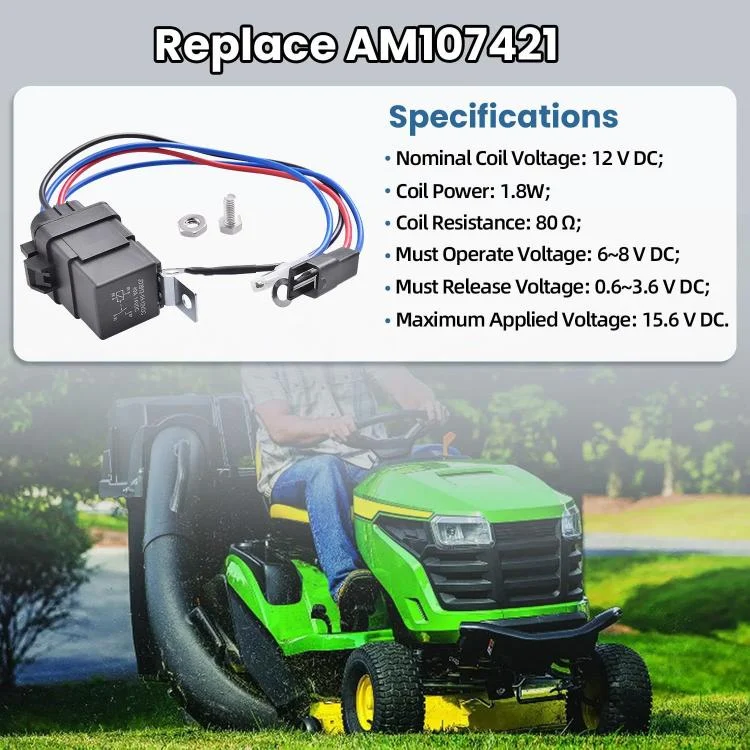

1. Specifications: 40A/30A 12VDC
2. Coil latch type: single coil latching
3. Switching voltage: 14VDC (max)
4. Switching current: 40A/30A (max)
5. Contact opening time: 5ms
6. Termination style: Pin
7. Contact configuration: 1-Pair changeover
8. Load voltage: 80A/60A 12V5P (max)
9. Load current: 80/60A (max)
10. Coil power: 1.8W
11. Features: the AM107421 Improved Starter Relay Kit is designed to eliminate the voltage between the battery and the starter solenoid, resolving the issue of only hearing a “click” when starting the machine.
12. Replacement part Number: AM107421

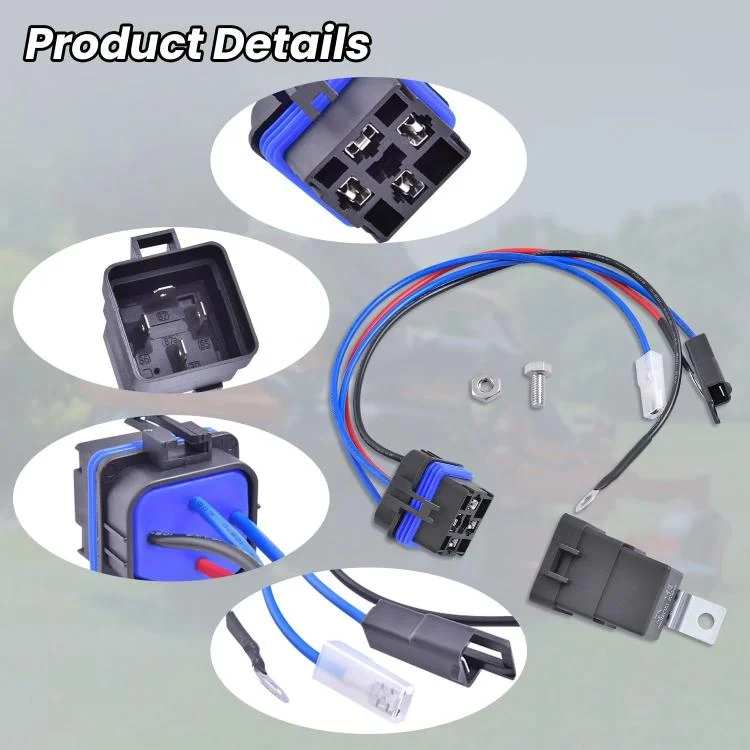

13. The relay kit features insulated material, a high-strand copper core, ultra-low impedance, high efficiency, and rigorous testing to ensure reliability and durability.
14. This accessory is compatible with all riding lawn mowers powered by Kawasaki engines. However, it does not fit models with 9-horsepower engines.
15. For John Deere models: 130, 160, 165, 170, 175, 180, 185, 240, 245, 260, 265, 285, 316, 318, 320, 325, 335, 345, 420, F510, F525, F910, F930, GX70, GX75, GX95, SX75, SX95, SRX75, SRX95, STX30, STX38, STX46, RX63, RX73, RX75, GT242, GT262, GT275, HD45X, HD75, LX172, LX173, LX176, LX178, LX186, LX188, GS25, GS30, GS45, GS75
