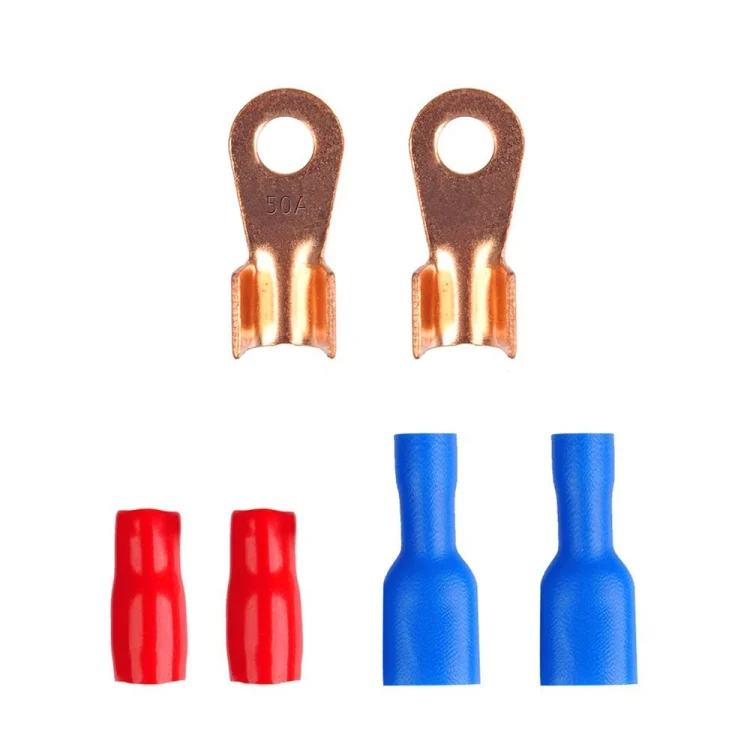

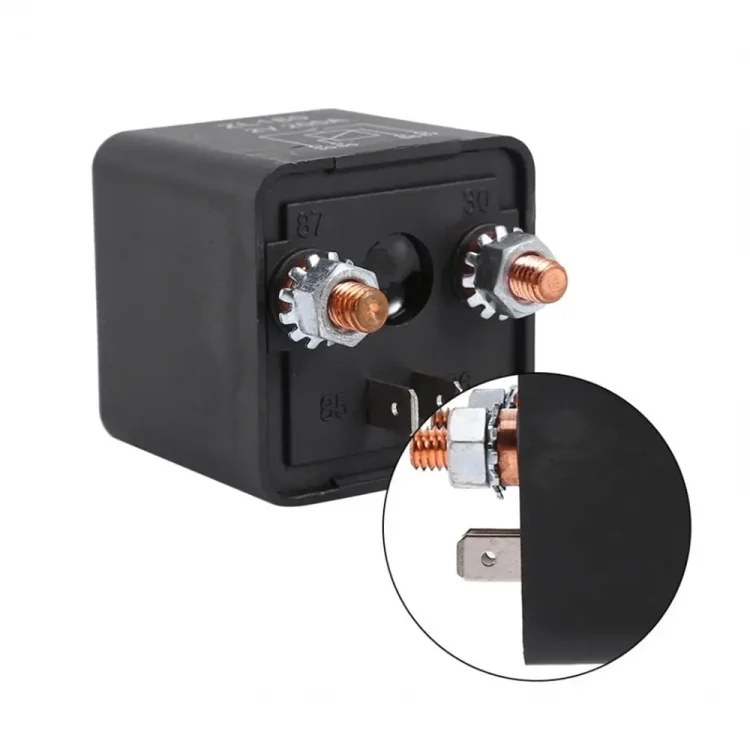

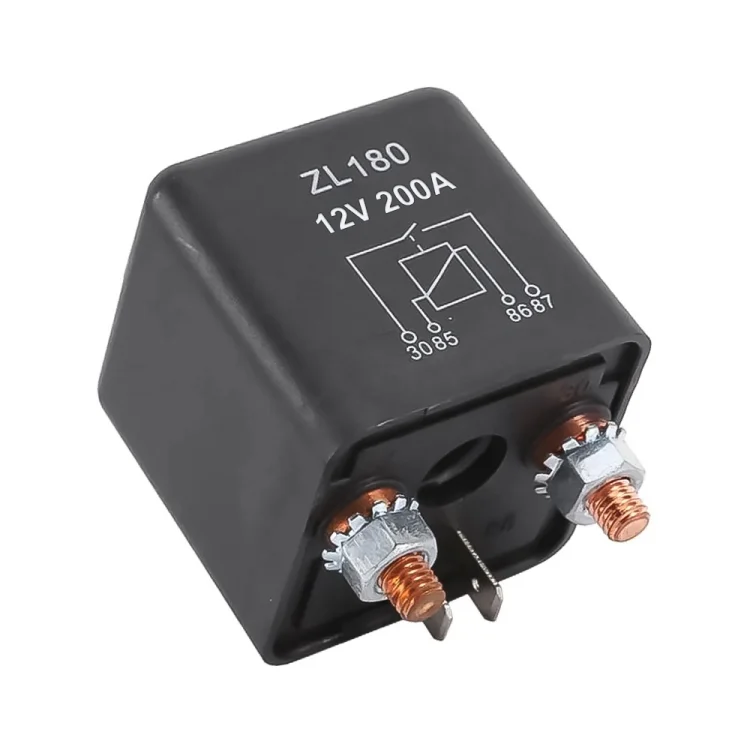

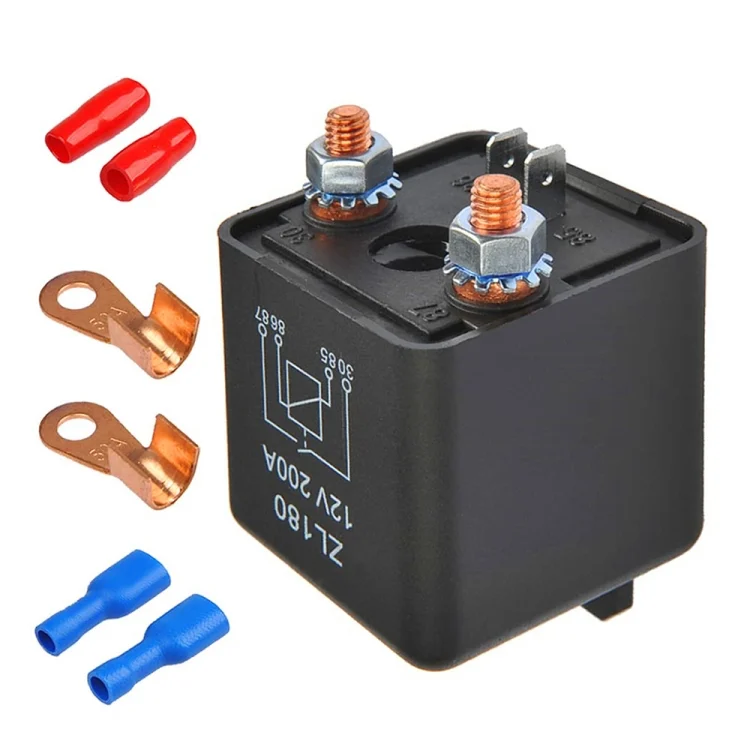

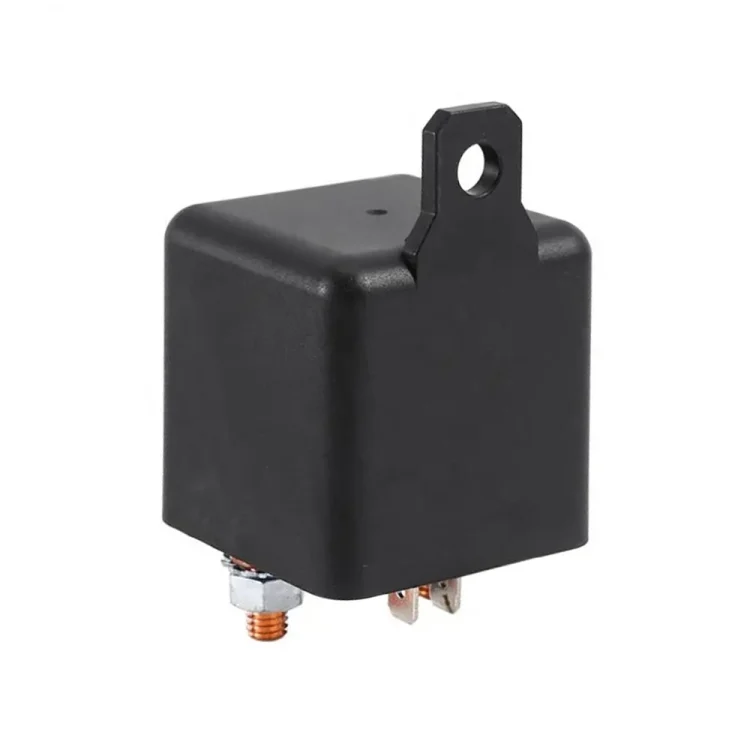

12V 200A Car Start Relay with Accessories

1. High 200A coil capacity: able to handle these high-current applications with ease, heavy duty opener or normally open (on / off) relay. With 2pin footprint + 2-port accessories, hundreds of applications include-starter toetet, e top view, trunk unlocking , Polarity change, central locking / actuator control.
2. High quality durable, firm and stable contact load: high performance perfect for universal 12V applications, vinyl install tool for building tools, industrial tools, advertising film, mobile s n install s n protector install.
3. Contact details:
– Contact material: AgSnO12
– Contact form: Normally open
– Contact Ratings: None: 200A 14 / 28VDC
– Contact resistance: 100mMax at 6V DC 1A
– Max switching current: 500A (5 ms)
– Max switching voltage: 75VDC
– Max switching power: 2000W
– Expected lifespan Electric: 100,000 operations (at 30 operations / min)
– Mechanical life: 10,000,000 operations
4. Coil Specification:
4. Coil specifications:
– Rated voltage (VDC): 12V
– Coil resistance (4,8W): 30
– Operate voltage max(VDC): 6.0 ~ 8.0
– Release voltage (VDC): 1.2 ~ 3.6
– Overload voltage max (VDC): 15.6
5. Characteristics:
– Temperature range: -30 ~ + 80 Celsius
– Vibration resistance: 10 ~ 55Hz, 1.5mm
– Impact resistance: operation extreme: 10g, damage limits: 100g
– Humidity: 40% ~ 85%
– Insulation resistance: 100 mOhm min at 500 VDC
– Dielectric strength between open contacts 500VAC (for one minute / s)
– Between contact and coil: 750VAC (for one minute / s)
– Operating time: 7ms
– Release time: 5ms
– Material: plastic
