6 Way Fuse Box Blade Fuse Holder with Negative for Auto Car Truck Boat

1. The product is made of PBT flame retardant and high and low temperature resistant material, so that the fuse holder has good mechanical strength, insulation, heat resistance and flame retardancy, and should not break or break during use. Conditions for deformation, burning and short circuit phenomena
2. All bus bars and fuse clips are nickel plated copper for corrosion resistance and excellent electrical conductivity
3. All fasteners are made of stainless steel, the input and output ends of the fuse box are fixed with tightening screws, which can be installed more quickly, and the fuse box is fixed with self-tapping screws, which is easier and safer to install.

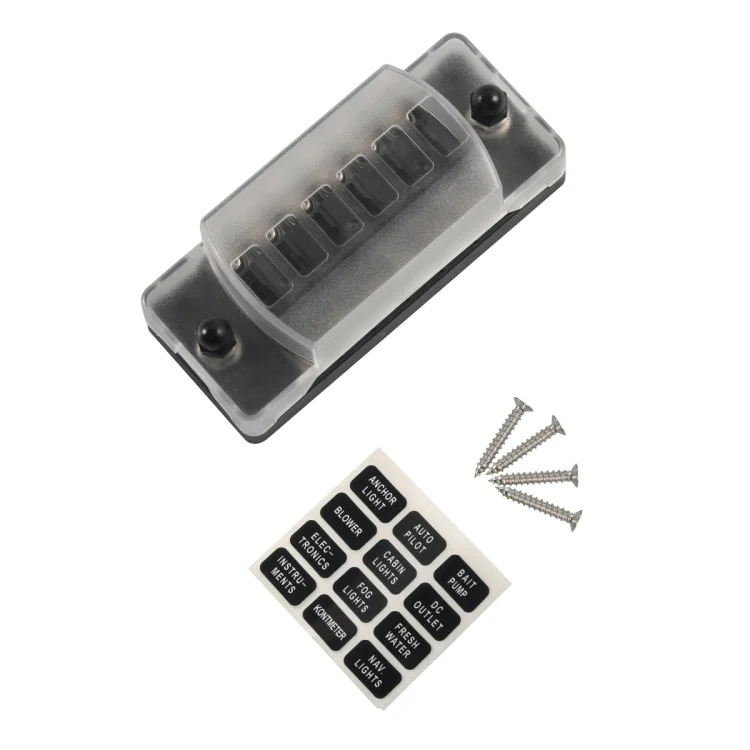

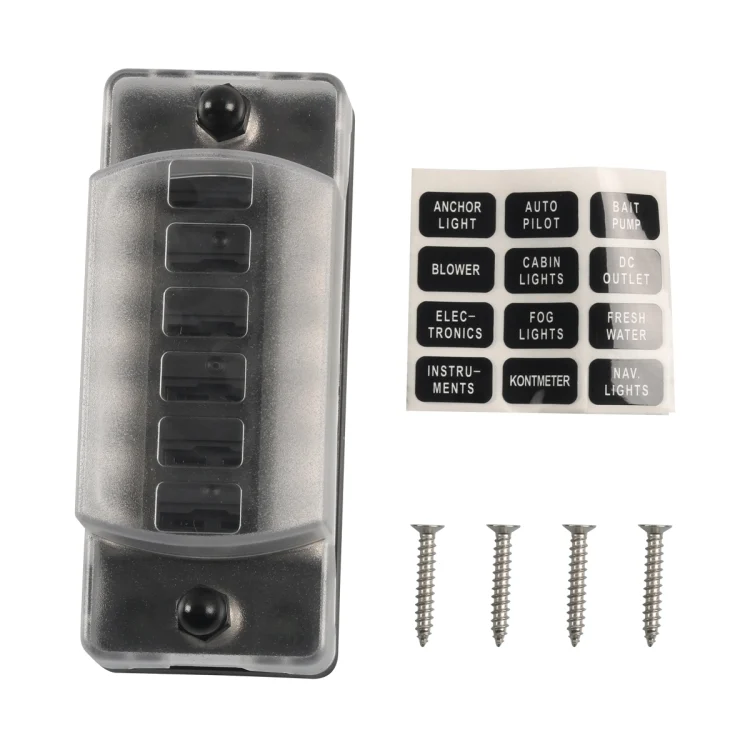

4. The product comes with a sticker, which can be attached to the electrical appliance we connect according to the name on the sticker. When the fuse is broken and the red light is on, we can quickly identify which electrical appliance has a problem, saving time and effort .
5. Parameters:
Material: PA66 body, PC dust cover, nickel-plated copper terminals, stainless steel screws, PP stickers
Main wire terminal: M6 threaded stud (75A DC32V max)
Main wire gauge: 4-6AWG
Single wire terminal: M4 threaded stud (20A DC32V max)
Single wire gauge: 12-16AWG
Installation Instructions: Accepts ATO or ATC fuses from 1A to 20A

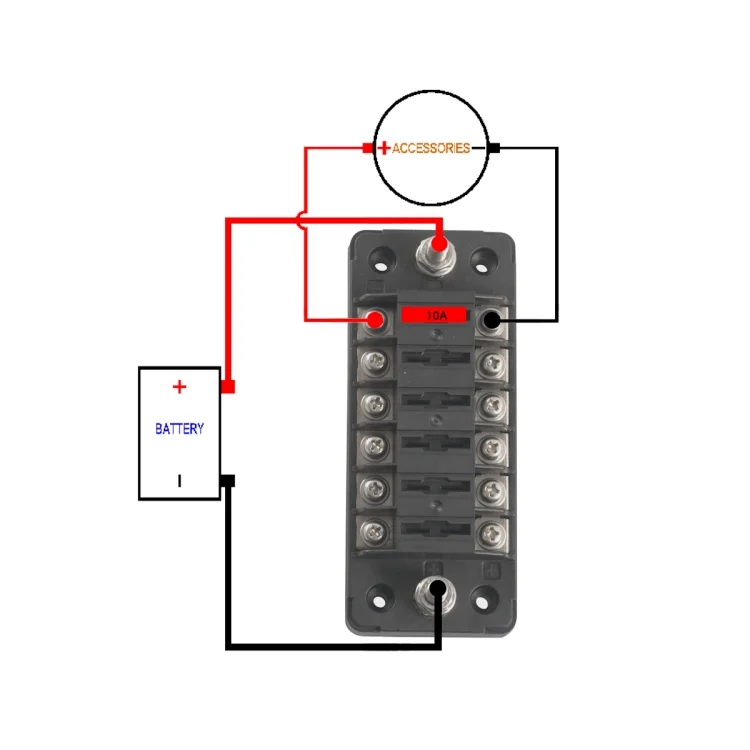

Scope of use: It can be directly connected to the line of any electrical appliance on the car/ship [such as: dome lights, car headlights, width lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc.
