WUPP Integrated ACC Line Motorcycle 6-speed Memory Electric Heating Throttle Handle

1. Material: silicone
2. Waterproof rating: IP68
3. Cable length: 220cm from handlebar outlet to positive and negative terminals
4. Input voltage: DC 12V

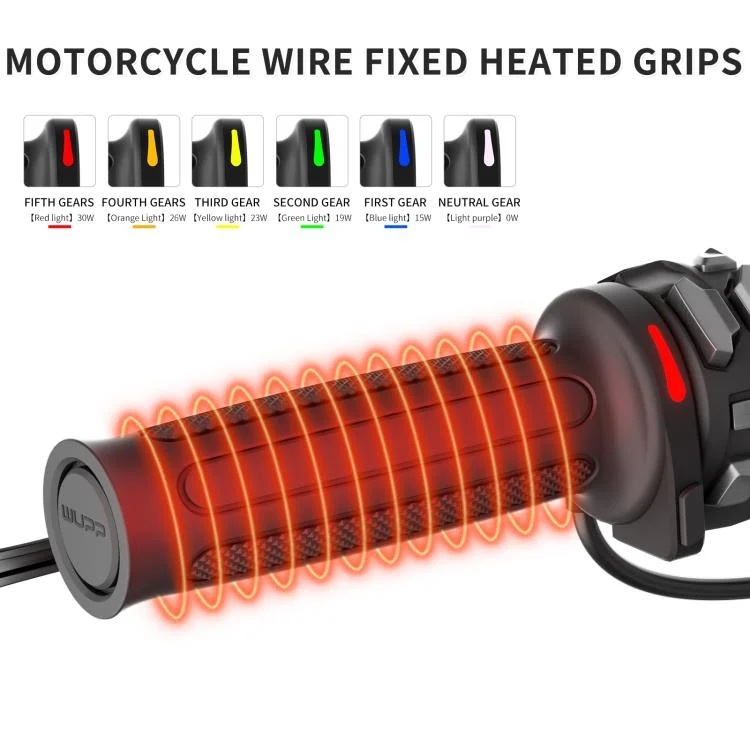

5. Power: (12V voltage) 5th gear (red) 30W; 4th gear (orange) 26W; 3rd gear (yellow) 23W; 2nd gear (green) 19W; 1st gear (blue) 15W; Neutral (white) 0W
6. Operating temperature range: -20°C to +50°C
7. Compatibility: universal for motorcycles (can be used with throttle cables)

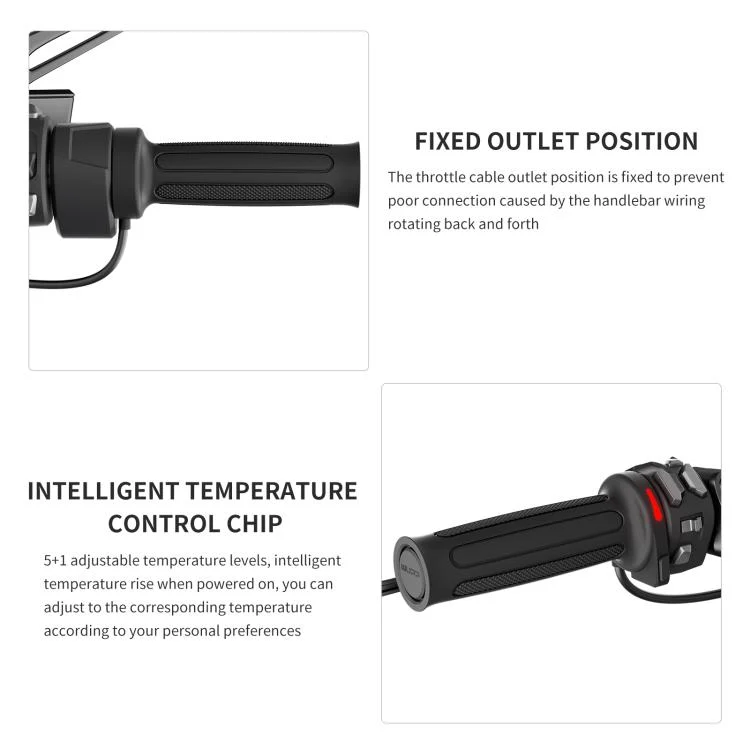

8. Fixed throttle cable outlet prevents poor connection caused by movement of the handlebar cable

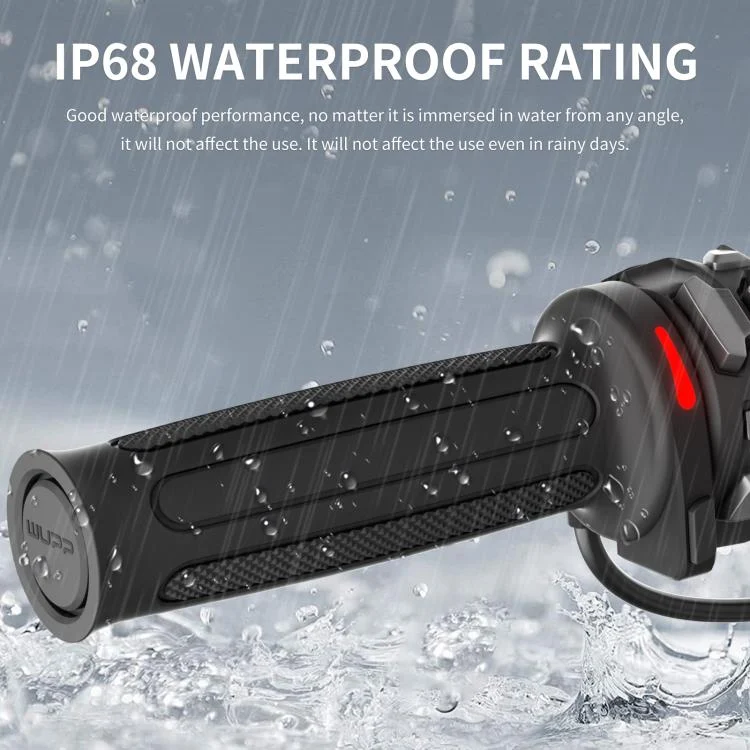

9. Waterproof to IP68, no problem with immersion from any angle

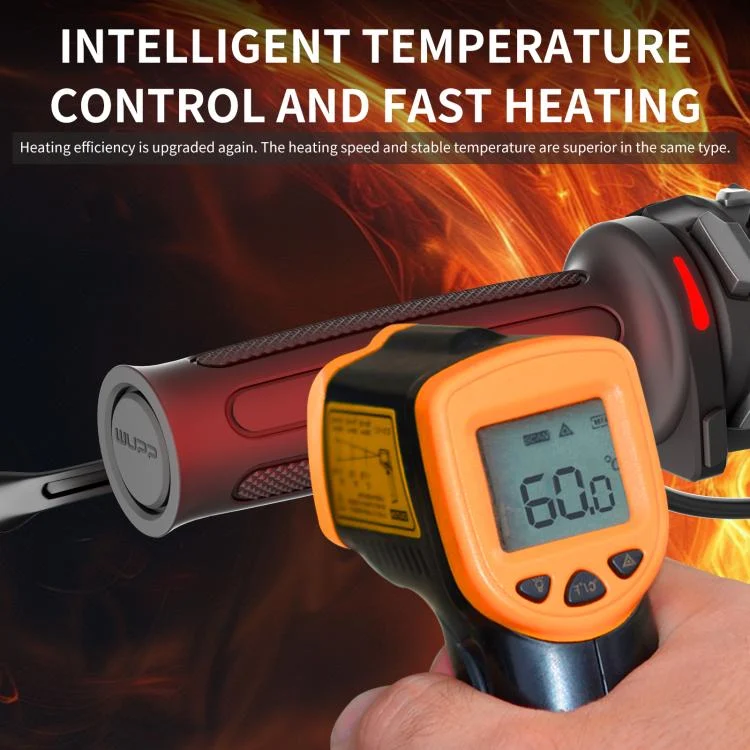

10. The switch features a built-in intelligent temperature control chip with five adjustable temperature settings and intelligent temperature increase upon power on.

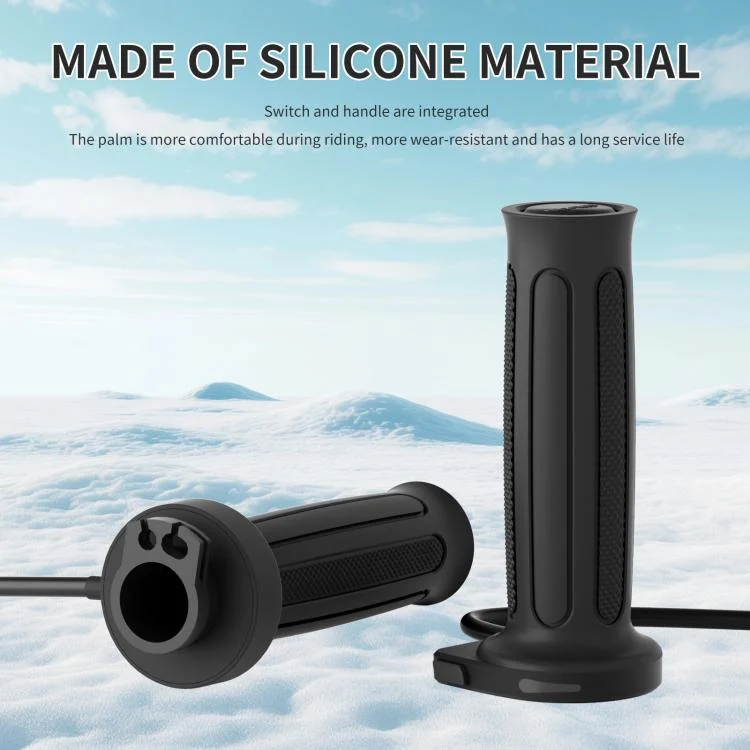

11. Silicone material and textured design provide a comfortable grip, increased wear resistance, and a long service life.
12. Widely compatible with a variety of throttle cores and compatible with most motorcycles on the market.
13. Suitable for pipe diameters: 22mm
14. Net weight: 388g

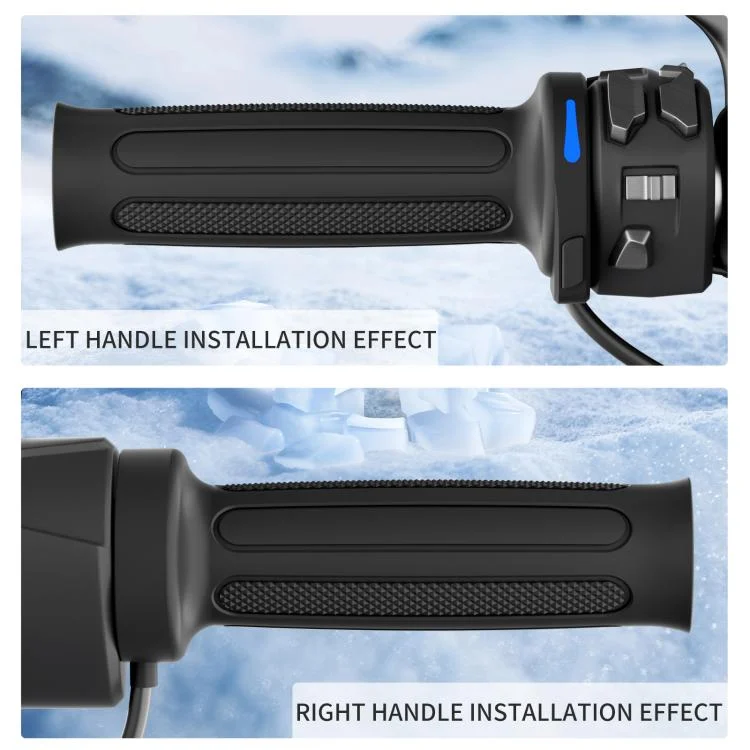

15. Dimensions: right: 140mm; left: 128mm
16. Accessories: cable ties x 5; tail plugs x 2; hexagonal wrench x 1; throttle cable clips x 5

Switch operating instructions

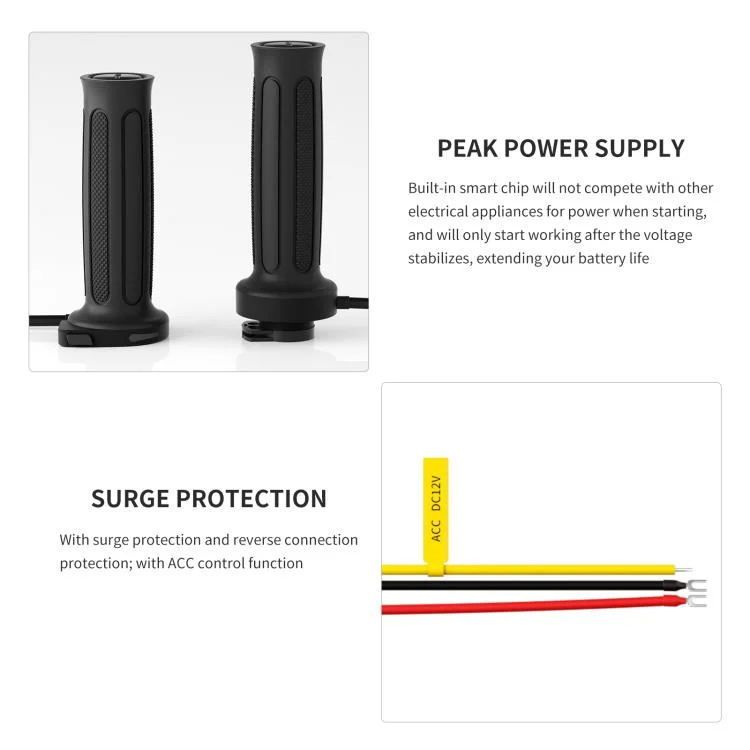

1. The red wire is positive, the black wire is negative, and the yellow wire is the ACC cable. Do not connect them incorrectly, as this may damage the device.
2. Press and hold for three seconds to power on the device. Press again to switch to another gear.
3. The current gear is memorized during operation, even during power outages.

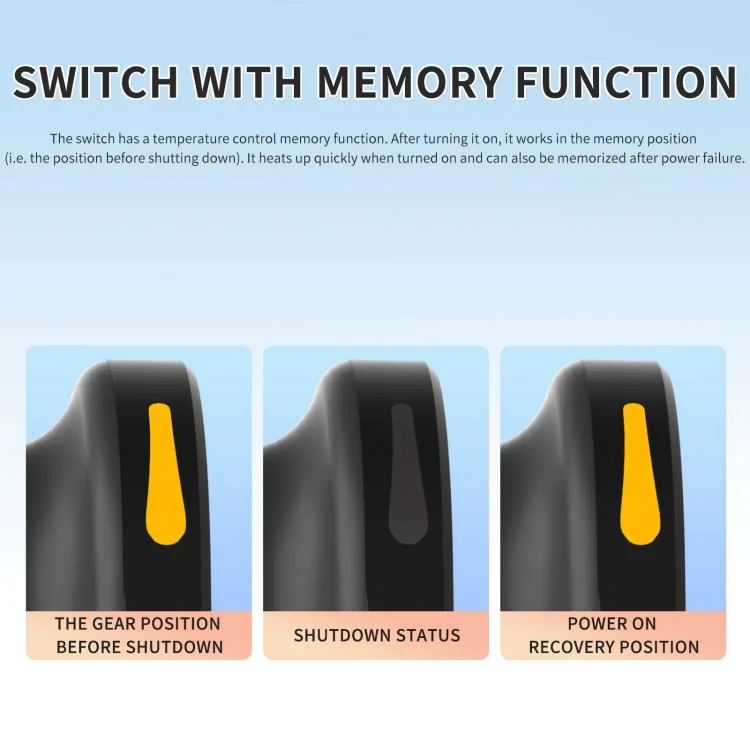

4. The switch has a temperature control memory function. It starts in the memorized setting (the setting before shutting down) and heats up quickly.
5. Neutral: adjust the switch button to the white light. Hold it for 5 seconds, and the white light will flash 5 times before turning off. The memory function is now active, and the setting is neutral. The next time you turn it on, it will go directly to neutral. press it again to switch to first gear.
6. Surge protection and reverse polarity protection; ACC control function.
