ACC Cable Motorcycle 6-speed Memory Heated Throttle Grip

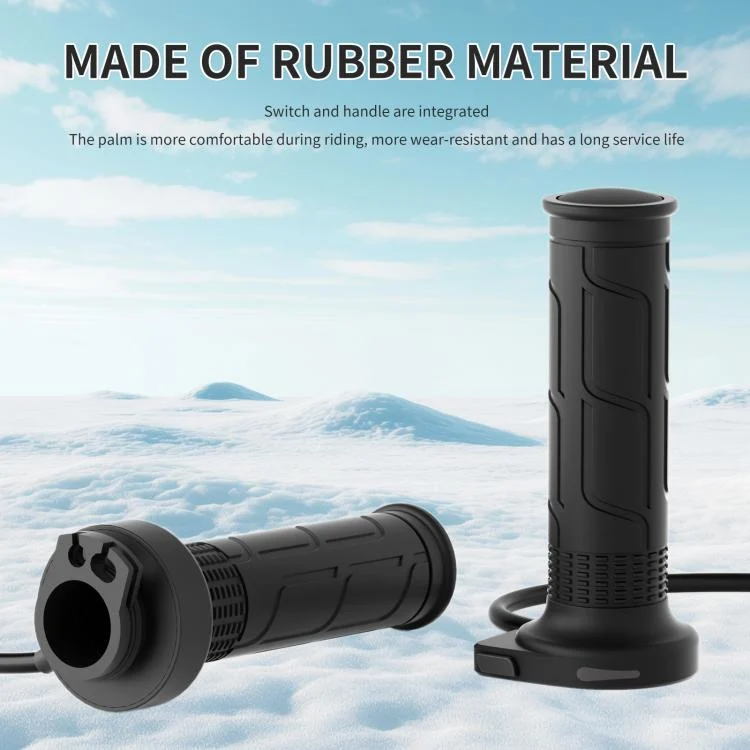

1. Material: rubber
2. Waterproof rating: IP67
3. Cable length: 220cm from handlebar outlet to positive and negative terminals
4. Input voltage: DC 12V

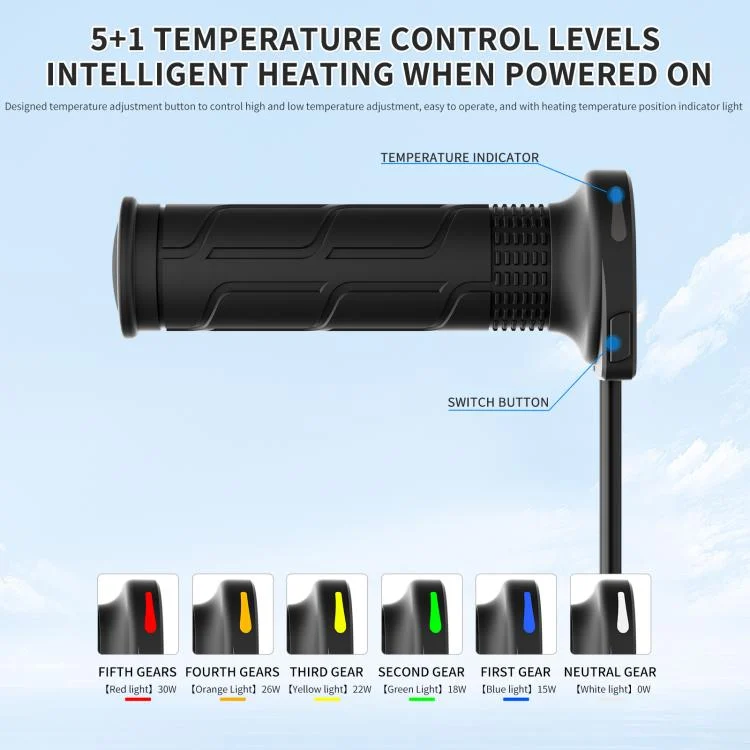

5. Power: 12V, 5th gear (red) 30W, 4th gear (orange) 26W, 3rd gear (yellow) 22W, 2nd gear (green) 18W, 1st gear (blue) 15W, Neutral (white) 0W
6. Operating temperature Range: -20°C to +50°C
7. Compatibility: universal motorcycle (can be used with throttle cables)
8. Switch Type: multi-position adjustable temperature switch
9. Suitable for pipe diameter: 22mm
10. The throttle cable outlet is fixed to prevent poor connections caused by movement of the handlebar cable.
11. Waterproof to IP67, it remains operational regardless of exposure to water.
12. The switch has a built-in intelligent temperature control chip, offering five adjustable temperature settings and intelligent temperature rise upon power on.
13. Built-in intelligent chip allows for power reserve during peak hours, extending battery life.
14. Widely compatible with a variety of throttle cores and compatible with most motorcycles on the market.

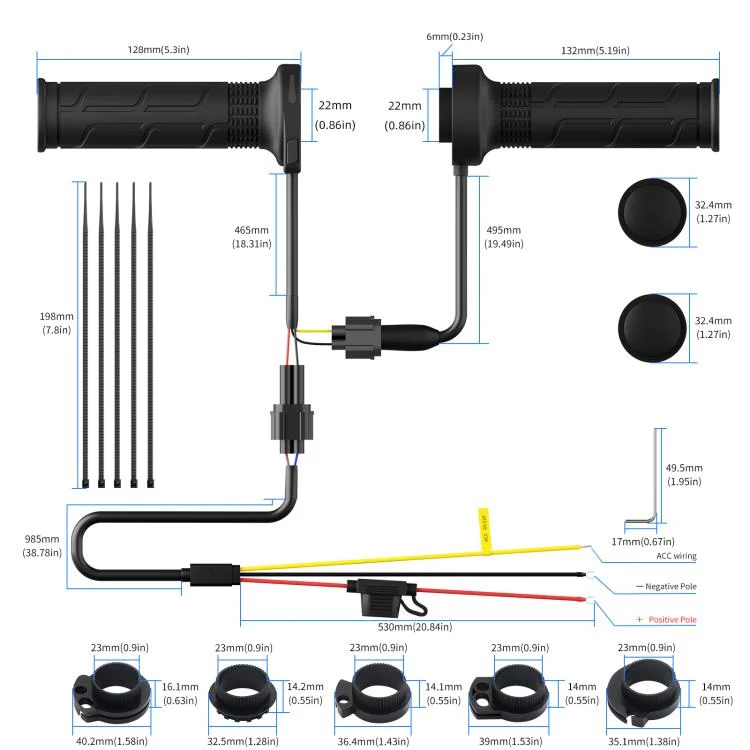

15. Dimensions: right: 132mm; left: 128.5mm
16. Net weight: 316g
17. Accessories: cable ties x 5; end plugs x 2; hexagonal wrench x 1; throttle cable clips x 5

Switch operation instructions:
1. The red wire is positive, the black wire is negative, and the yellow wire is the ACC cable. Do not connect them incorrectly, as this may damage the product.
2. Press and hold for three seconds to power on, then press again to switch to the next setting.
3. The current setting is memorized during operation, even in the event of a power outage.
4. The switch has a temperature control memory function, allowing the device to operate in the memorized setting (i.e., the setting before power off) upon power on, with intelligent and rapid temperature rise upon power on.
5. Surge and reverse polarity protection; ACC Control functions
