WUPP ZH-1422B3 DC12-24V Motorcycle Square Single USB + PD Fast Charging Charger with Switch + Voltmeter + Integrated SAE Socket + 1.4m OT Terminal Cable

1. Product material: ABS resistant to high and low temperature, flame retardant and environmentally friendly material
2. Input voltage: DC12-24V
3. Output voltage: USB output: 5V3.4A/9V2.5A /12V2A, PD output power: 20W, 5V3A/9V2.22A/12V1.67A
4. Monitorable voltage range: 6-30V
5. Product usage: It can be used to power most car-mounted products such as mobile phones, tablets, IPAD, navigation and GPS

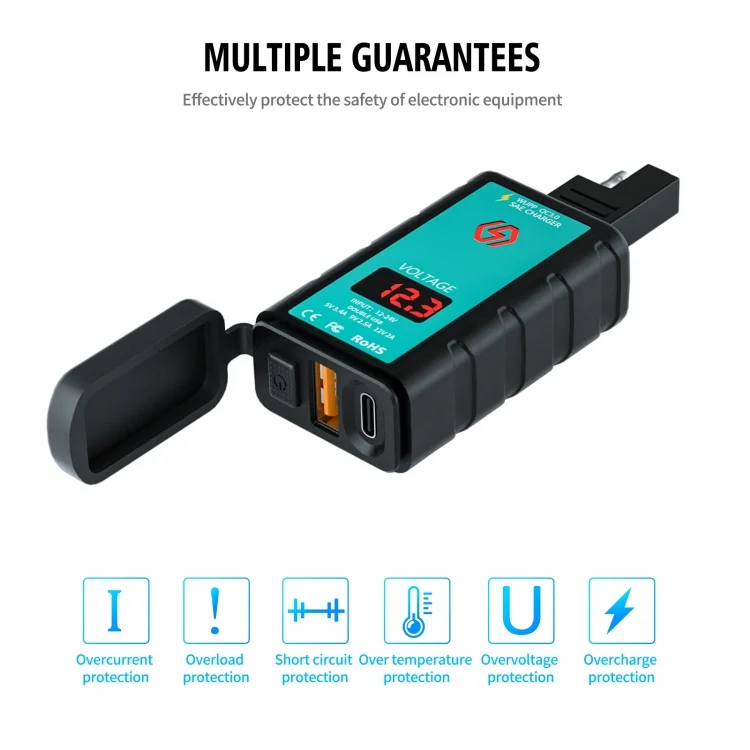

6. Multiple protection functions Input over-voltage and under-voltage protection; output over-current, over-voltage, under-voltage, and short-circuit protection; overload protection; reverse connection protection; chip internal high-temperature protection
7. Product size: length 66.6mm, width 38mm, height 21.3mm
8. Product accessories: handlebar mounting bracket*1, screw mounting bracket*1, large screw*2, small screw*1, handlebar fixing screw*1, non-slip gasket*1, 1.4m SAE socket + OT terminal cable

Performance advantages:

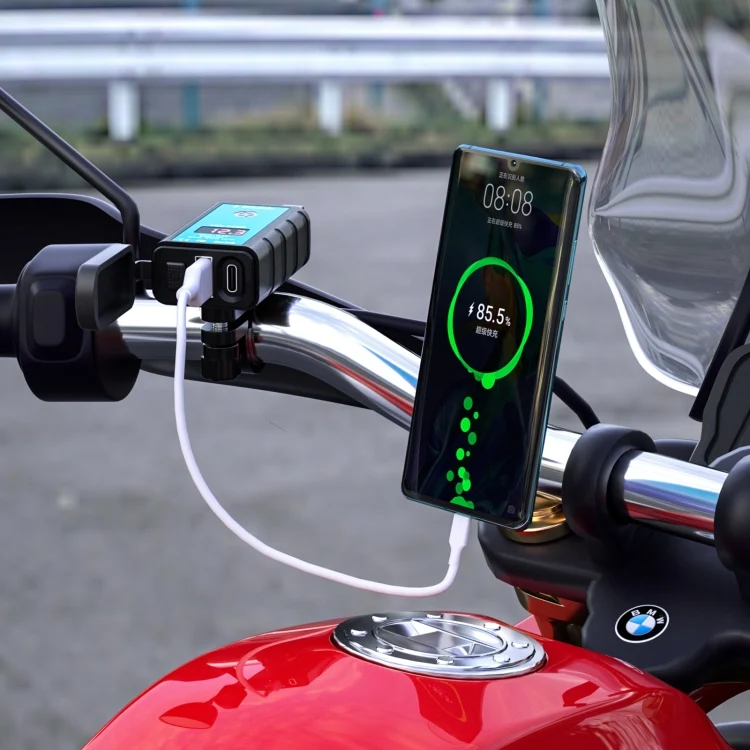

1. Two installation methods, handlebar installation and screw installation, meet the installation and use of most models on the market
2. The product design adopts an integrated SAE interface, which can be directly plugged with the SAE interface of the original car, making the installation more convenient

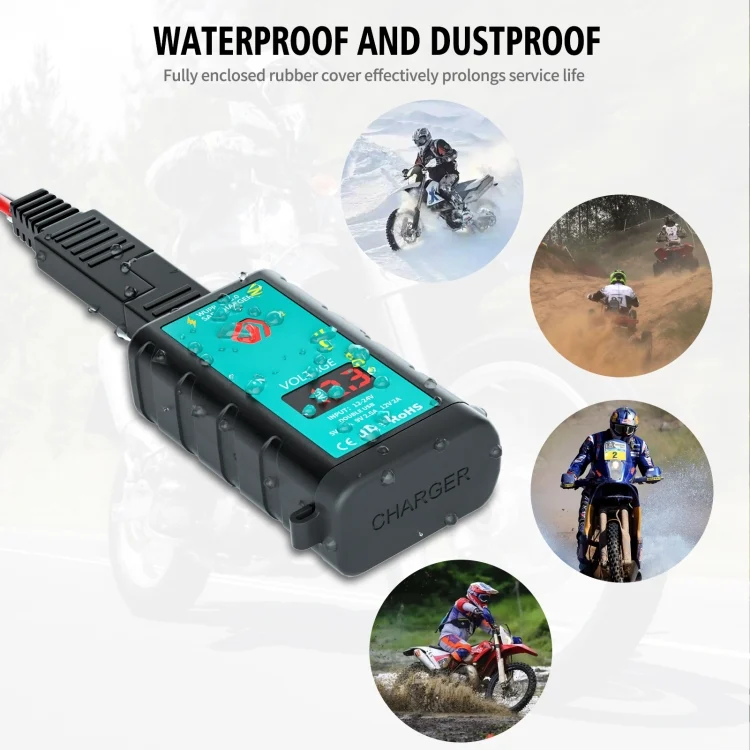

3. Comes with a waterproof and dustproof cover, IP66 waterproof rating, one waterproof cover, rain or shine

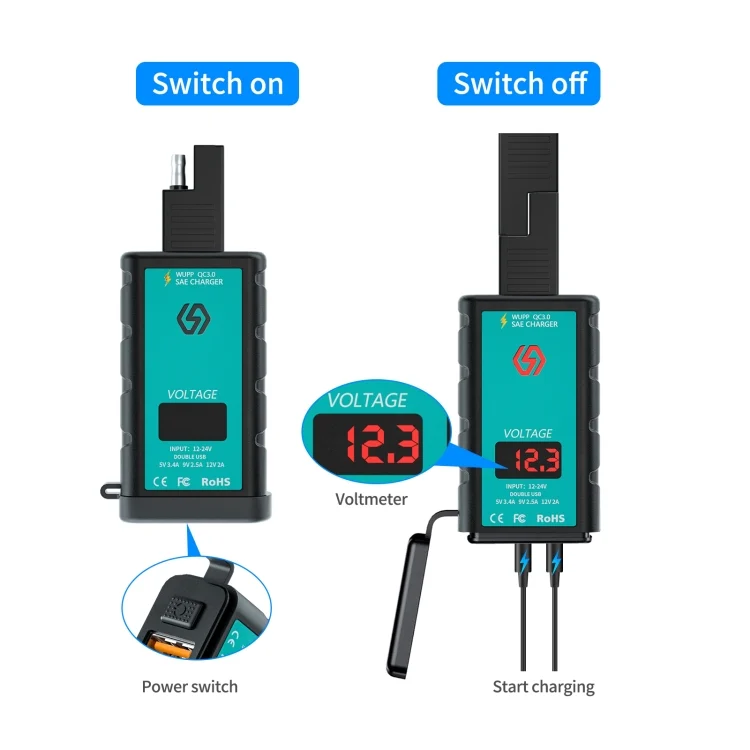

4. The product has an independent switch button, which can be turned on immediately after use, to avoid power consumption and easy to use
5. The product has a voltmeter display to monitor the voltage at any time. The body adopts ogo light, which looks beautiful and generous.

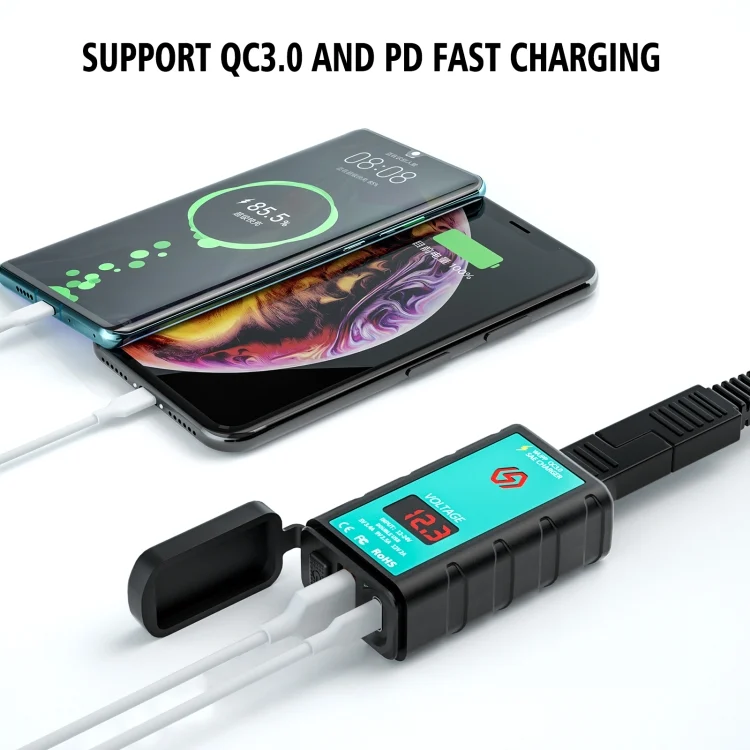

6. The product supports USB and PD fast charging, which is wider and more convenient
7. It can be installed on DC12V-24V vehicles, motorcycles, ATVs, SUVs, boats and other transportation tools, with a wide installation range; built-in power MOS, can provide 20W output power, and can automatically adjust the output voltage according to the fast charging protocol And current to adapt to the charging power of each mobile phone

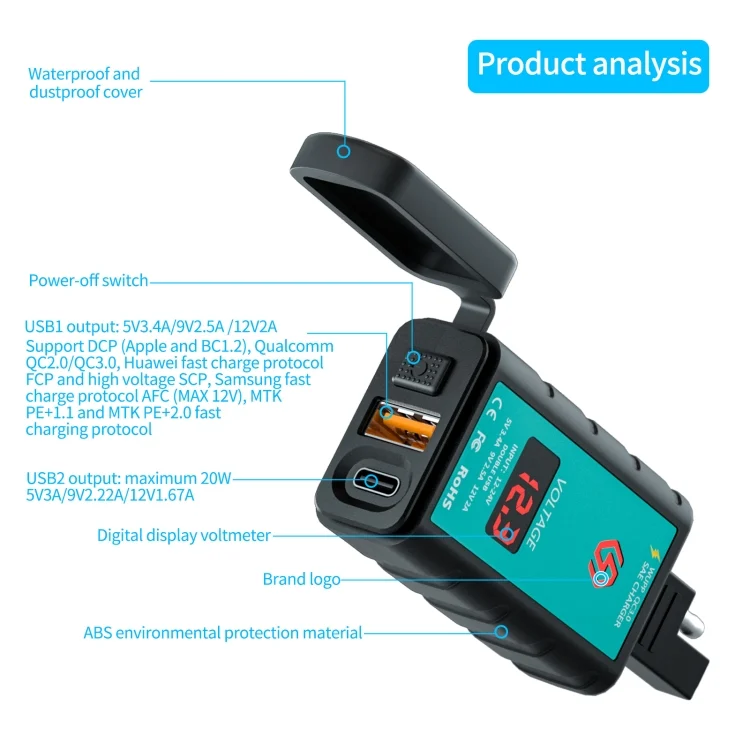

8. The product has dual USB super fast charging ports, supports Type-C output and USB PD2.0/PD3.0 (PPS) protocol; supports 5V 3.4A/ 9V 2.5A / 12V 2A three output solutions, support The fast charging protocols are: DCP (for Apple and BC1.2), Qualcomm QC2.0/QC3.0, for Huawei fast charging protocol FCP and high-voltage SCP, for Samsung fast charging protocol AFC (MAX 12V), MTK PE+1.1 and MTK PE+2.0 can automatically identify the fast charging protocol supported by the device connected to the output terminal (if the mobile phone itself does not support fast charging, the charger does not support fast charging protocol)
9. 1.4m OT terminal connection cable, free 10A fuse to protect the safety of electrical appliances
