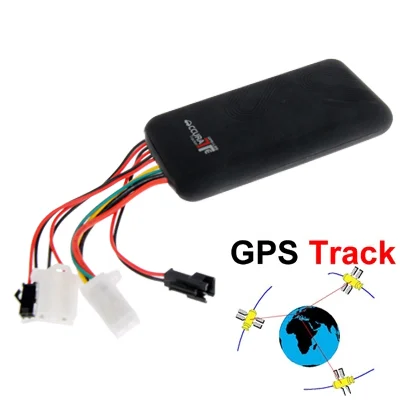

Practical GPS/ GSM/ GPRS Tracker Vehicle Tracker Car Locator Locate Track Monitor Tracking Device

1) Product Features:

Practical vehicle tracker

High sensitivity GPS receiver chip

Built-in high sensitivity GPS antenna, super reception

Highly integrated design, with dual built-in antenna (GSM, GPS) design

Built-in switching power supply, wide voltage input range

Built-in vibration sensor, to achieve intelligent vehicle anti-theft

Support ACC detection, vehicle start alarm

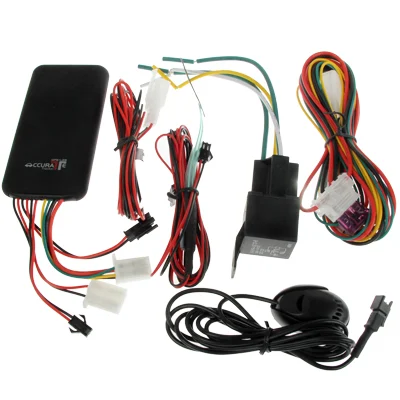

An external relay, remote control vehicle fuel and electricity

Specific numbers can be set three alarm and burglar alarm for SOS

SOS alarm button can be connected for emergency calls for help

An external microphone, remote voice monitoring function

Built-in backup battery, illegal cutting line to achieve the alarm

Compatible with external serial communication device

GSM quad-band system of global common

2) Product Specifications:

GSM Frequency: 850/900/1,800/1,900MHz

GPS Chips: SIRF Star III

GPRS: Class 12, TCP/IP built-in GSM module

GPS Channels: 20

Tracking Sensitivity: -159dBm

Acquisition Sensitivity: -144dBm

Locating Time Cost:

—Hot Start: <2 sec (open sky)

—Warm Start: <15 sec

—Cold Start: <38 sec (open sky)

Antenna: Built-in GSM quad band antenna, GPS high gain antenna.

Battery: 450mAh

GPS Accuracy Rate: 5M-10MM

Voltage Input Range: 9-36V DC

LED Indicator: Three LED indicator: GPS-blue, GSM-green, Power-red

3) Application Environment:

–Operating Temperature: -35 to+70℃

–Operating Humidity: 5% to 95% non-condensing

Size: 97 x 50 x 15 mm / 3.82 x 1.97 x 0.59 inch

Net Weight: 69 g / 2.43oz

Color: Black
