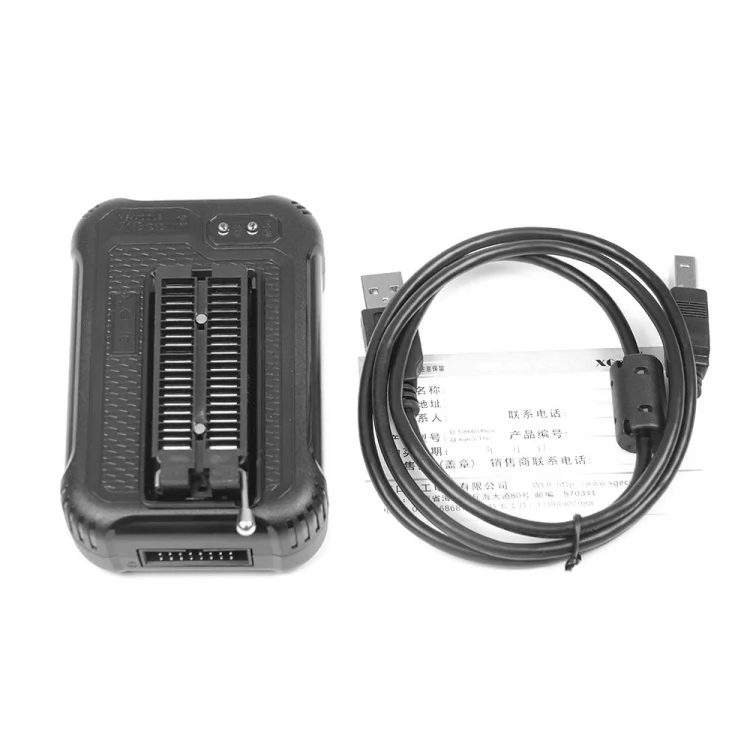

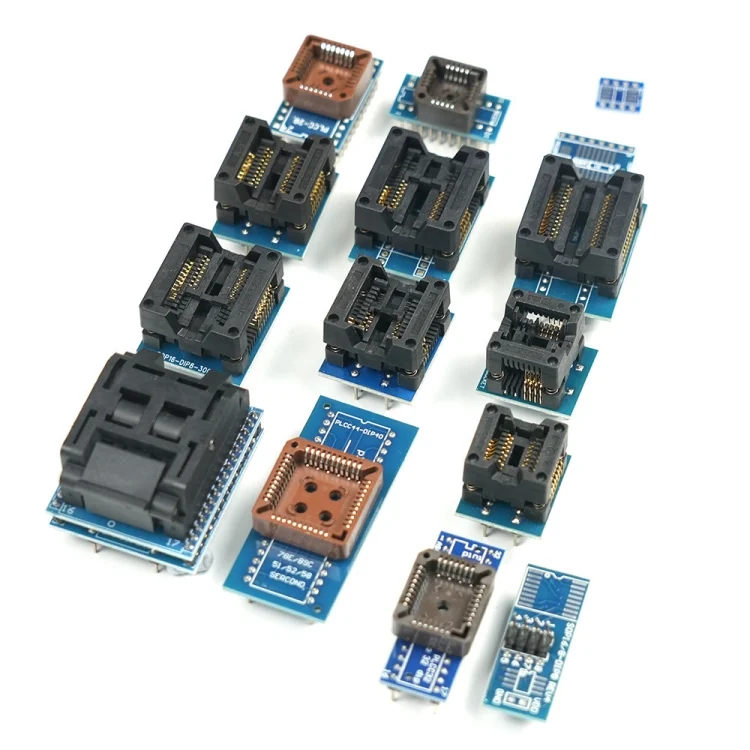

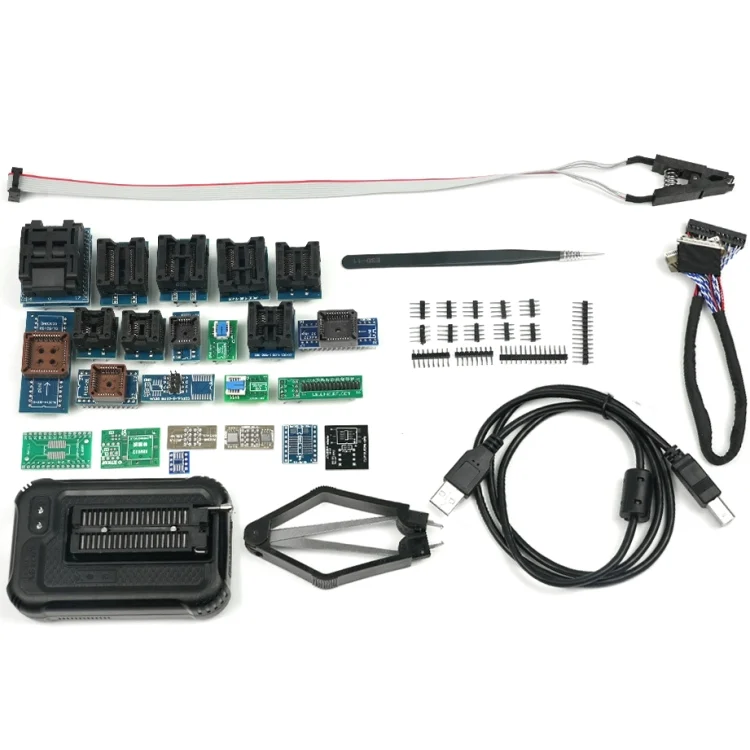

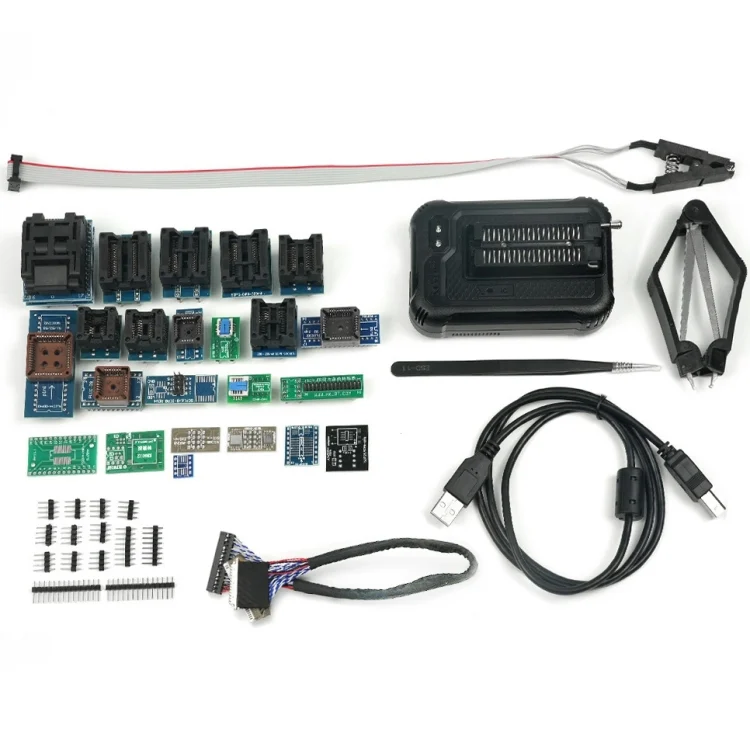

T48 Programmer with 30 Adapter Flash / EMMC BGA153 / 162 / 169 / 1 00

Features:
1. The latest model T48 programmer adopts 40-pin industrial-grade high-quality ZIF socket (pluggable/replaceable), which is an improvement of TL866II Plus programmer.
2. Based on 120MHZ 32-bit MCU and 4-layer PCB design, it supports up to 256GB large-capacity NAND EMMC with higher programming speed.
3. Manufactured by high-density patch technology, unified user interface, easy to use, complete functions, and reliable operation of application software programs.
4. Support high-voltage chips, VPP Maximum can reach 25V.
5. Small size, faster code execution and better performance.
6. Support multiple languages: English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian, etc.

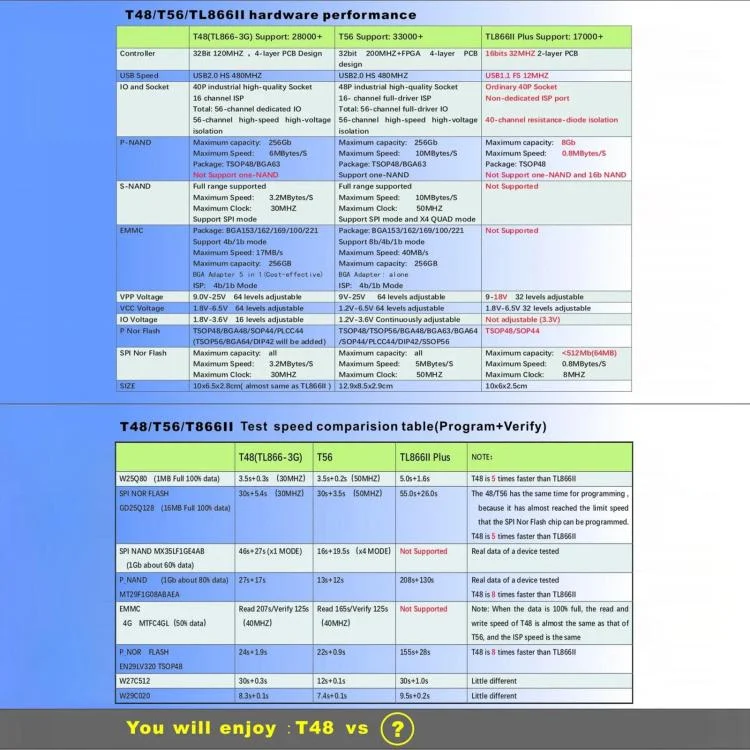

XGecu T48 Parameters:
1. 32-bit MCU with 120MHZ, 4-layer PCB design, USB2.0 HS 480MHZ
2. Volume: 10×6.5×2.8cm
4. Power supply voltage: 121V
5. Working temperature: 50 degrees Celsius
6. 16 channel ISP
Total 56 channels of dedicated IO
56-channel high-speed high-voltage isolation
7. VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable
8. Power consumption: 5V self-test function, self-test VPP/VCC/GND/IO pins
9. Suitable for developers and maintenance personnel, it can produce small batches of large-capacity chips, and supports 4 programmers per computer to work at the same time
10. Support operating system: Windows XP, 2003, 2008, Vista Win7 / Win8 / Win10 / Win11
