Nexas NL101 Universal OBD2 Scanner Diagnostic Tool & Battery Tester With OBDII

Features:
1. The NL101 scan tool not only has all the diagnostic functions of the AD310 scanner, but also has a professional 6V and 12V battery tester.
2. Suitable for all vehicles from 1996 and newer that comply with the standard OBD2/EOBD/JOBD protocol.
3. It has a standard 16-pin connector located near the drivers knees under the steering wheel. Just connect it to start diagnostic work. In addition, it can also be used for batteries of cars, trucks, SUVs, golf carts, motorcycles and other vehicles.
4. No need to charge, plug and play. It automatically reads the code and has the latest 2024 chip, which is 7 times faster than other products.

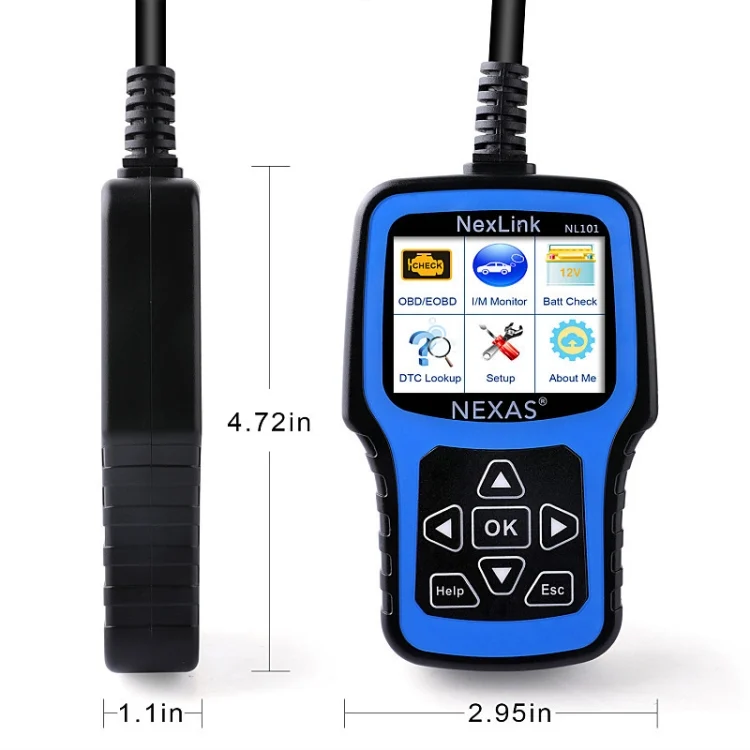

5. 2.4-inch color screen, easy to read, intuitive and clear interface, very friendly even for beginners. With just a few simple steps, you can quickly find the cause of the vehicle failure and check the battery health.

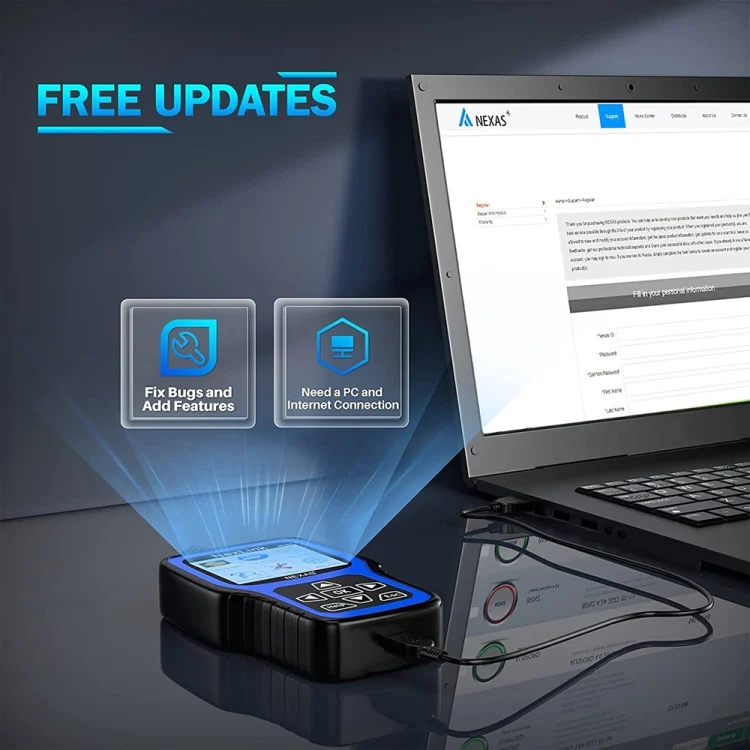

6. The NL101 vehicle code reader supports lifetime free software upgrades via USB port and the Internet, allowing you to get new parameters, functions and the latest vehicle data.

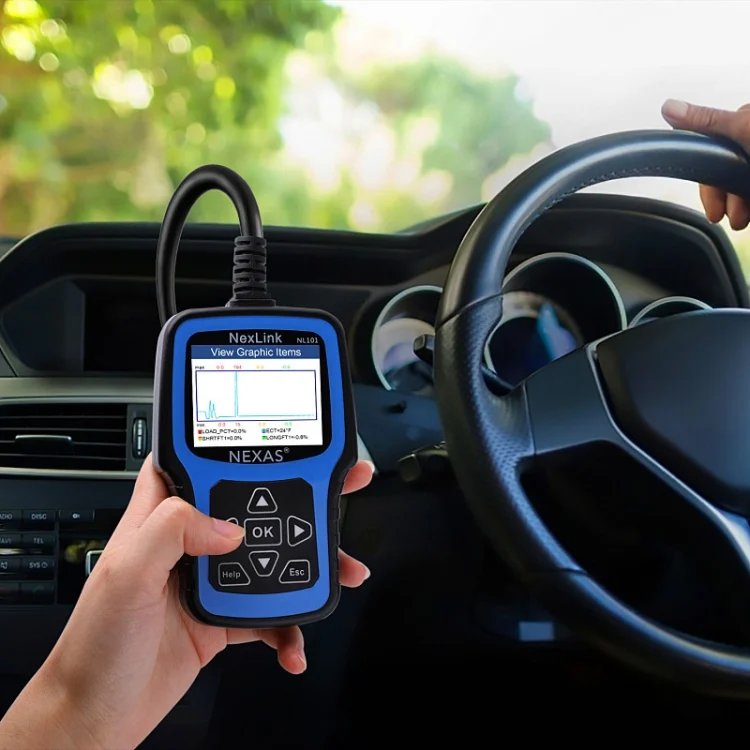

7. The car scanner displays all real-time engine parameters in text and graphic form, such as engine speed, air flow sensor, intake air temperature, fuel rail pressure. The diagnostic report can be transferred to a computer via USB for printing.

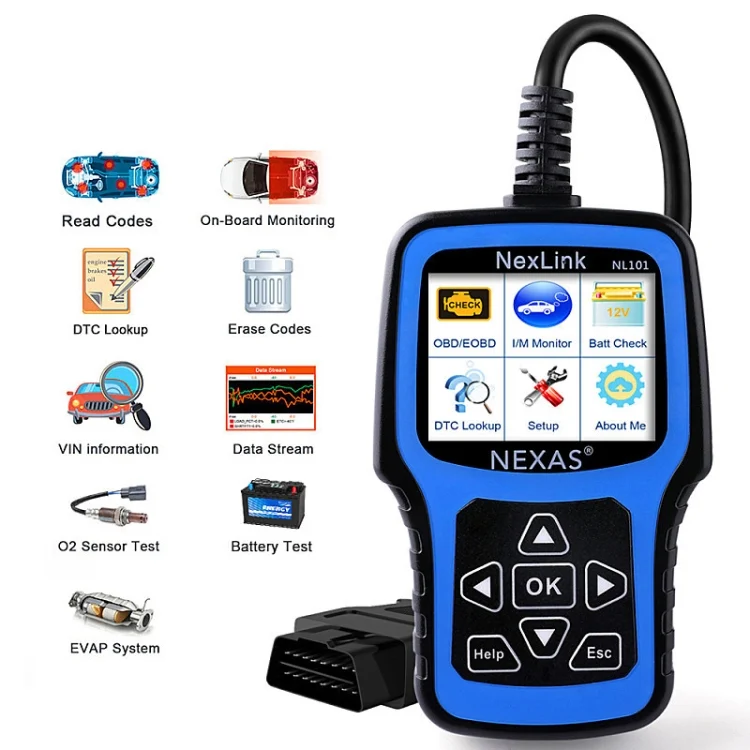

Functions:

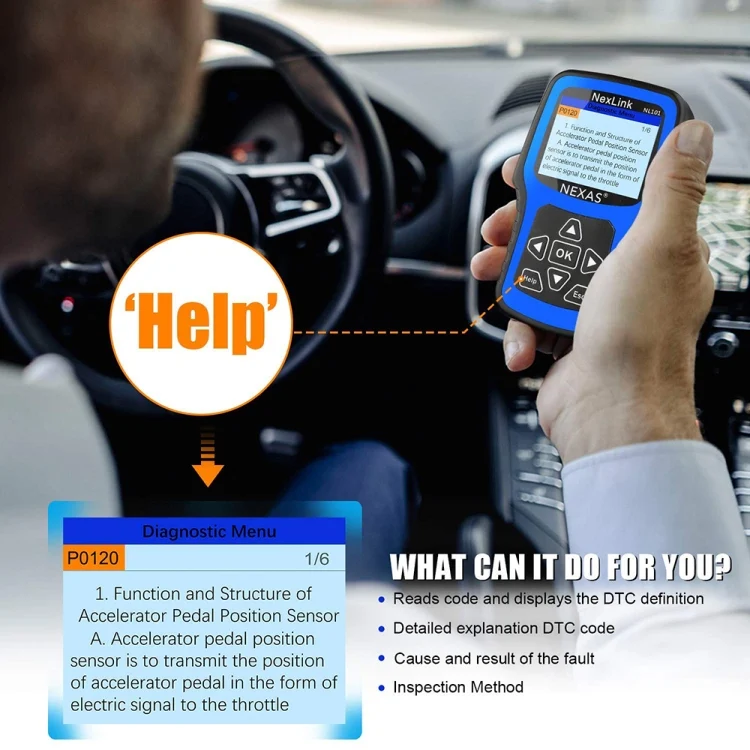

a. Read codes: generic, manufacturer specific and pending

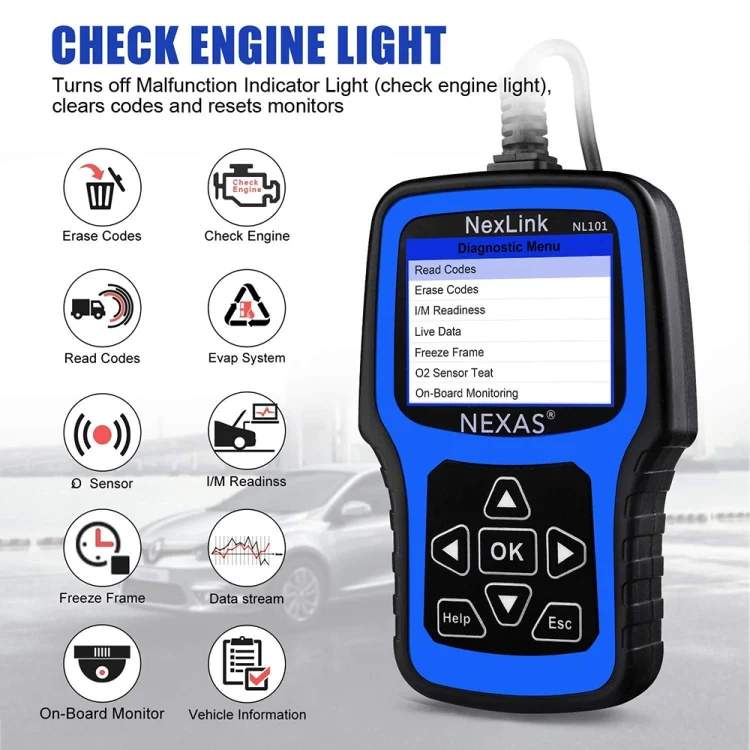

b. Clear codes, turn off the Check Engine Light (MIL) and reset monitors
c. Read, log, graph and replay live sensor data
d. View freeze frame

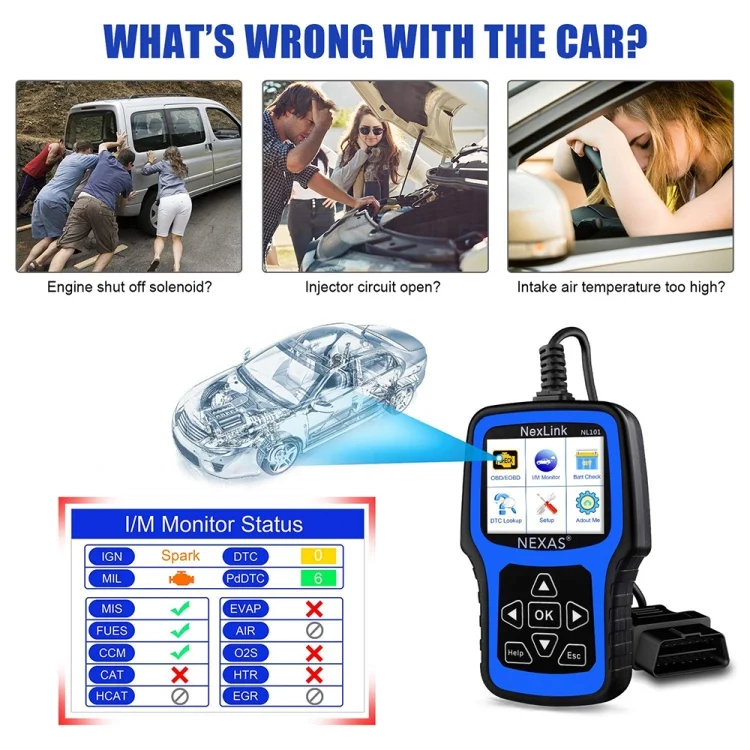

e. Display monitor and I/M readiness status (emissions)
f. Retrieve vehicle information (VIN, CID and CVN)
g. EVAP test
h. On-board monitor
i. O2 sensor check

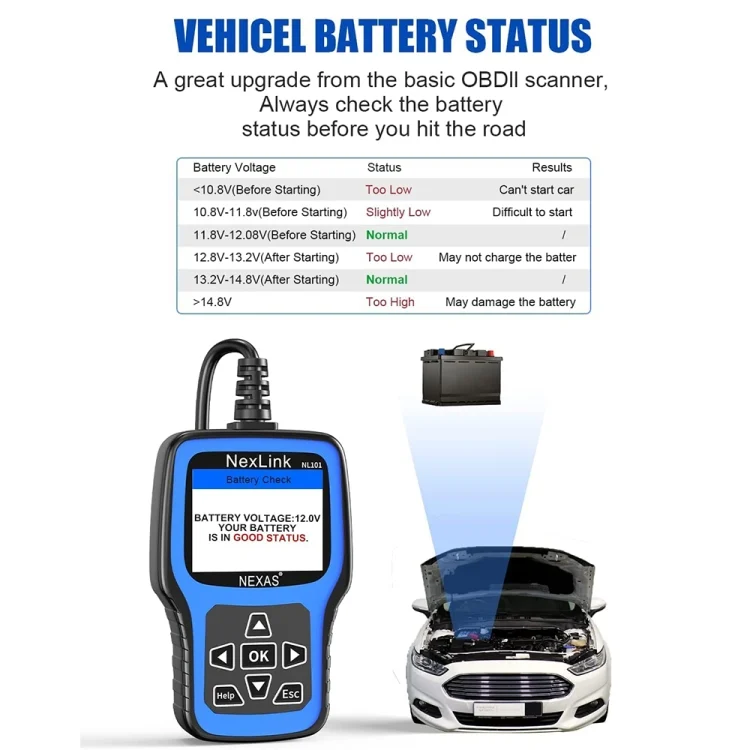

j. Battery real-time monitoring
k. Multi-language menu
l. Lifetime free Internet updates

Product parameters:

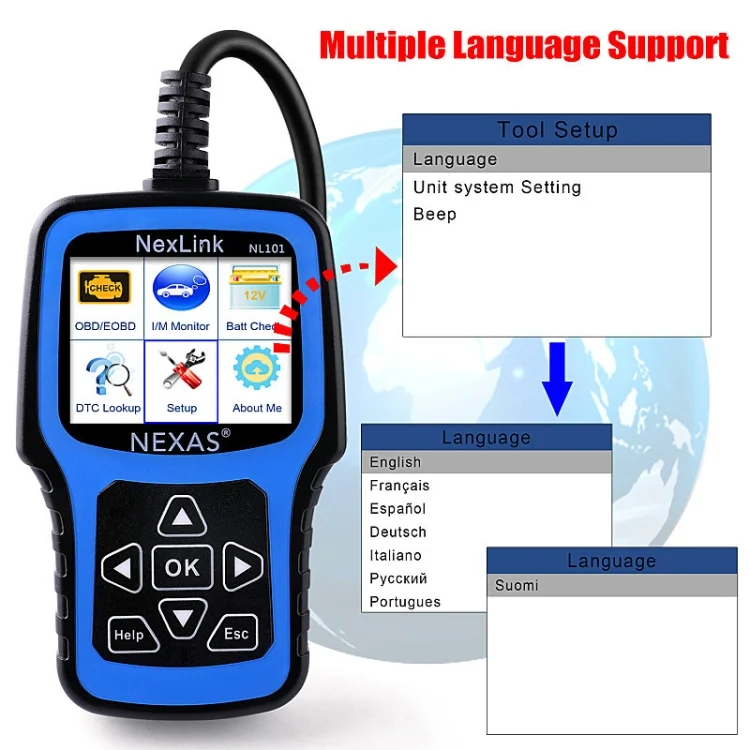

1. Supported languages: English, French, Spanish, German, Russian, Portuguese, Dutch, Finnish
2. Supported OBD2 protocols:
ISO 9141-2 (5 baud initialization, 10.4 K baud)
ISO14230-4 KWP (5 baud initialization, 10.4 K baud)
ISO14230-4 KWP (Fast Initialization, 10.4 K Baud)
ISO15765-4 CAN (11-bit ID, 500 K Baud)
ISO15765-4 CAN (29-bit ID, 500 K Baud)
ISO15765-4 CAN (11-bit ID, 250 K Baud)
ISO15765-4 CAN (29-bit ID, 250 K Baud)
SAE J1850 PWM (41.6K Baud)
SAE J1850 VPW (10.4K Baud)
3. Supported car list:
a. American (USA) car:
Compatible with Standard OBD2 Cars from 2001 to Now: for Chrysler, for Ford, for GM, for Jeep
b. European car:
Compatible with Standard OBD2 Cars from 2004 to Now: for Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar
France Car after 2006: for Citroen，for Fiat，for Renault，for Peugeot
Not Support for Renault Clio 2/Megane/Dacia Logan
c. Japanese car
Compatible with Standard OBD2 Cars from 2005 to Now: for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota
d. Chinese car:
Compatible with Standard OBD2 Cars from 2008 to Now: for BYD, for Chery, for Geely, for Great Wall, for Karry
4. Note:
Although it is compatible with most cars, the support time for vehicle OBD2 protocol is different in different regions, or some cars are specially designed, so it may not work with some cars that do not support OBD2 The car with OBD2 protocol is not compatible. Especially Japanese and Korean car brands. And the device only has OBD2 function, no special functions such as ABS reset, airbag reset…
5. Warning:
Not Support Russian Cars VAZ,UAZ,LADA ; Not works with trucks
For Ssangyong Actyon , from 2009 to 2017 years.
For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron , 2.0 Diesel , from 2010 to 2017 years.
For Ssangyong Rexton , 2011 to 2017 years,
Not Support Opel Corsa c 2004 1.3 CDTI
Nor Support vw golf 4 2002

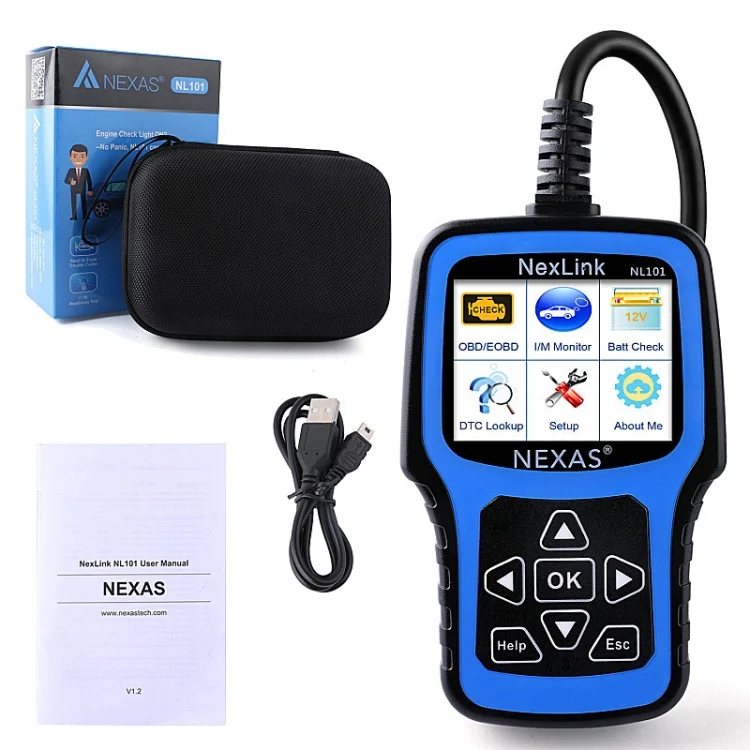

Packing list:
-Scanner x 1
-USB data cable x 1
-Instruction manual x 1
-Storage box x 1
