MPPS V18 Main + Tricore + Multiboot V18.12.3.8 with Breakout Tricore Cable Car Diagnostic Tool

Features
1. This module adds boot mode support for controllers with the tricore processor Features:
Auto detects ECU and processor type. No need to select from list, everything is automatic!
Read/Write of all memories Eeprom, Irom, Xrom (where possible)
Patch function for OBD Flashing of TPROT ECUs (supports only VAG at the moment)
TPROT / DS check feature, for testing if TPROT is active without opening ECU.
Supports For upto TP12
Supports For Siemens (current only for ECUs without password protection),
Support for unlocking of VAG Simos PCR and For Simos 8.
Checksum Correction supported for MEDC17.
2. The MPPS is a powerful programming tool. It offers general reading / writing operations and checksum support, however it also includes some additional features:
Excellent recovery functions. In some cases MPPS can recover ECUs which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).
Selectable full / partial reading and writing when the ECU allows this function.
Selectable reading / writing speed.
Writing changes only function for faster programming (when supported by the ECU).
Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.
Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.
Boot mode support for ECUs with C167 and ST10 processors.
EEprom read/write functions for some ECUs are included.
For VAG MEDC17 TPROT level checking without opening the ECU.
5. Please install on Win7 system.
4. Software: V18.12.3.8, Firmware: V 1.08.21
5. Package:

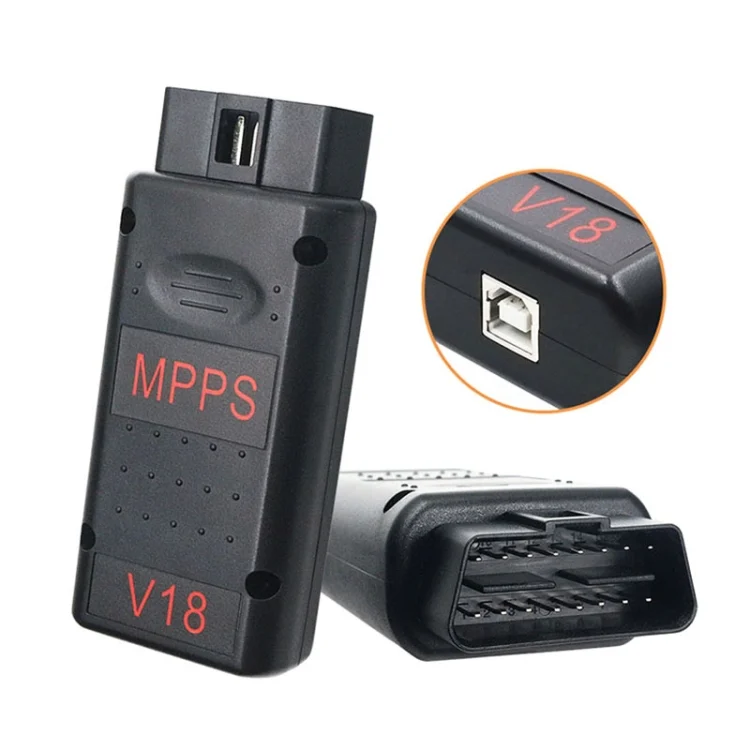

1 x MPPS V18.12.3.8
1 x Breakout Tricore cable
1 x CD Software

Application
Read / Write of Micro, Flash and EEprom without using a BDM programmer!
For Fiat 6F3- Full Read / Write Micro, Flash and EEprom over K-line and CAN.
For Fiat 6JF – Full Read / Write Micro and EEprom over K-line.
For Fiat 8DF – Full Read / Write Micro and EEprom over K-line.
For Fiat 8F2 – Full Read / Write Micro and EEprom over K-line and CAN.
For Fiat 8F3 – Full Read / Write Micro and EEprom over K-line and CAN.
For Fiat 8GM – Full Read / Write Micro and EEprom over CAN.
For Fiat 8GS – Full Read / Write Micro and EEprom over CAN.
For Fiat 5SF3 – Full Read / Write Flash and EEprom over CAN.
For Fiat 5SF3 – Full Read / Write EEprom over K-Line.
For Fiat 5SF8 – Full Read / Write Flash and EEprom over K-line and CAN.
For Fiat 5SF9 – Full Read / Write Flash and EEprom over CAN.
For Fiat ME7.9.10 – Full Read / Write Micro over CAN.
For Fiat ME7.6.3 – Full Read / Write Micro over CAN.
For Opel 6O2 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
For Opel 6O3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
For Opel 6JO – Full Read / Write Micro and EEprom over K-line.
