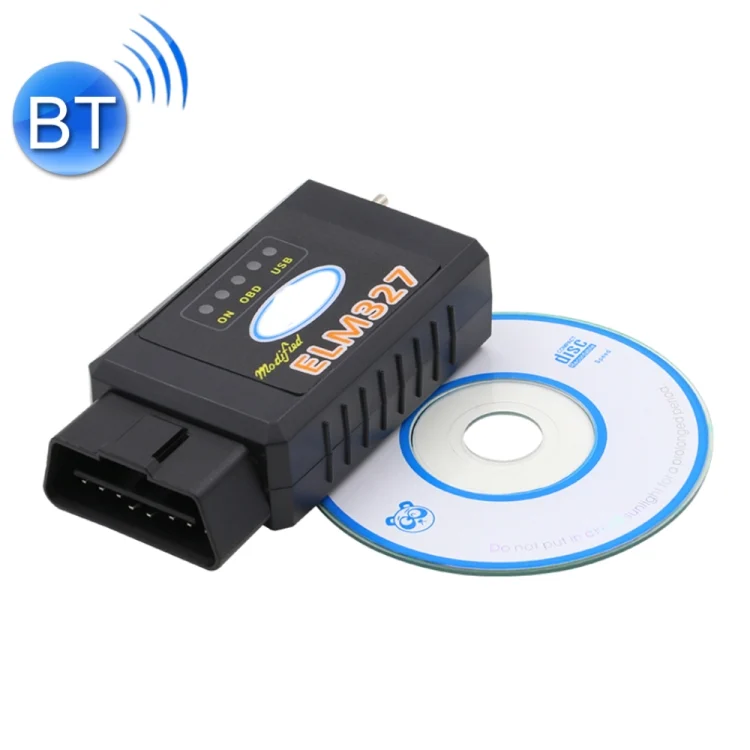

Bluetooth V1.5 ELM327 Interface USB OBDII Auto Diagnostic Scanner Tool with Switch

Features
1. Hardware V1.5
2. The chip of ELM327 Forscan is PICI8F25K80 chip

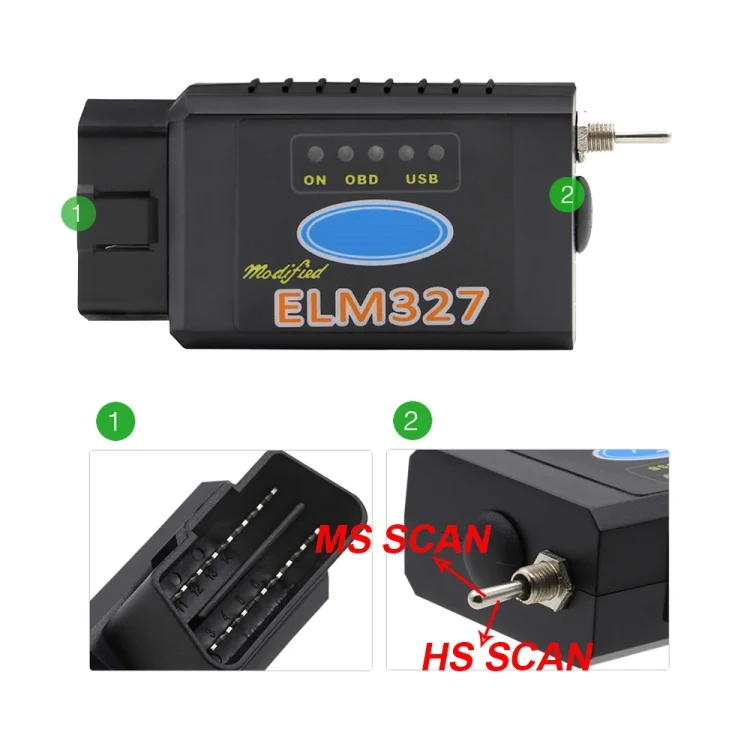

3. MS-CAN support via toggle switch(MS-CAN / HS-CAN).
Support MS CAN bus and HS CAN bus, easily switchable for different CAN speeds.
Switch position one: HS CAN – Occupies pins 6 and 14
Switch position two: MS CAN – Occupies pins 3 and 11
4. Support for FORD models open hidden function.
5.The newly developed wireless scan tool.
6.It supports all OBD-II protocols.
7.Wireless (Bluetooth) 5~10 meter
8. Beside added functionality, this device works as normal OBD2/EOBD code reader on all supported vehicels.
9. Computer System: Windows XP/Win7 32bits,close anti-virus program to install software.
10. Multi-Language Available:
English, Czech, Danish, German, Spanish, French, Croatian, Hungarian, Italian, Polish, Serbian, Turkish.

Functions
1. Read diagnostic trouble codes,both generic and manufacturer-specific,and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL (Check Engine light)
3. Display current sensor data,including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure

Bluetooth Version Supported Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
A.SAE J1939 CAN (29bit ID,250*Kbaud)
B.USER1 CAN (11*bit ID,125*Kbaud)
C.USER2 CAN (11*bit ID,50*kbaud)
default settings (user adjustable)

WIFI Version Supported Protocols: ??
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
