CarPlay/Android Auto Wireless Screen Projection Portable MP5

1. System: allwinner melis
2. Software: F133
3. Radio transmitter frequency: preset frequencies: 88.60, 89.50, 91.50, 93.00, 93.90, 95.10; Selectable frequencies: 87.5-108.0 MHz
4. Bluetooth chipset: AB5301B
5. Amplifier chipset: CS8571E
6. Output power: 1W

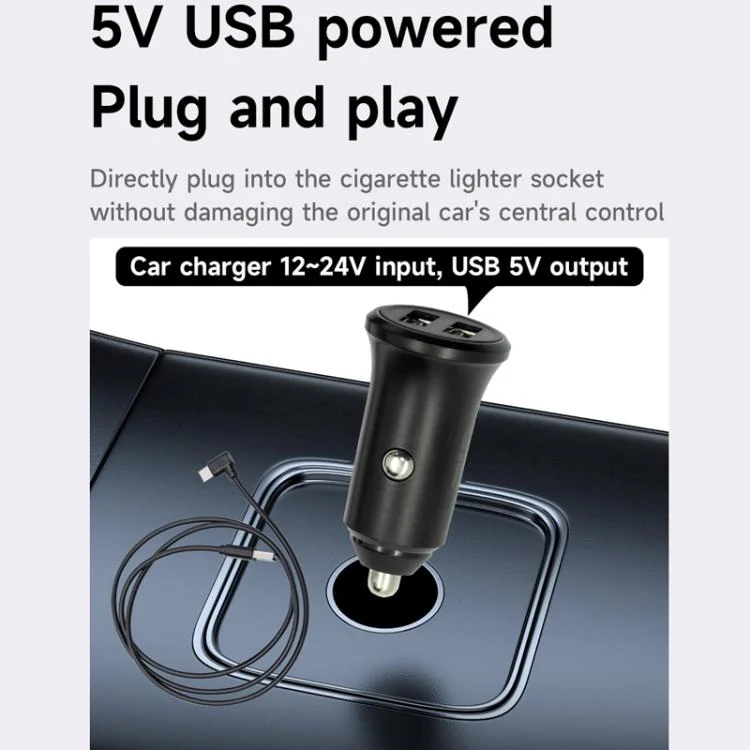

7. Cigarette lighter input voltage: 12V-24V
8. Operating voltage: 5V
9. Operating temperature: -10°C to 60°C
10. Bluetooth version: 5.0 (Default Name: SWL-BT)
11. CPU: F133
12. RAM: 64MB DDR
13. Display resolution: 1280×720
14. Screen material: IPS
15. Screen size: 4.7 inches
16. Languages: English, Chinese, Traditional Chinese, French, German, Arabic, Italian, Japanese, Portuguese, Russian, Spanish, Hebrew, Polish, Turkish, Czech, Korean, Greek, Dutch
17. Factory password: 113266

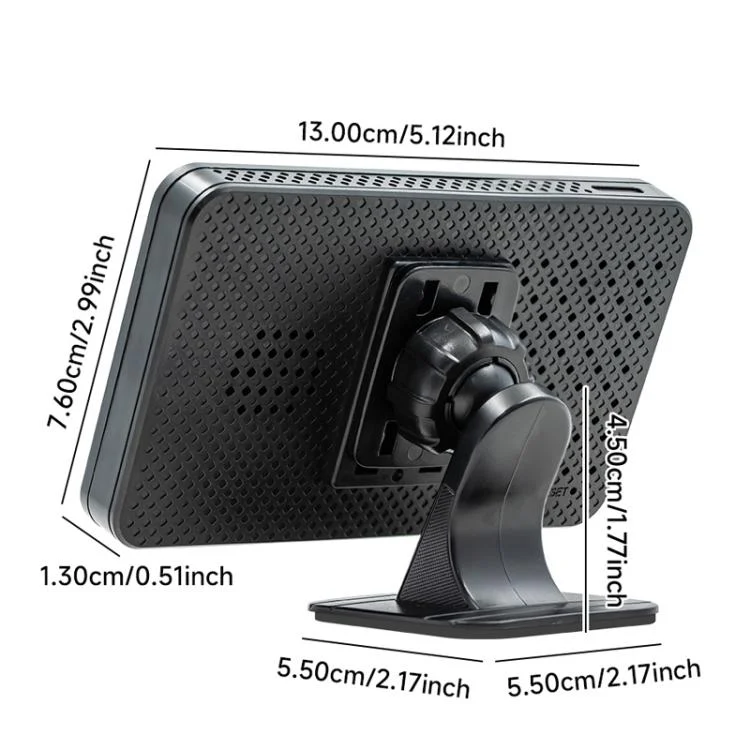

18. Bracket dimensions: 55 x 55 mm
19. Cover dimensions: 130 x 76 mm
20. Main unit depth: 13 mm
21. Unit weight: 0.3 kg

Functional specifications
1. Mobile phone connectivity: supported
2. For Apple CarPlay: wired, wireless
3. For Android Auto: wired, wireless
4. For iPhone screen mirroring: wired, wireless
5. For Android screen mirroring: wired, wireless

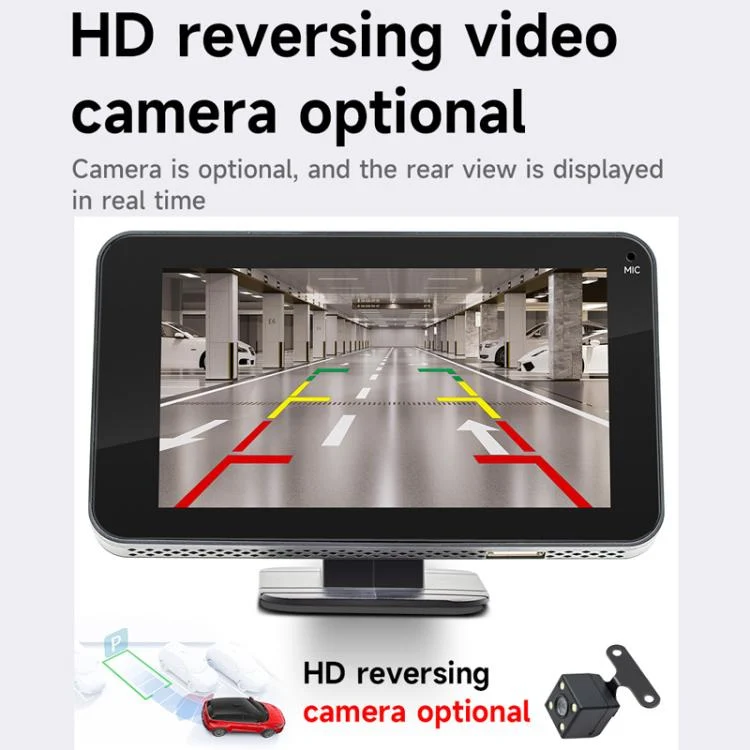

6. Reversing camera: supported
7. Video playback warning: supported
8. Dash cam: supported (supports USB external DVRs)

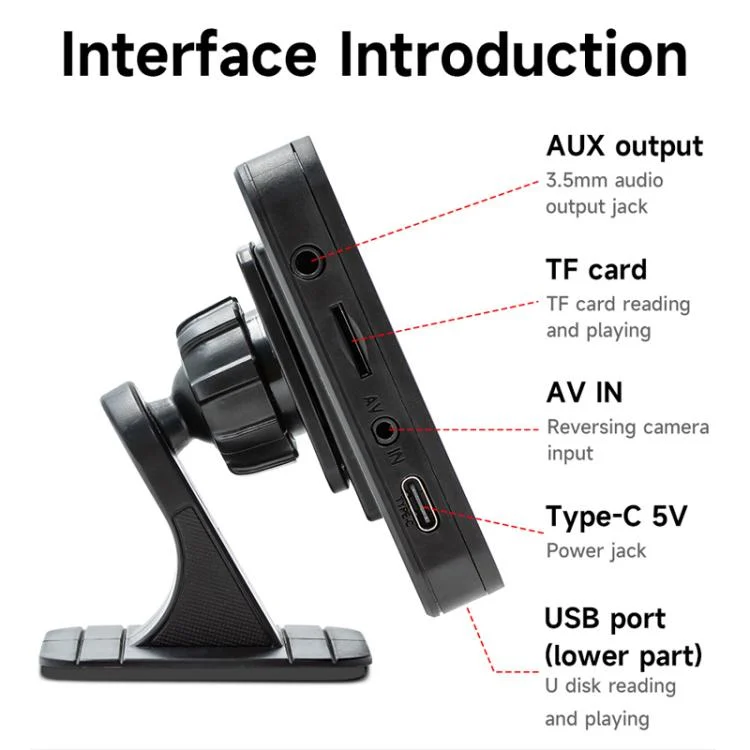

9. Type-C port: supported (power port)
10. USB port: supported
11. TF card: supported
12. Four-way audio switching: AUX/BT/FM/SPK
13. Reverse video input: supported (2.5mm)
14. AUX output: supported (3.5mm)

Basic functions
1. Radio frequency transmission to output audio to the original car
2. Bluetooth audio output (supports CarPlay and Android Auto audio output only)
2. USB flash drive (audio/video/image)
3. TF card (audio/video/image)
4. Bluetooth function
5. Reverse view function (camera not included)
6. Dashcam (dashcam not included)

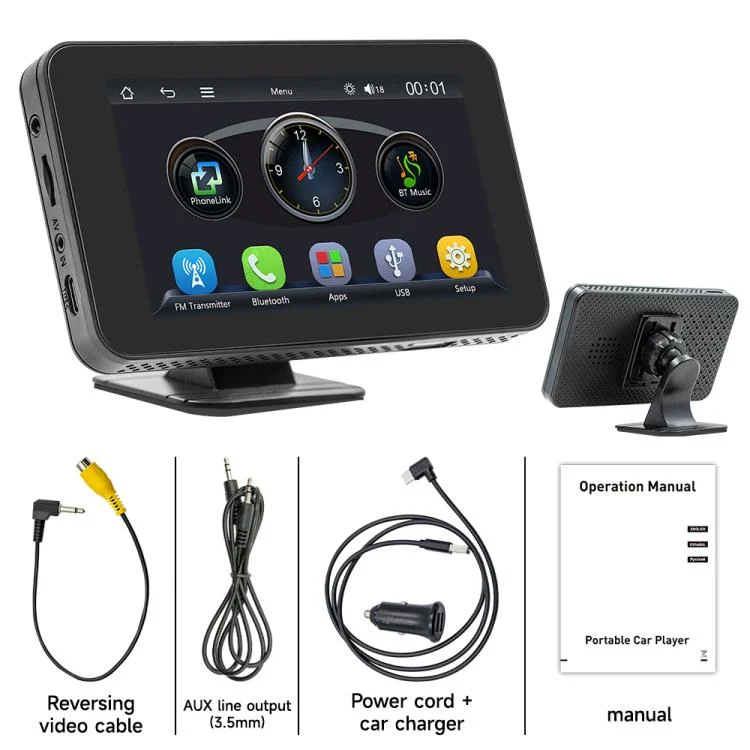

Accessories:
1. Main unit
2. Manual
3. Cigarette lighter + TAPY-C power cable
4. Reverse video cable
5. AUX audio adapter cable
6. Desktop stand
