9.7 inch Vertical Screen Bluetooth Radio Android 13 GPS Navigation Device

Basic functions
1. Radio
2. Read USB disk (audio/video/picture)
3. Bluetooth function
4. Reversing rear view function (camera optional)
5. Audio input, video input, video output function

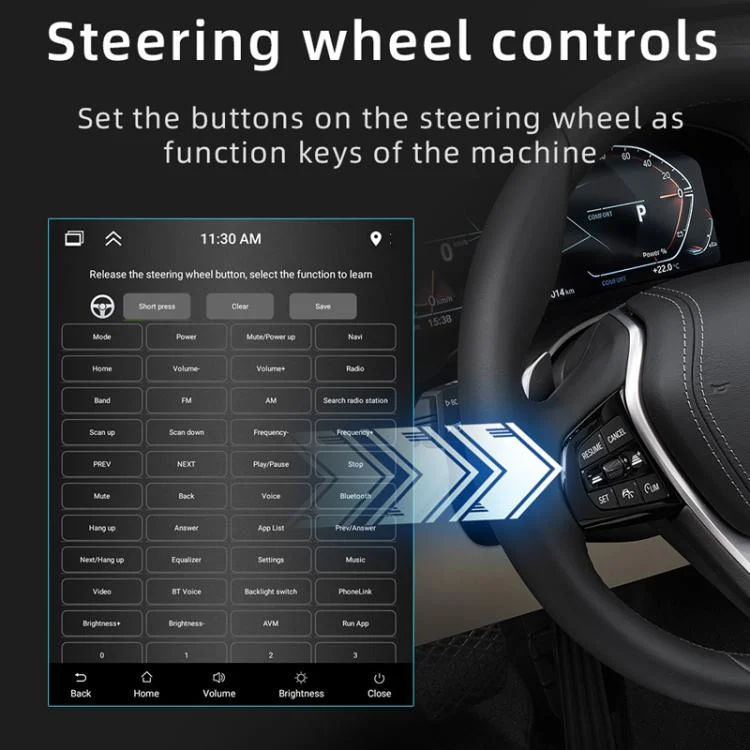

6. Original car steering wheel learning function
7. Android recorder can be installed (recorder optional)
8. WIFI Internet access
9. GPS navigation
10. APP can be installed
11. External microphone (external microphone optional)
12. Wired and wireless android auto/Apple carplay function, mirrorlink (Android USB+WIFI, For Apple WIFI)
13. Recorder function
14. RDS function, can receive traffic radio in real time
15. Power supply positive and negative reverse connection protection function (the power line positive and negative poles are connected incorrectly, which will not cause the circuit board to burn)

Basic parameters:
1. System: Android 13
2. Software solution: Jinganchi 8227
3. Radio frequency: FM 87.5~108.0MHz (switchable to Europe, Eastern Europe, North America, South America, 4. Africa, Australia, Japan regional radio frequency)
5. Radio chip: 6625
6. Amplifier chip: 7388
7. Output power: 60Wx4
8. Working voltage: 12~14.4V

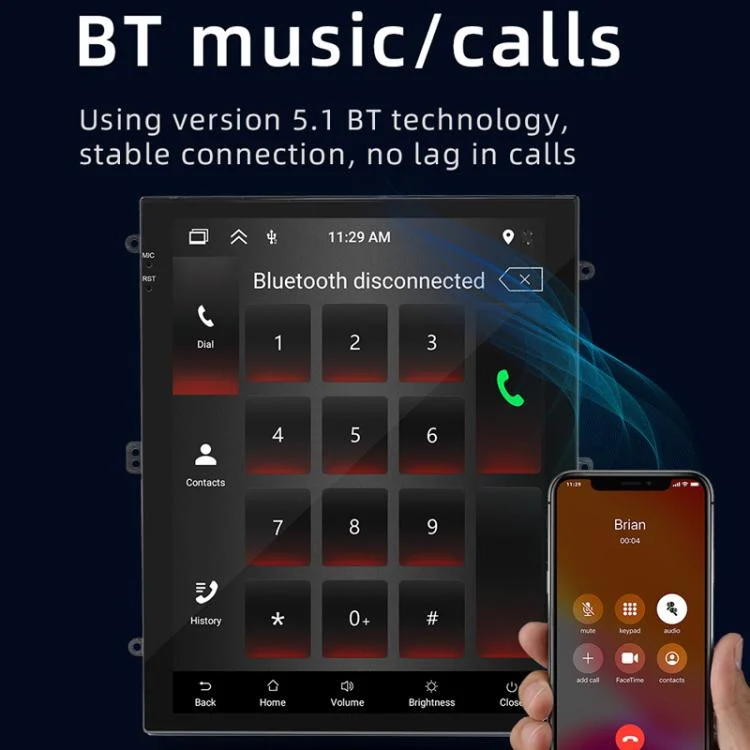

9. Bluetooth version: version 5.1 (default name: SWL-BT)
10. Wi-Fi frequency: 2.4GHz, 5GHz
11. GPS signal: Beidou/GPS+GLONASS
12. Panel light: None
13. CPU: AC8227L Cortex-A7 quad-core processor, main frequency 1.1GHz
14. Running memory: 1G, optional 2G
15. Storage memory: 16G Optional 32G/64G
16. Display resolution: 768×1024 HD
17. Screen size: 9.7 inches
18. Support mobile phone interconnection, reversing image (camera self-equipped), video playback warning, steering wheel control (support key learning) USB interface (rear USB2.0), driving recorder (USB signal input, recorder self-equipped), reset button
19. Language: Chinese/Traditional Chinese/English/Russian/Greek/Polish/Turkish/Arabic/Persian/Romanian/French/Hungarian/Italian/Thai/German/Ukrainian/Spanish/Portuguese/Czech/Vietnamese/Japanese/Malaysian/Dutch/Indonesian/Korean
20. Factory setting password: 1234
21. Shell size: 172mm x 212mm

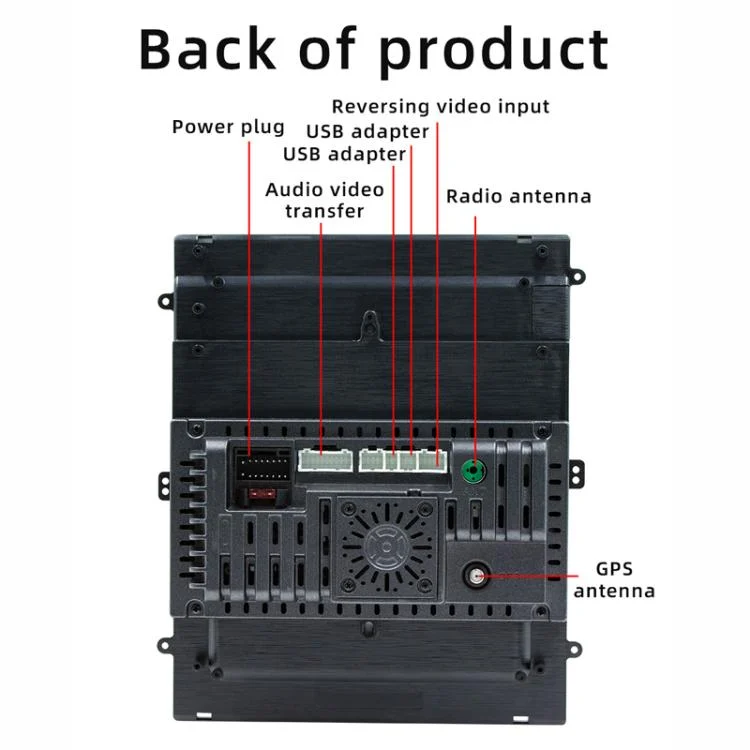

RCA port parameters
1. Audio output: 2 channels (left channel + right channel)
2. Video output: 1 channel
3. Video input: 1 channel
4. Reversing video input: 1 channel
5. Subwoofer output: 1 channel

Format parameters
1. Audio format: MP3/WMA/WAV/APE/FLAC/AAC/OGG/RM
2. Video format: MPEG/AVI/RM/FLV/ASF/WMV/MP4/MKV/OGM/TS/DivX/RMVB/VOB
3. Image format: JPG/BMP/PNG/JPEG/GIF

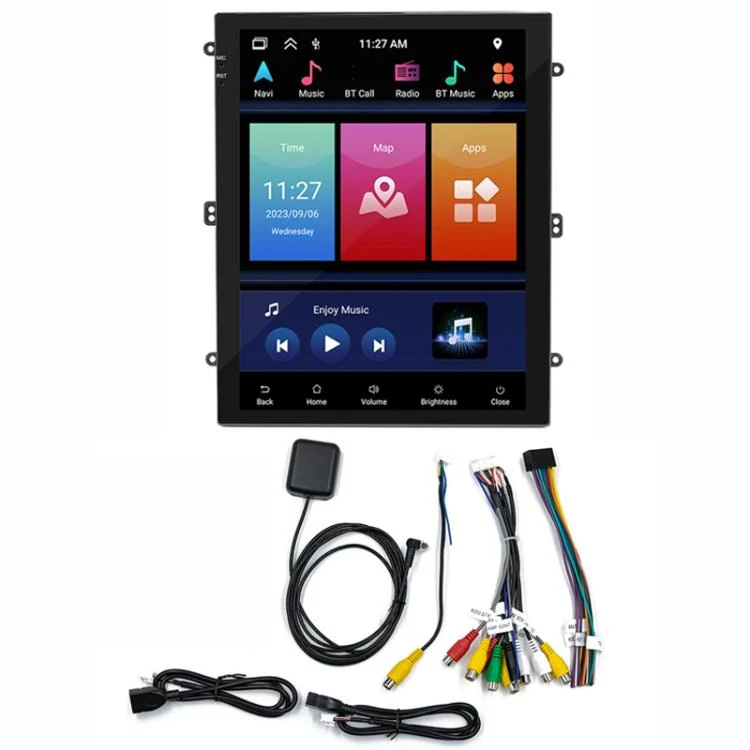

Packing list:
– Host
– GPS antenna
– 20P power cord
– RCA cable
– Instruction manual
– USB1
– USB2
