10.1 inch IPS Display + 2.5D Touch Screen Bluetooth FM Radio Car Navigation Machine

Basic parameters
1. System: Android 13
2. Software solution: Jinganchi 8227 (public board)

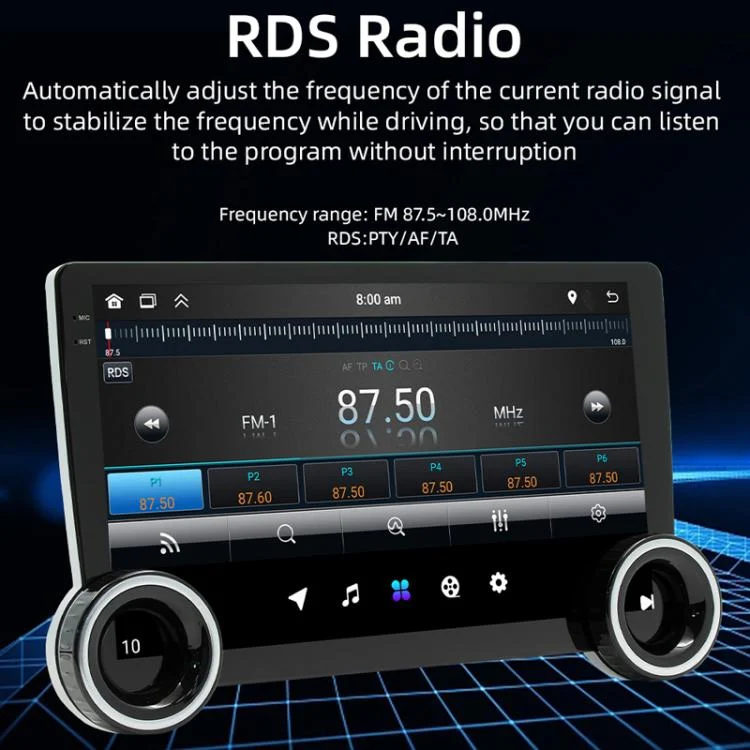

3. Radio frequency: FM 87.5~108.0MHz (switchable Europe, Eastern Europe, North America, South America, Africa, Australia, Japan regional radio frequency)
4. Radio IC: MT6625
5. Amplifier IC: YD7388
6. Output power: 60Wx4
7. Working voltage: 12~14.4V
8. Bluetooth version: Version 5.1 (default name: SWL-BT)
9. WIFI frequency: 2.4GHz

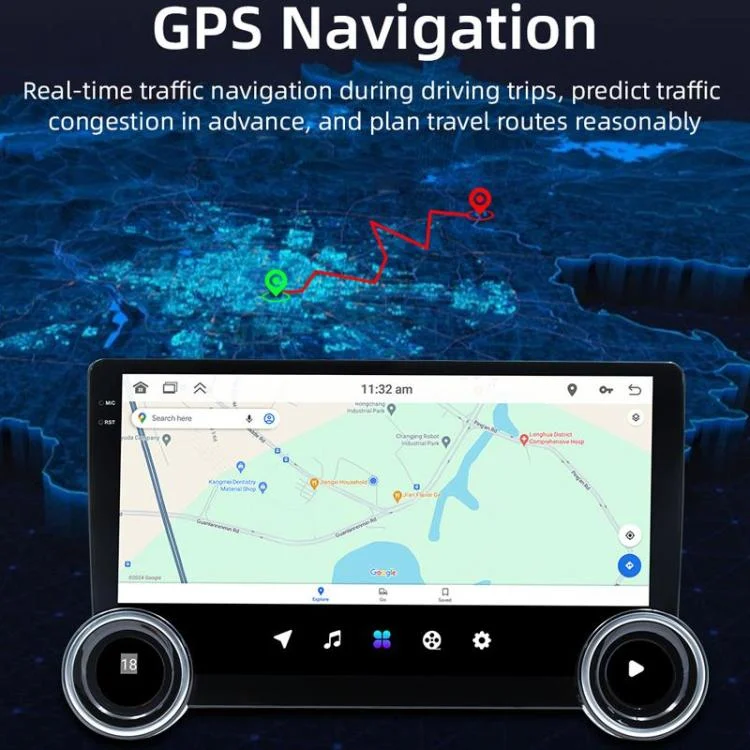

10. GPS signal: GPS+GLONASS
11. Language: Chinese/Traditional Chinese/English/Russian/Greek/Polish/Turkish/Arabic/Persian/Romanian/French/Hungarian/Italian/Thai/German/Ukrainian/Spanish/Portuguese/Czech/Vietnamese/Japanese/Malaysian/Dutch/Indonesian/Korean

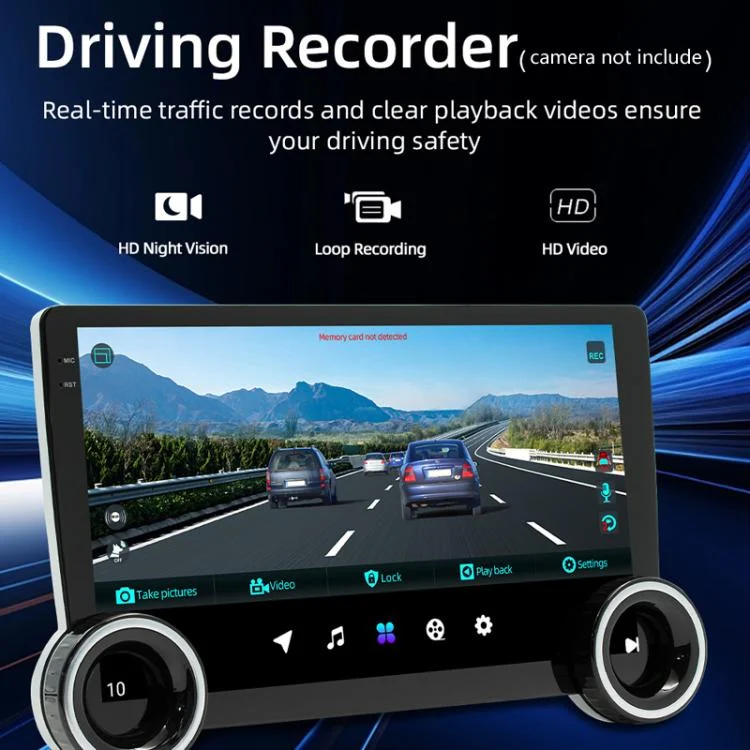

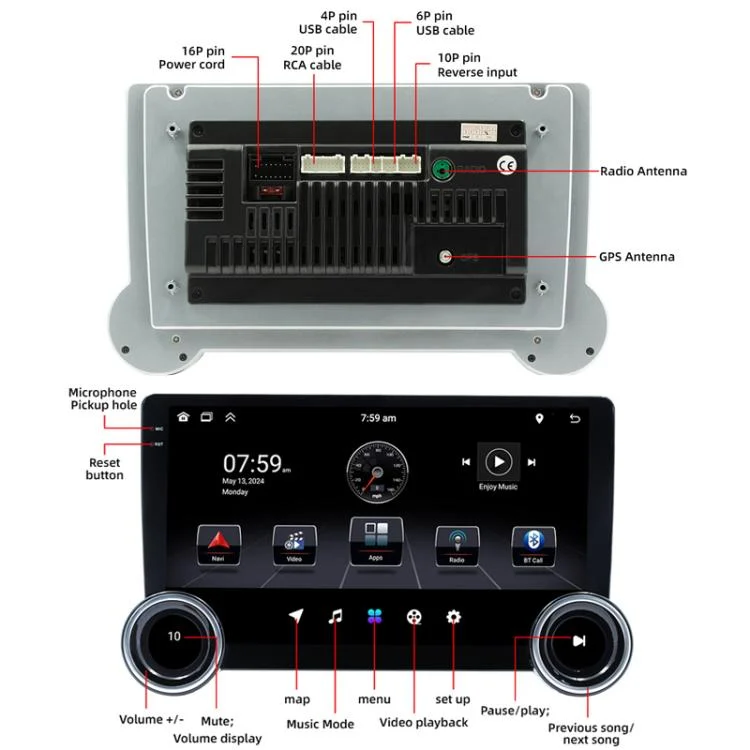

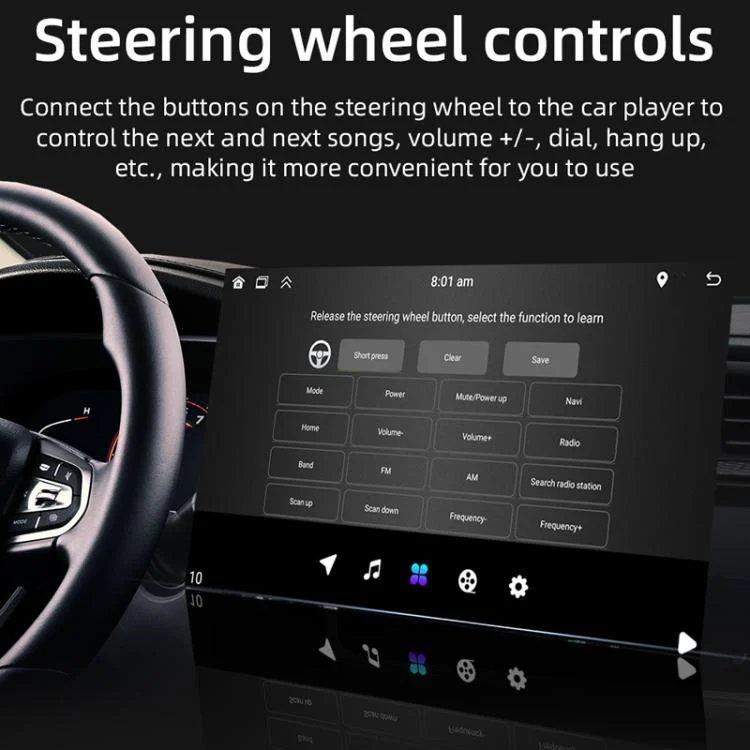

12. Play video warning, steering wheel control, video output, offline map, driving recorder (USB signal input), GPS navigation, rear USB (2-way, USB2.0 read + USB2.0 read), external microphone interface, reset button

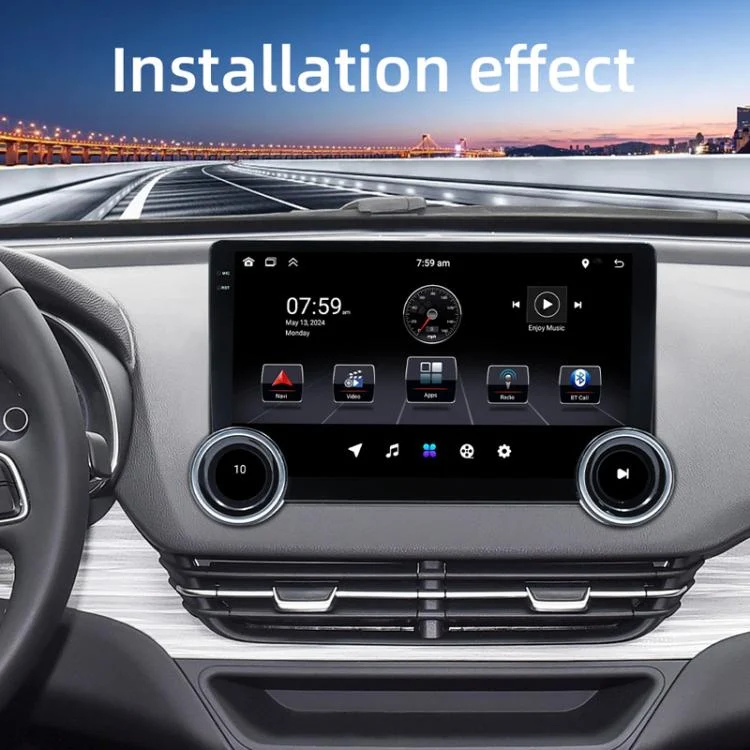

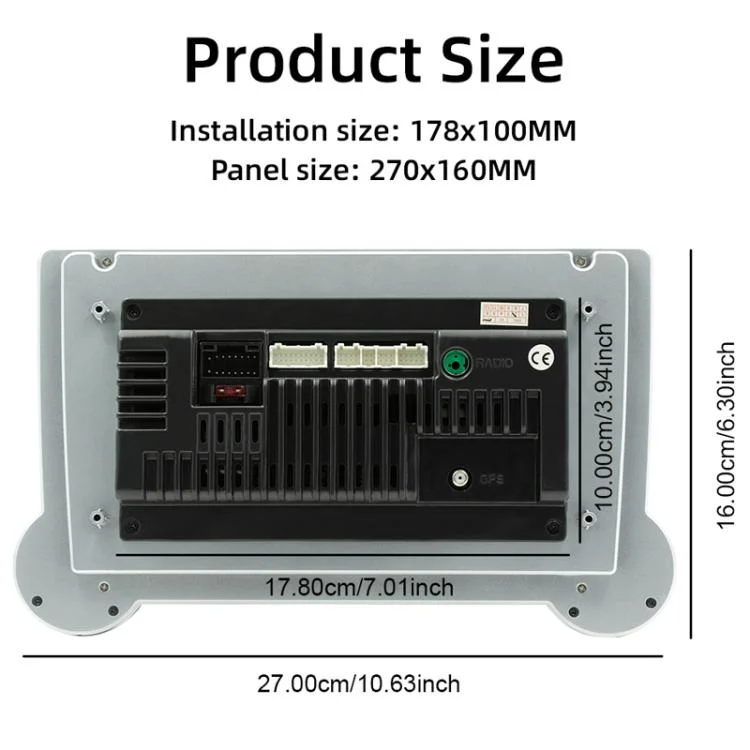

13. Installation size: 178x100mm
14. Shell size: 270x160MM
15. Host depth: 45mm
16. Factory setting password: 1234

Performance parameters
1. CPU: A7 1.1GHz x 4
2. Running memory: 2G
3. Storage memory: 32G (optional 64G)
4. Display resolution: 1024×600
5. Screen size: 10.1-inch IPS display + 2.5D touch screen

RCA port parameters
1. Audio output: 2 channels (left channel + right channel)
2. Subwoofer output: 1 channel
3. Video output: support
4. Audio input: 2 channels (left channel + right channel)
5. Video input: 1 channel

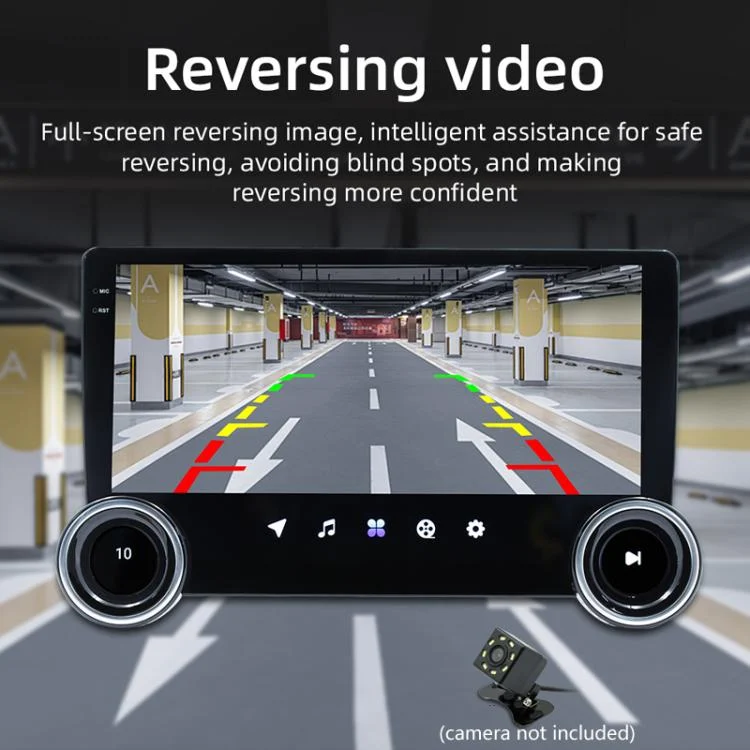

6. Reversing video input: 1 channel

Format parameters

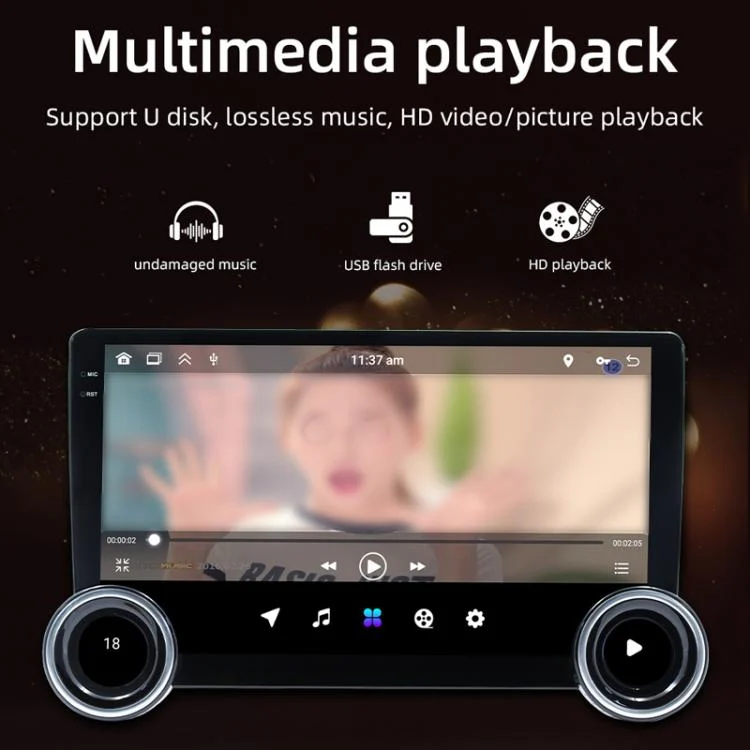

1. Audio format: MP3/WMA/WAV/APE/FLAC/AAC/OGG/RM
2. Video format: MPEG/AVI/RM/FLV/ASF/WMV/MP4/MKV/OGM/TS/DivX/RMVB/VOB
3. Image format: JPG/BMP/PNG/JPEG/GIF

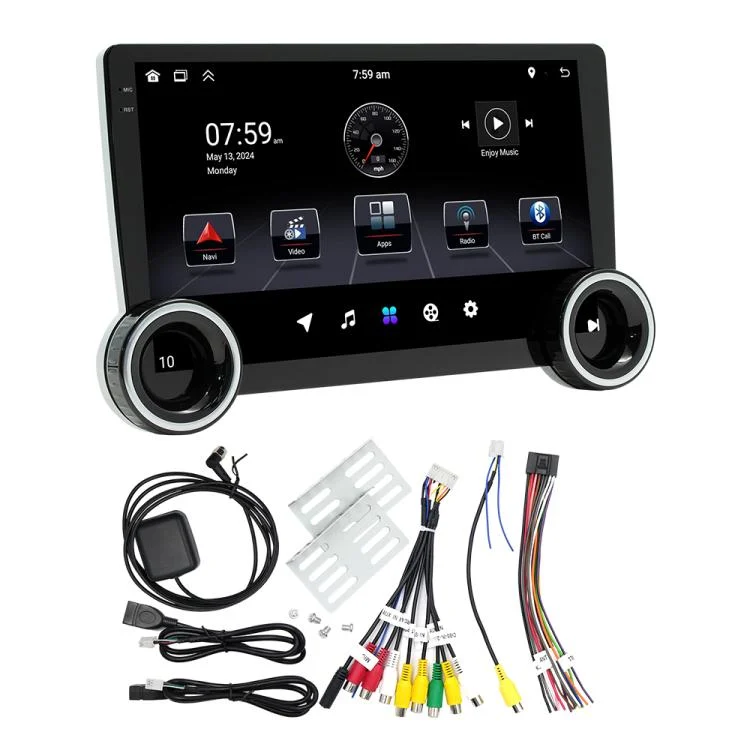

Packing list:
– Host
– GPS antenna
– 16P power cable
– RCA cable
– Reversing video input cable
– Mounting bracket
– ??Screws
– Instruction manual
– USB cable x 2
