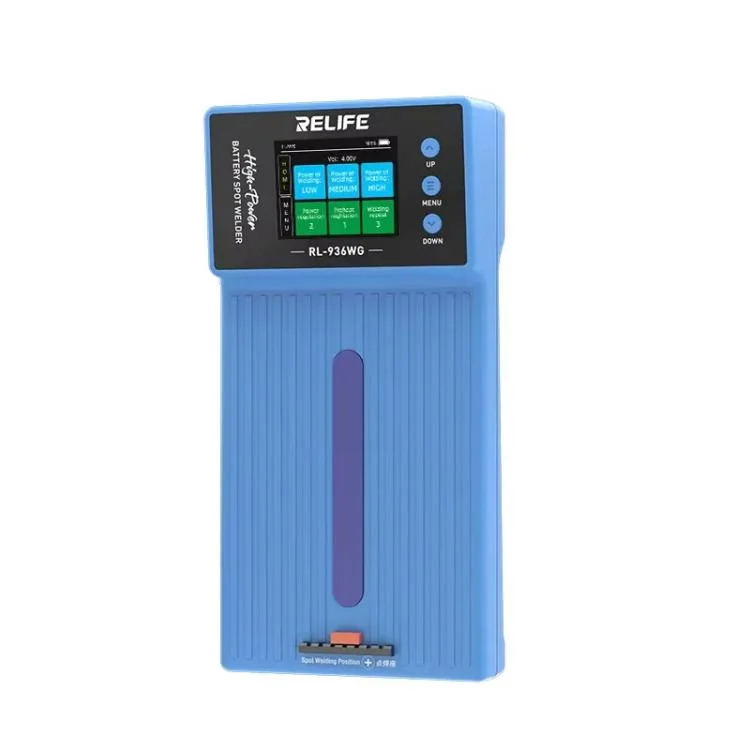

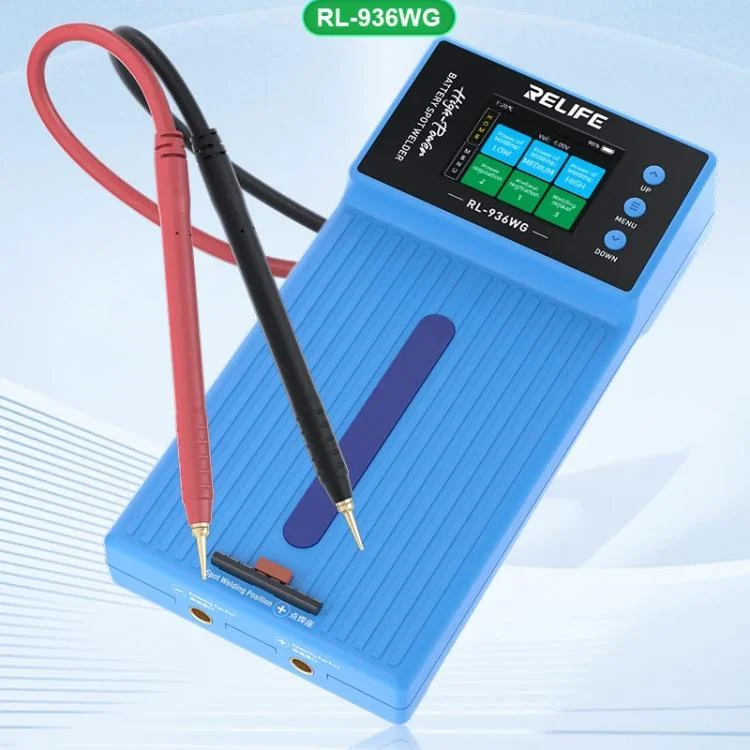

High Power Battery Spot Welder Mobile Phone Repair Battery Spot Welder

1. Design current: 650A (MAX)
2. Input parameters: 5V/3A (MAX)
3. Output voltage: 4.2V (MAX)
4. Suitable color screen size: about 2.0 inches
5. Charging port: Type-C
6. Working temperature: -10 – 60 degrees Celsius
7. Charging temperature: 0 – 60 degrees Celsius

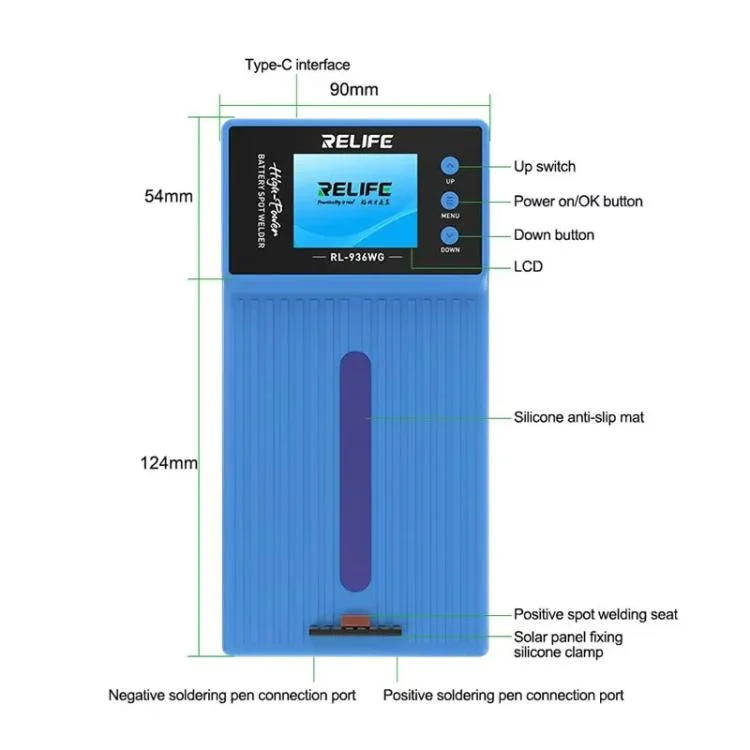

8. Size: about 17.8 x 9 x 3.9cm
9. Weight: about 320g

Features:

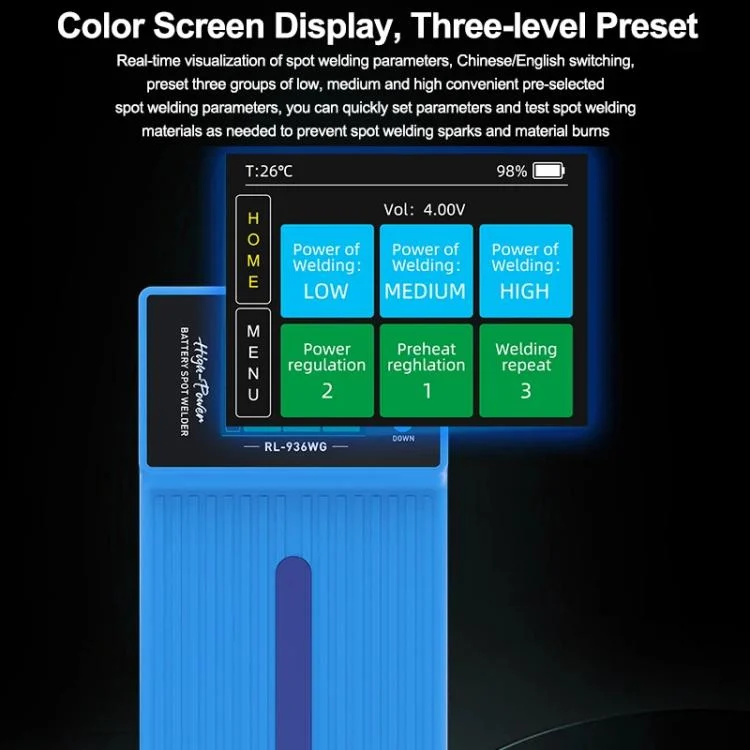

1. Chinese / English HD color screen, adjustable parameters, LCD-IPS liquid crystal display
2. Pre-set three groups of low, medium, and high-speed spot welding parameters for quick selection. Parameters can be adjusted as needed to test spot welding materials and prevent sparks or material damage.

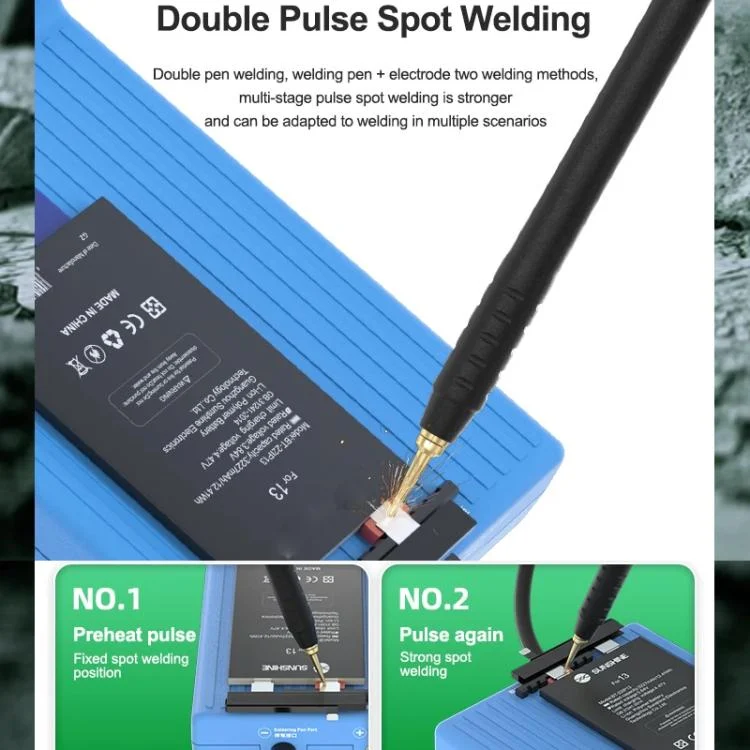

3. Dual-pulse spot welding with dual-pen welding. Supports two welding methods: welding pen + electrode. Multi-segment pulse spot welding ensures stronger joints and adapts to various welding scenarios.

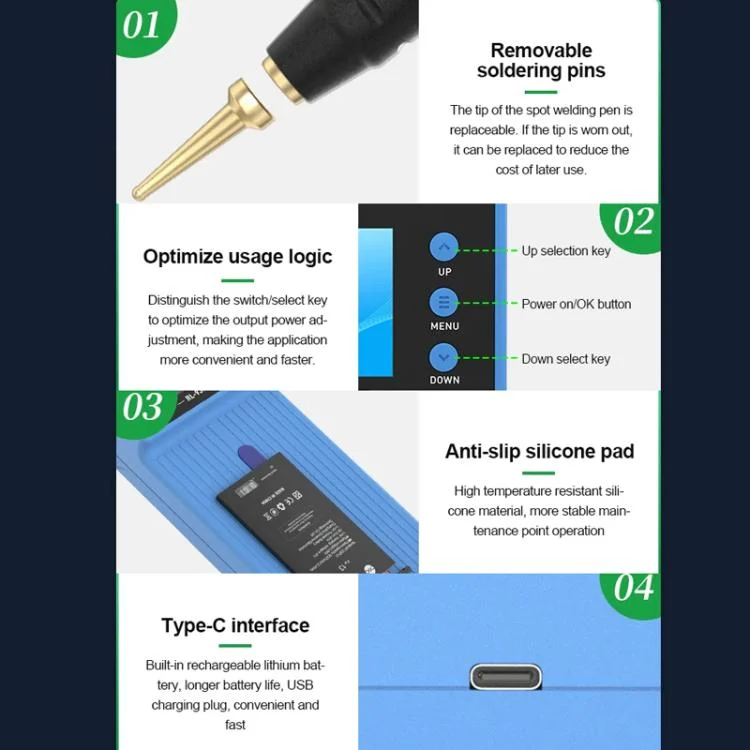

4. Replaceable purple copper welding pen tip with a purple copper tip for enhanced conductivity.

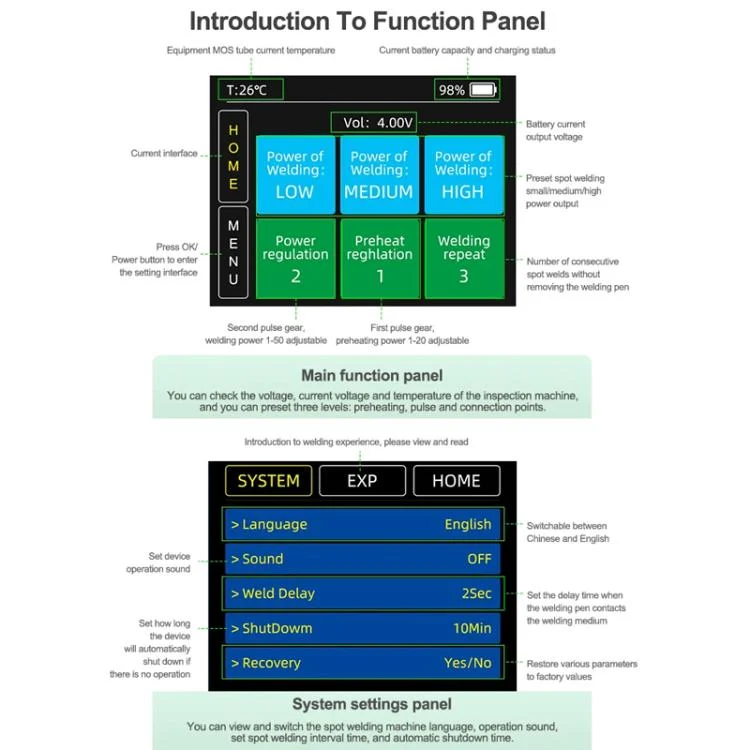

5. Main function panel: Displays spot welder power supply, current voltage, and temperature. Pre-sets three modes: preheating, pulse, and continuous spot welding
6. System settings panel: View and switch the spot welding machine language, operation sound, set the spot welding interval time, and automatic shutdown time
7. High-power 650A high-rate output, safe and reliable, durable and leak-proof
8. Distinctive switch/selection key, optimized adjustment of output power, more convenient and faster to use

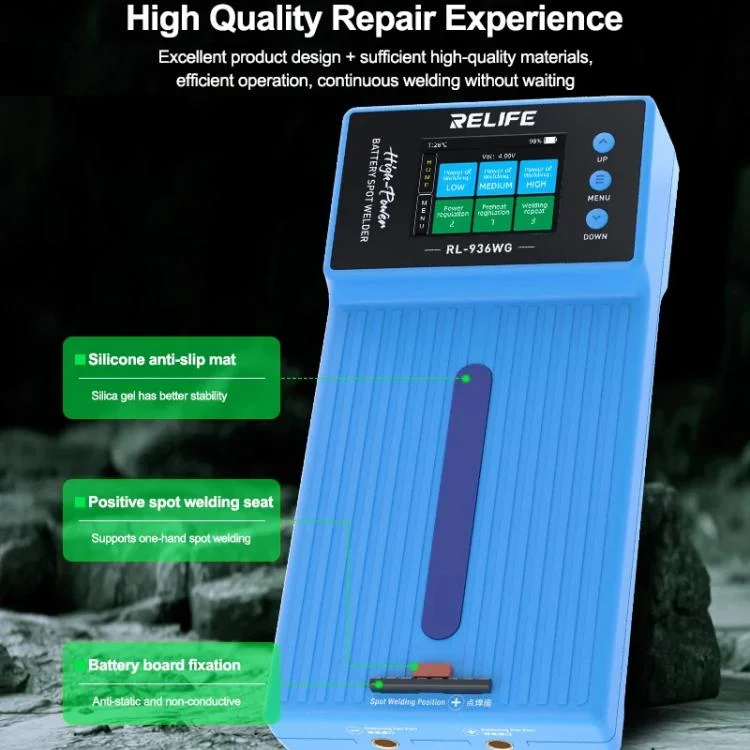

9. Equipped with anti-slip silicone pads, high-temperature resistant silicone material, more stable maintenance point operation
10. Type-C interface, built-in rechargeable lithium battery, longer battery life, convenient and quick

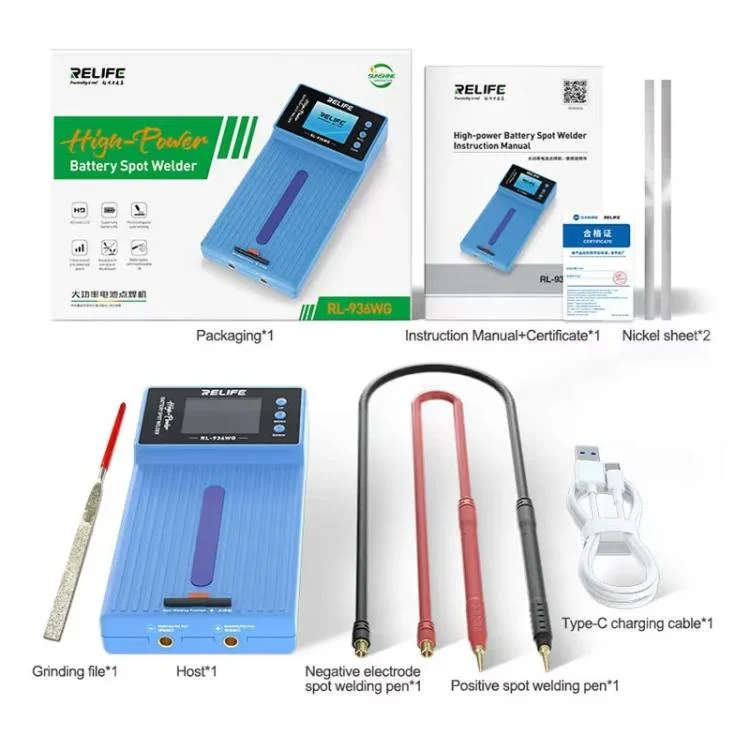

Package list:
– Spot welder x 1
– Negative electrode welding pen x 1
– Positive electrode welding pen x 1
– Nickel plates x 2
– Manual x 1
– Charging cable x 1
