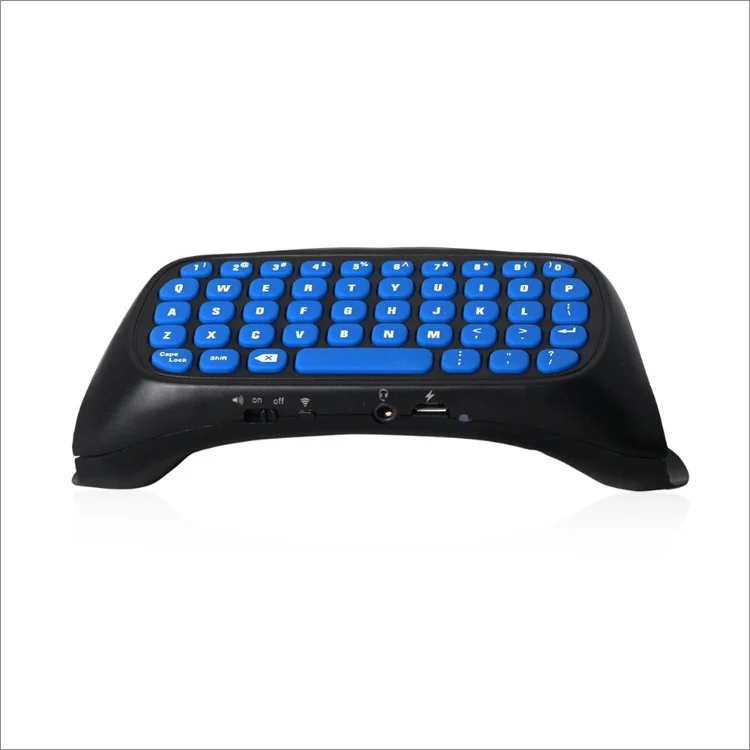

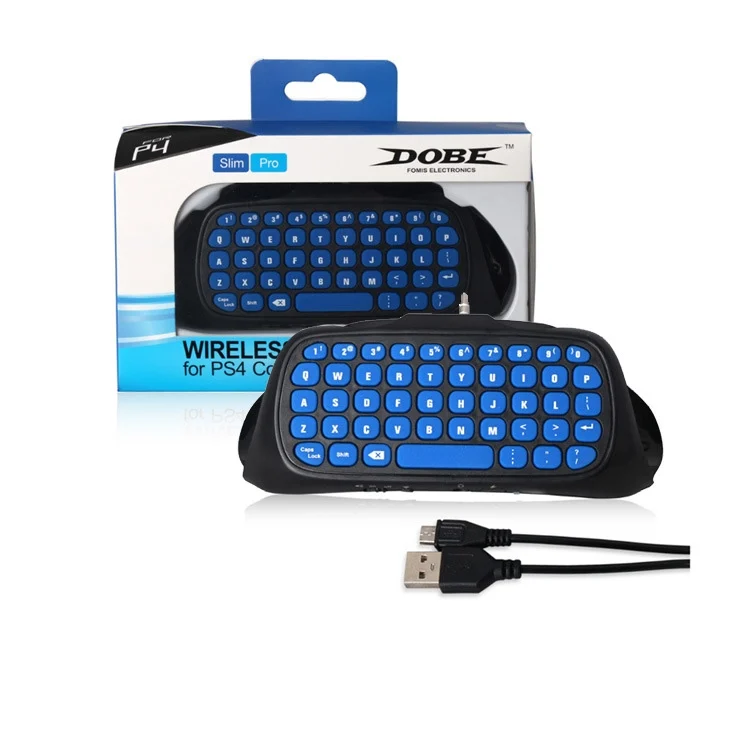

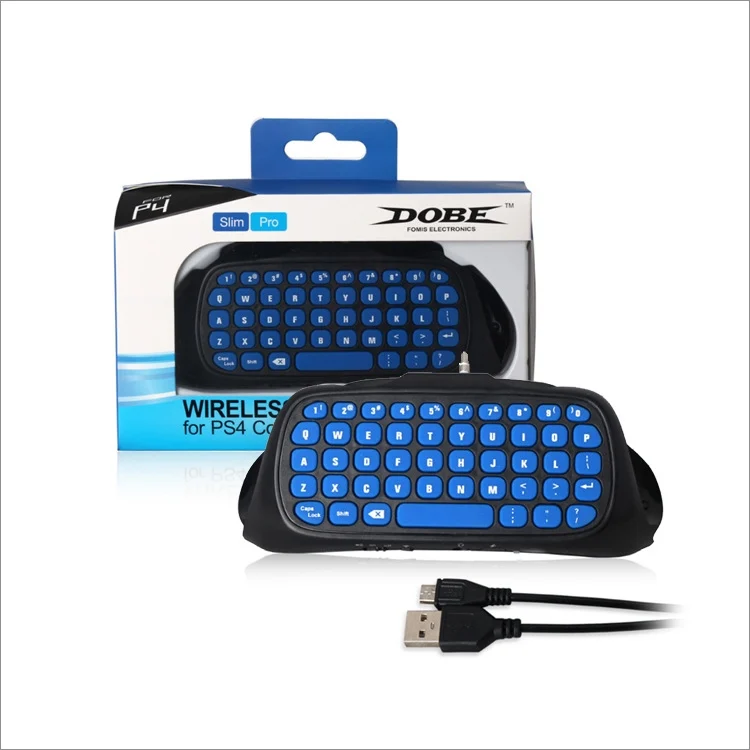

DOBE TP4-022 2.4G Wireless Controller Keyboard ABS Game Keyboard for PS4 / Slim, TP4-022

Model:TP4-022
Game machine accessories type:Other games accessories
Applicable products:For PS4 handle
Scope:Handle Keyboard
Material:ABS

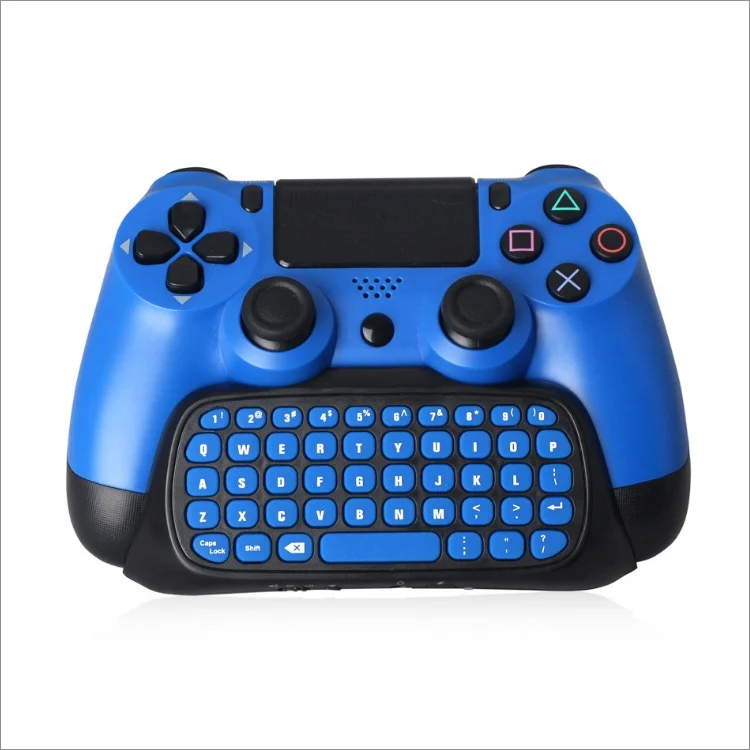

1. The 2.4G keyboard is specially designed for PS4 controller. It is perfectly compatible with the host system. It can easily and quickly input letters and common punctuation marks on the host computer.
2. Keyboard kit, which allows players to easily and quickly enter letters to chat with commonly used symbols, surf the Internet, search for favorite games or more. The device is easy to install, compatible with any version of the original controller, and provides easy-to-use text input and Internet chat functions, while maintaining game and voice functions.
3. You can directly use the charging cable of the game controller to charge the keyboard while charging the keyboard.
4. Size: 14x7x4.6cm, Weight: 140g
5. Instructions for use:
– Connect the host power first, then connect the HDMI cable to the display device to turn on the power of the host, and the corresponding power indicator lights up.
– Pull the power switch of the handle keyboard to “ON” and the blue indicator light will be on.

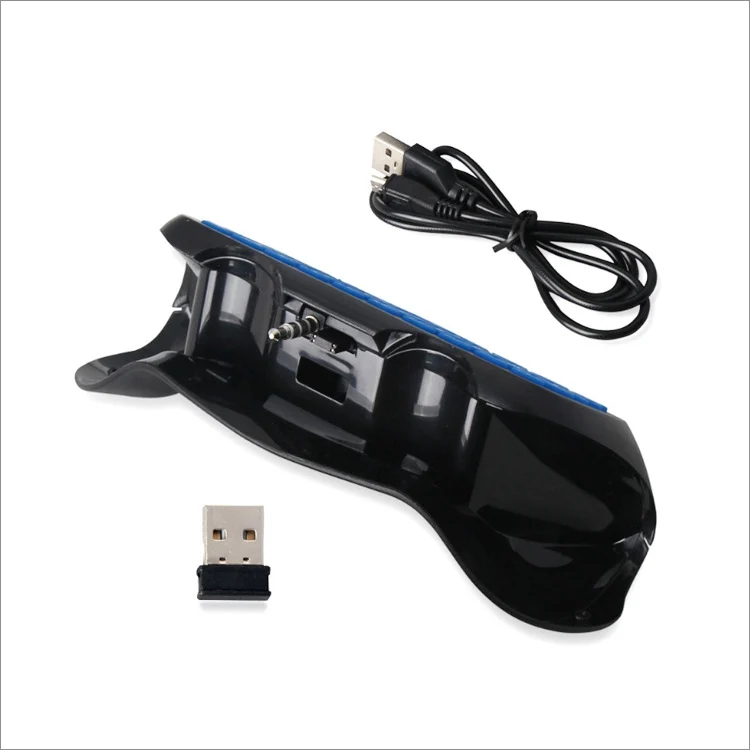

– When the controller of the controller is connected, insert the 2.4G receiver into any USB port on the front of the host, and press the code button on the back of the keyboard within 15 seconds. The blue light of the keyboard will flash. , you can automatically complete the code. (Note: When pairing, the distance between the handle keyboard and the receiving head is within 0.5 meters; if it is not matched, repeat this step).
– After the code is completed, the blue pair of lights on the keyboard will be off, which means the keyboard can work normally.
– Only need to match the code between the keyboard and the 2.4G receiver. The subsequent use can be automatically connected by simply turning on the keyboard power switch and used directly.
– Align the 3.5 audio plug of this keyboard into the audio jack of the original handle, and release the sound of the handle speaker through the speaker of the handle keyboard, pay attention to the power switch to the “ ” file.
– The 3.5 audio jack of this keyboard can be used with the original earphone, that is, the audio jack of the original earphone inserted into the handle keyboard has the same effect as the audio jack inserted into the original handle.
– After the disconnection, the handle keyboard will automatically enter the sleep mode, enter the connection range and the host is turned on, press any key to automatically connect back; if it can’t automatically connect back, re-open the power on the keyboard to connect back.
– Hold down the Shift key and press the desired symbol key to type the corresponding symbol.
– Caps Lock key “Caps Lock”, press this button to lock the uppercase input, and press again to return to lowercase input.
– When the blue indicator light flashes twice in succession, it means that the built-in polymer lithium battery is too low. Please charge the handle keyboard. When charging, the red indicator light is long bright. When it is full, the red indicator light is off.
– If you are not using this product, please turn off the power switch to save power consumption.
– If you do not use the product for a long time, charge it at least once a month to protect the battery and extend battery life.
– Lights up red when charging, and turns off when full.

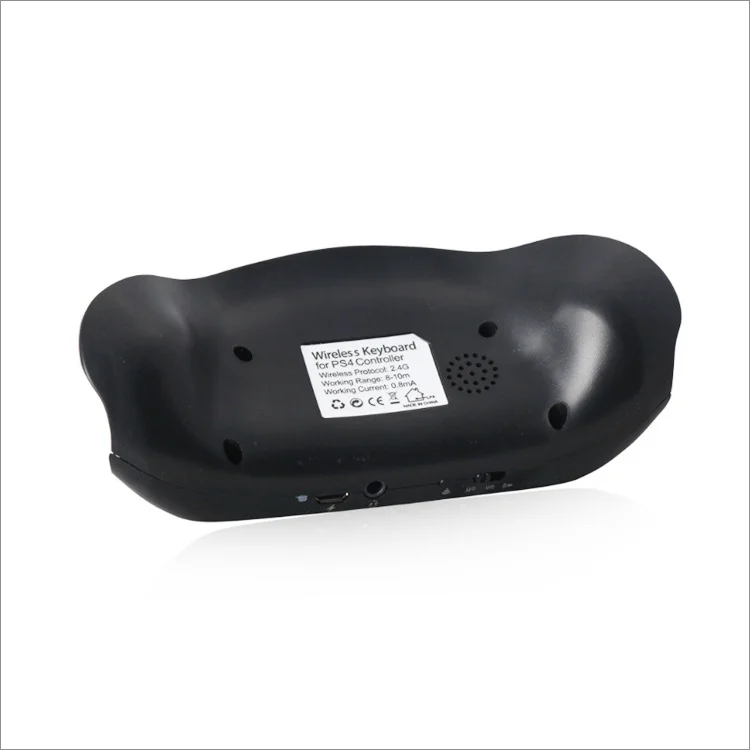

6. Specifications:
– Scope: Suitable for use with the host controller
– Wireless protocol: 2.4G
– Wireless moment separation: effective moment is 8-10 meters
– Working current (when there is a button press): 0.8mA
– Working current (when no button is pressed): 8uA (in the ON position)
– Product material: ABS
