Original DJI DL PZ 17-28mm T3.0 ASPH Lens For Ronin 4D

1. DL PZ 17-28mm T3.0 ASPH is DJIs first motorized zoom lens, covering a 17 mm ultra-wide-angle focal length to a 28 mm wide-angle focal length. After the lens is installed, it can directly realize precise focus and zoom operations without calibration, satisfying professional creations wide-angle shooting needs.
2. High resolution from the center of the screen to the corners: The ultra-high resolution from the center to the edge can fully meet the image quality requirements of 8K sensors. It has very sharp picture quality performance and excellent optical quality.
3. The minimum focusing distance of 0.19 meters meets most of the needs of close-up shooting in ultra-wide-angle situations.
4. Thanks to the aluminum-magnesium alloy body design, it achieves an ultra-light weight of 520 grams. While ensuring the rigidity and strength of the lens, it effectively reduces the weight of the lens.
5. With a built-in servo zoom motor, no additional motor is required, and the zoom effect can be easily realized. The servo motor package is not detachable, light and compact.
6. No leveling during the zooming process: When the lens is zooming, the displacement of the inner lens barrel of the lens does not exceed 5 mm. Using it with Ronin 4D can completely avoid the need for leveling after zooming.

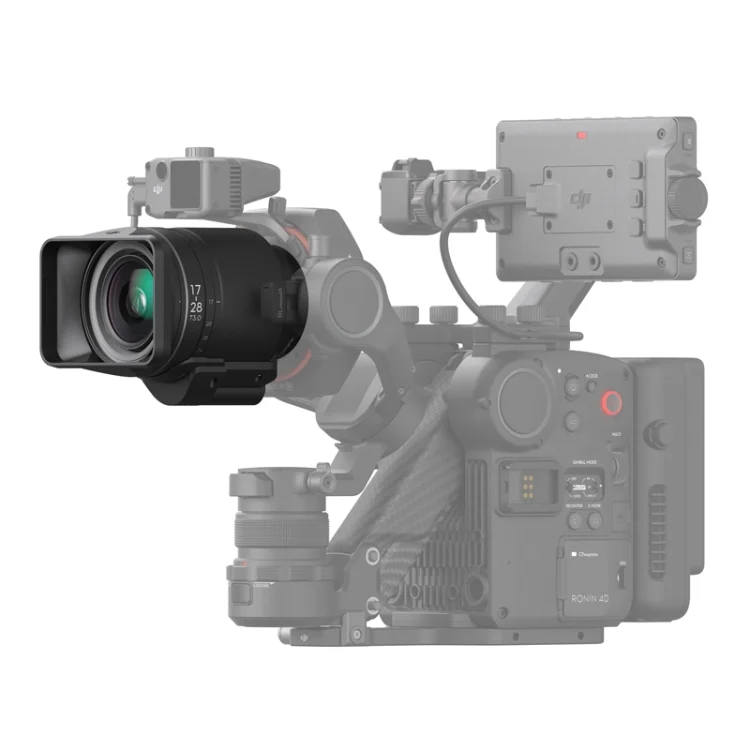

7. Compatible products: suitable for DJI Ronin 4D-6K / DJI Ronin 4D-8K

Technical Parameters:
1. Image size: full frame (36 mm×24 mm)
2. Focal length: 17 mm to 28 mm
3. Minimum focusing distance (MOD):
– Focal length 17 mm: 0.19 meters
– Focal length 28 mm: 0.26 meters
4. Aperture: T3.0 to T22
5. Filter diameter: 67mm in diameter
6. Mount type: DL mount
7. Weight (including lens hood): Approx. 520g
8. Working temperature: -10 to 55 degrees Celsius

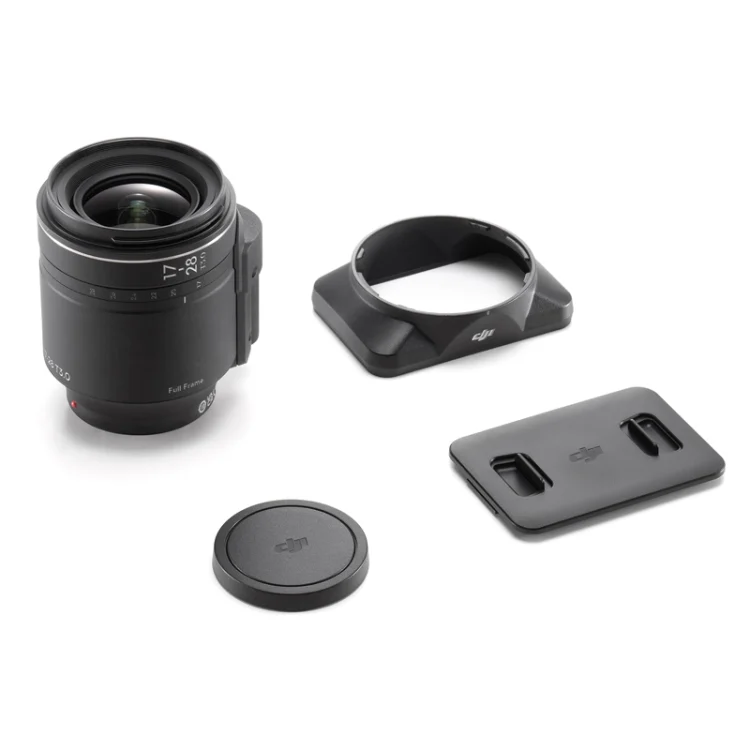

packing list:
Lens front protective cap × 1
Hood × 1
Lens ×1
Lens rear protective cover × 1
