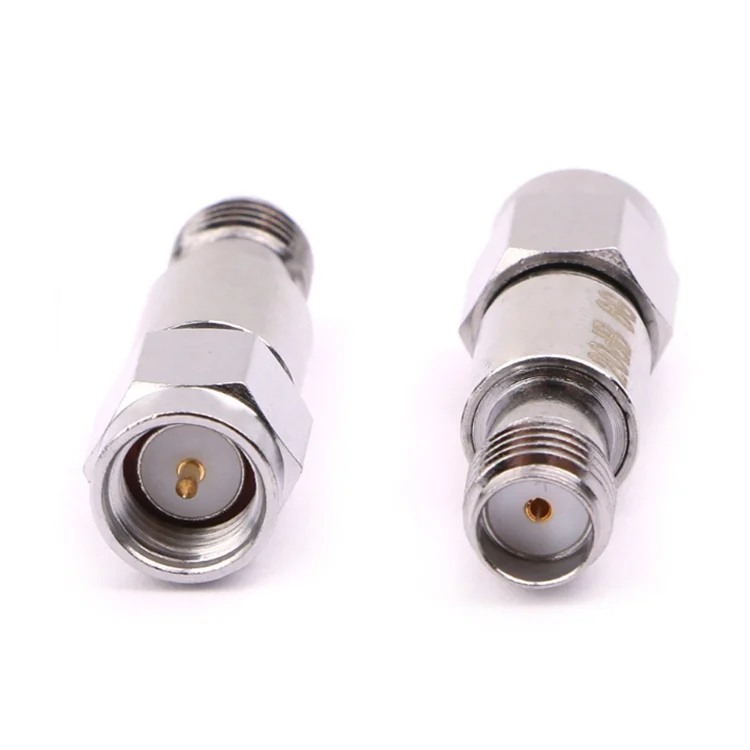

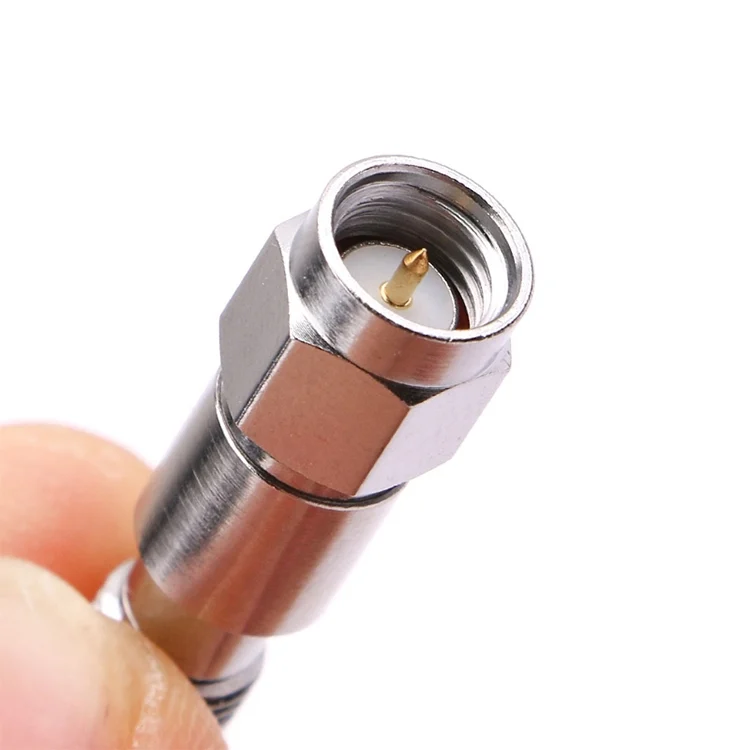

SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors
SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors - Image 2
SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors - Image 3
SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors - Image 4
SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors - Image 5

SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors

Price range: ₹1,750.00 through ₹2,597.00 Lead Time: 1-3 Days

Add to wishlist
SKU: EDA0035103 Categories: , ,
Description

Features:
1. Useful in a wide variety of applications including impedance matching and level control.
2. With diffrent attenuation values of fixed attenuator to be chosen from. Good quality, rugged construction.
3. Suitable for microwave equipment, electronic equipment or communication systems. The use of features frequency bandwidth, low standing wave, power, stable performance.
4. It can promote your work efficiently.

Specification:
1. Materila: stainless steel
2. Power: 2W
3. Frequency Range: DC-6GHz
4. Impedance: 50 ohm
5. tanding-wave ratio (SWR): <=1.20
6. Connector Type: SMA-J ~ SMA-K
7. perating Temperature: -20~115 degrees Celsius
8. Attenuation: 60dB/50dB/40dB/30dB/25dB/20dB/10dB/6dB/5dB/3dB/2dB/1dB
9. Attenuation Range: +/-0.5dB; 30+/-0.8dB; 40-50dB+/-1.5dB; 60dB+/-1.8dB

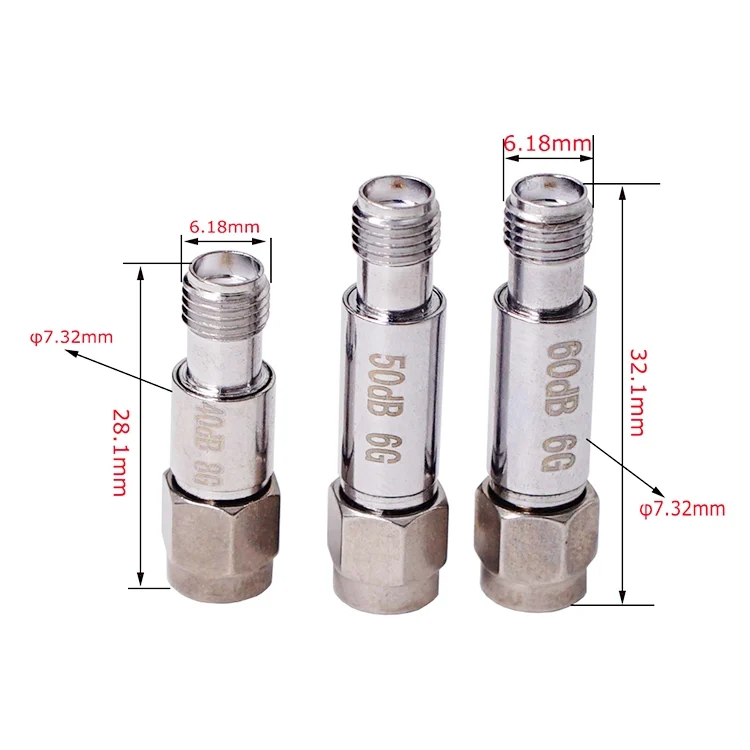

10. Size: 1dB~40dB app.28.1×9.1mm 50dB/60dB app.32.1×9.1mm

Specification:
Package Weight
One Package Weight0.02kgs / 0.05lb
One Package Size5cm * 8cm * 1cm / 1.97inch * 3.15inch * 0.39inch
Qty per Carton400
Carton Weight8.50kgs / 18.74lb
Carton Size40cm * 20cm * 20cm / 15.75inch * 7.87inch * 7.87inch
Loading Container20GP: 1666 cartons * 400 pcs = 666400 pcs
40HQ: 3869 cartons * 400 pcs = 1547600 pcs

Additional information
WeightN/A
DimensionsN/A
Option1dBi, 2dBi, 3dBi, 5dBi, 6dBi, 8dBi, 9dBi, 10dBi, 15dBi, 25dBi, 30dBi, 40dBi, 50dBi, 60dBi
