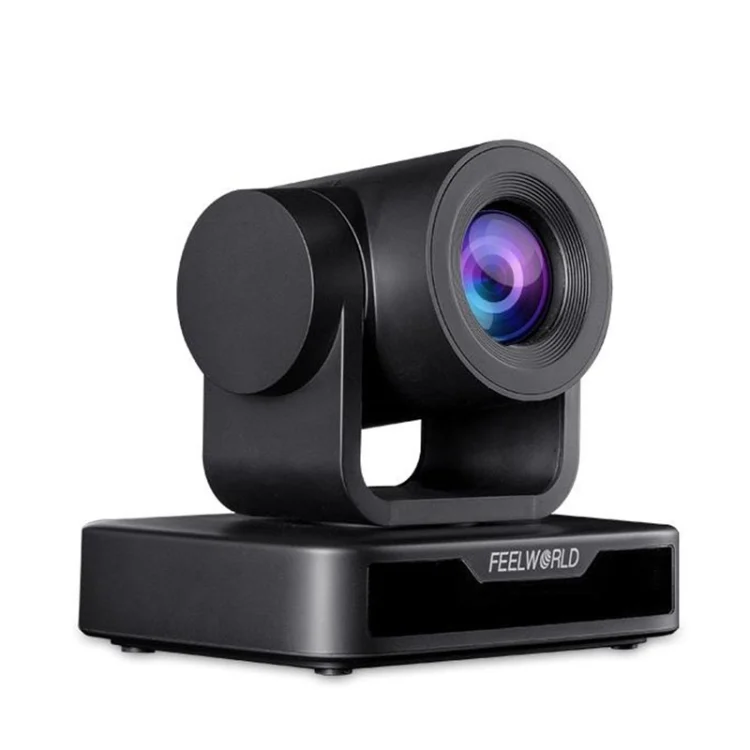

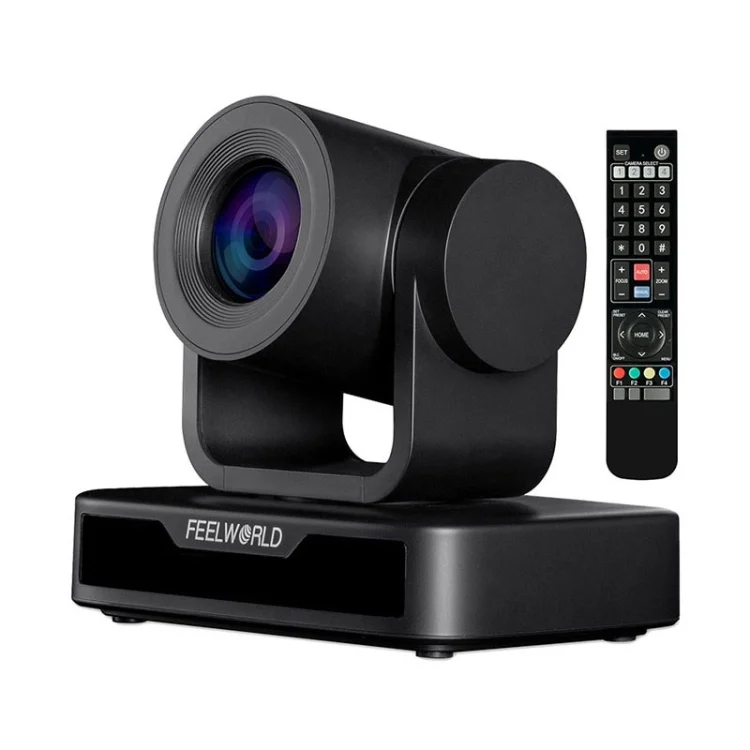

FEELWORLD USB10X 10X Optical Zoom 1080P USB PTZ Video Conference Camera, EU and US Plug

Features
1. 10X optical zoom professional conferencing camera for business meetings, you will feel like you are face-to-face in the same room.
2. USB2.0 video out, plug and play, anyone can easily setup and control
3. Support 1080p@30fps, realize a life-like video experience
4. Auto focus, smart frame capture everyone
5. 70 degree wide viewing angle, ideal for various meetings
6. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
7. High speed and silent pan/tilt, capture all the actions
8. Support up to 255 presets (10 presets for IR remote control)
9. Multiple control protocol and interfaces
10. Low-power sleep function
11. Ideal for video conference, live streaming, medical seminar, online education, ect.

Specifications
Camera Parameters
1. Model: USB10X
2. Sensor: 1/2.9 inch high quality CMOS sensor
3. Effective Pixels: 2.07 megapixel, 16:9
4. Video Format: 1920 x 1080P 30 fps/25fps,1280 x 720P 30fps/25fps, 1024 x 576P 30fps/25fps, 960 x 540P 30fps/25fps, 800 x 448P 30fps/25fps, 640 x 360P 30fps/25fps, 320 x 176P 30fps/25fps, etc.
5. View Angle: 8.8 degrees – 70 degrees
6. Focus Length: F=4.34mm – 41.66mm
7. AV: F1.85 – F2.43
8. Optical Zoom: 10X
9. Illumination: 0.5 lux F1.8, AGC ON
10. DNR: 2D & 3D
11. White Balance: Auto / Manual / One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
12. Focus: Auto / Manual/ One Push Focus
13. Exposure: Auto / Manual
14. BLC: On/Off
15. Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
16. SNR: Greater than 55dB

Input/output Interface
1. Video Output: USB2.0, A Type Interface
2. Video Compression Format: MJPG, H.264, H.265
3. Control Interface: RS232 (IN/OUT), RS485
4. Control Protocol: VISCA/Pelco-D/Pelco-P
5. Power Interface: HEC3800 outlet (DC12V)

USB Feature
1. Operation Systems: Windows 7, Windows8, Windows10, Mac osx, Linux, etc
2. Video Compression Format: MJPG, H.264, H.265
3. USB Communication Protocol: UVC

PTZ Parameters

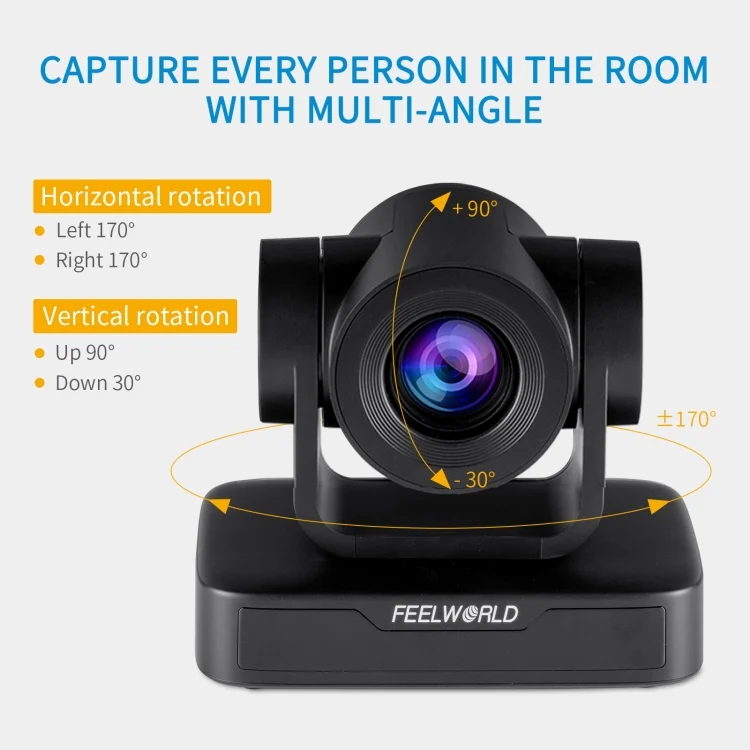

1. Pan Rotation: -170 degrees – +170 degrees
2. Tilt Rotation: -30 degrees – +90 degrees
3. Pan Control Speed: 0.1 – 60 degrees /sec
4. Tilt Control Speed: 0.1 – 30 degrees /sec
5. Preset Speed: Pan: 60 degrees/sec, Tilt: 30 degrees /sec
6. Preset Number: 255 presets (10 presets via remote control)

Other Parameters
1. Input Voltage: 12V/0.5A
2. Power Consumption: 2.5W
3. Stored Temperature: -40 degree C – +70 degree C
4. Storage Humidity: 20% – 90%
5. Working Temperature: -10 degree C – +50 degree C
6. Working Humidity: 20% – 80%
7. Dimension: 156.8mm x 112.6mm x 139.5mm
8. Unit Weight: 1kg

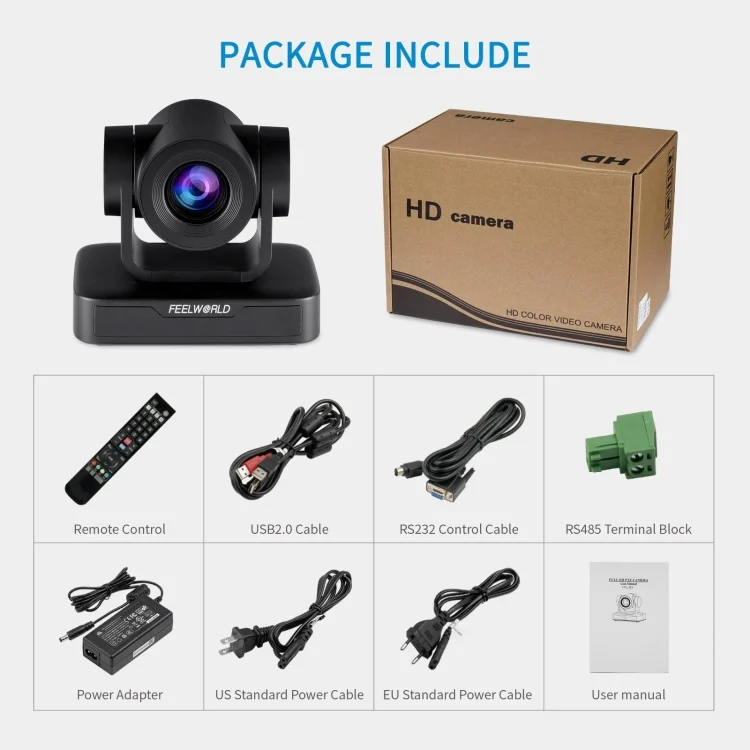

Package List
1. Video Camera x 1
2. Remote Control x 1
3. USB 2.0 Cable x 1
4. RS232 Control Cable x 1
5. RS485 Terminal Block x 1
6. Power Adapter x 1
7. EU Standard Power Cable x 1
8. US Standard Power Cable x 1
9. Manual x 1
