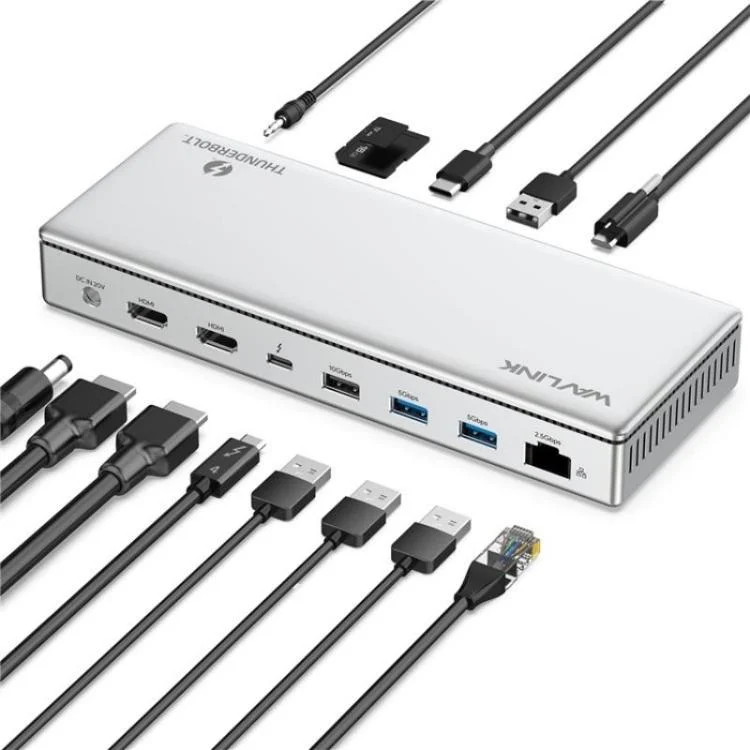

WAVLINK UTD45 96W Charging 8K / 4K Display Thunderbolt 4 Docking Station 13-in-1 Hub

1. Versatile Connectivity：13-in-1 Thunderbolt 4 docking station with support for up to 8K 60Hz single display or triple 4K 60Hz displays, unlocking unparalleled visual experiences.

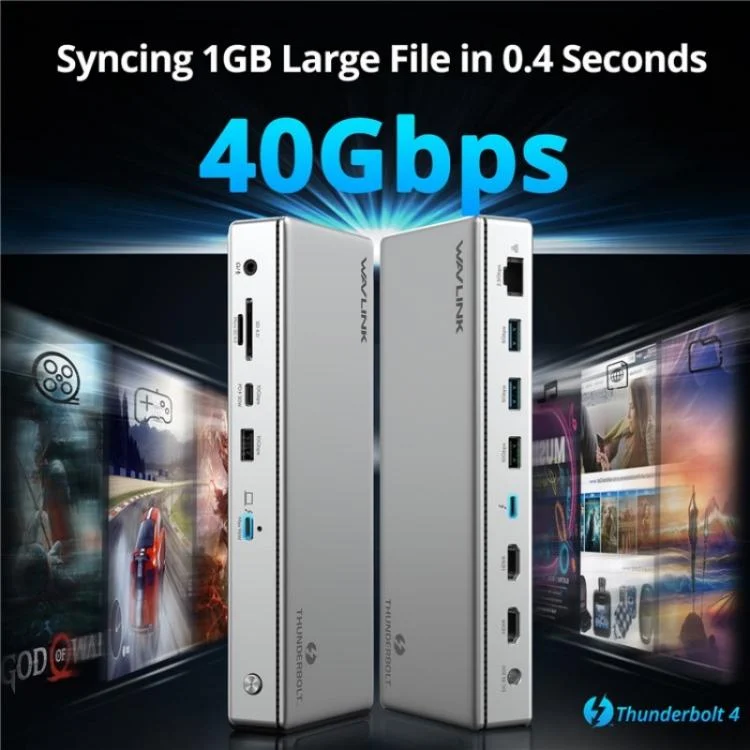

2. High-Speed Data Transfer：Experience lightning-fast data transmission with Thunderbolt 4 interface at 40Gbps, USB-C, and USB-A ports offering up to 10Gbps transfer speeds.

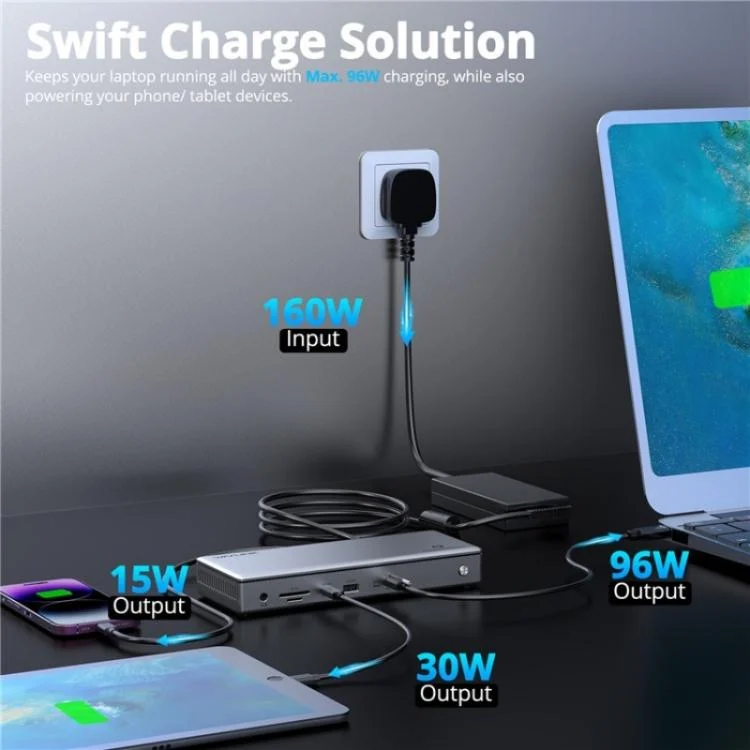

3. Powerful Charging Options：Features 96W host charging, 30W USB-C PD charging, and 15W TBT4 charging, accompanied by a robust 160W adapter for efficient device powering.

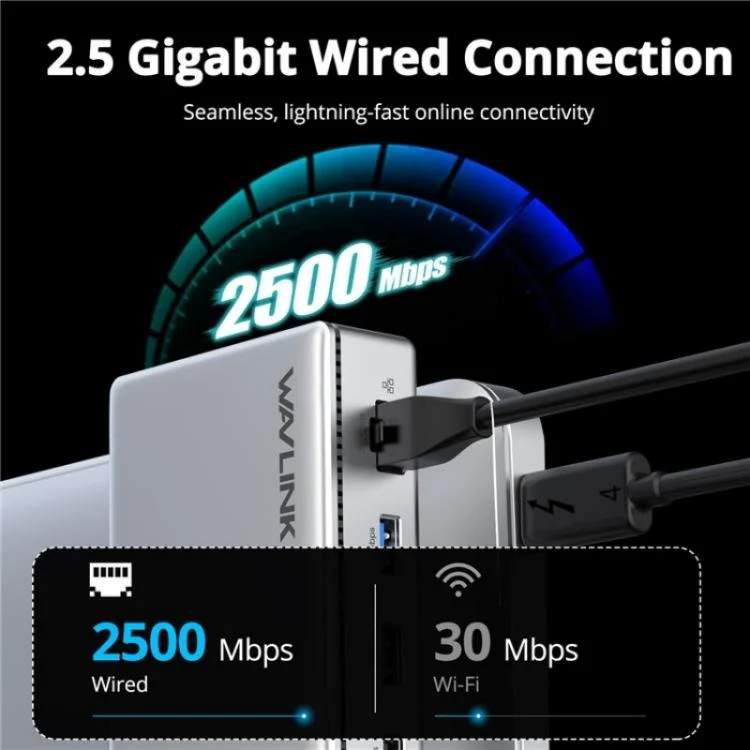

4. Enhanced Networking：2.5G Ethernet interface for high-speed wired networking, ensuring stable and fast connections. Backward compatible with 1000/100/10Mbps speeds.
5. Multimedia Hub：Integrated SD 4.0 card reader with SD and MiniSD slots supporting up to 312 MB/s transfer speeds, perfect for photographers and content creators.
6. Audio Integration：3.5mm audio jack for optimal audio experience, providing versatile options for listening, speaking, or recording tasks.
7. Security Feature：Kensington lock slot effectively prevents theft, ensuring the safety of valuable equipment.

Specifications:
1. Model: WL-UTD45

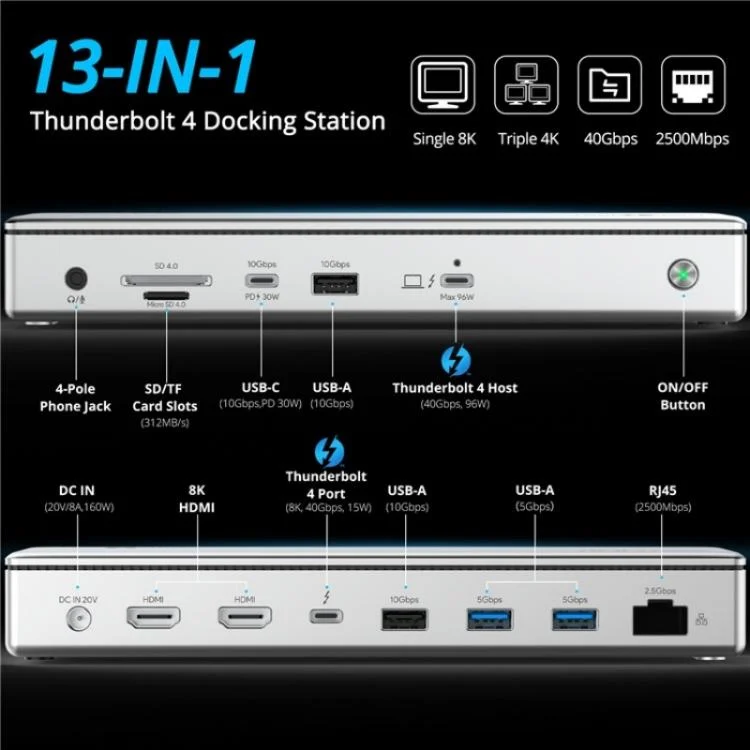

2. Interfaces:

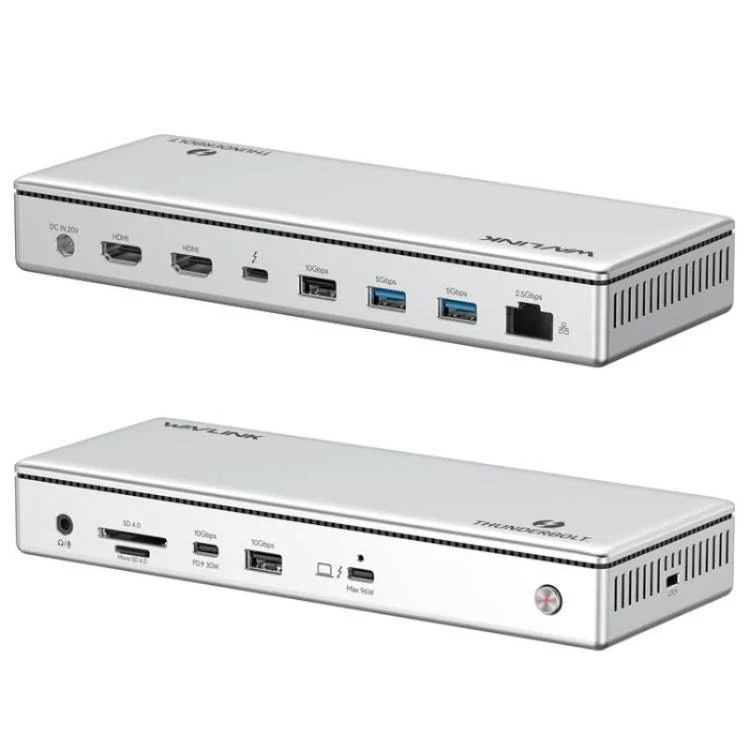

Front panel: 1 x 4-prong phone jack, SD/TF card slot (312MB/s), 1 x USB-C (10Gbps, PD 30W), 1 x USB-A 10Gbps, 1 x Thunderbolt 4 Host (40Gbps, 96W)
Rear panel: 1 x DC IN (20V/8A, 160W), 2 x 8K HD, 1 x Thunderbolt 4 Downstream (8K, 40Gbps, 15W), 1 x USB-A 10Gbps, 2 x USB-A 5Gbps, 1 x RJ45 (2500 mbps)

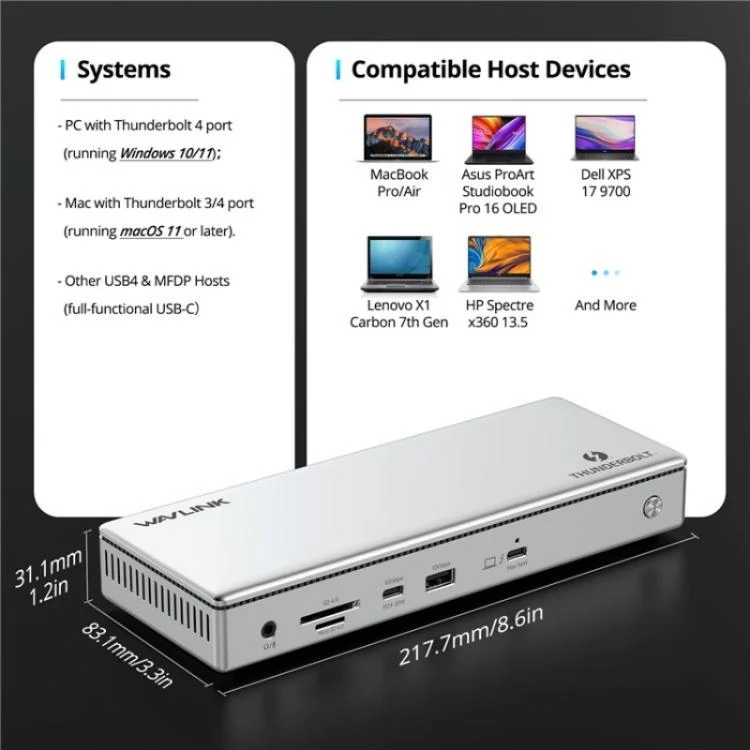

3. Unit dimensions: 217.7x 83.1×31.1mm / 8.6×3.3×1.2in (WxDxH)
4. Thunderbolt 4 Cable length: 80cm/31.5in
5. Power adapter cable length (plug end): 150cm/59in
6. Power adapter cable length (round port end): 120cm/47in
7. Unit weight: 545g/ 19.20 z
8. Case material: ABS+aluminum alloy

Notes:

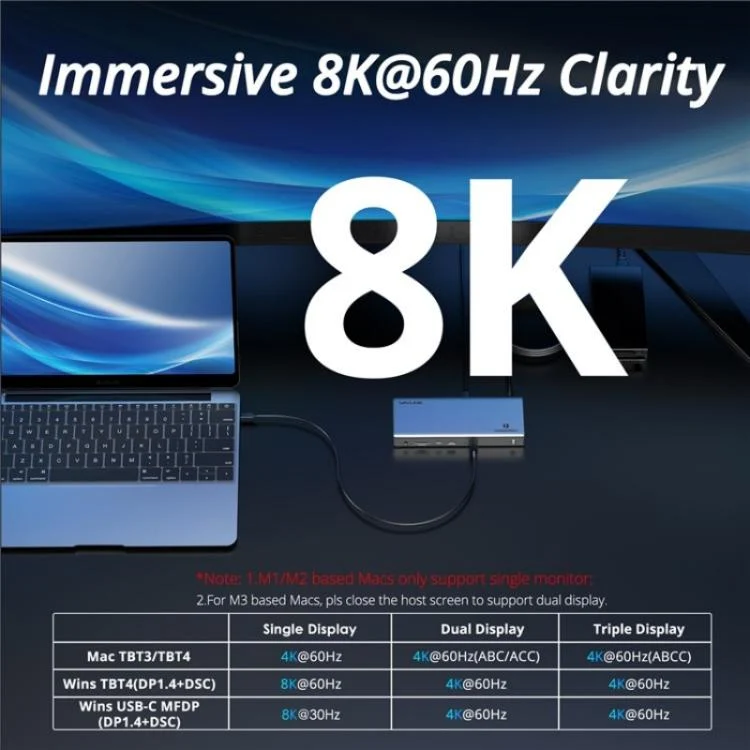

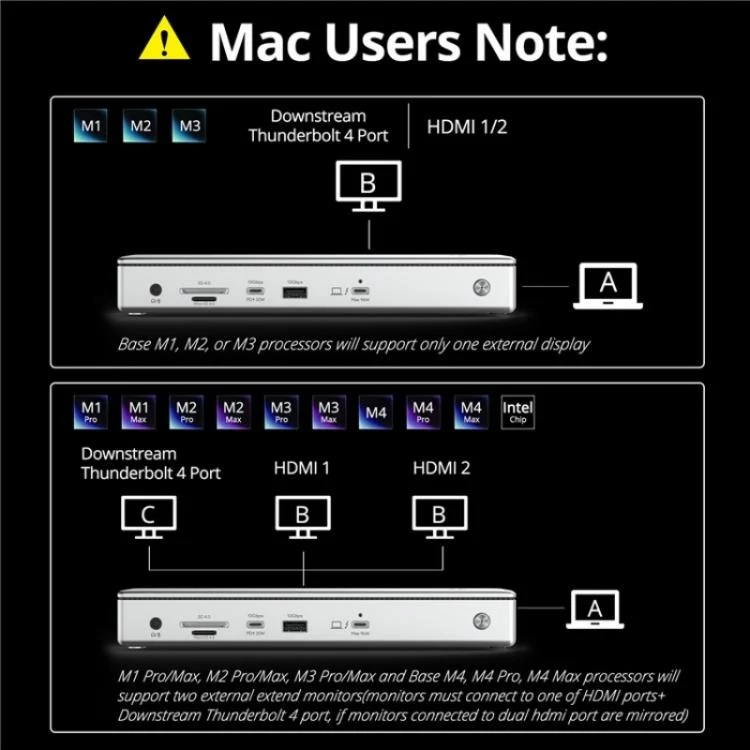

1. M1/M2-based for Macs only support a single display.
2. For M3-based for Macs, please turn off the host screen to support dual display.
3. Using two HD ports on for Mac for multiple displays will display mirrored content.
4. For Windows TBT4 PCs with DP 1.4 and above and DSC, single 8K 60Hz is enabled.
5. Due to hardware limitations, for MacBook is limited to 4K 60Hz in single/dual/triple display mode.
6. For non-thunderbolt 4 systems, performance may be limited.
7. The downstream Thunderbolt 4 port and USB-C PD port support offline charging. The device can charge while disconnected from the computer or when the computer is powered off.
