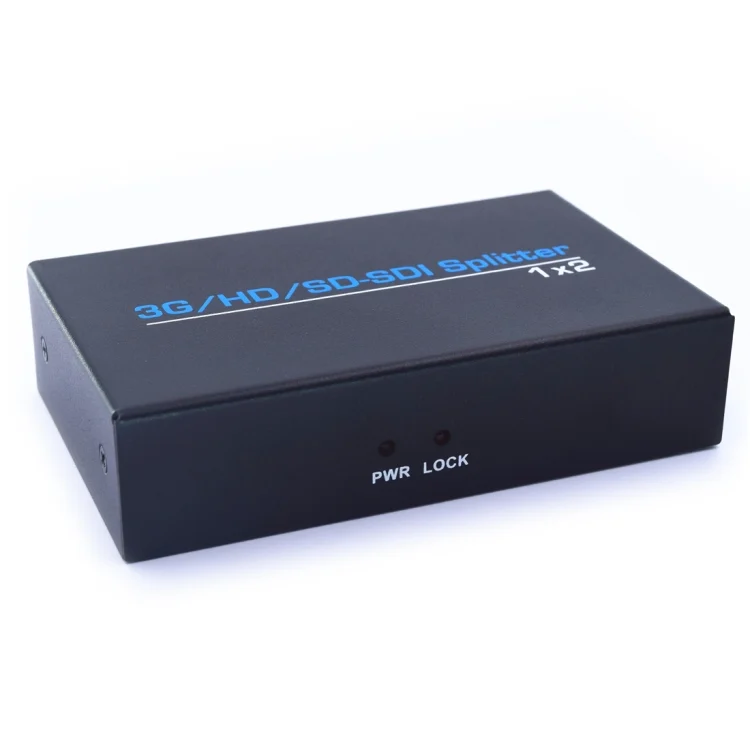

NK-812 2 in 1 3G-SDI / HD-SDI / SD-SDI Splitter - Image 1

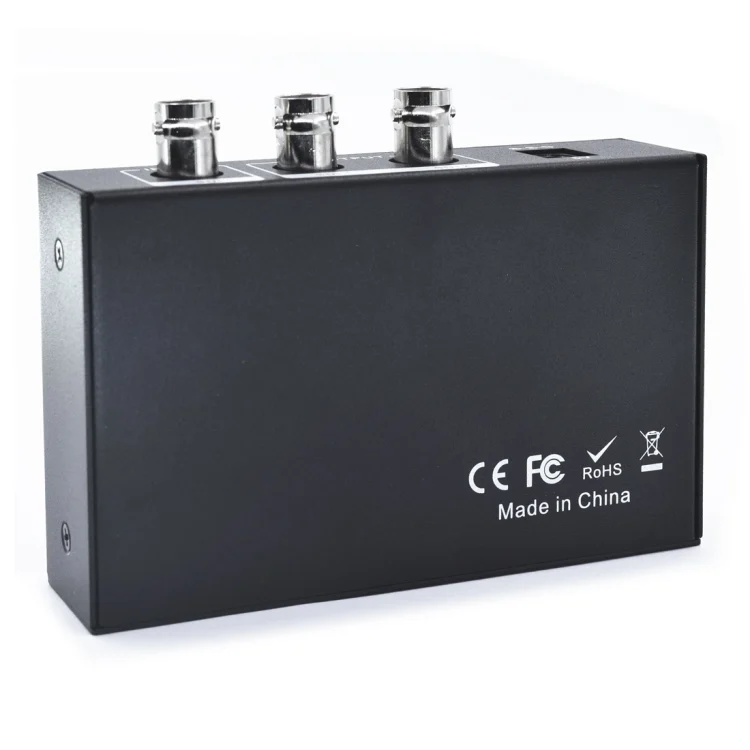

NK-812 2 in 1 3G-SDI / HD-SDI / SD-SDI Splitter - Image 2

NK-812 2 in 1 3G-SDI / HD-SDI / SD-SDI Splitter

Name: NK-812 2 in 1 3G-SDI / HD-SDI / SD-SDI Splitter
SKU: S-PC-3201
Availability: InStock

₹5,468.00 Lead Time: 1-3 Days

In stock

🛡️ Your Shopping is 100% Safe & Secure

💬

Instant WhatsApp Support
24/7 real human assistance

✅

100% Authentic Products
Direct from authorized importers

🇮🇳

Free Shipping Pan India
Fast Dispatch in 1–3 days

🔒

SSL Encrypted Checkout
Your data is completely safe

⭐

10,000+ Happy Customers
4.8★ average rating

🎯 Shop with confidence — Your satisfaction is our guarantee!

Add to compare

Add to wishlist

0 People watching this product now!

SKU: S-PC-3201 Categories: Computer and Networking, SDI Series, SDI Video Converter

Description

Features
Introduction

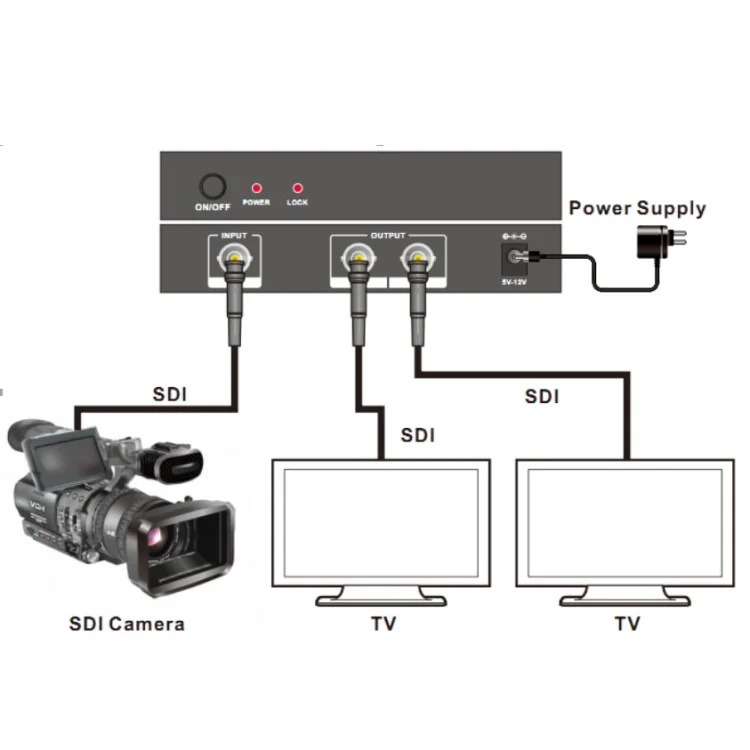

1 x 2 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 2 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.

Features
1. 1 SDI input signal split to 2 SDI sink devices.
2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
3. Built-in cable equilibrium, clock recovery and drive.
4. Support resolutions up to 1920×1080@60Hz.
5. Support signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
6. Support 5V wide voltage input.

Specification:

General

Model

HDV-S12

Types

Splitter

Input Port

1 x BNC Female input port

Output Port

2 x BNC Female output ports

SDI Transmission Rates

SD-SDI (270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI (2.97Gb/s)

Power Supply

DC 5.0V / 1.0A

Frequency Bandwidth

3.0Gbps

Operating Temperature

0 ~ 40 Degree Celsius

Storage Temperature

-20 ~ 60 Degree Celsius

Operating Humidity

20 ~ 90 Percent RH (Non-condensing)

Power Consumption

1.5W

ESD Protection Human Body Model

+-8kV (air-gap discharge)
+-4kV (contact discharge)

Size	7014525mm

Weight

320g

Package Include

Package Contents

1 x User Manual
1 x Power Supply
1 x SDI Splitter

Package Weight

One Package Weight

0.40kgs / 0.87lb

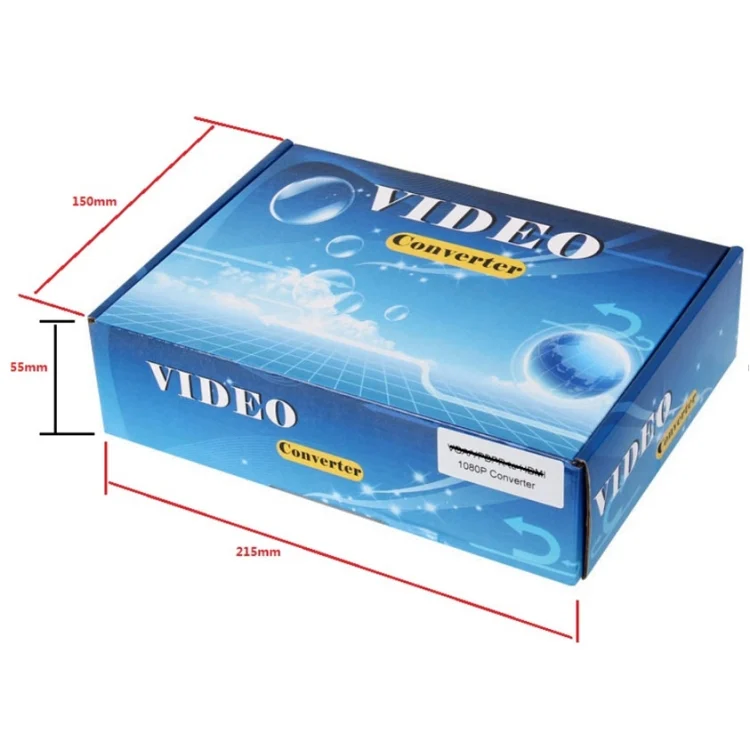

One Package Size

23cm * 15cm * 6cm / 9.06inch * 5.91inch * 2.36inch

Qty per Carton

Carton Weight

8.40kgs / 18.52lb

Carton Size

47cm * 32cm * 34cm / 18.5inch * 12.6inch * 13.39inch

Loading Container

20GP: 521 cartons * 20 pcs = 10420 pcs
40HQ: 1210 cartons * 20 pcs = 24200 pcs

Additional information

Weight	0.395 g
Dimensions	23 × 15 × 6 cm
