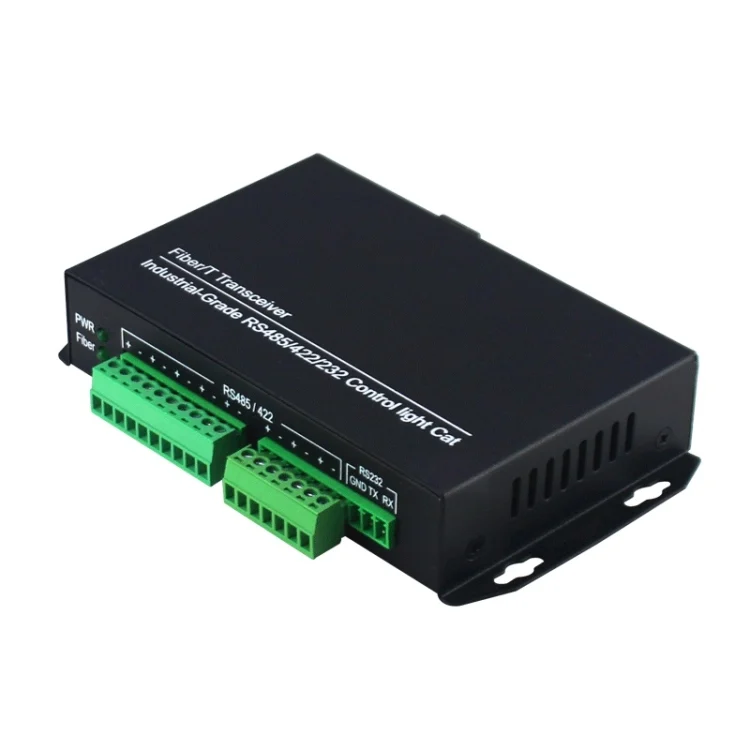

1pair YH-VD48508 SC 8-way Bidirectional Data Network Optical Transceiver Fiber Optic Transceiver

1. 8-way bidirectional data network optical transceiver
2. Good compatibility, quality chip, stable performance, SC
3. Plug and play, stable transmission, fully compatible

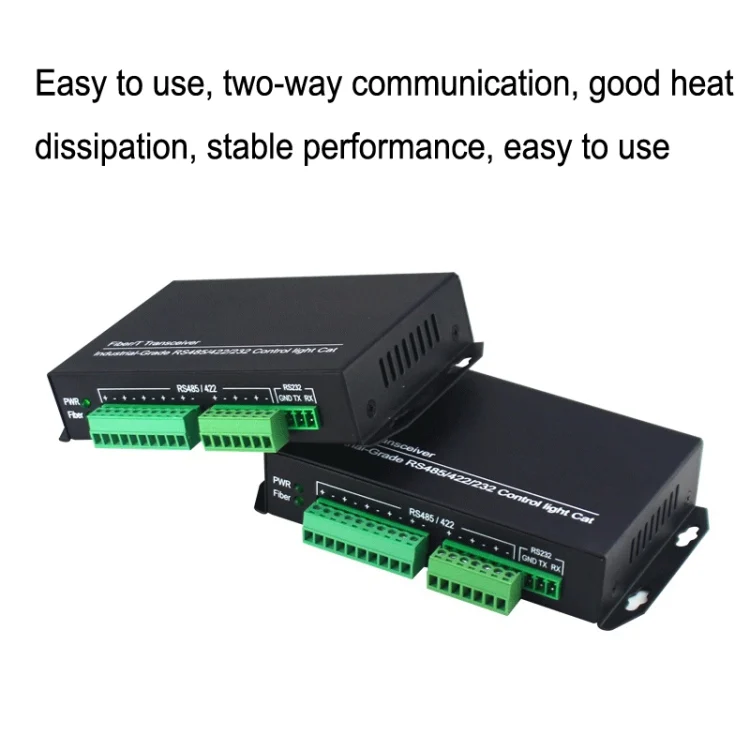

4. Easy to use, two-way communication, good heat dissipation, stable performance, easy to use
5. Long-distance transmission, optical fiber transmission distance up to 20KM (single-mode)
6. No software, no drivers, wide range of uses, plug and play
7. The design of multiple cooling ports on both sides of the fuselage can effectively dissipate heat and ensure the effective operation of the device. .
8. Metal frosted shell, simple and beautiful, easy to install, no on-site debugging
9. Humanized control design, support plug and play, more stable and safer

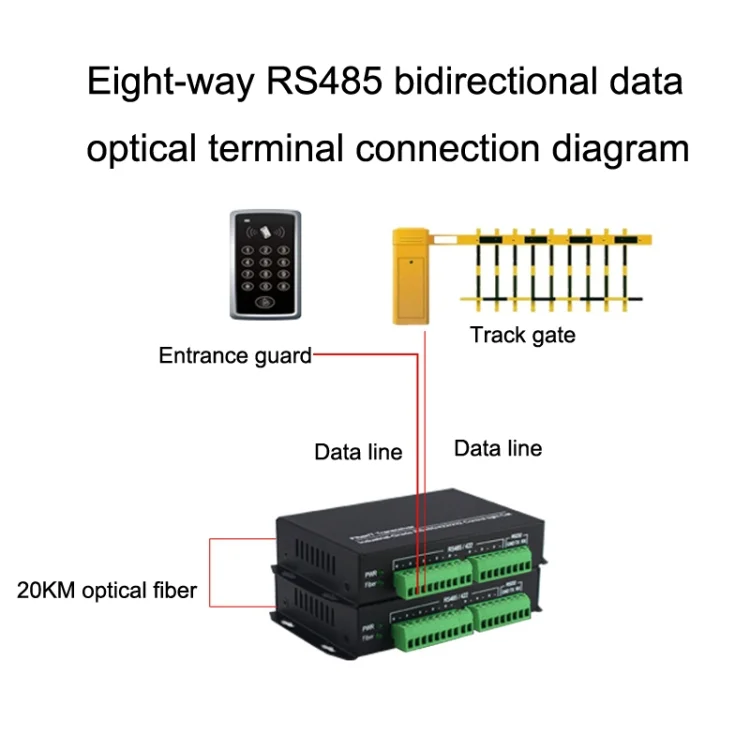

10. Scope of application: multimedia teaching, security monitoring, remote video conferencing, radio and television transmission, community/campus monitoring construction
11. Wavelength single mode: 1310nm, 1510nm
12. Shell material: cold rolled sheet
13. Fiber type: single mode single fiber

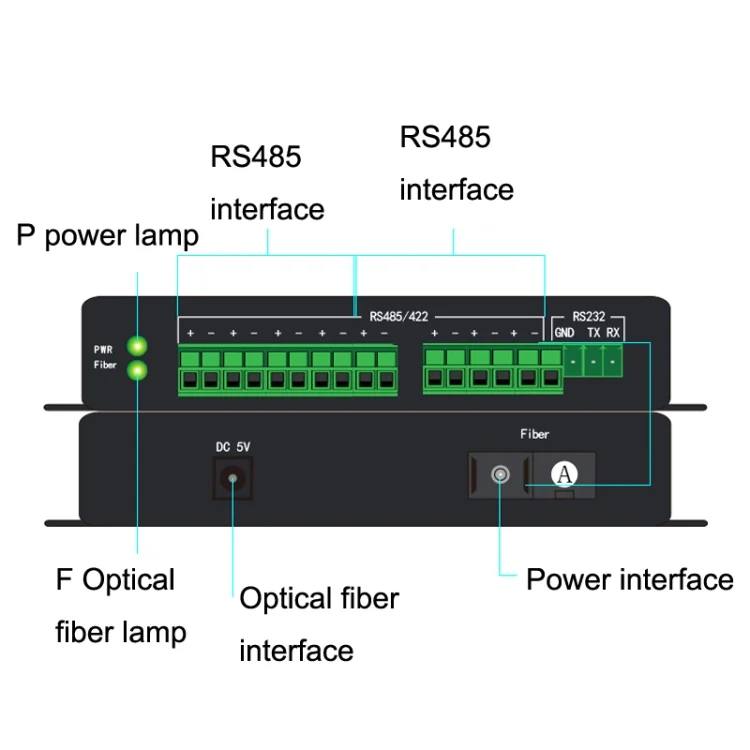

14. Optical fiber interface: SC interface
15. Power supply voltage AC220V DC5V
16. Working temperature -5 to 70 degrees Celsius
17. Transmission distance: 20km
18. Terminal type: RS485

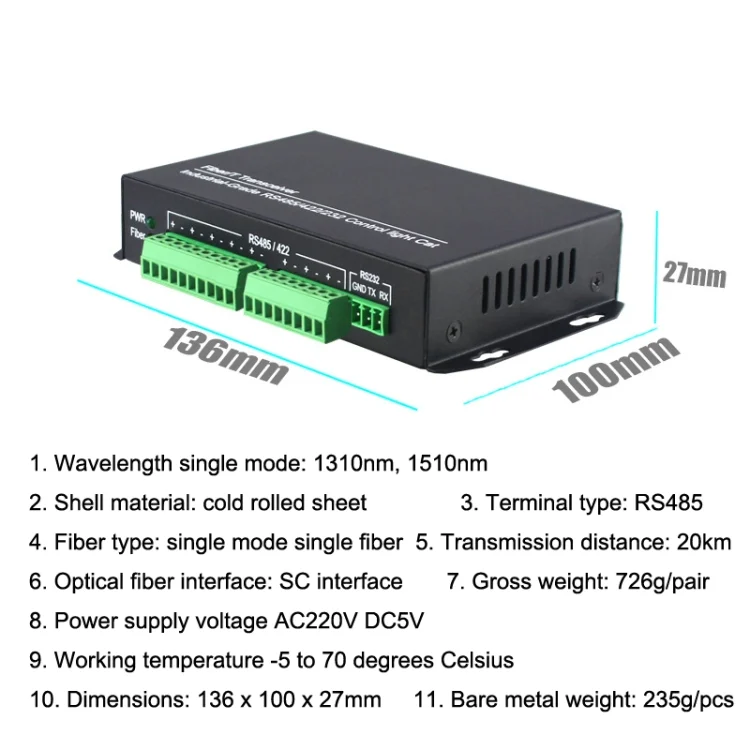

19. Dimensions: 136 x 100 x 27mm
20. Bare metal weight: 235g/set
21. Gross weight: 726g/pair

Shipping list
-1 x Optical Transmitter
-1 x Receiver
-1 x Instruction manual
-2 x Power supply
