Komshine High Precision Optical Power Meter Mini Fiber Optic Light Attenuation Tester With LED

1. Wavelength range: 800~1700 (nm)
2. Probe type: InGaAs

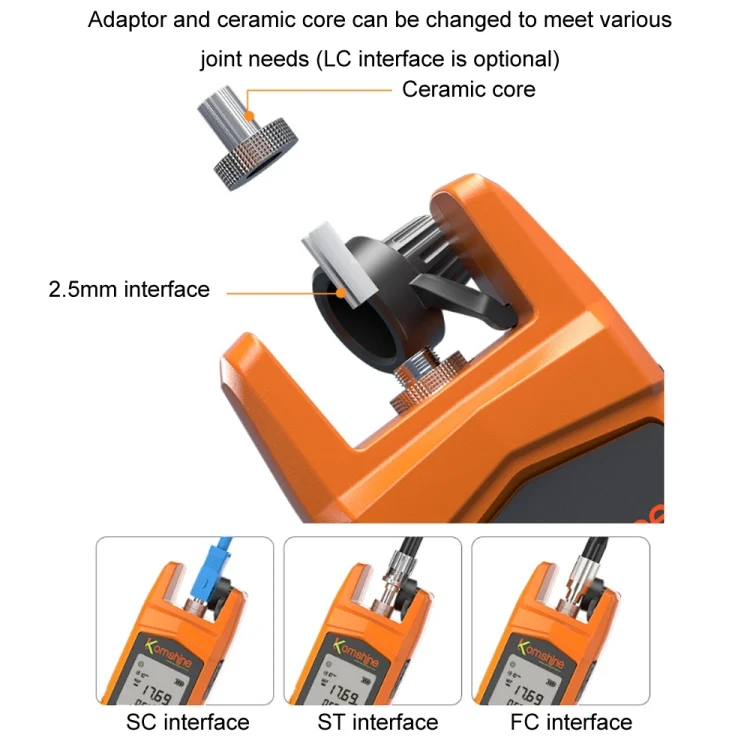

3. Interface: 2.5mm universal interface
4. Power measurement range: -70~+6 dBm/-50~+26 dBm
5. Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625 (nm)
6. Display resolution: 0.01dB
7. Automatic shutdown time: 10 minutes
8. Battery working time: 20 hours
9. LED flashlight: supported
10. Power supply: AAA 1.5V battery x 2 (not included)
11. This optical power meter has two models, A and C. The power test ranges are:
Type A: -70dBm～+6dBm (mainly used in telecommunications, mobile, China Unicom, etc.)
Type C: -50dBm～+26dBm (mainly used in radio and television, monitoring, etc.)

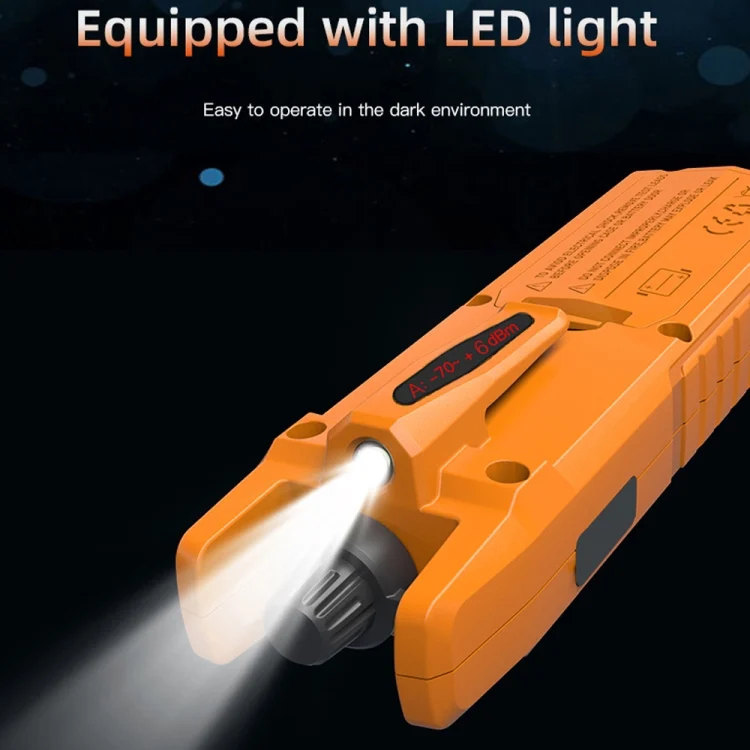

12. Equipped with a high-brightness LED flashlight to facilitate line checking and construction in dark environments, making work more convenient

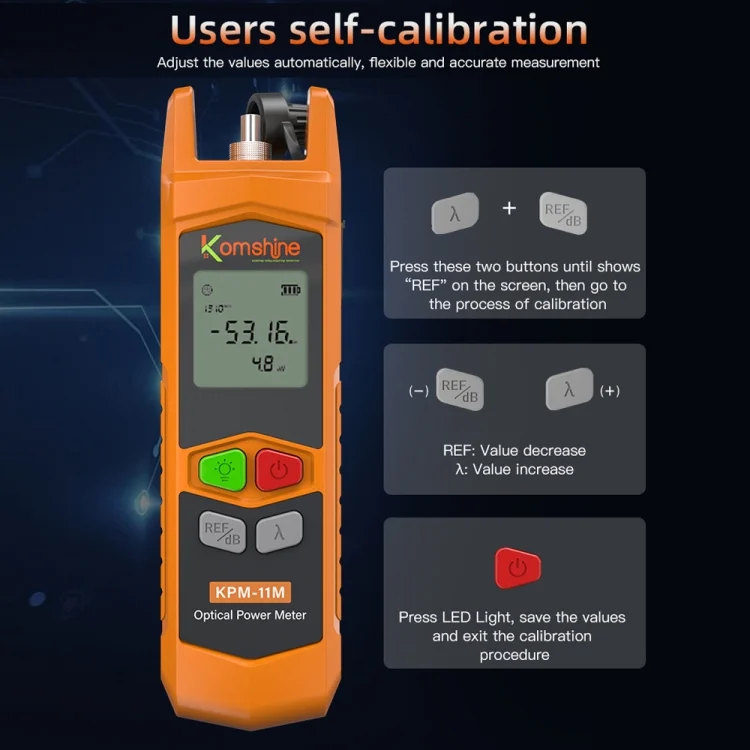

13. Self-adjustable values, flexible and accurate measurement

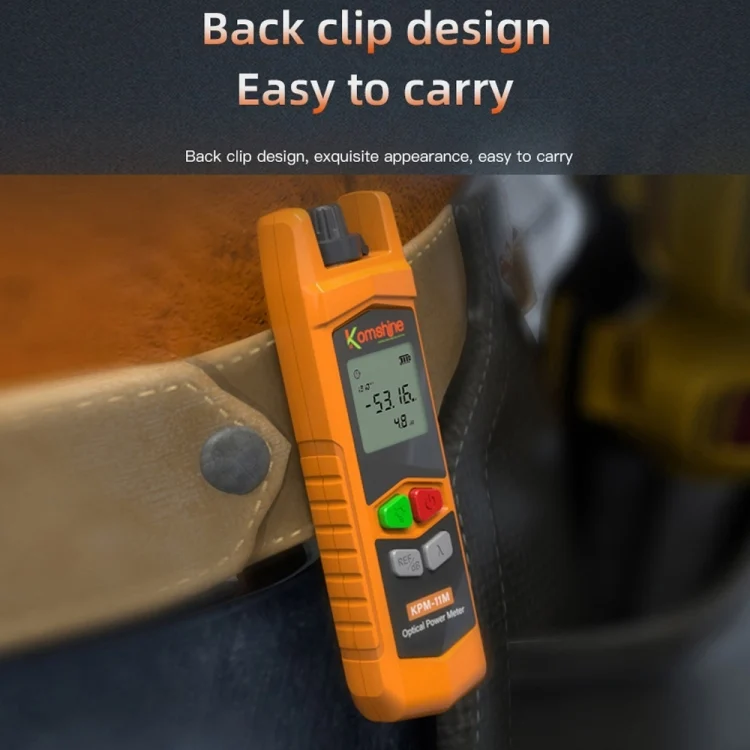

14. Simple and lightweight, the body design conforms to ergonomic requirements, and the size is small and exquisite. It can be easily put into a pocket, clipped to clothes, and carried anywhere.
15. Short press the power button to turn on the power saving function by default. If there is no operation for 15 minutes, it will automatically shut down. When the power is on, long press the power button and the “0” icon disappears to cancel the function.

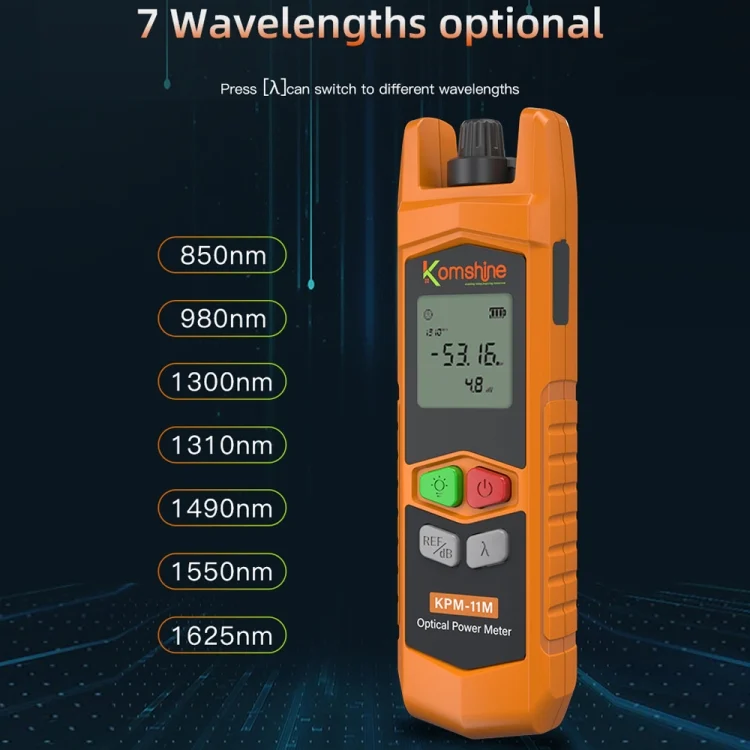

16. Seven wavelengths are available: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm.
17. High-precision measurement, measurement error 0.2dB, fast response

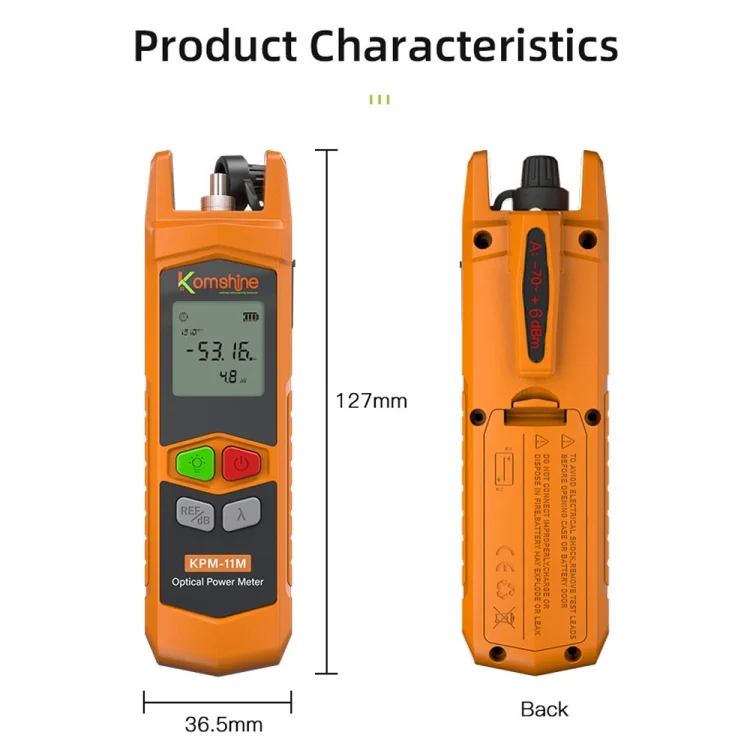

18. Dimensions: 127×36.5×28 mm
19. Weight: 61g
