COMFAST CF-SG181P 10 Port Gigabit POE Ethernet Switch 20Gbps Backplane Bandwidth Monitoring

Feature
1. 8 10/100/1000M Rj45 adaptive POE power supply ports, 2 10/100/1000M Rj45 uplink ports.
2. Gigabit port ensures high-speed data transmission.
3. Compatible with 802.3af/at standard.
4. Support power output management.

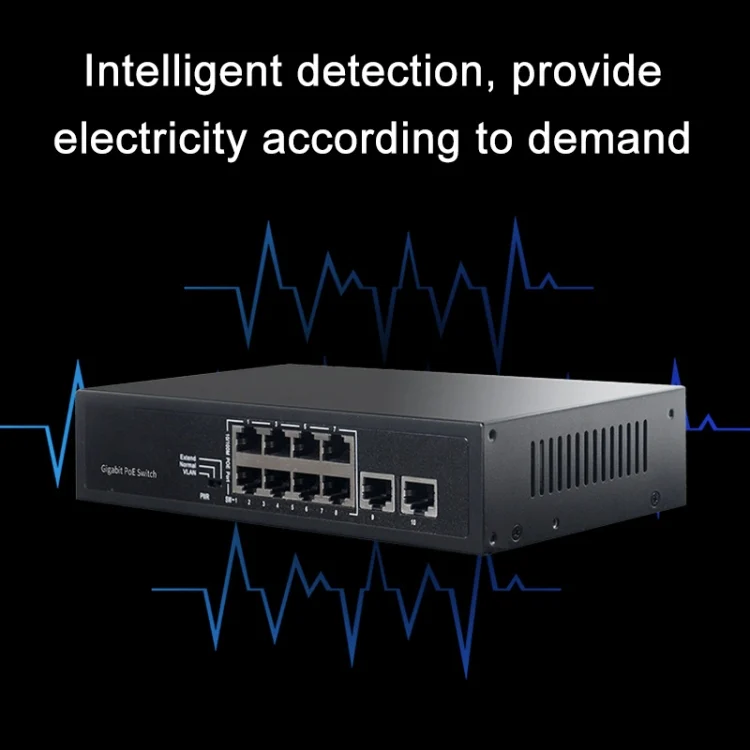

5. Automatically detect PD devices.
6. Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control.
7. Supports 2K MAC addresses, automatic learning and automatic updating.
8. Panel indicator lights monitor working status and help fault analysis.
9. Support IEEE802.3az high-efficiency energy-saving function.

Specifications
1. Power supply:
– Input: AC110-260V
– Output: 52V 2.88A
2. POE parameters:
– POE standard: meets IEEE802.3af/IEEE802.3at
– Single port: 15.4W (IEEE802.3af)
– Single port: 30W (IEEE802.3at)
– POE compatibility: IEEE802.3af/IEEE802.3at adaptive
– Output voltage: DC48V
– Power supply core: 1/2+, 3/6-
3. Material: metal
4. Backplane broadband: 20Gbps
5. Network protocol: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at

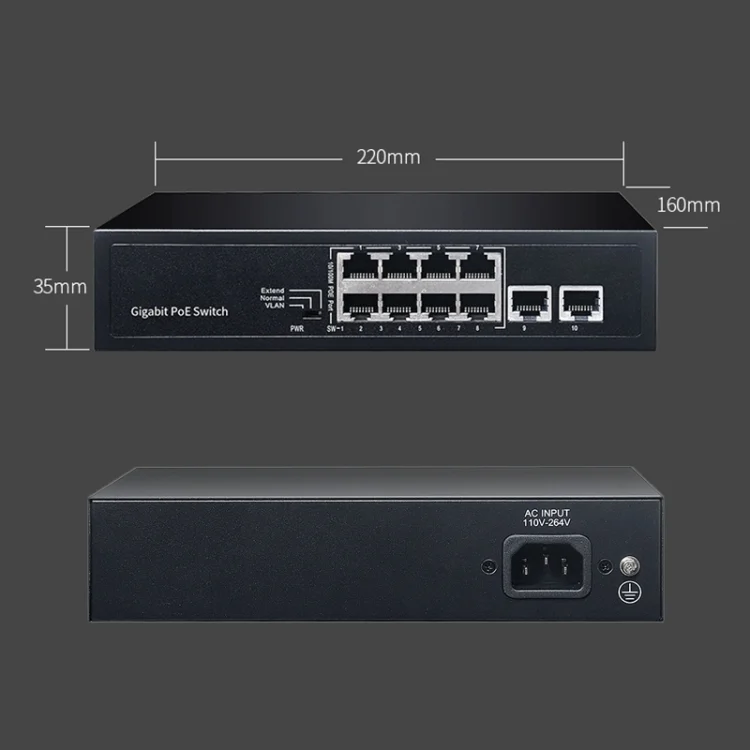

6. Size: 220x160x35mm
7. Usage environment:
– Working temperature: -20~55 degrees Celsius
– Storage temperature: -40~80 degrees Celsius
– Working humidity: 10~90%RH non-condensing
– Storage humidity: 5~90%RH, non-condensing
