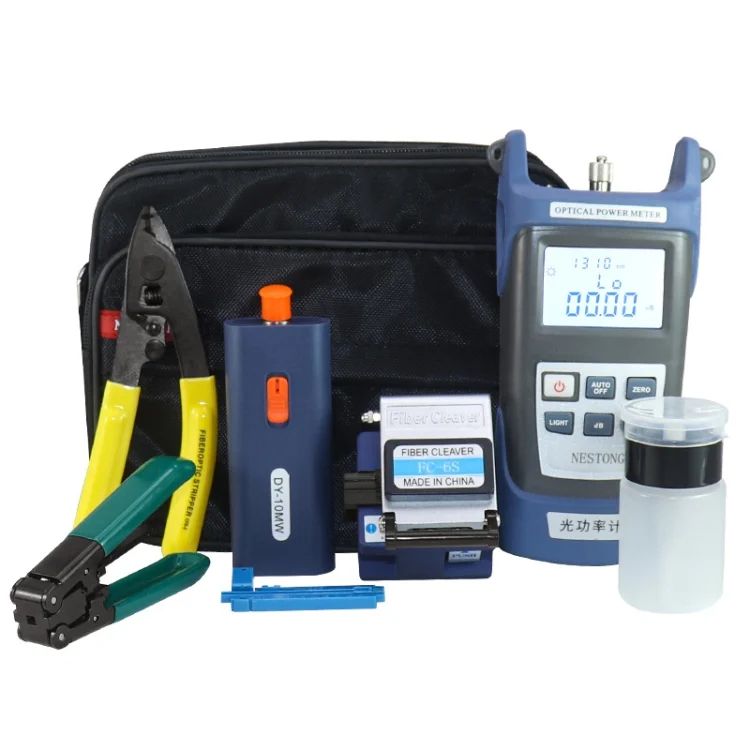

Fiber Optic Tool Kit With Cutter Cleaver Optical Power Meter 10mW Red Test Pen

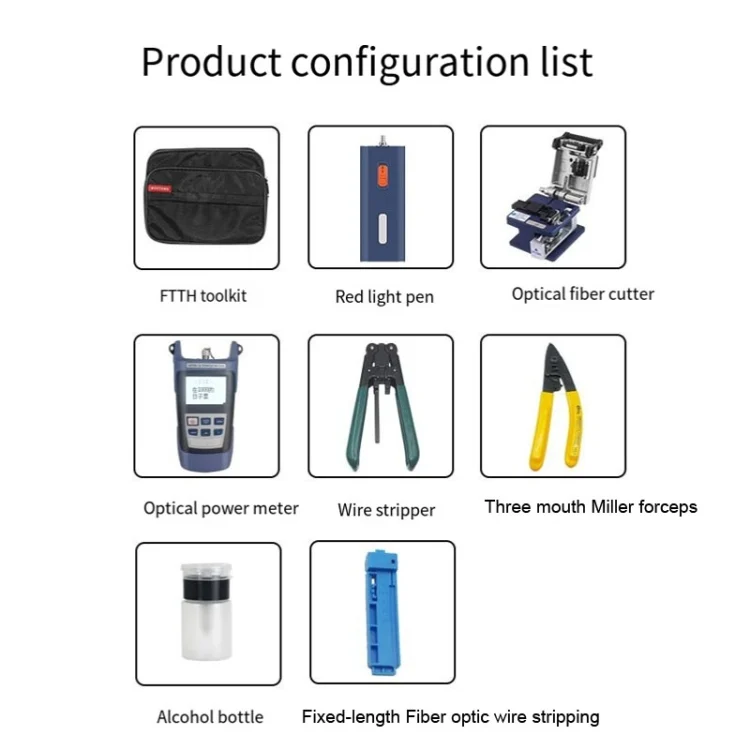

Tool kit list: FTTH tool kit, red light pen, fiber cutter, optical power meter, wire stripper, three-mouth Miller pliers, alcohol bottle, length fixer

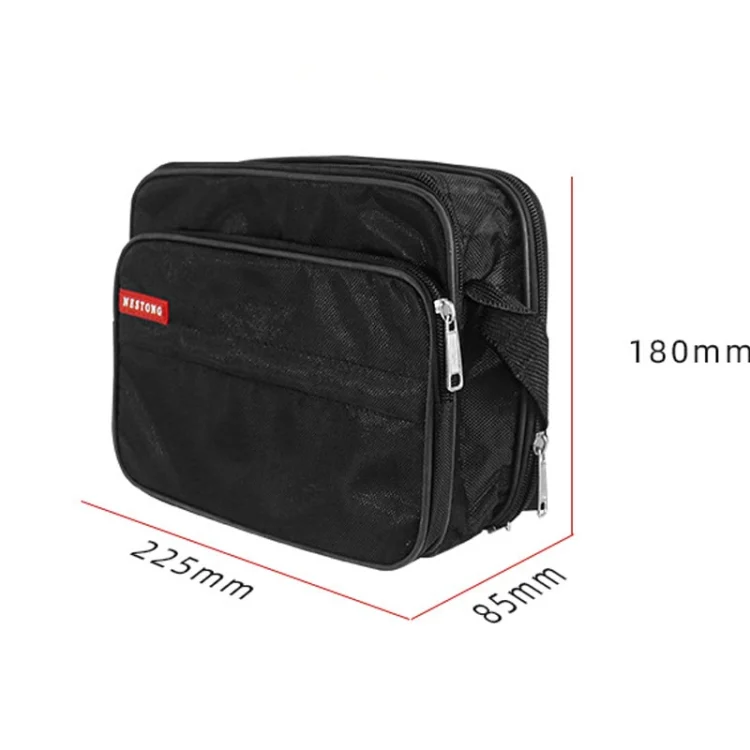

Toolkit parameters:
– Material: Oxford cloth
– Dimensions: 225 x 180 x 85mm
– Weight: 1303.5g (full configuration)

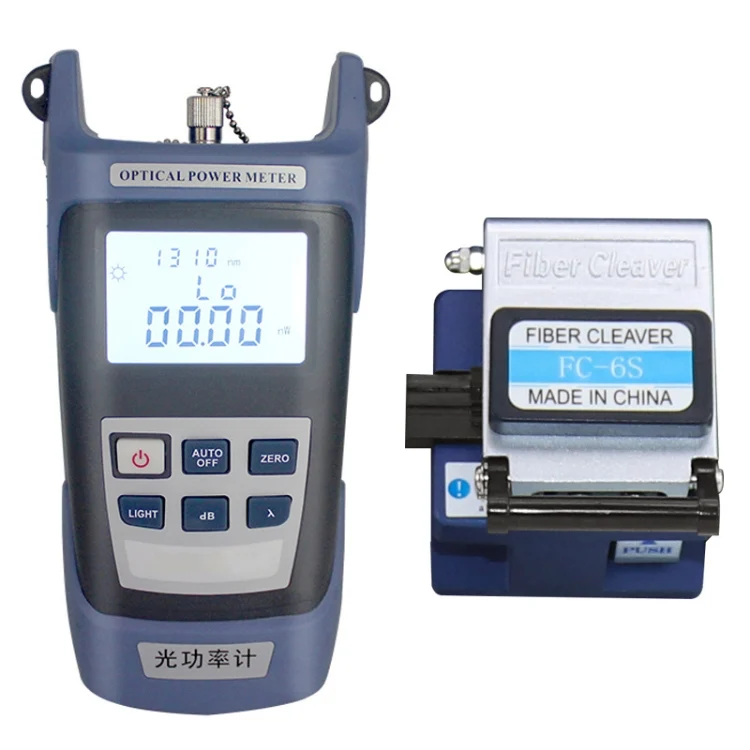

Optical power meter parameters:
-Wavelength range: 850~1650
– Uncertainty: +/-5%
– Working temperature: -10~+60 degrees Celsius
– Measuring range: -70~+3
– Storage temperature: -25~+70 degrees Celsius
– Power supply: AAA battery x 3 (battery not included in delivery)
– Automatic shutdown time: 10 minutes
– Product size: 186 x 100 x 50mm
– Product weight: 255g (bare metal)

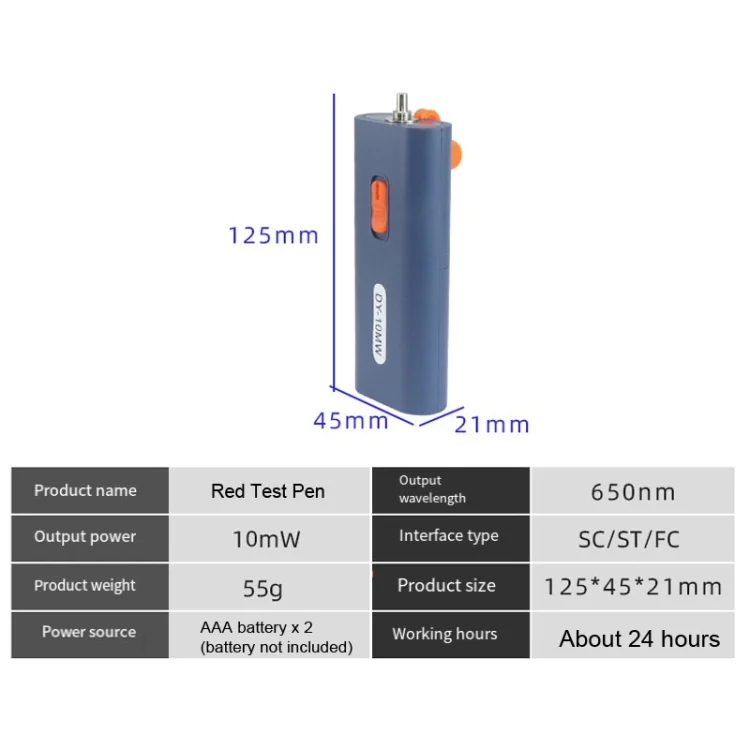

Handheld red light test pen:
– Output wavelength: 650nm
– Output power: 10mW
– Interface type: SC/ST/FC
– Power supply: AAA battery x 2 (battery not included in delivery)
– Working time: about 24 hours
– Product weight: 55g
– Product size: 125 x 45 x 21mm

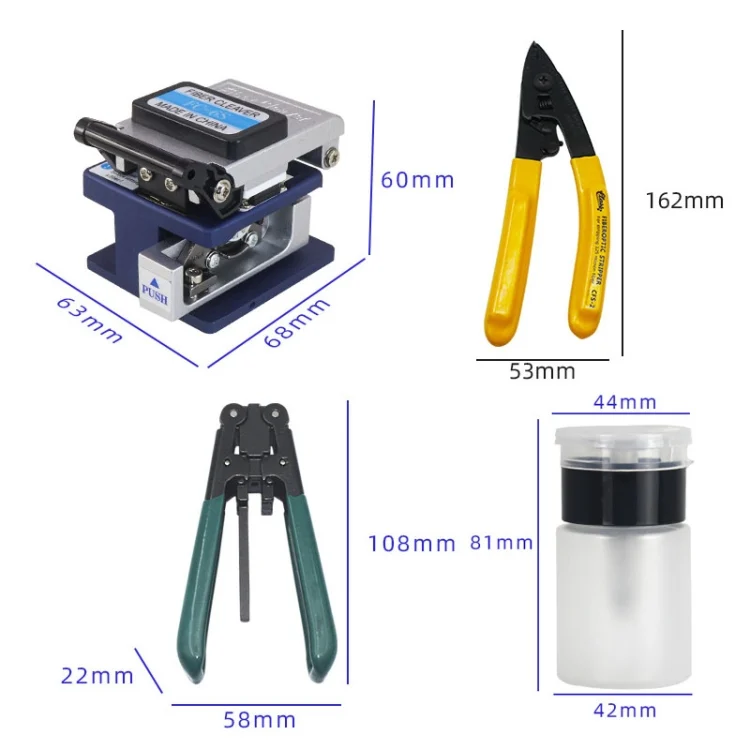

Fiber Cleaver:
– Cutting angle: 0.5 degrees
– Fiber diameter: 125μm
– Blade life: 36000
– Product weight: 298g
– Product size: 68 x 65 x 60mm

Cord stripper:
– Applicable area: 3.1 x 2.0mm
– Fiber diameter: 125μm
– Number of fiber cores: 1~2 cores
– Product weight: 144g
– Product size: 108 x 58 x 22mm

Three mouth Miller forceps:
– Applicable area: 3.1 x 2.0mm
– Fiber cladding diameter: 250μm coating
– Product material: metal
– Product weight: 121g
– Product size: 162 x 53mm

Press type alcohol bottle:
– Product capacity: 50ml
– Product structure: press leak-proof
– Product material: plastic (new HDPE)
– Product weight: 23.5g
– Product size: 81mm diameter 44mm
