HDMI Extender Over Cat5e / 6, EU Plug

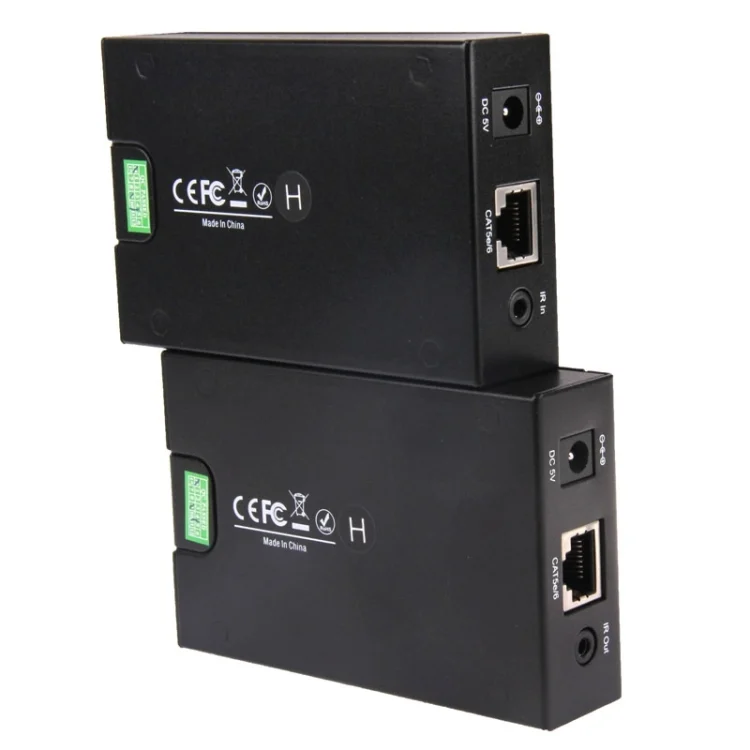

Name: HDMI Extender Over Cat5e / 6, EU Plug
SKU: S-HDMI-1564
Availability: InStock

₹8,784.00 Lead Time: 1-3 Days

🛡️ Your Shopping is 100% Safe & Secure

💬

Instant WhatsApp Support
24/7 real human assistance

✅

100% Authentic Products
Direct from authorized importers

🇮🇳

Free Shipping Pan India
Fast Dispatch in 1–3 days

🔒

SSL Encrypted Checkout
Your data is completely safe

⭐

10,000+ Happy Customers
4.8★ average rating

🎯 Shop with confidence — Your satisfaction is our guarantee!

Add to compare

Add to wishlist

0 People watching this product now!

SKU: S-HDMI-1564 Categories: Computer and Networking, HDMI Amplifier, HDMI Series

Description

About the product

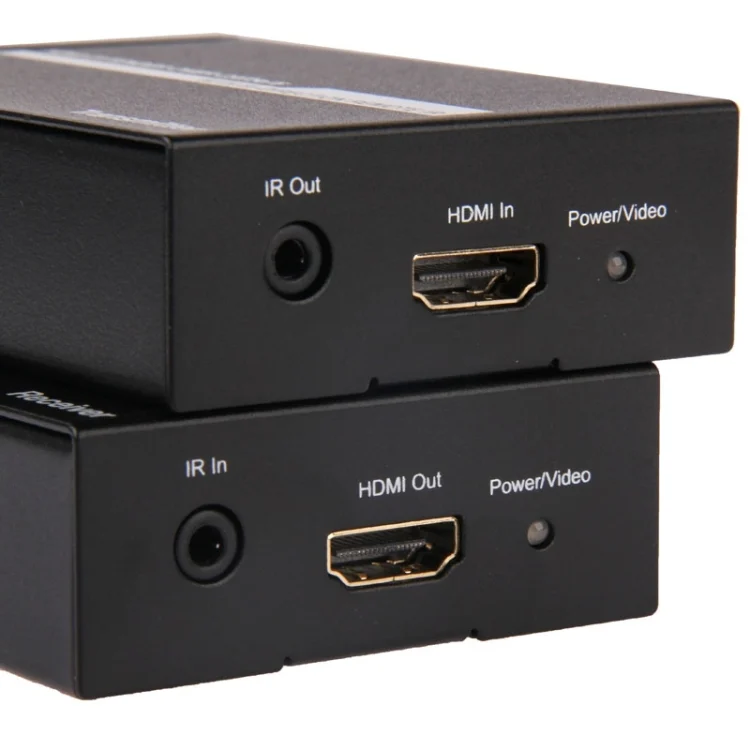

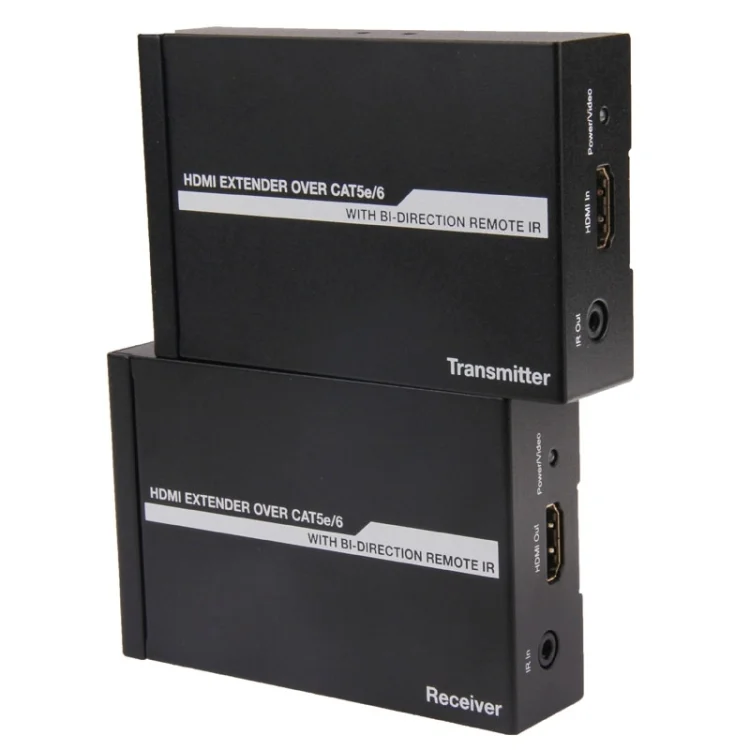

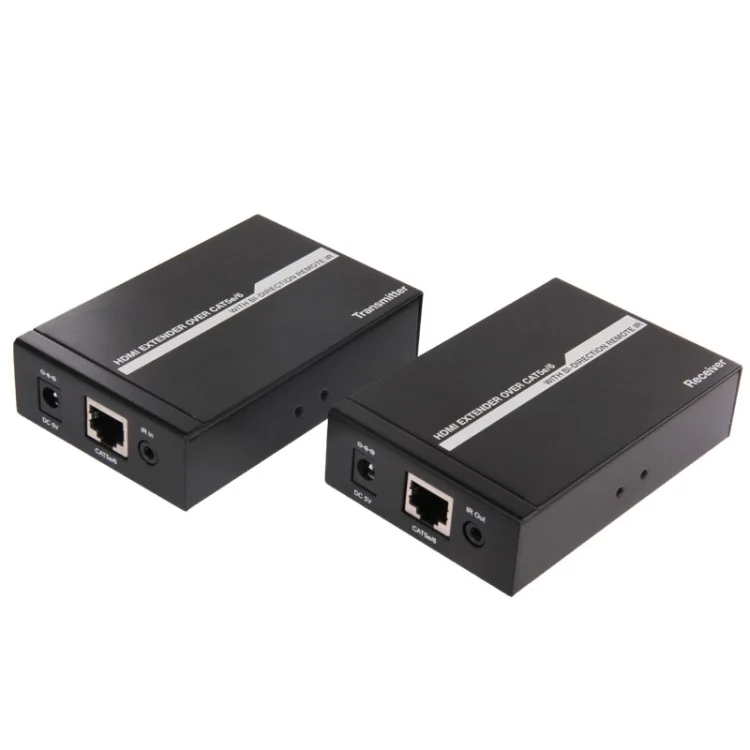

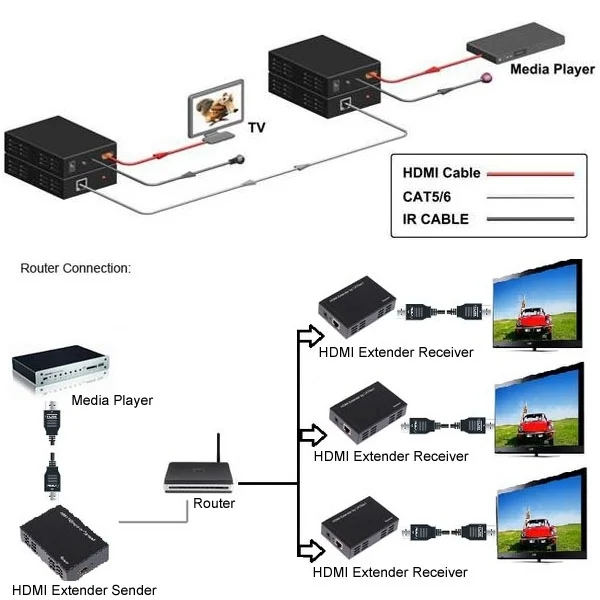

1. Transmitter combines HDMI video, audio and control signals, then transmits them through single CAT5e / 6 cable.
2. Receiver gets them, separates signal and rebuilds video, audio and control ones, outputs through HDMI interfaces.
3. Extending distance is 50 meters at resolutions 1080P 3D or 1920×1200 60fs, and 80 meters at 1080i/720P through single CAT5e cable
4. Support audio formats, Dolby True HD, DTS-master, etc
5. Support 3D signals (all 7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom, etc.
6. Support EDID call back
7. Support CEC pass through
8. VESA DDC and hot swap technology (HPD)

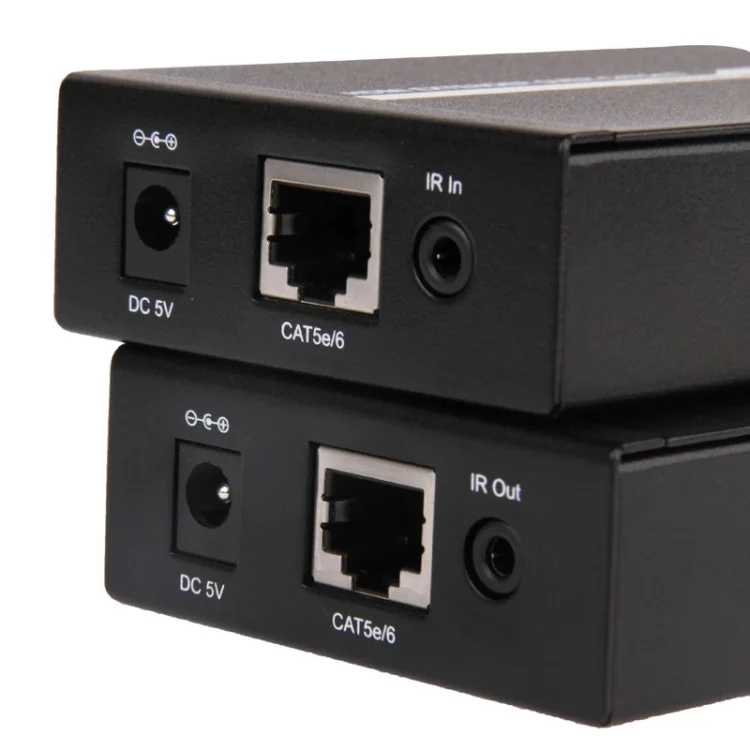

9. Support power over UTP cable, single 12V DC power supply from any side of TX or RX
10. Bi-direction remote IR (RX->TX and TX->RX)
11. Both HDMI input and output are compatible with HDCP 1.2
12. Be compatible with DVI 1.0
13. Support cascade to enhance extending distance
14. Industrial metal case, easy to install

Specification:

General

Video Bandwidth

165MHz

Frequency Bandwidth

4.95Gbps

Input/ Output TMDS Signal

1.2 volts (point to point)

ESD Level

HBM +-8 kV

Input/ Output DDC Signal

5 volts (point to point)

Operating Temperature

0 ~ 40 Degree Celsius

Power Consumption

<3.5W TX, <2.5W RX

Size	100mm x 65mm x 20mm

Package Include

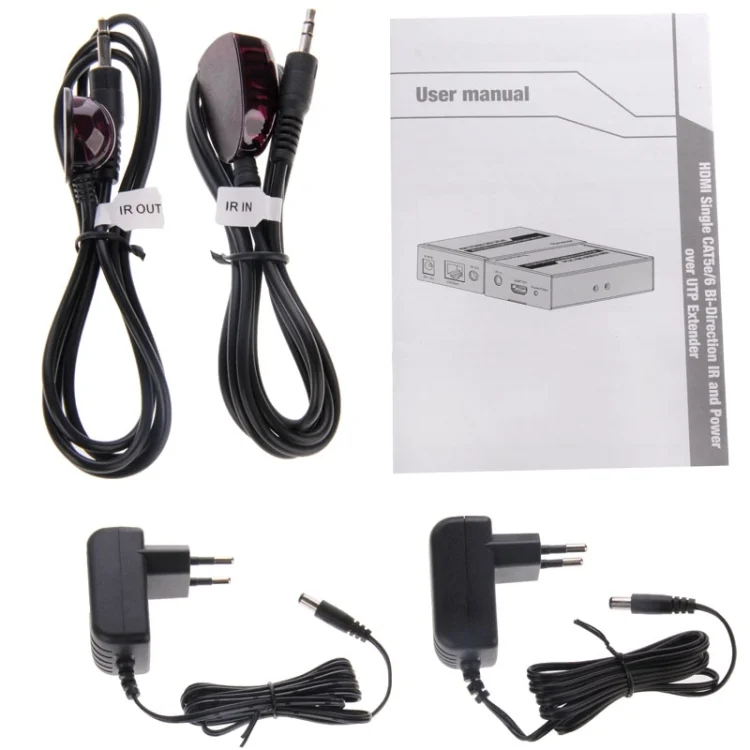

Package Contents

1 x Power Adapter
1 x User Manual
1 x Transmitter
1 x Receiver
2 x IR IN Cables
2 x IR OUT Cables

Package Weight

One Package Weight

0.78kgs / 1.72lb

One Package Size

22.6cm * 18cm * 5cm / 8.9inch * 7.09inch * 1.97inch

Qty per Carton

Carton Weight

16.00kgs / 35.27lb

Carton Size

55cm * 40cm * 25cm / 21.65inch * 15.75inch * 9.84inch

Loading Container

20GP: 484 cartons * 20 pcs = 9680 pcs
40HQ: 1125 cartons * 20 pcs = 22500 pcs

Additional information

Weight	N/A
Dimensions	N/A
Option	50m
