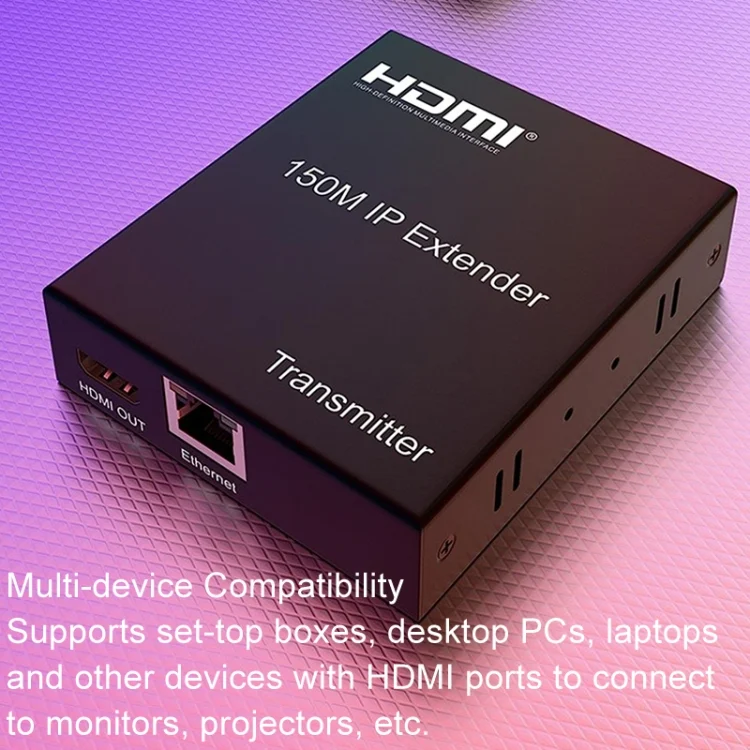

150m HDMI Network Cable Extender IP One To Many Computer Monitors, Transmitter+Receiver, US Plug

1. Video resolution support: 480P, 720P, 1080P
2. Sound: stereo: 32kHz, 44.1kHz and 48kHz
3. Power adapter specifications: input: AC (50HZ, 60HZ) 100V-240V; output: DC 5V/1A
4. Maximum operating current: 500mA
5. Decoding method: MJPEG
6. Operating temperature/humidity: 0 – 45 degrees Celsius / 10% – 80%RH (non-condensing)
7. Storage temperature/humidity: -10 – 70 degrees Celsius / 5% -90% RH (non-condensing)
8. Size: about 9.3 x 7.9 x 2.3cm
9. Weight: about 228g

Features:
1. Support HDCP 1.4
2. Supports one-to-one, one-to-many, many-to-many, and cascade transmission modes
3. Standard 802.3 Ethernet
4. Pure hardware design, plug and play, no need to install additional software
5. Single-point transmission, plug and play, with local loop-out, easy to operate, about 150m long-distance transmission
6. Multi-device compatibility, support for set-top boxes, desktops, laptops and other devices with HDMI interface to connect to the monitor, projector, etc.

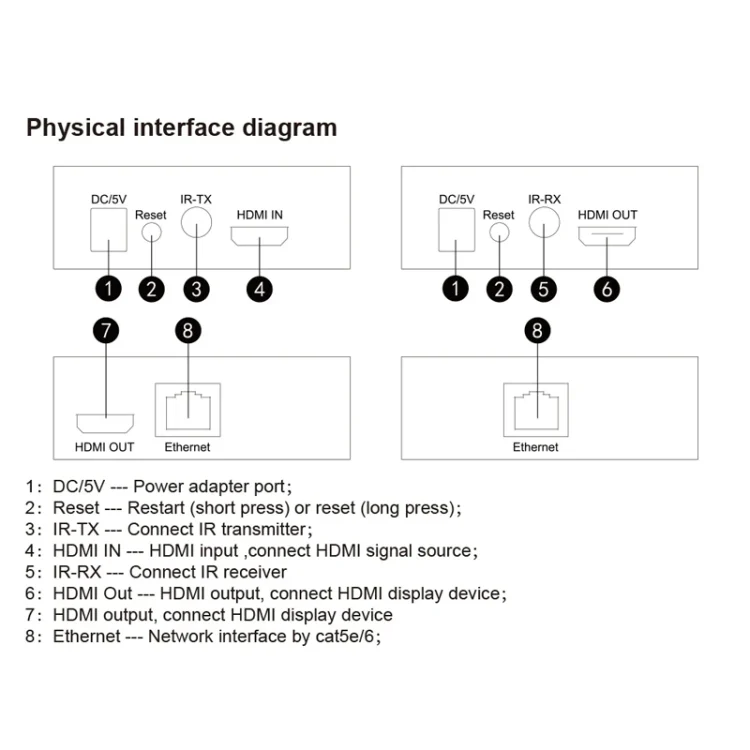

Installation and operation.

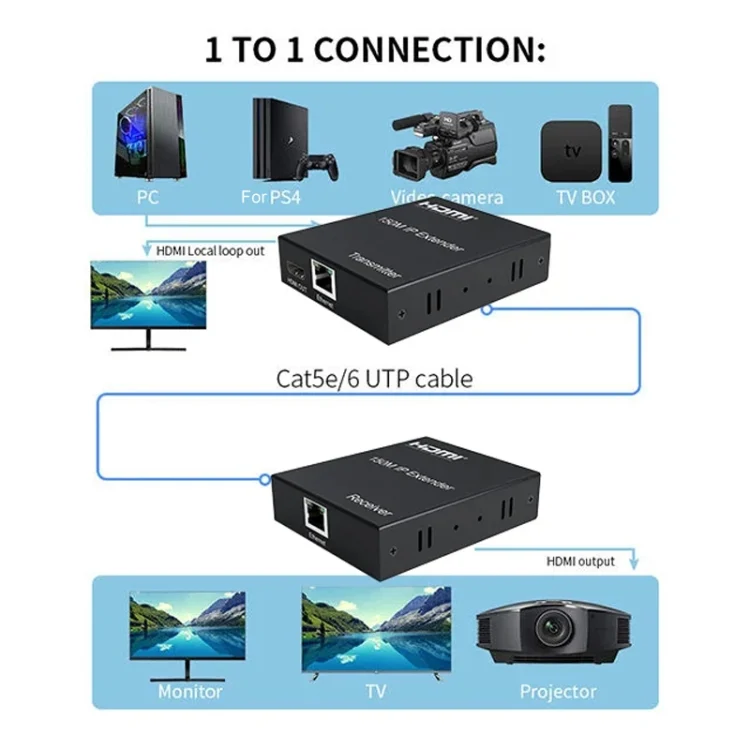

1. Use HDMI cable to connect HDMI signal source and HDMI transmitter
2. Use HDMI cable to connect the HDMI receiver to the display device
3. Use Category 5 or Category 6 (recommended) network cable instead of HDMI cable to connect the transmitter and receiver of the extender, the maximum transmission length of 150 meters
4. If you need infrared back to control the function, the infrared receiver head into the receiving end, infrared transmitter head into the transmitting end, and the transmitting head to the need to control the devices infrared receiving port
5. Connect the 5V power supply to the transmitter and receiver respectively

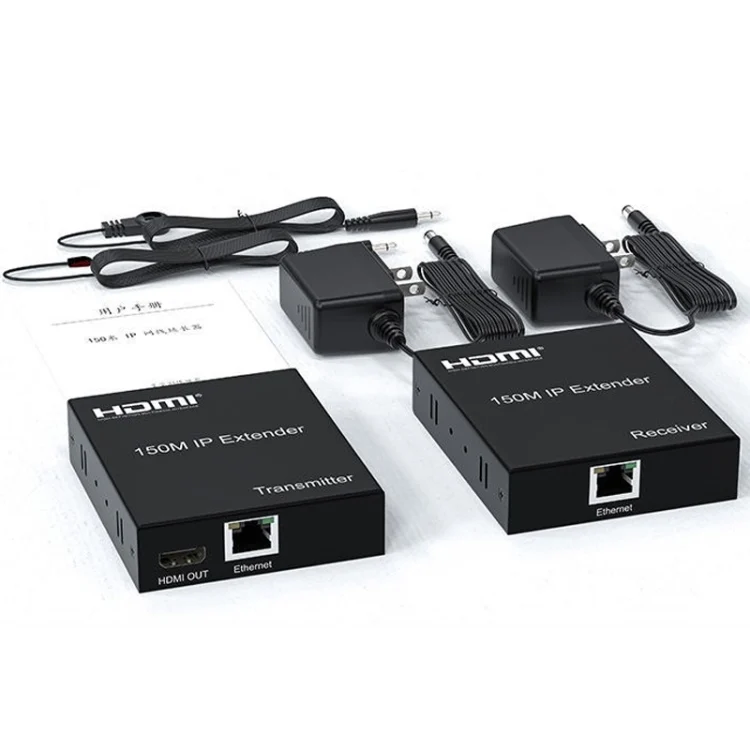

Packing list:
– Transmitter x 1
– Receiver x 1
– Carrier frequency infrared x 1
– Power adapter x 2
– IR transmitter head x 1
– User manual x 1
