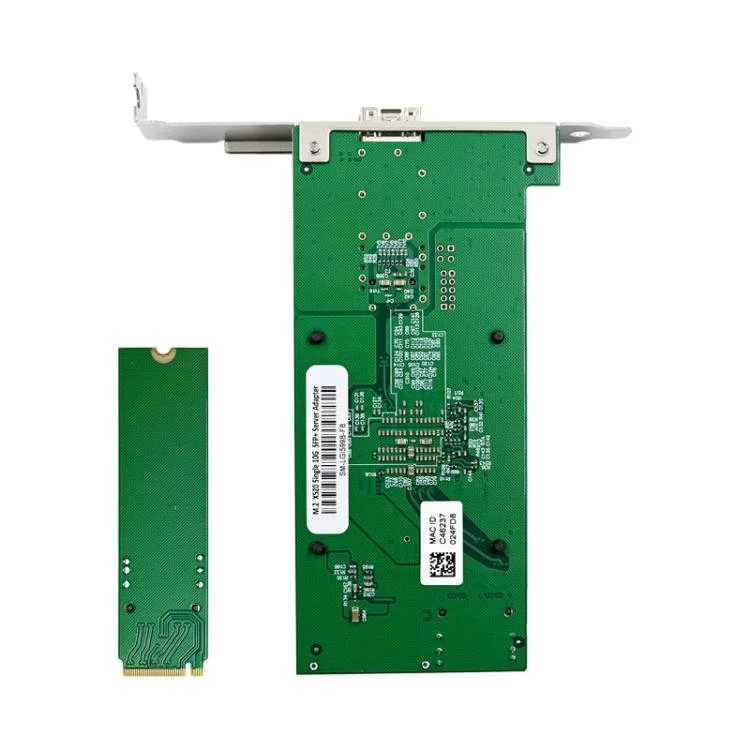

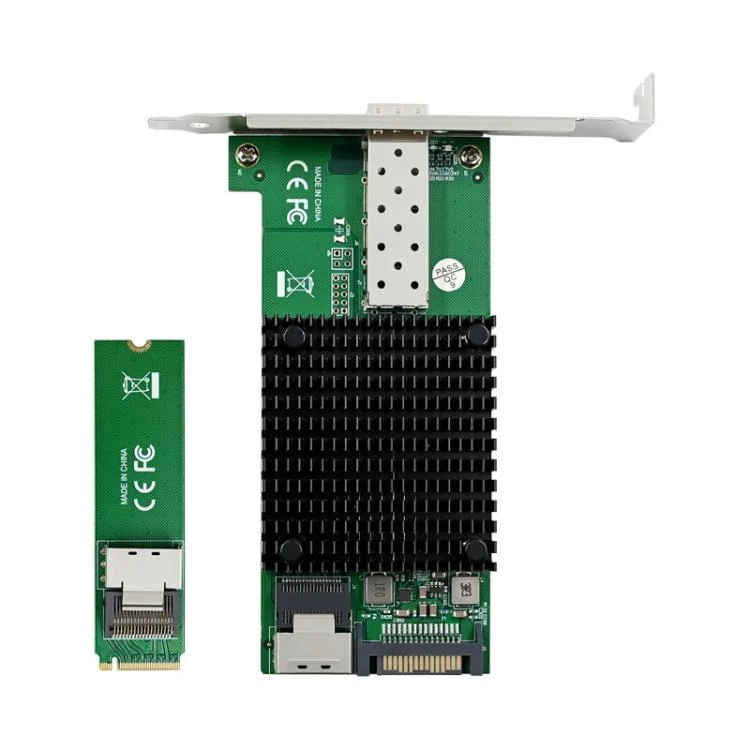

SUNWEIT ST7331 M.2 X520DA1 10GbE Single Optical / SFP+ Server Industrial Network Card

Main functions:
1. M.2 M KEY supporting PCIe protocol
2. PCI-Express host interface specification v2.0, bus width is 5GT/s
3. PCI-Express channel: x4
4. Comply with single-port 10GbE SFP port standard
5. Comply with IEEE802.3ae specification
6. Layer 2 function: IEEE 802.3x flow control – IEEE 802.1q VLAN
7. Support receive side scaling (RSS)
8. Support IPv4, IPv6 protocols
9. Support jumbo frames up to 15.5K
10. Support checksum offload
11. Management statistics and RMON
12. Support virtual machine device queues
13. Interrupt throttling control, which can limit the maximum interrupt rate and improve CPU utilization
14. Chipset: Intel JL82599EN

Parameters:
1. Applicable network: M.2 10G industrial control server network card
2. Main controller: Intel(R) JL82599EN
3. Bus type: M.2 M KEY
4. Media interface: 1 x SFP+ fiber LC
5. Transmission rate: 10GbE/1GbE
6. Network extension:
– IEEE 802.3: 10GBASE-SR (E10G41BFSR, E10G42BFSR), 10GBASE-LR (E10G41BFLR)
– SFF-8431: 10GSFP+Cu (a.k.a. Direct Attach)
– X520 adapter with SFP+ connection supports 10GBASE-SR, 10GBASE-LR and SFP+ copper direct connection physical media
7. Management functions: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
8. Operating temperature: 0 – 55 degrees Celsius (32 – 131 degrees Fahrenheit)
9. Storage temperature: -40 – 70 degrees Celsius (-40 – 158 degrees Fahrenheit)
10. Storage humidity: 90% non-condensing relative humidity at 35 degrees Celsius
11. Application areas: Mobile devices, desktops, workstations, value servers or industrial design network equipment with strict space constraints

Packing list:
– M.2 M X520 single-port SFP+ industrial control network card x 1
– Manual x 1
– CD drive disc x 1
– Short iron sheet/2U small chassis applicable x 1
