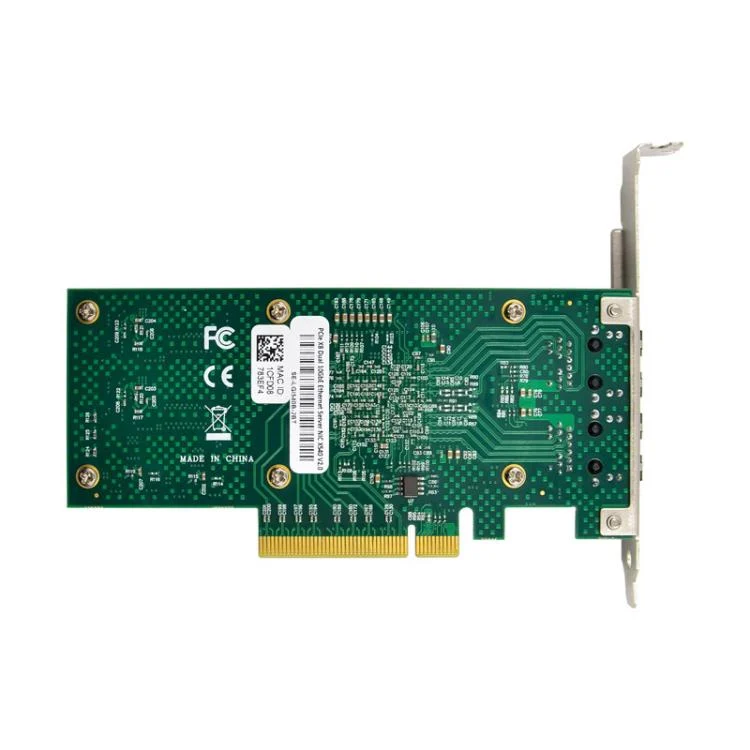

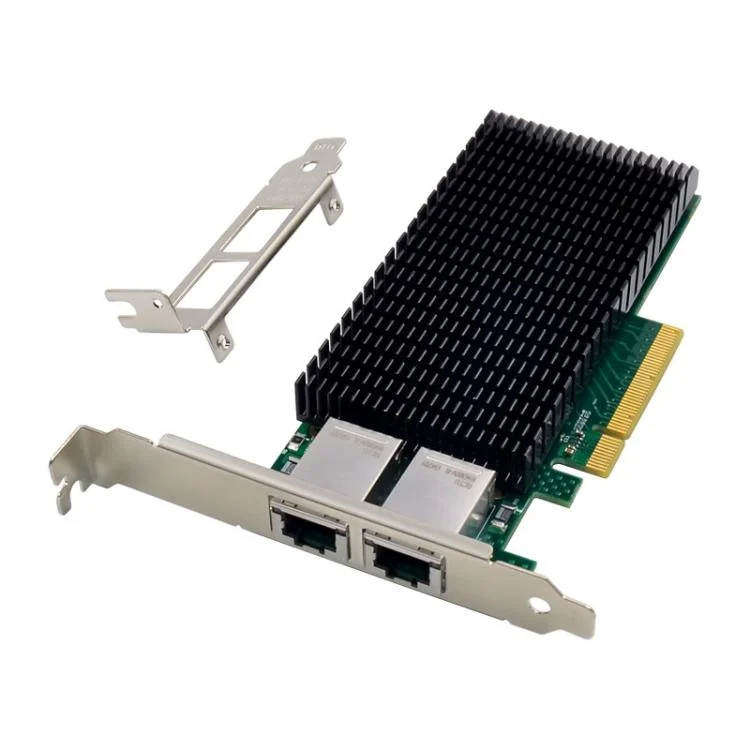

SUNWEIT ST7318 PCIe X8 X540-T2 Dual Electric Ports / 10GBASE-T Aggregation Server NIC

1. Applicable network: 10 Gigabit Ethernet server
2. Main controller: Intel(R) X540
3. Bus type: PCI Express X8, 5.0GT/s
4. Media interface: RJ45, copper cable
5. Transmission rate: 100/1000/10000Mbps
6. Network topology:
– IEEE 802.3an/ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP)
– IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3au, IEEE 802.3Qbg
7. Network/transmission protocol: TCP/IP, UDP/IP, IPSec, iSCS
8. Management features: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
9. Firmware environment:
– Operating temperature: 0 – 55 degrees Celsius (32 – 131 degrees Fahrenheit)
– Storage temperature: -40 – 70 degrees Celsius (-40 – 158 degrees Fahrenheit)
– Storage humidity: 90% non-condensing relative humidity at 35 degrees Celsius

Features:
1. Based on the Intel X540BT2 chipset, it is used as a single-chip network solution for LAN on motherboard (LOM) to provide 10 Gigabit Ethernet (10 GbE) platforms on new servers
2. Simplifies migration to 10 GbE, providing iSCSI, FCoE, virtualization and flexible port partitioning
3. Whole data, low-cost, low-power performance
4. 10G Gigabit Ethernet, standard CAT-6a cable with RJ45 connectors
5. Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports
6. Unified network, providing LAN, iSCSI and FCoE with one CNA
7. Single-chip solution with integrated MAC + PHY
8. Load balancing on multiple CPUs
9. Remote boot of iSCSI and FCoE
10. Supports most network operating systems (NOS)

Packing list:
– X540 PCIe 10G Server network card x 1
– Driver CD x 1
– Short iron sheet x 1
– Instruction manual x 1
