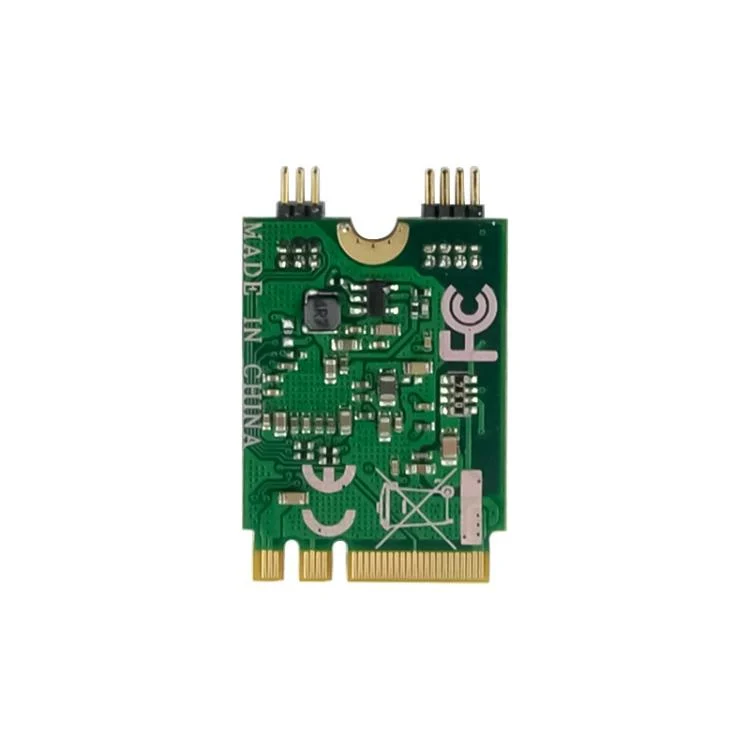

SUNWEIT ST7206 M.2 A+E RTL8125BG Single Port RJ45 2.5G Quad Speed Industrial Network Card

1. Combines a quad-speed IEEE802.3-compatible media access controller with a quad-speed Ethernet transceiver, compliant with 10/100Mbps Ethernet IEEE802.3u, IEEE802.3ab 1000Mbps, IEEE802.3bz 2500Mbps Ethernet specifications
2. Provides high-speed transmission via CAT5e UTP cable or CAT3 UTP (10Mbps only) cable
3. Suitable for desktops, workstations, servers, communication platforms and embedded applications
4. Bus type: M.2 A+E KEY
5. Transmission medium: 1 x 2.5G RJ45 port
6. Transmission rate: 2.5G/1000/100/10Mbps
7. Network mode: supports 2.5G and 1G Lite mode
8. Network topology:
– Supports IEEE1588v1, IEEE1588v2, IEEE80.2AS time synchronization
– Supports IEEE802.1Qav credit-based shaping algorithm
– Support IEEE802.1P Layer 2 priority encoding
– Support IEEE802.1Q VLAN tagging
– Support IEEE802.3az-2010
– Support IEEE802.3bz-2016 (NGBASET)
– Support full-duplex flow control (IEEE802.3x)
9. Features:
– Auto-negotiation with extended next page function
– Support for exchange/sex/skew correction- Crossover detection and automatic correction
– Support hardware ECC (error correction code), hardware CRC (cyclic redundancy check) function
– Support PCI MSI (Message Signal Interrupt) and MSI-X
– Support ECMA-393 ProxZzzy standard for sleeping host
– Support LAN wake-up and RealWow technology (remote wake-up)

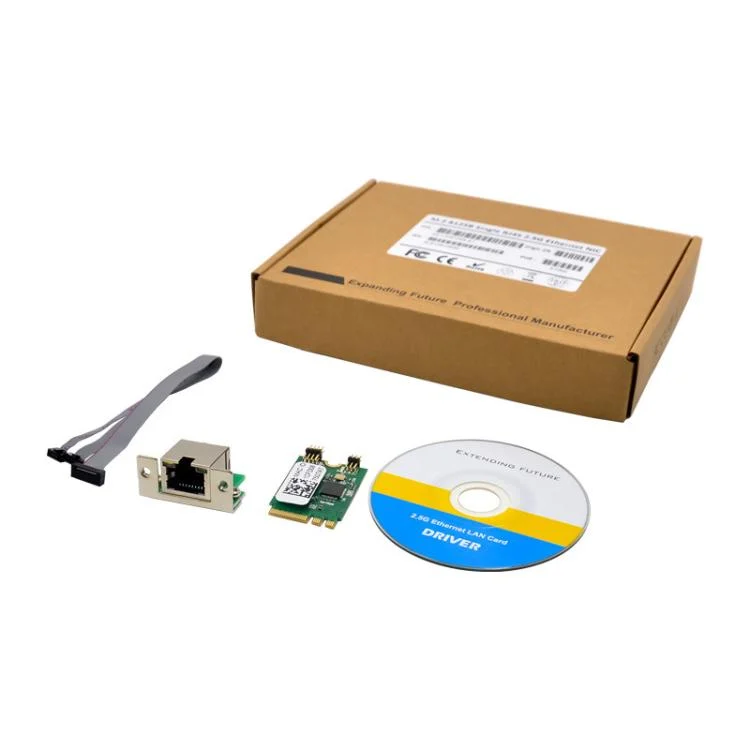

Packing list:
– M.2 A+E RTL8125B main card x 1
– RJ45 network cable terminal x 1
– Short iron sheet x 1
– CD drive disc x 1
