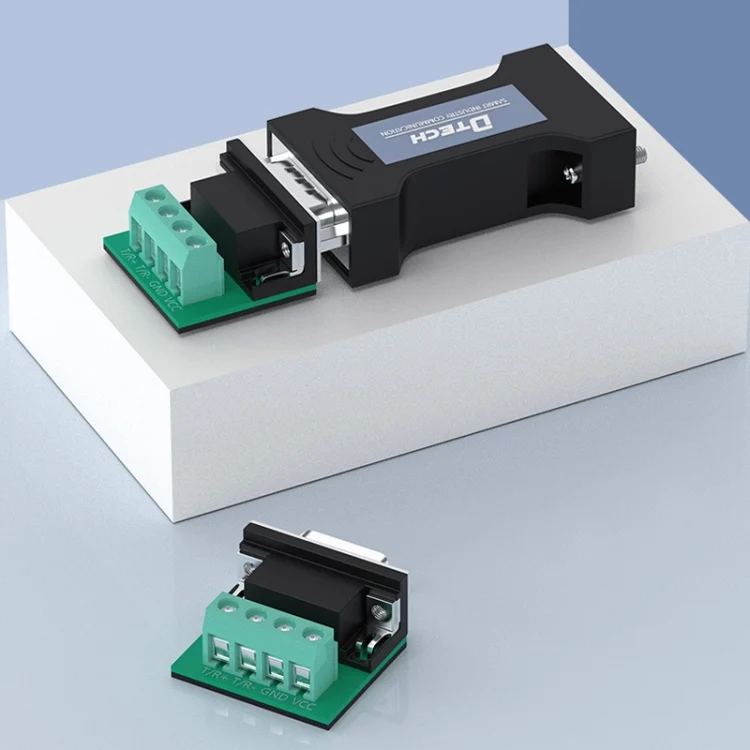

DTECH DT-9000 Passive Bidirectional RS232 To RS485 Serial Communication Protocol Module Converter

Name: DTECH DT-9000 Passive Bidirectional RS232 To RS485 Serial Communication Protocol Module Converter
Brand: DTECH
SKU: TBD06024294
Availability: InStock

₹2,079.00 Lead Time: 1-3 Days

In stock

🛡️ Your Shopping is 100% Safe & Secure

💬

Instant WhatsApp Support
24/7 real human assistance

✅

100% Authentic Products
Direct from authorized importers

🇮🇳

Free Shipping Pan India
Fast Dispatch in 1–3 days

🔒

SSL Encrypted Checkout
Your data is completely safe

⭐

10,000+ Happy Customers
4.8★ average rating

🎯 Shop with confidence — Your satisfaction is our guarantee!

Add to compare

Add to wishlist

0 People watching this product now!

SKU: TBD06024294 Categories: Computer and Networking, Computer Cables and Connectors, RS485 / RS232 Series Brand: DTECH

Description

1. Interface compatible: RS485/RS232C standard
2. Material: ABS
3. Working mode: asynchronous half-duplex differential transmission
4. Protection level: 600W lightning surge protection per line, about 15KV electrostatic protection
5. Transmission distance: RS-485 is less than 1200m, RS-232 is within 15m
6. Transmission rate: 300-115.2kbps
7. Communication mode: point-to-point/two-wire half-duplex, point-to-multipoint/two-wire half-duplex
8. Size: about 6.4 x 3.3 x 1.7mm

Features:

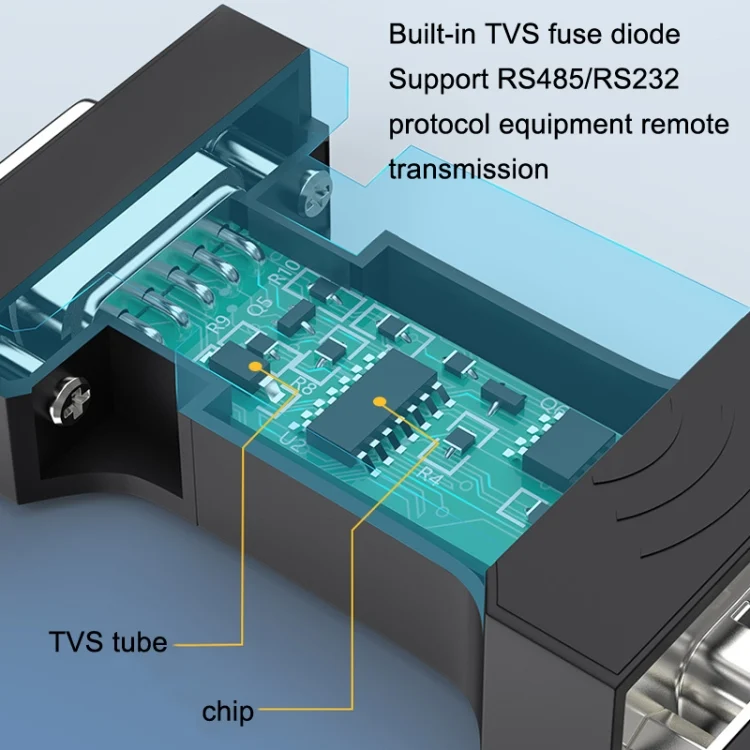

1. Built-in TVS fuse diode, support RS485/RS232 protocol equipment remote transmission

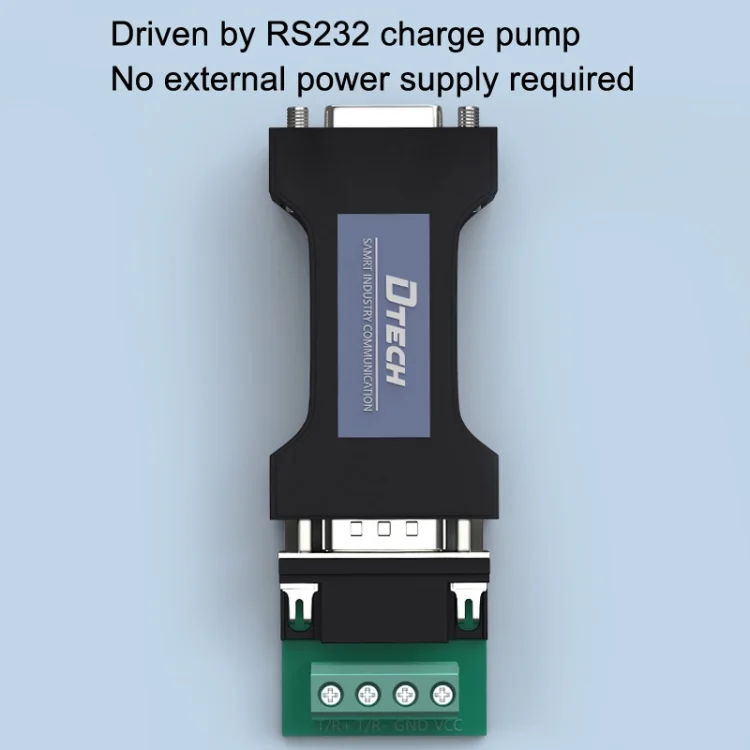

2. Driven by RS232 charge pump, no external power supply required

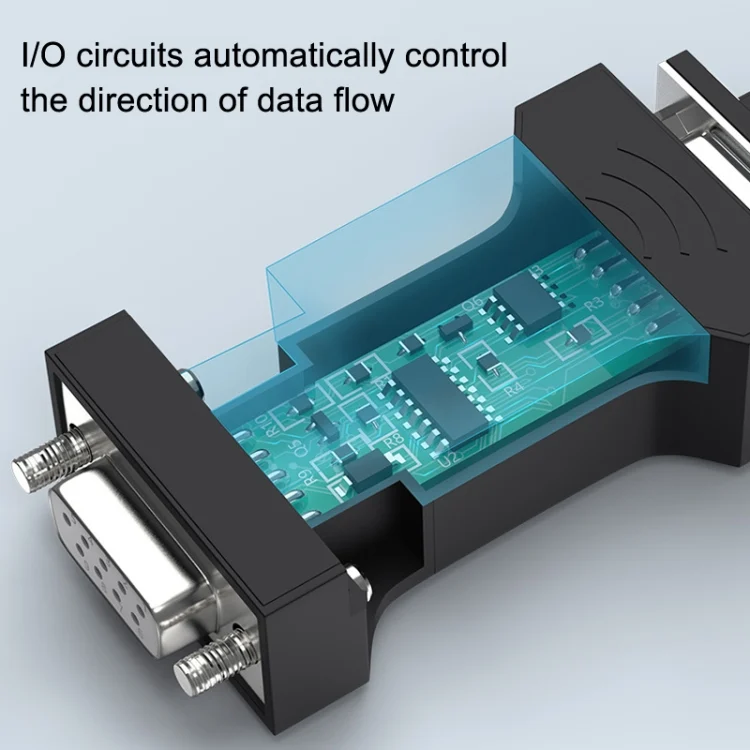

3. The I/O circuit automatically controls the data flow direction
4. Built-in zero-delay automatic transceiver conversion device, data transmission without delay
5. Multiple protections, safer to use, 600W surge protection power per line, about 15KV electrostatic protection

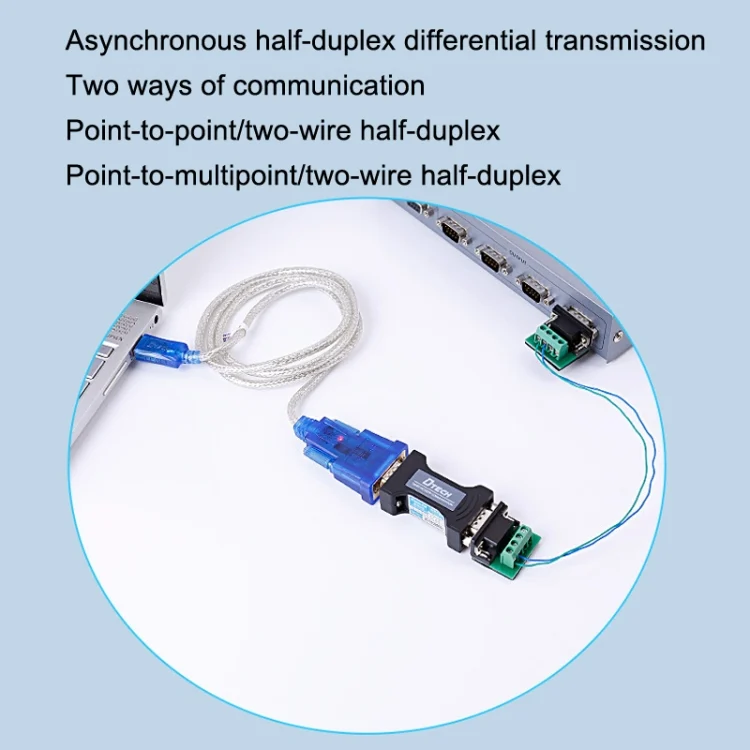

6. Asynchronous half-duplex differential transmission, two communication methods, stable transmission, convenient and fast

Specification:

Package Weight

One Package Weight

0.09kgs / 0.20lb

One Package Size

16cm * 10cm * 4cm / 6.3inch * 3.94inch * 1.57inch

Qty per Carton

Carton Weight

3.25kgs / 7.16lb

Carton Size

42cm * 22cm * 29cm / 16.54inch * 8.66inch * 11.42inch

Loading Container

20GP: 995 cartons * 30 pcs = 29850 pcs
40HQ: 2310 cartons * 30 pcs = 69300 pcs

Additional information

Weight	0.092 g
Dimensions	16 × 10 × 4 cm
