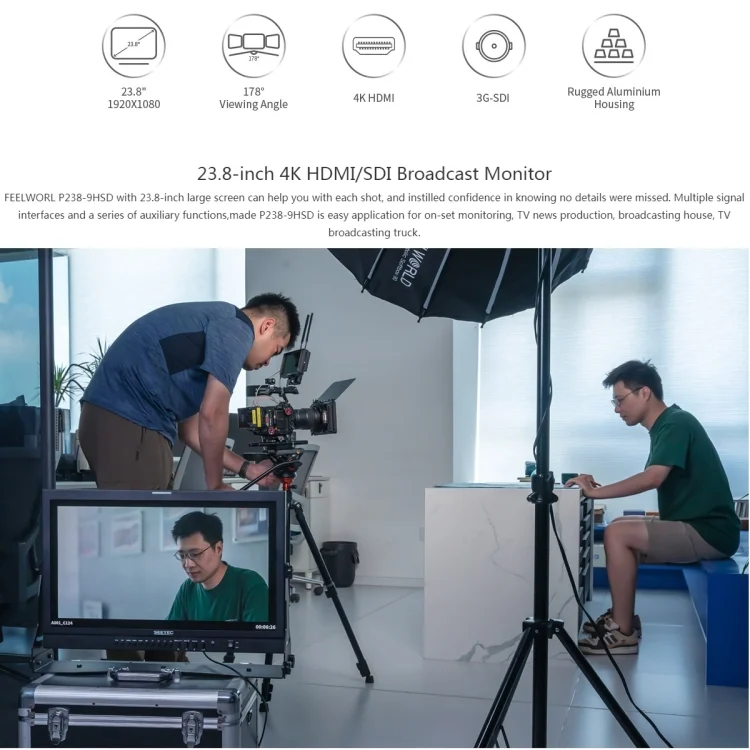

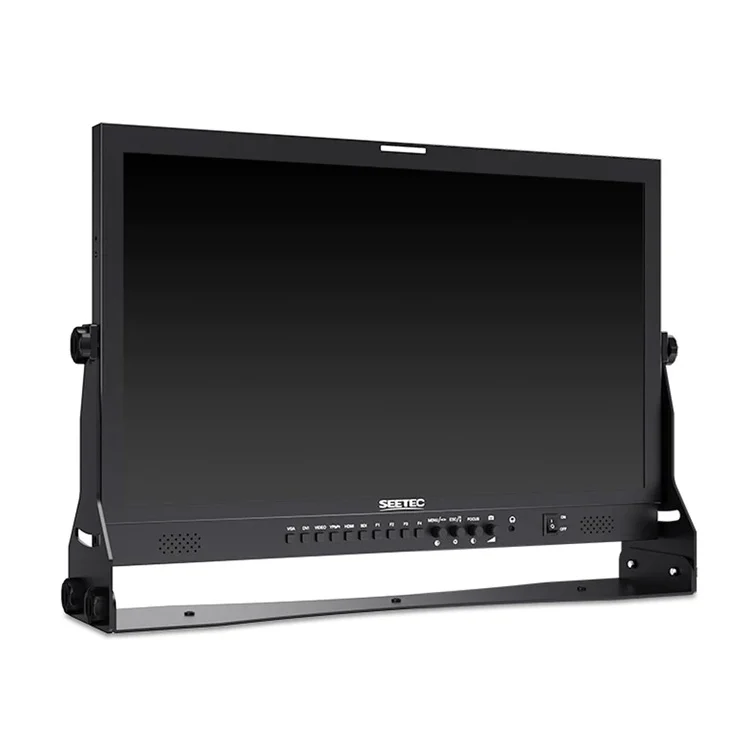

SEETEC P238-9HSD 23.8 inch 1920×1080 IPS Full HD 3G-SDI 4K HDMI Pro Broadcast LCD Monitor

Features:
1. Wide view angle, Full HD 1920×1080, bright, colorful display
2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs

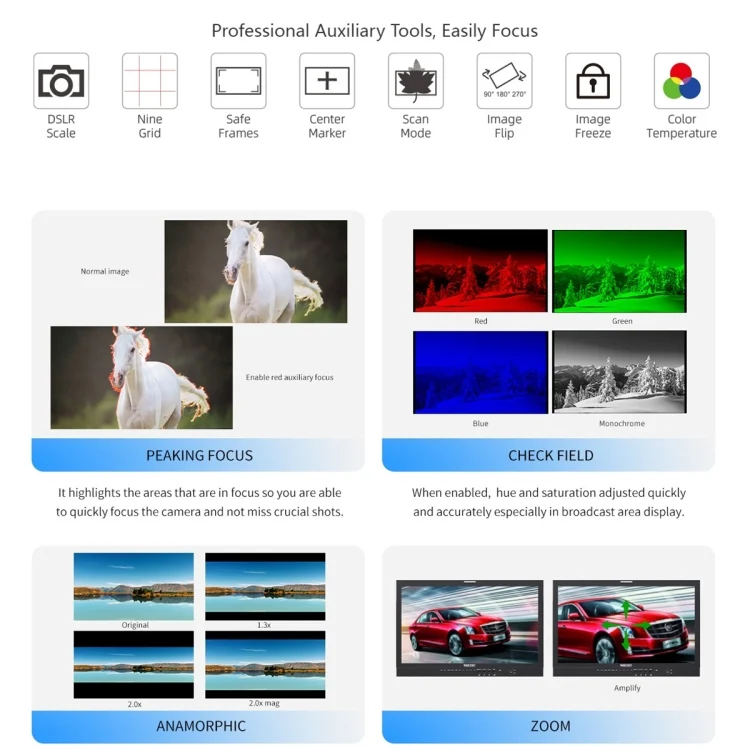

3. Special Features:
– Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
– Check Field (Red, Green, Blue, Mono)
– Camera Mode
– Pixel to Pixel
– Center Marker
– Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
– Image Flip (Horizontal, Vertical, Hor&Ver)
– Image Freeze
– Zoom All
– U/D & L/R Zoom
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker

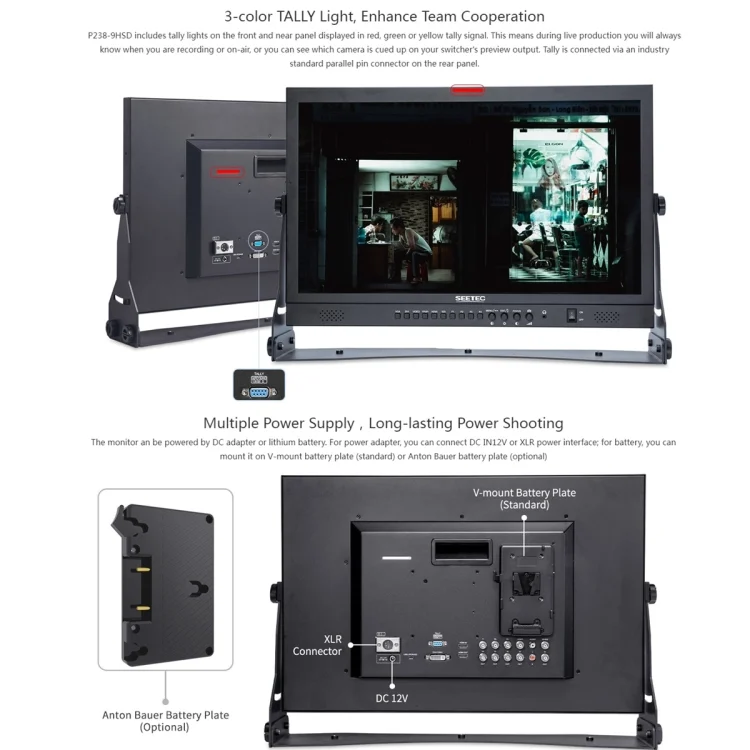

5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR

Specifications:
Display Spec.
1. Model: P238-9HSD

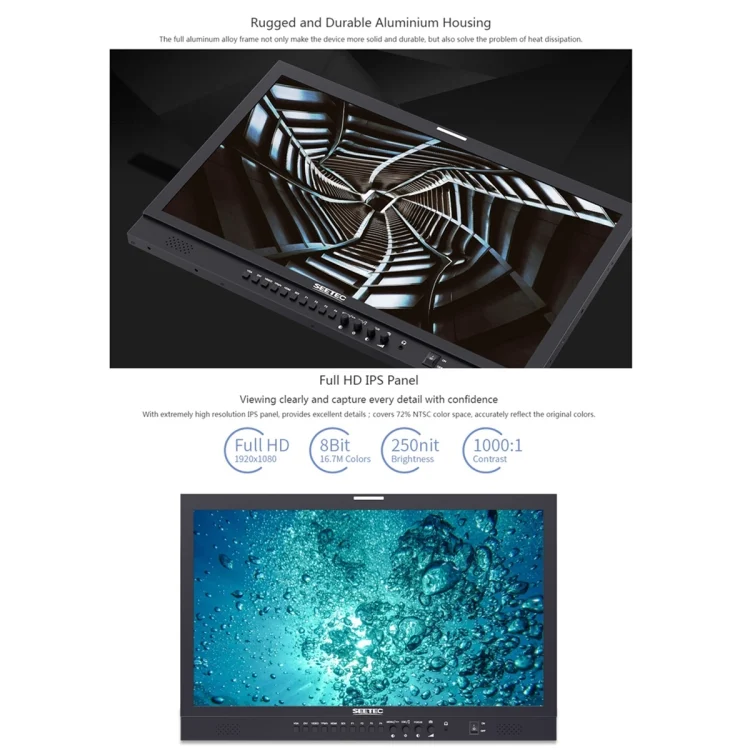

2. Screen Size: 23.8 inch IPS
3. Color Depth: 16.7M (8-bit)
4. Resolution: 1920×1080 pixels
5. Pixel Pitch: 0.2745 (H) x 0.2745 (V)mm
6. Aspect Ratio: 16:9
7. Brightness: 250cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED

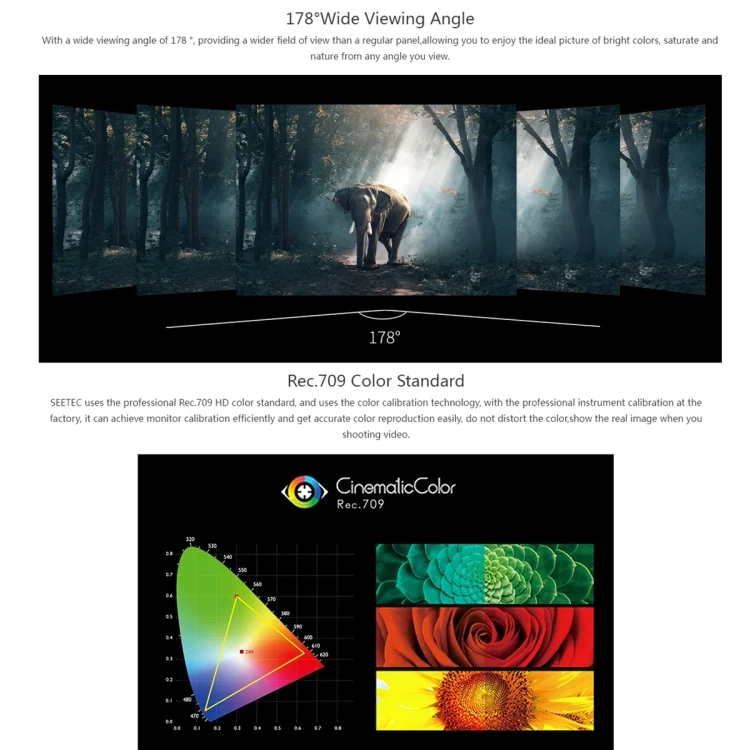

10. Viewing Angle: 89degrees/89degrees/(L/R); 89degrees//89degrees/(U/D)

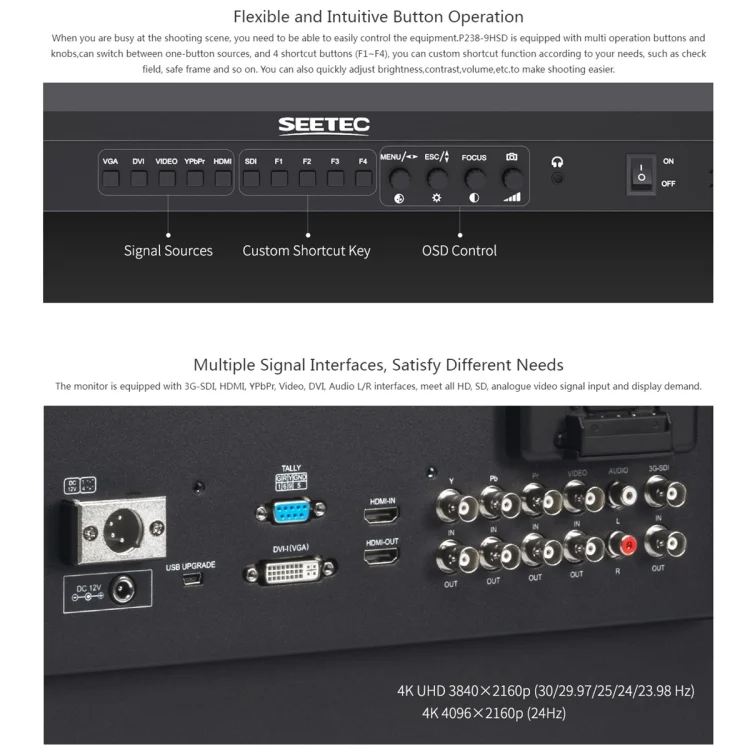

Input
– 1 x BNC: 3G-SDI
– 1 x HDMI: HDMI
– 3 x BNC: YPbPr
– 1 x DVI-I: DVI-I
– 1 x BNC: Video
– 2 x RCA: Audio(L/R)

Output
– 1 x BNC: 3G-SDI
– 1 x HDMI: HDMI
– 3 x BNC: YPbPr
– 1 x BNC: Video

Audio
– Audio: Stereo Headphone, Speaker

SDI Support Format
– 480i/576i
– 720p(60/59.94/50/30/29/25/24/23.98)
– 1080i(60/59.94/50)
– 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
– 480i/576i/480p/576p
– 1080i (60/59.94/50)
– 720p (60/59.94/50/30/29/25/24/23.98)
– 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
– 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)

Standard Accessories:
1. Mini HDMI Cable x 1
2. V Battery Plate (default to mount on device) x 1
3. 3A Power Adapter x 1
4. Tally Kit x 1

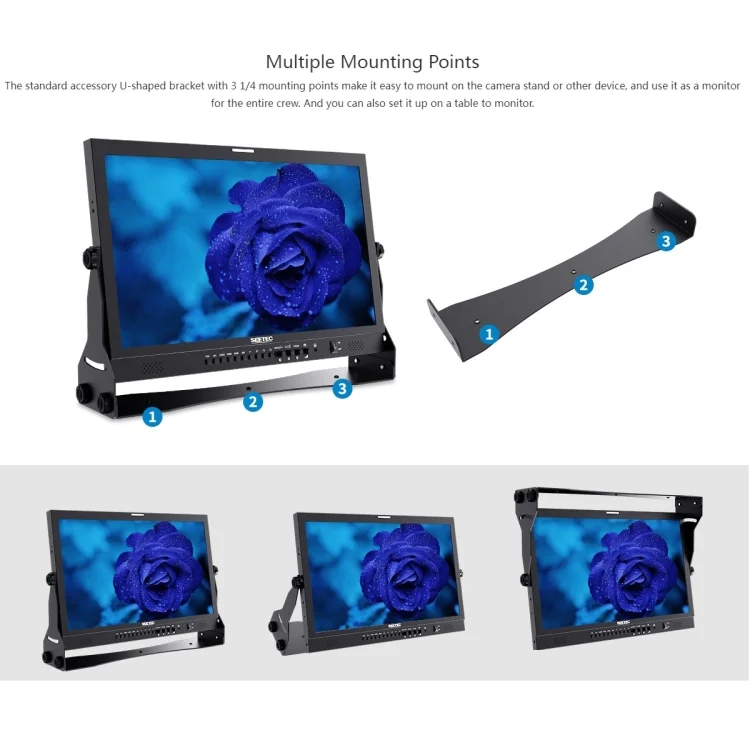

5. U-shape Bracket x 1
6. Operation Manual x 1
