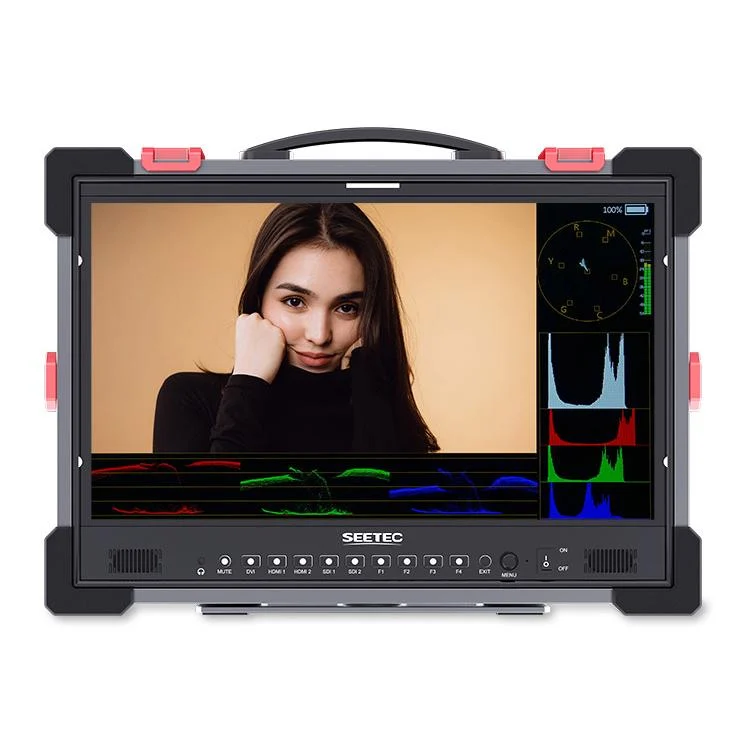

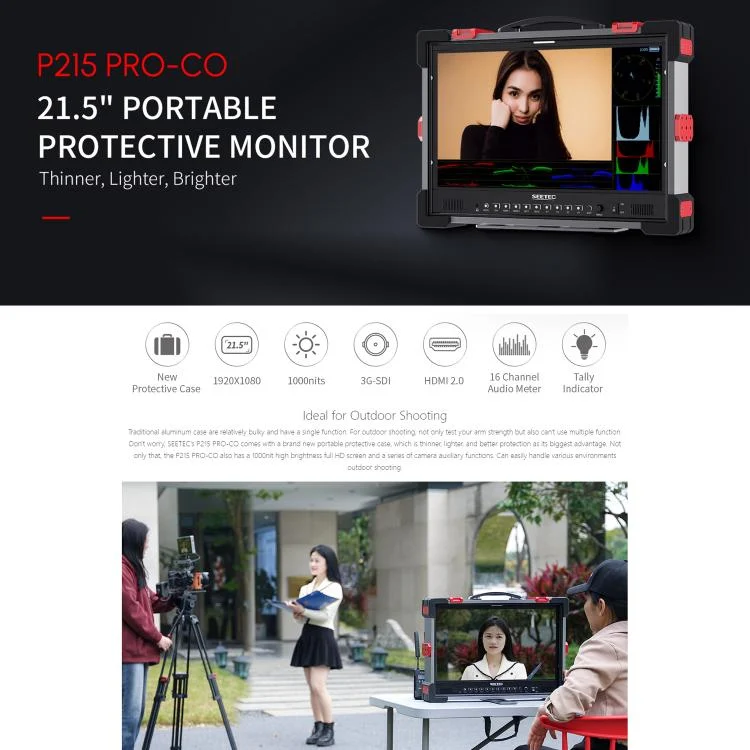

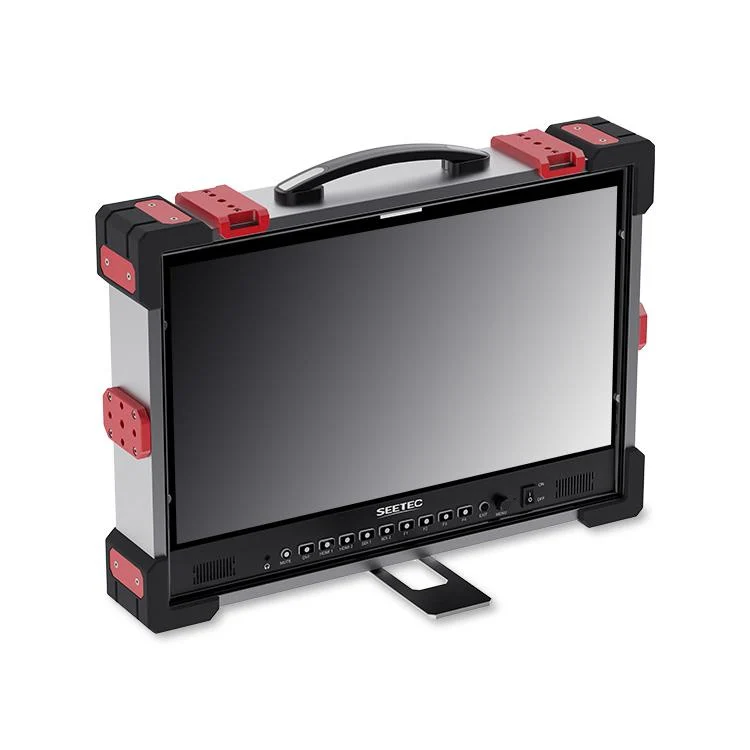

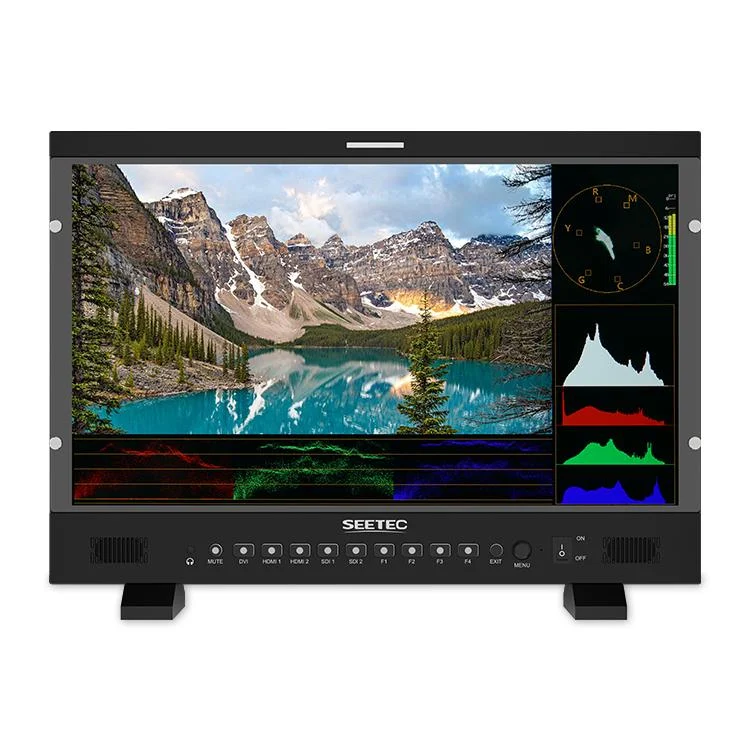

SEETEC P215 PRO-CO 21.5 inch 1000nit High Bright Broadcast Monitor Full HD 1920x1080Monitor

Features

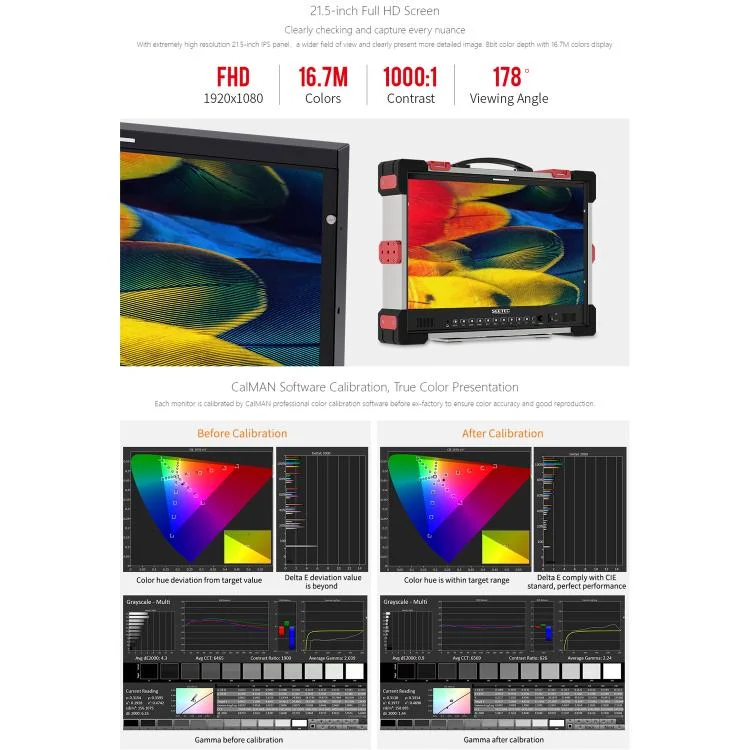

1. 21.5-inch 1920×1080 full HD large screen,view details with confidence

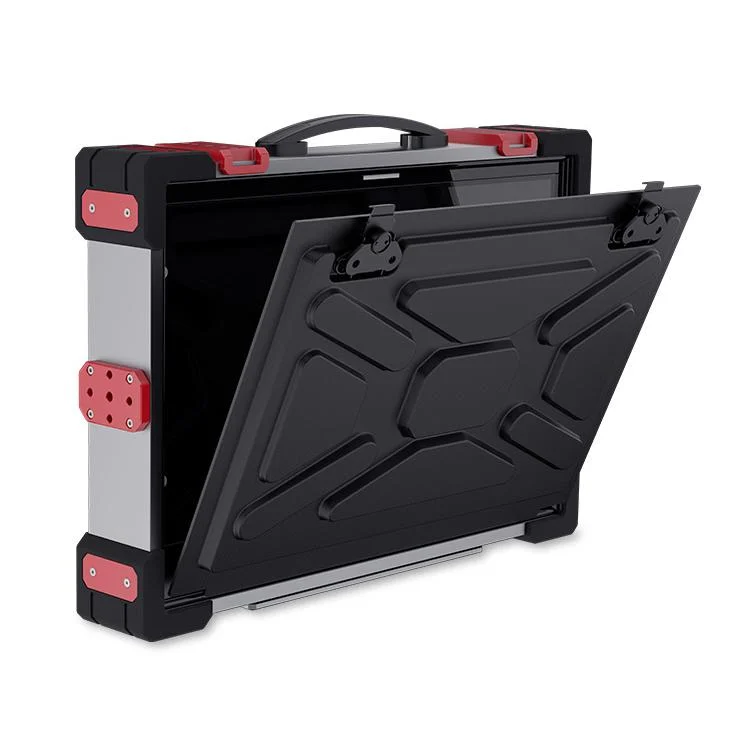

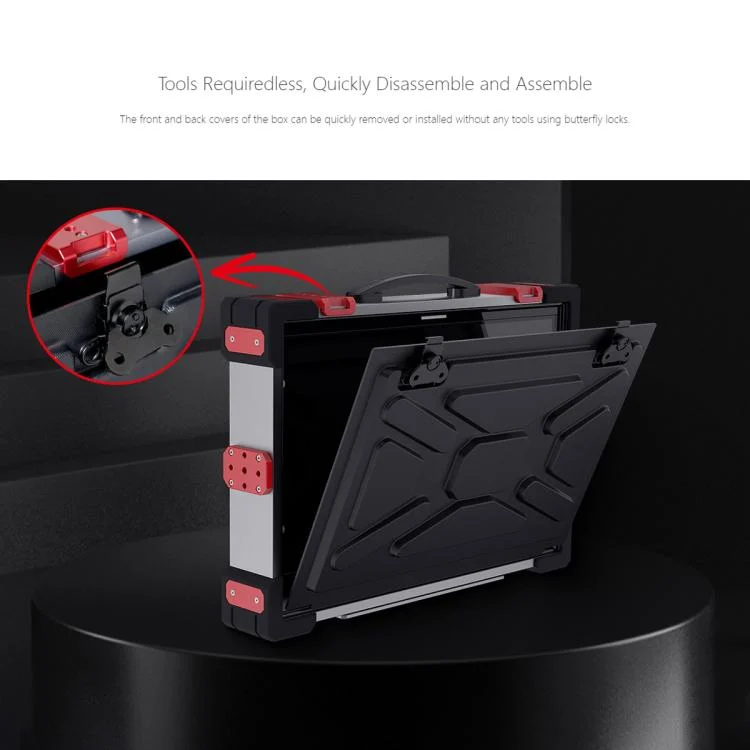

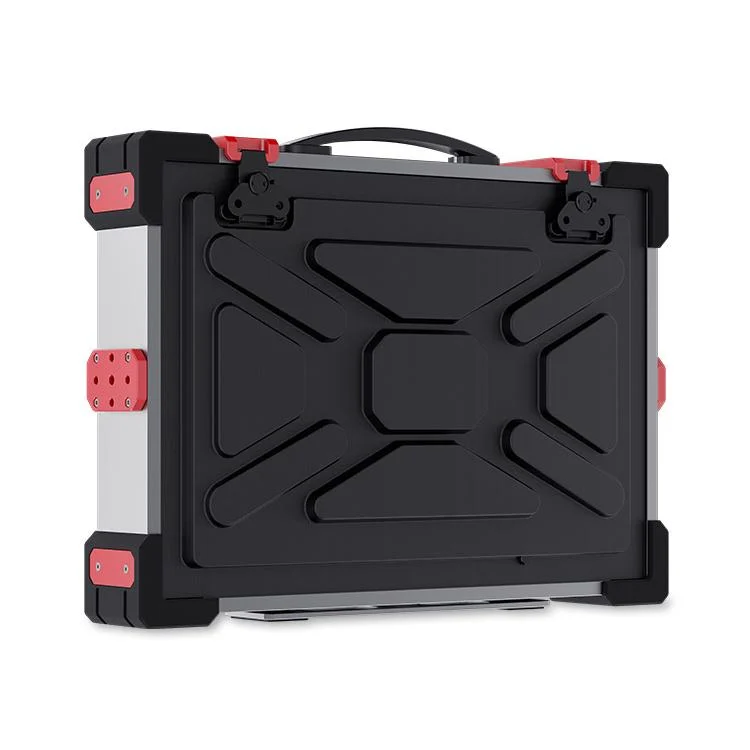

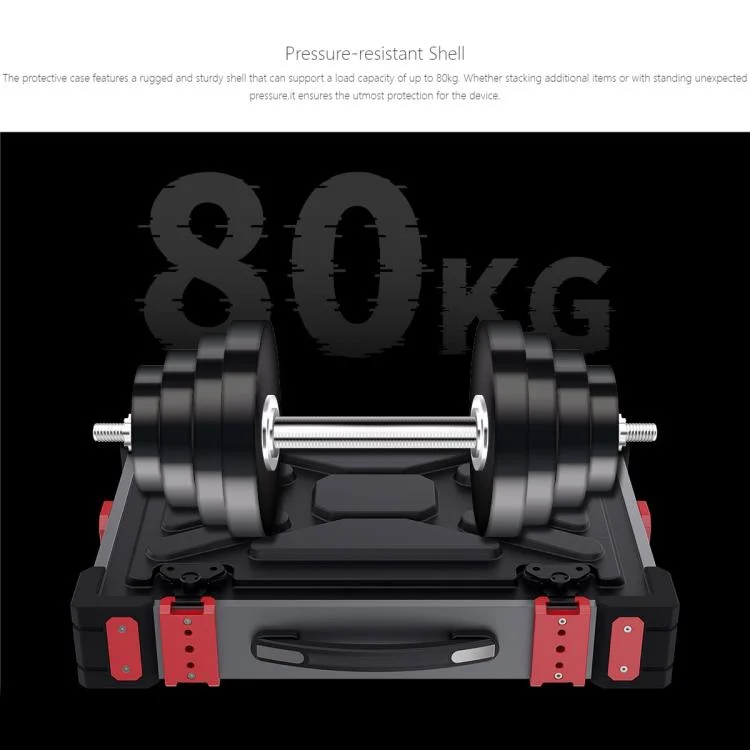

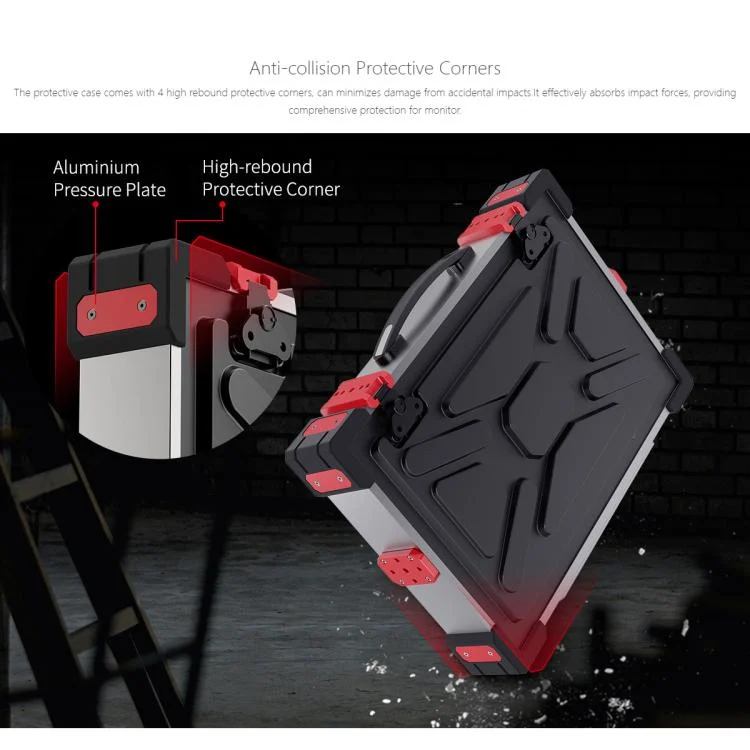

2. Portable protective case, easy to handle various tasks
3. 1000nits high brightness, ideal choice outdoor shooting

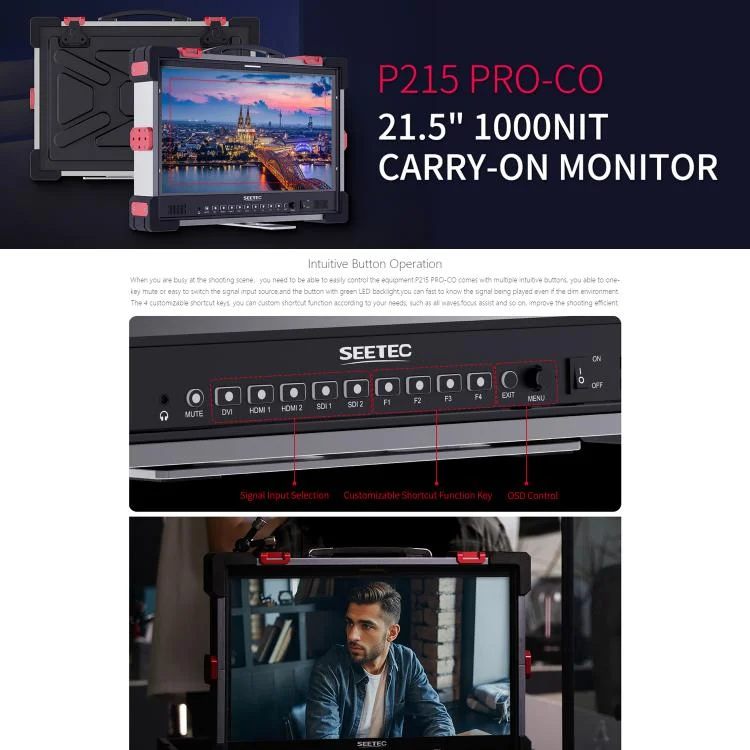

4. Intuitive buttons operation, 4 custom function shortcut buttons to improve work efficient

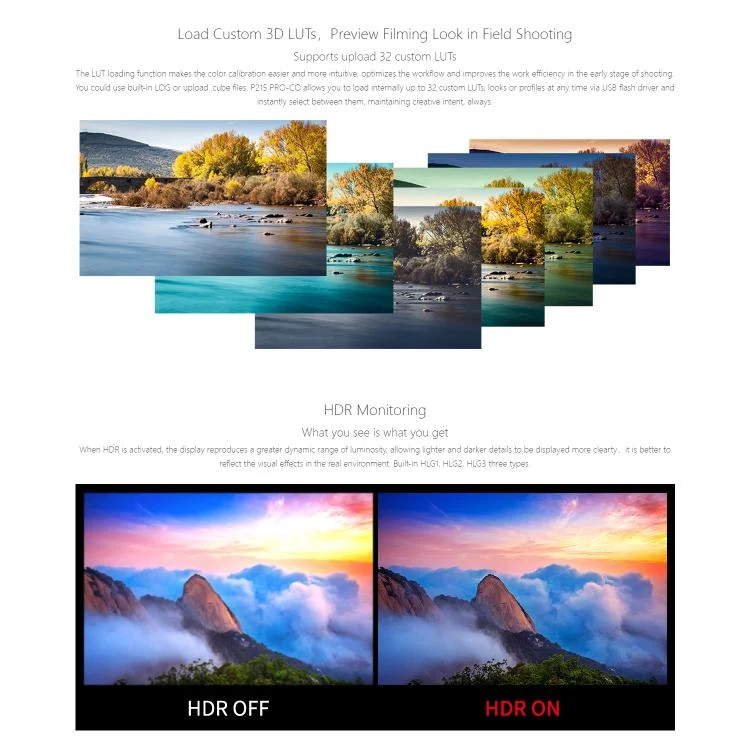

5. Custom 3D-LUT, preview film look
6. Support 4K at 60 HDMI Input and Output
7. Under HDMI signal the audio meter level can be display max 8 channels; under SDI signal can be display max.16 channels
8. HDR monitoring, what you see is what you get
9. Built-in front and rear Tally light, enhance team cooperation

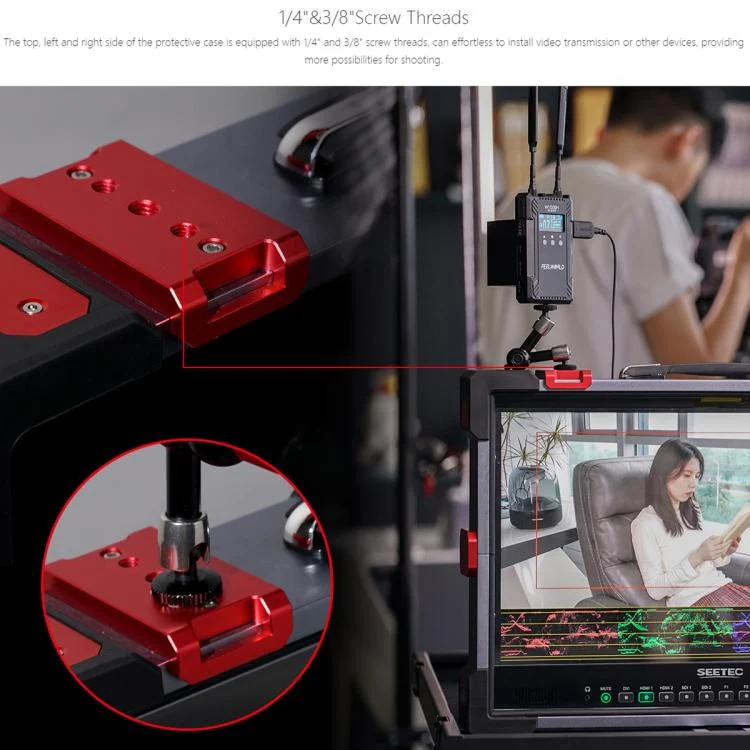

10. The top, left, and right side of the protective case are equipped with 1/4 inch and 3/8 inch screw threads, which can be used to install video transmission or other devices
11. Stereo Earphone output

Functions

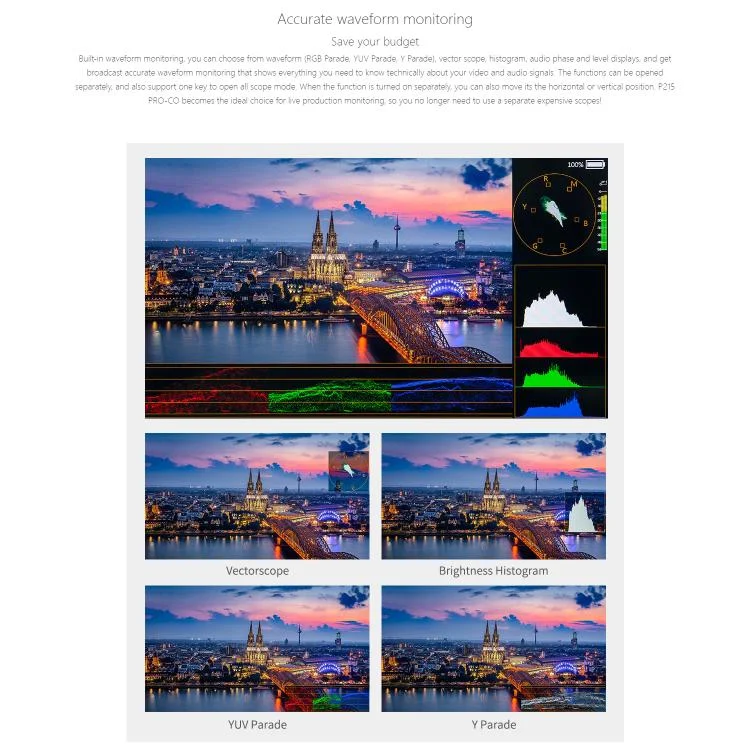

1. All waves (waveform, vector, histogram and embedded audio)
2. Waveform (RGB, YUV, Y)
3. Vector
4. Histogram (RGB1, RGB2, Y)

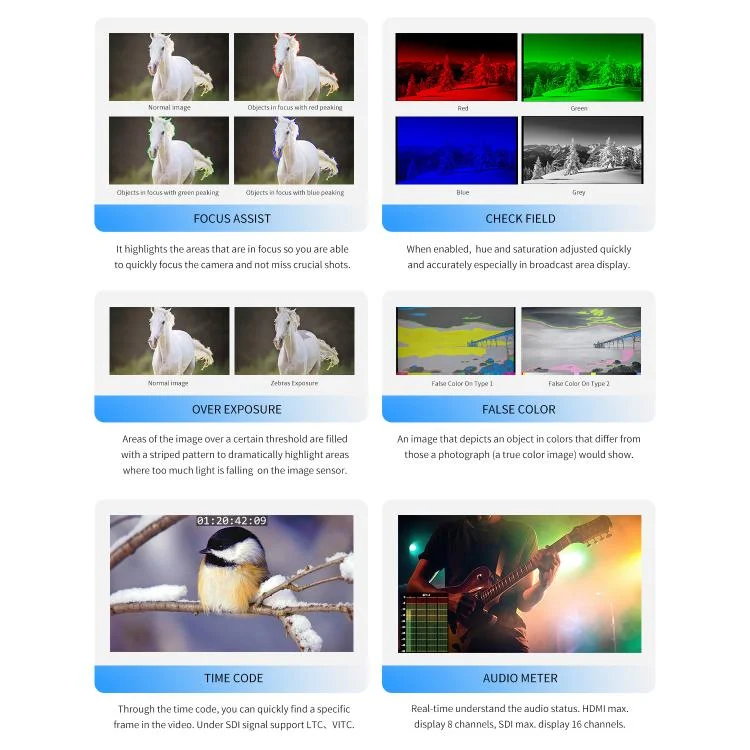

5. Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus; focus level 1~10)
6. Embedded Audio (HDMI signal with pr1, gp1, gp2, gp12 modes; SDI signal with pr1, gp1, gp2, gp12, gp3, gp4, gp14 modes)
7. Over Exposure (10IRE~100IRE)
8. Check Field (Red, Green, Blue, Gray)
9. False Color (Normal, ARRI)
10. Time Code (LTC, VITC) for SDI
11. Grids (2×2, 3×3, 4×4, 5×5, 6×6, 7×7, 8×8, 9×9)
12. Safe Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
13. Center Marker
14. Ratio Marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
15. Scan Mode (Under Scan, Over Scan)
16. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
17. Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User.Under User, you can custom adjust nx 1.20x~2.00x)
18. Image Flip (H Flip, V Flip, H_V Flip)
19. Zoom Mode(2X, 4X, 9X, 16X, User. Under User, you can adjust 100~200 percent)
20. Image Freeze
21. Pixel to Pixel
22. 3D-LUT(built in SLOG2, SLOG3, LOGC; support upload custom LUTs up to 32)
23. HDR (HLG1, HLG2, HLG3)
24. Display Adjustment (can be adjust screen Backlight, image brightness, contrast, saturation, Tint 0~100)
25. Colortemp (5600K, 6500K, 9300K, User)

Specifications
Display Screen:
1. Model: P215 PRO
2. Screen Size: 21.5 inch IPS
3. Color Depth: 16.7M
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.24795 (W) X 0.24795 (H) mm
6. Aspect Ratio: 16:9
7. Brightness: 1000cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED
10. Viewing Angle: 89 degrees /89 degrees (L/R) 89 degrees / 89 degrees (U/D)

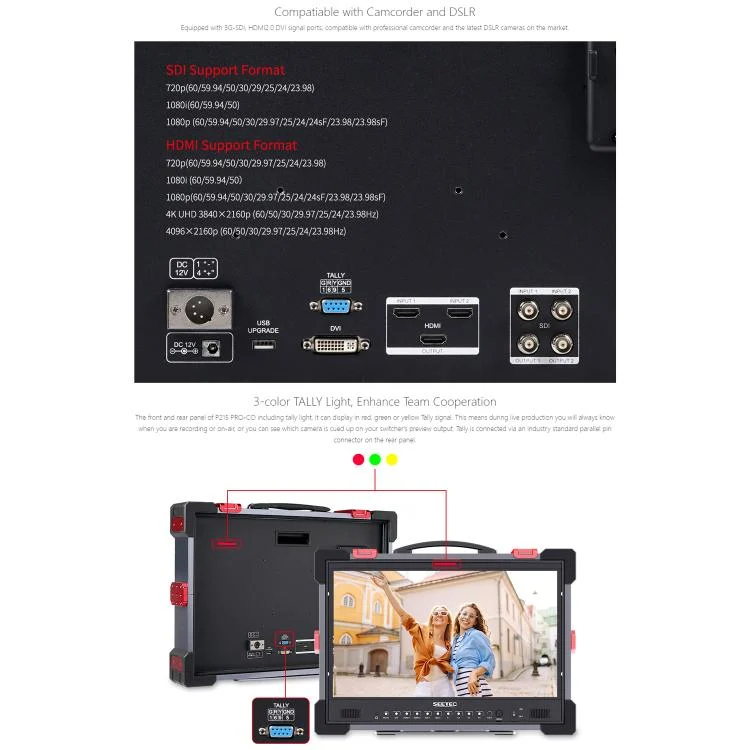

Input:
1. 2 x 3G-SDI: 3G-SDI
2. 2 x HDMI: HDMI-A
3. 1 x DVI: DVI-I
4. 1 x Tally: 9 pin
5. 1 x USB: USB (upgrade and LUT import)

Output:
1. 2 x 3G-SDI: 3G-SDI
2. 1 x HDMI: HDMI-A

Audio:
Audio: Stereo Headphone

SDI Support Format:
1. 720p (60/59.94/50/30/29/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

HDMI Support Format:
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/23.98)
4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98Hz)
5. 4K 4096 x 2160p (60/50/30/29.97/25/24/23.98Hz)

General:

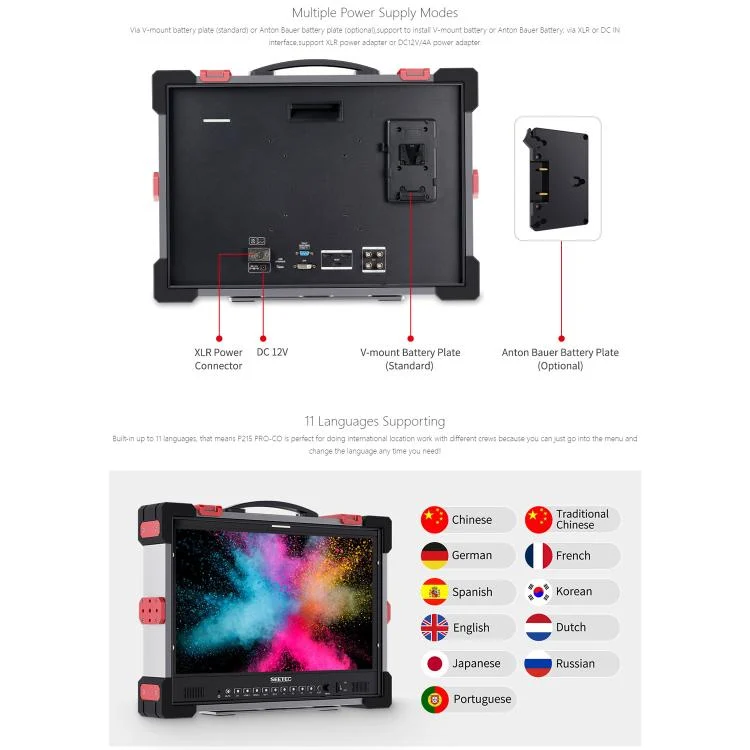

1. Input Voltage: DC 12V
2. Power Consumption: Less than or equal to 44W
3. Working Temperature:0 degree C~50 degree C
4. Storage Temperature:-20 degree C~60 degree C
5. Unit Size: 553.5 x 394.5 x 115mm
6. Unit Weight: 9.25kg

Package List
1. Monitor x 1
2. 4A Power Adapter x 1
3. Tally Kit x 1
4. V-mount Battery Plate (default to mount on device) x 1
5. Mini HDMI Cable x 1
6. HDMI Cable x 1
7. SDI Cable x 1
8. User Manual x 1
