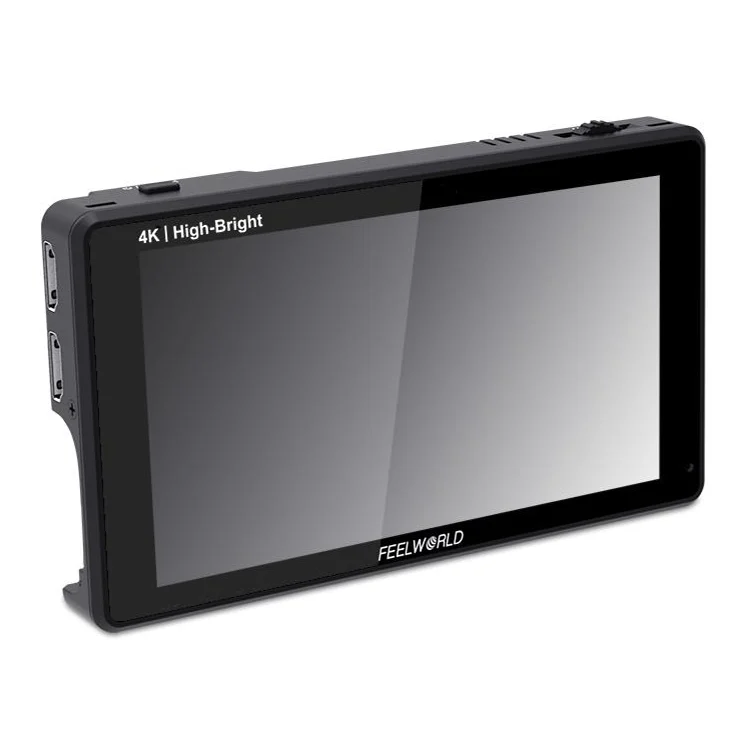

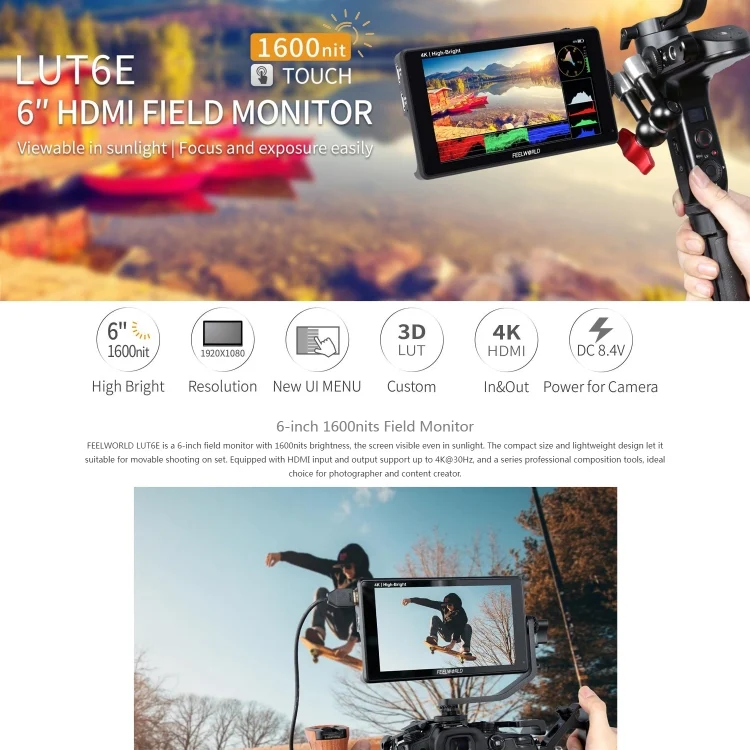

FEELWORLD LUT6E 6 inch 1600nits Touch Screen DSLR Camera Field Monitor Full HD1920x1080 IPS

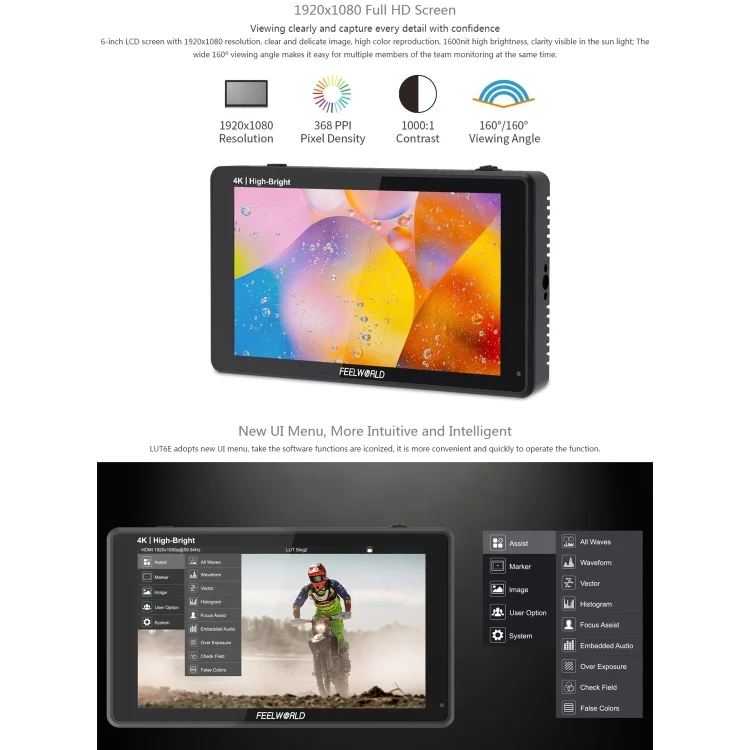

Display Spec.
1. Model: LUT6E
2. Screen Size: 6 inch IPS
3. Resolution: 1920×1080 pixels
4. Pixel Pitch: 0.069 (L) x 0.069 (W) (mm)
5. Aspect Ratio: 16:9
6. Brightness: 1600cd/m2
7. Contrast Ratio: 1000:1
8. Backlight: LED
9. Viewing Angle: 80 degree / 80 degree (L/R) 80 degree / 80 degree (U/D)

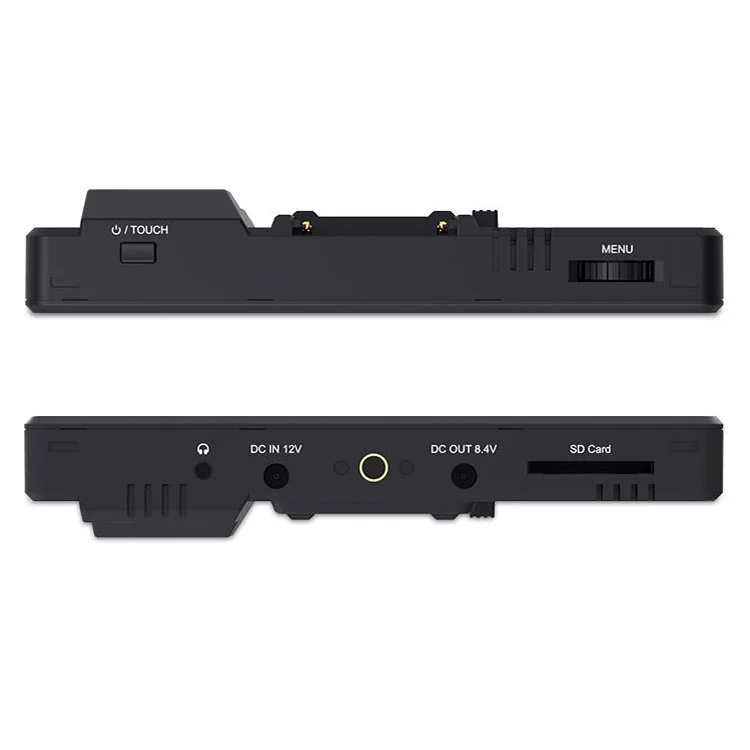

Input
– 1 X HDMI: HDMI

Output
– 1 X HDMI: HDMI
– 1 X DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio
– Audio: 3.5mm Stereo Headphone

HDMI Input/ Output Support Format
1. 480i/576i/480p/576p
2.1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29.97/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 3840x2160p (30/29.97/25/24/23.98)
6. 4096x2160p (30/29.97/25/24/23.98)

General
1. Input Voltage: DC7~24V
2. Power Consumption: Less than or equal to 10W
3. Working Temperature: -20 degree C~50 degree C
4. Storage Temperature: -30 degree C~60 degree C
5. Install Way: 1/4-20 Thread Socket (Right, Bottom)

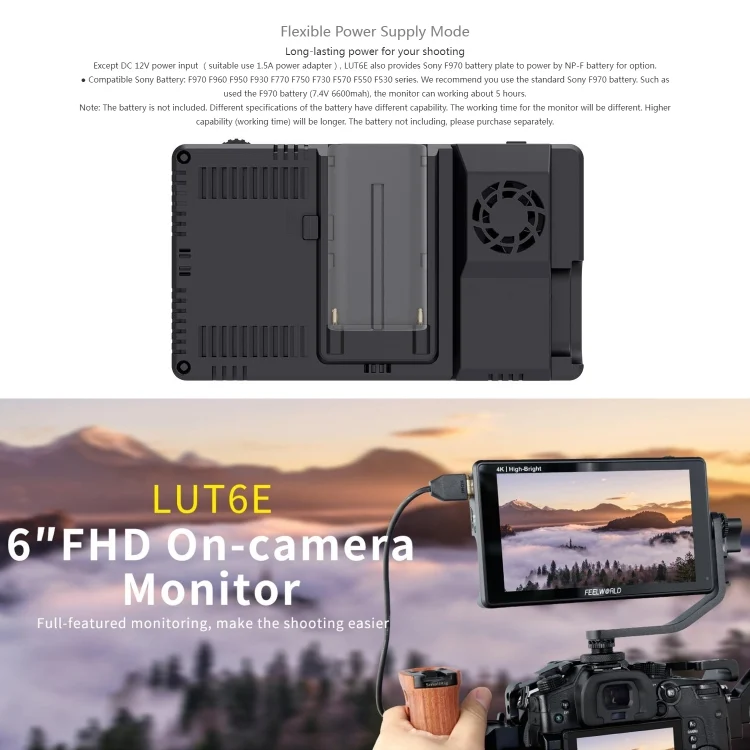

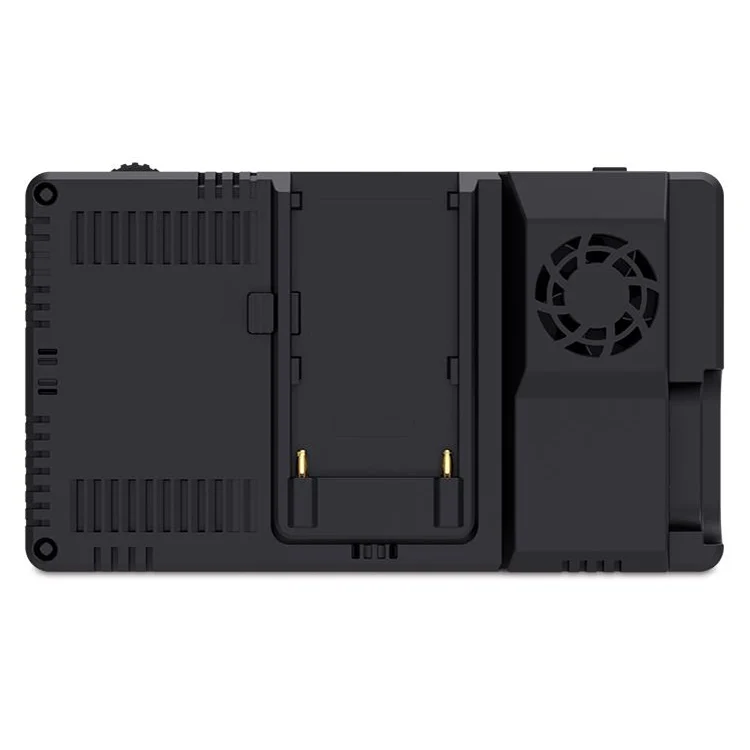

6. Battery Plate: F970 Battery Plate
7. Unit Size: 162Lx93.2Hx29D(mm)
8. Unit Weight: 300g
Note: When you turn off the monitor, you need to press the power button, and you can not pull out the power cable directly.

Advanced Features
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload

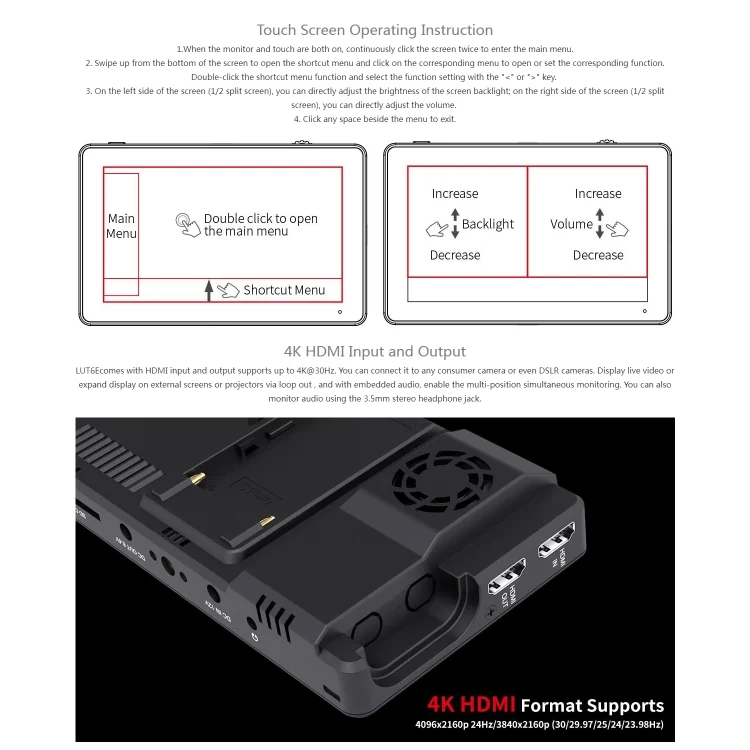

2. Support Touch Menu

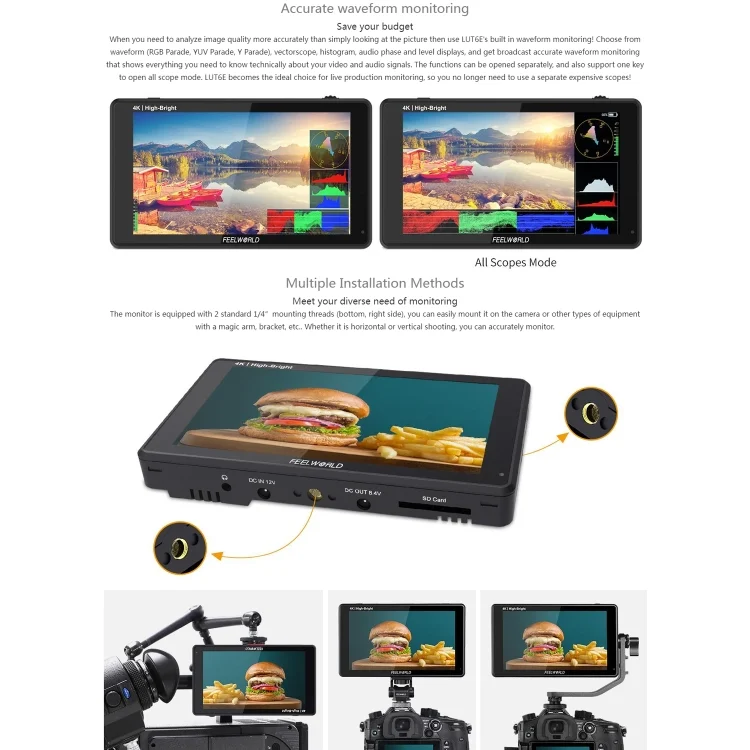

3. Parade (RGB, YUV, Y)
4. All Waves
5. Vector
6. RGB Histogram
7. Brightness Histogram
8. Embedded Audio
9. Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
10. False Colors
11. Zebra Exposure (10%~100% adjustable)
12. Check Field (Red, Green, Blue, Gray)
13. Scan Mode (Under Scan, Over Scan)
14. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG)
15. Image Flip (H, V, H/V)
16. Image Freeze
17. Center Marker
18. Safety Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
19. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
20. Marker Color (red, green, blue, white, black, gray)
21. Color Temperature Adjustment (5600K,6500K,9300K)
22. Nine Grid
23. Zoom Mode (2X,4X,9X,16X)
24. Aspect Ratio
25. Pixel to Pixel

Package List:
1. Monitor x 1
2. Mini/ Micro HDMI to HDMI Cable x 1

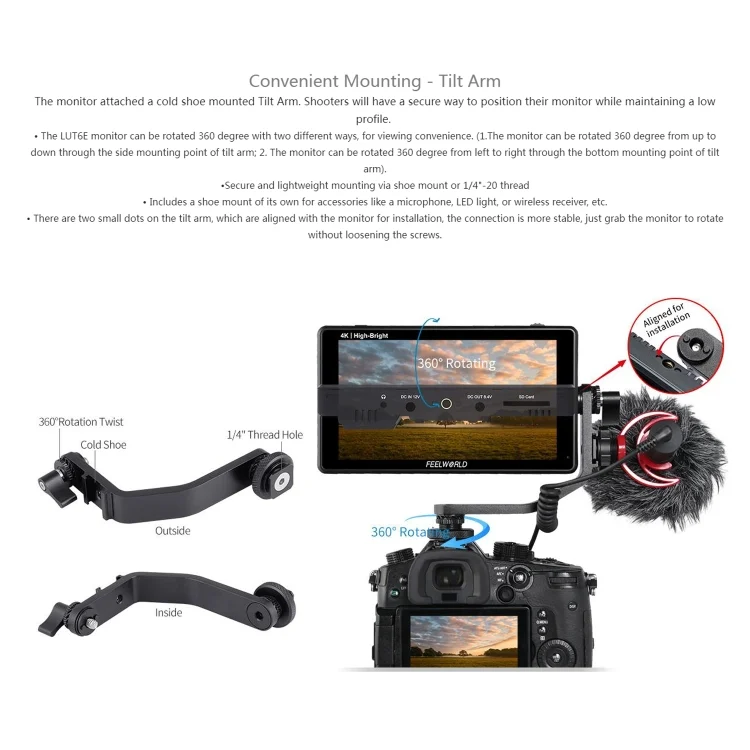

3. Tilt Arm x 1
4. Manual x 1
