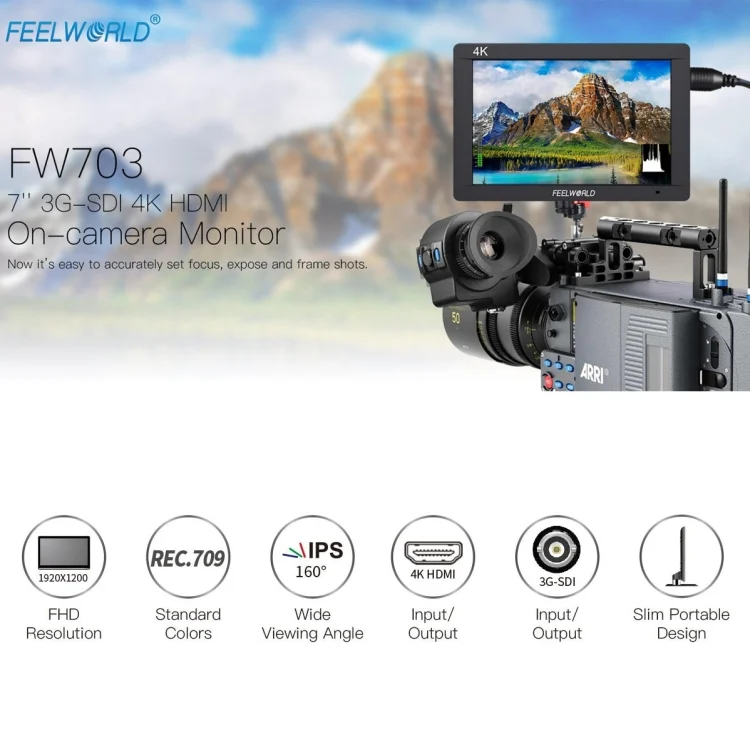

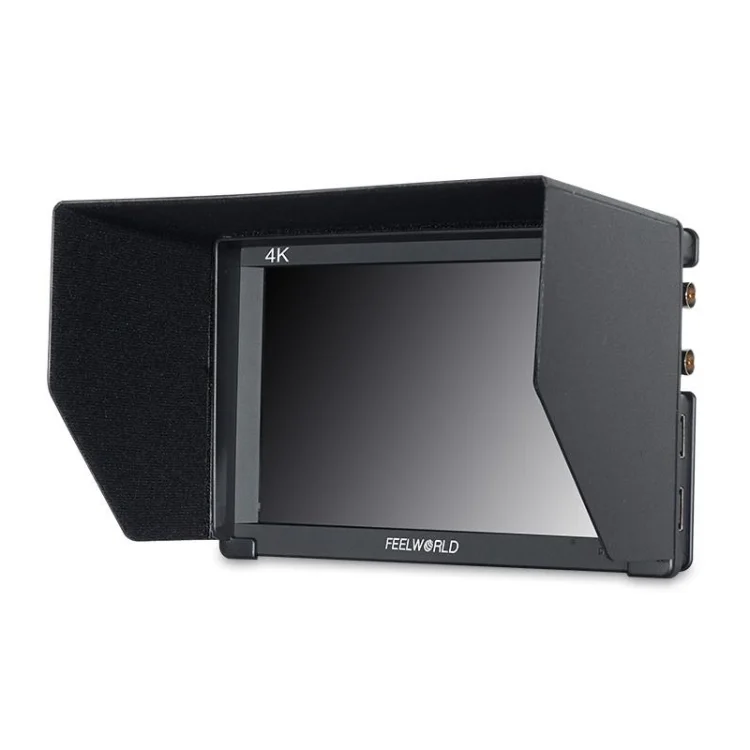

FEELWORLD FW703 1920×1200 7 inch IPS Screen HDMI 4K SDI Broadcast Camera Field Monitor

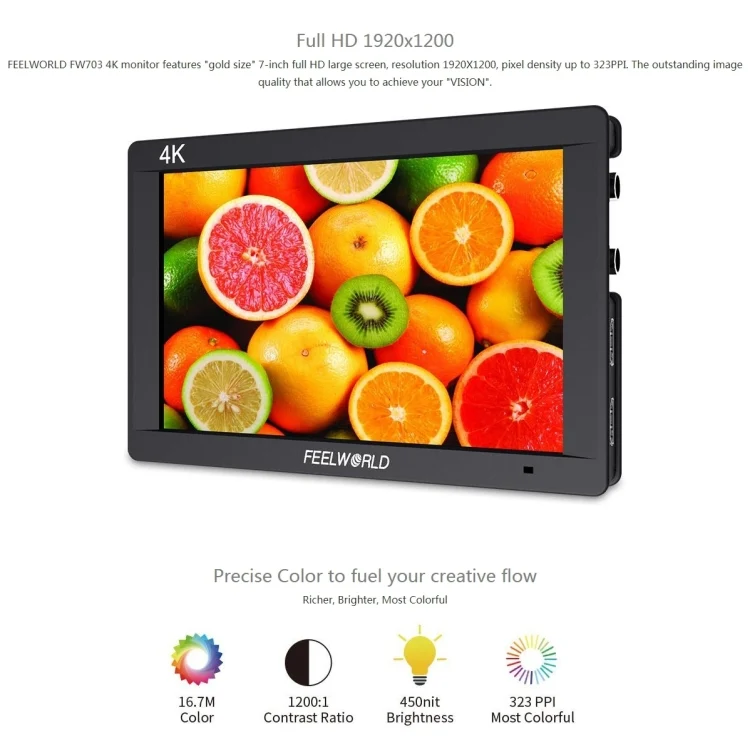

1. Using a 7-inch full HD large screen with a resolution of 1920X1200 and a pixel density of up to 323PPI, with excellent image quality
2. With an IPS 160-degree ultra-wide viewing angle, the photographer can easily obtain a clear picture when adjusting the position
3. Adopting a robust and lightweight design, very small and exquisite, the body thickness is only 20.5mm, and the weight is only 445g. F7S makes it more convenient for you to use and carry out, and you can easily monitor the screen anywhere.

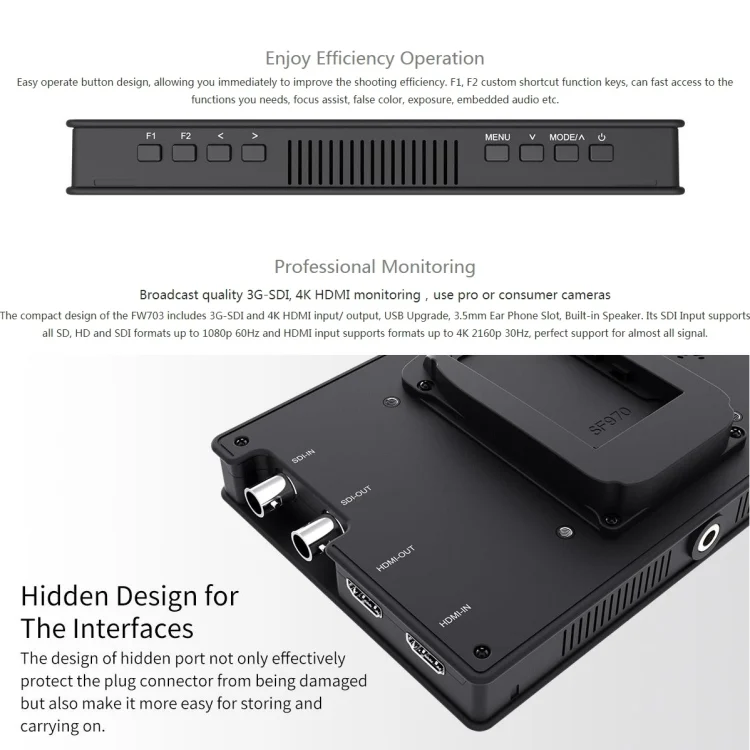

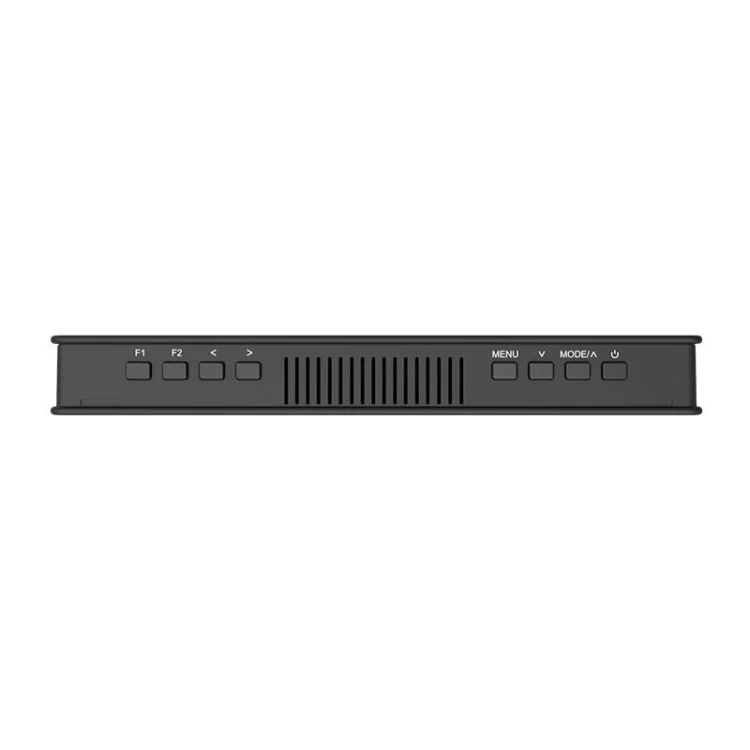

4. The simple and easy-to-operate button design allows you to use it immediately without serious thinking during busy shooting, which improves shooting efficiency

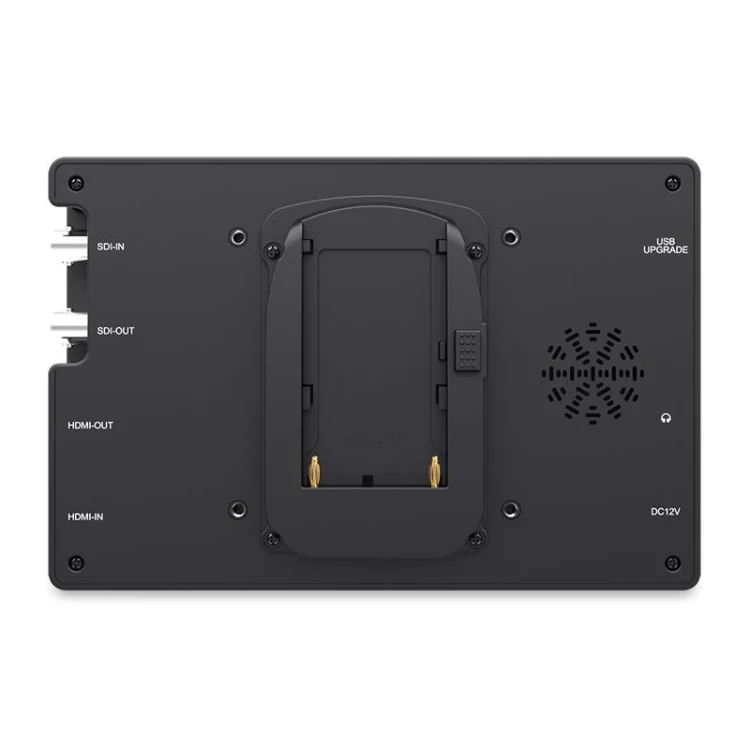

5. Designed with 3G-SDI/ 4K HDMI input and output interface, USB upgrade port, 3.5mm stereo headphone jack, built-in speaker. The SDI interface supports SD, HD, 3G formats up to 1080p 60Hz, and the HDMI interface supports 4K 2160p 30Hz, supporting almost all signal formats

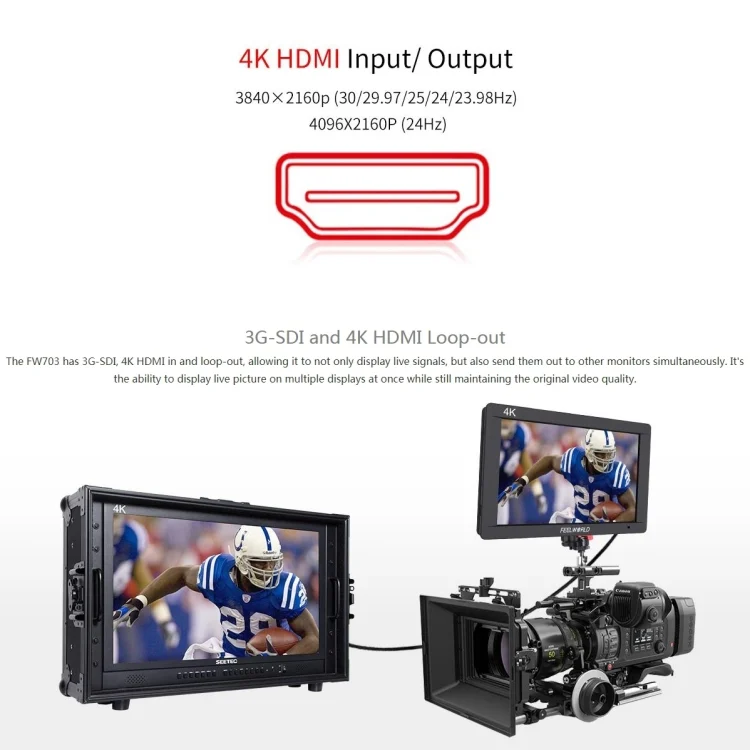

6. Support 3G-SDI and 4K HDMI signal loop out, and can output 3G-SDI and HDMI video source signals to other devices simultaneously, which is convenient for the director and photographer to watch at the same time

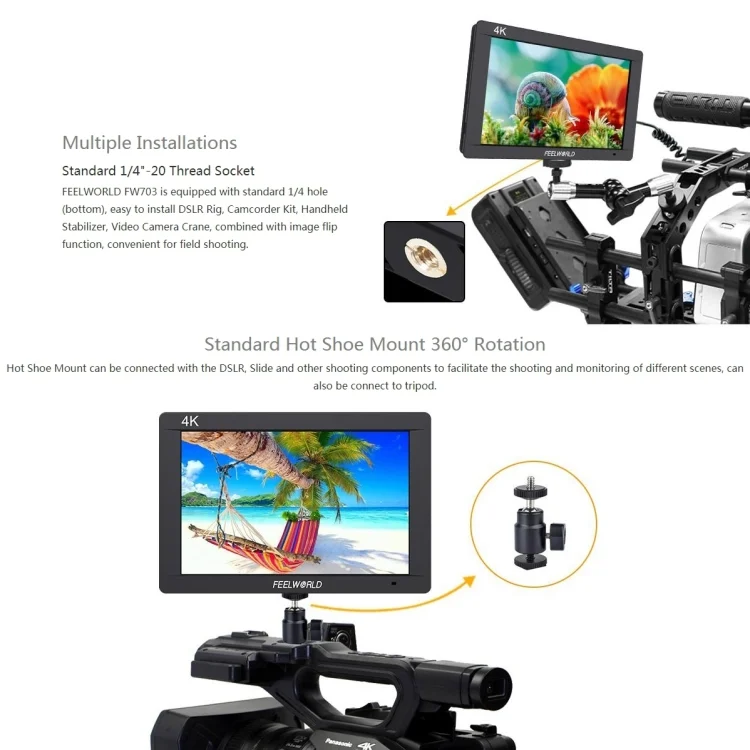

7. Equipped with standard 1/4 hole at the bottom, easy to install PTZ, strange hands, etc., combined with the image flip function, convenient for flexible shooting on site
8. The pan/tilt can be connected to a SLR and a monitor, and can be used with extended shooting components such as slide rails to facilitate shooting and monitoring of different scenes. It can also be used with a tripod for shooting

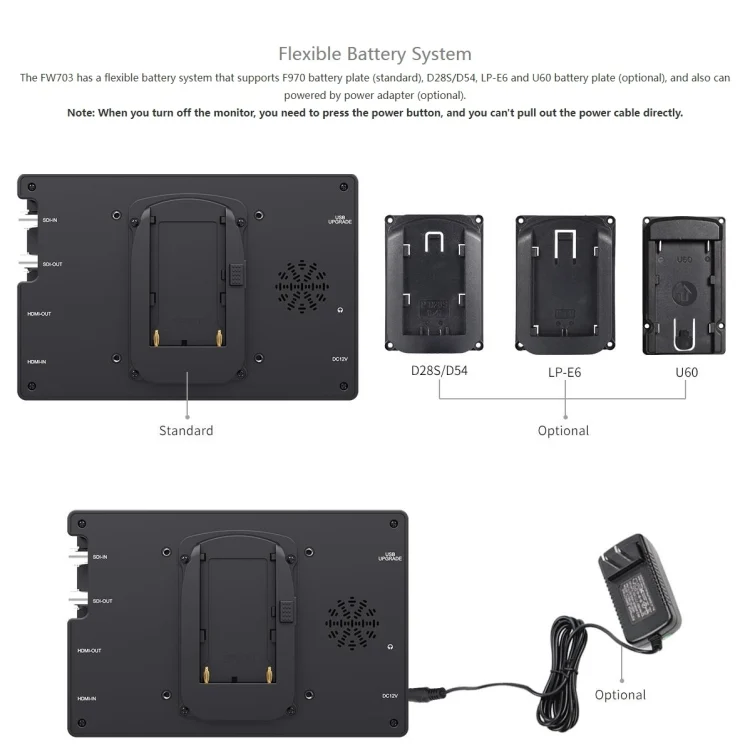

9. There is a 12V DC power hole, which can support power supply by power adapter (optional); it can also be directly installed for battery power supply, supporting F970 (standard), D28S/D54, LP-E6 and U60 (optional). Gusset to choose
10. Dot pitch: 0.07875×0.07875(mm)
11. Screen ratio: 16:10
12. Brightness: 450cd/square meter
13. Contrast ratio: 1200:1
14. Input signal: SDI, HDMI
15. Output signal: SDI, HDMI, headphone jack, speaker
16. Single machine size: 180x120x20.5(mm)
17. Accessories: 1*mini HDMI cable, 1*sun visor, 1*small pan/tilt, 1*F970 battery gusset, 1* manual
